12,500 LPH Raw Fresh Milk Skid Mounted HTST Pasteuriser Plant (Year 2021)

Description

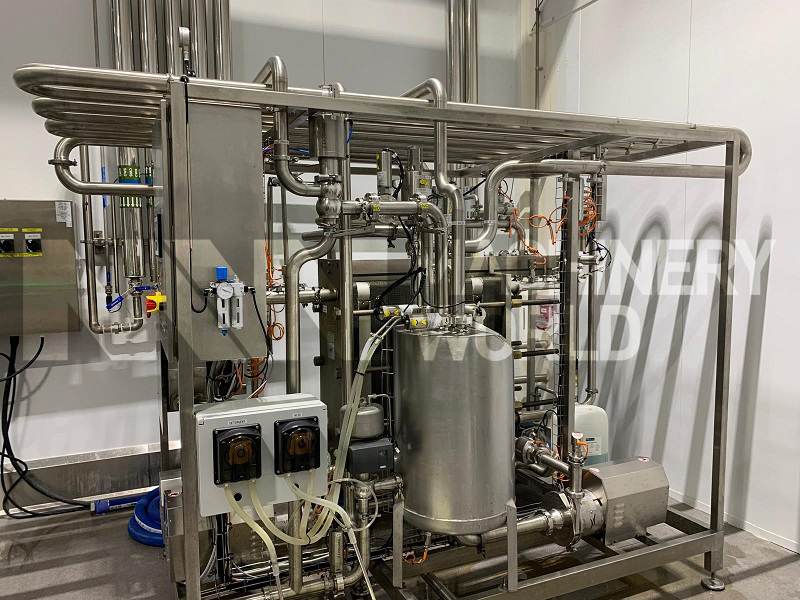

This is a very sparingly used fully automatic HTST Pasteuriser Plant with Pasteuriser sequencing with automatic stop and CIP flushing after Pasteurisation. Automatic CIP with Detergent/Acid controlled wash, rinse and flushing program. This Raw Milk Pasteuriser Plant has a capacity of 12,500 LPH Milk, with Milk infeed temperature at 3°C, then heating to 73/75°C by regeneration using hot water, holding for a minimum of 16 seconds for Pasteurisation and finally cooling to 3°C by regeneration and Chilled Water, supplied by a 116kw ICS Chilled Water Plant.

Note: Technical Specification shown in ‘Download Doc’, is for information purpose only. Specification of the actual equipment listed, might vary to what’s shown on the downloadable technical specification, as it might have been modified by its previous user.

Specification

Pasteuriser:

• Make: Arsopi Thermal, Portugal
• Model: CH10-HP2C-291
• Year of Manufacture: 2021
• Capacity: 12,500 LPH on Fresh Raw Milk
• Plate Material of Construction: 316 Grade Stainless Steel
• Number of Sections: 3 Sections

Inclusions:

• Centrifugal Pump for Product
• Hot Water Pump

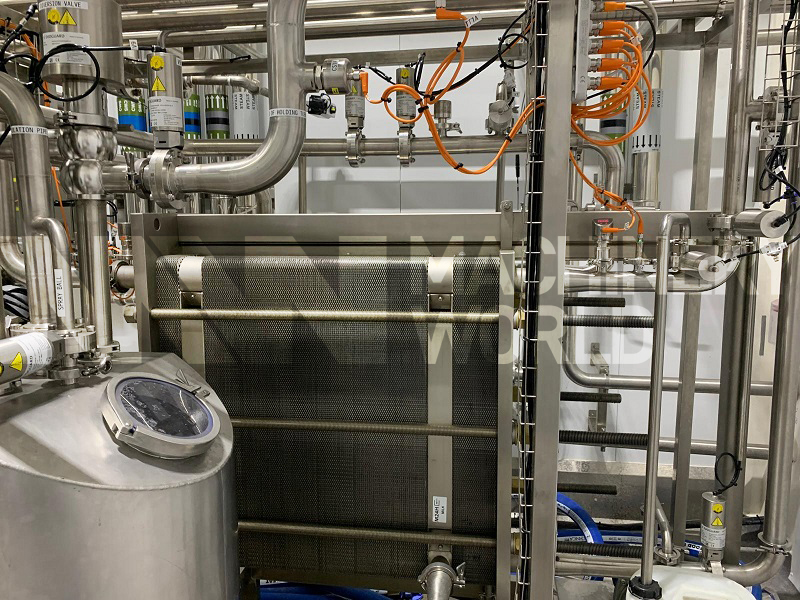

• 12,500 LPH HTST Arsopi Milk Pasteuriser Heat Exchanger
• Automatic heating control valve
• Holding Tube with minimum 16 sec Holding Time
• Stainless Steel Skid Mounted

• Balance Tank with Automatic Level Controls
• Automatic Flow Diversion Valve
• Automatic Water inlet valve
• Automatic Drain/Flushing Valve
• Automatic milk Inlet Valve
• Automatic Hot Water Control Valve
• Detergent and Acid Pumps
• Conductivity Sensor for checking concentration levels of Detergent
• Level Sensors
• Level Transmitter
• Automatic CIP Draining Valve

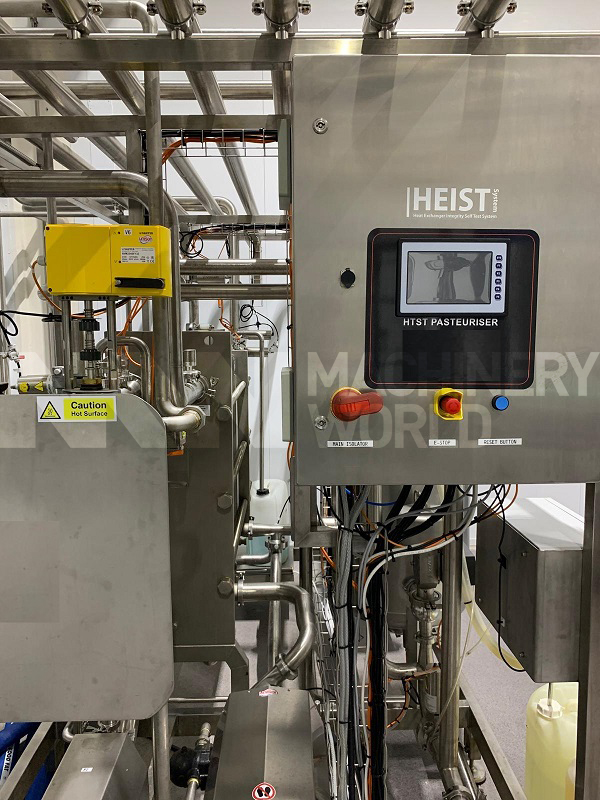

Control Panel:

• Main Isolator Switch
• 380/400 V Power Supply / 24V DC Power Supply

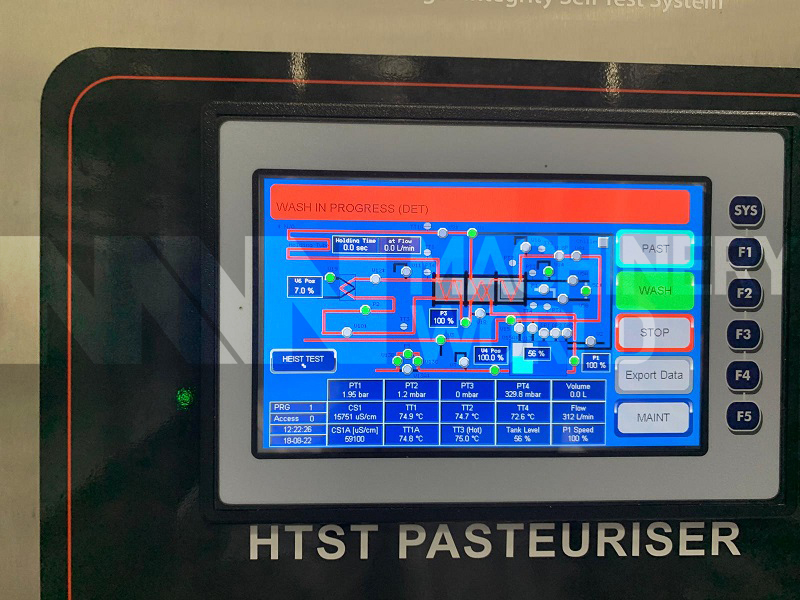

• Main Control PLC with Touch Screen 7” HMI
• Air Solenoid Control Manifold
• Front mounted USB port for data logging and recording info
• Hot Water Temperature Control
• Safety overheat contractor for heating element
• Starter for hot water circulation pump
• Inverter/VSD for Pasteuriser product pump
• Control for product divert and drain valve

Chiller Plant:

• Make: ICS Chiller
• 116kw Chiller to Cool 12,500 Litres of Milk
• Fluid Type: Water/Glycol
• Fluid Supply Temperature: 1C

Type:

• Completely Stainless Steel Skid Mounted Raw Milk HTST Pasteuriser Plant. Can be modified to work as a standard Milk Pasteuriser Plant or Cheese Milk Pasteuriser Plant (Cheese Production)
