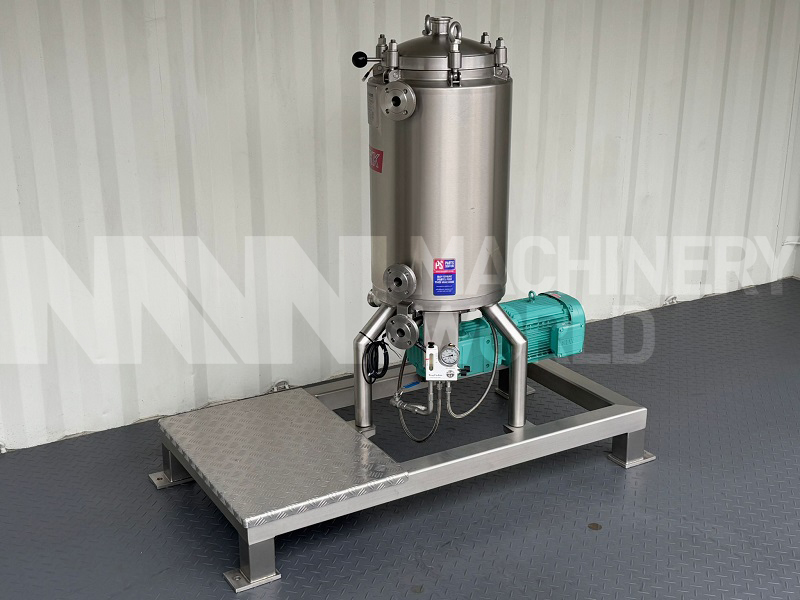

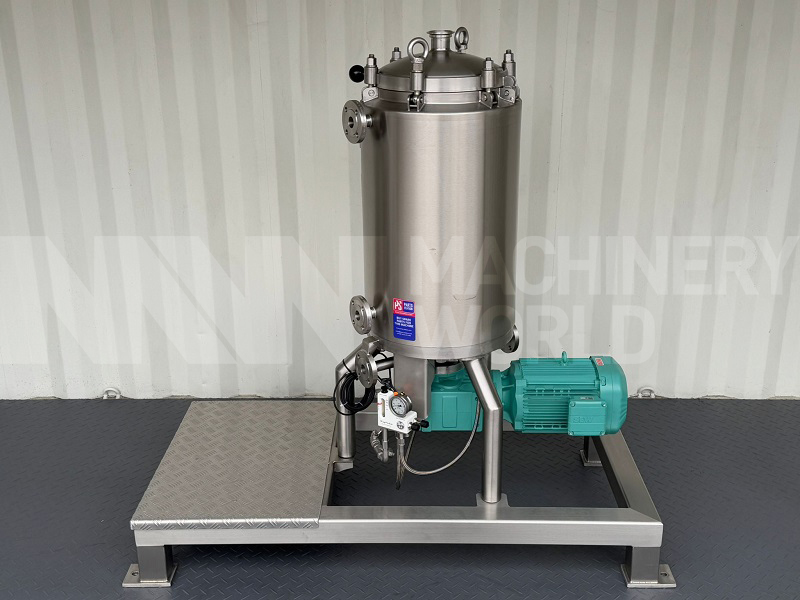

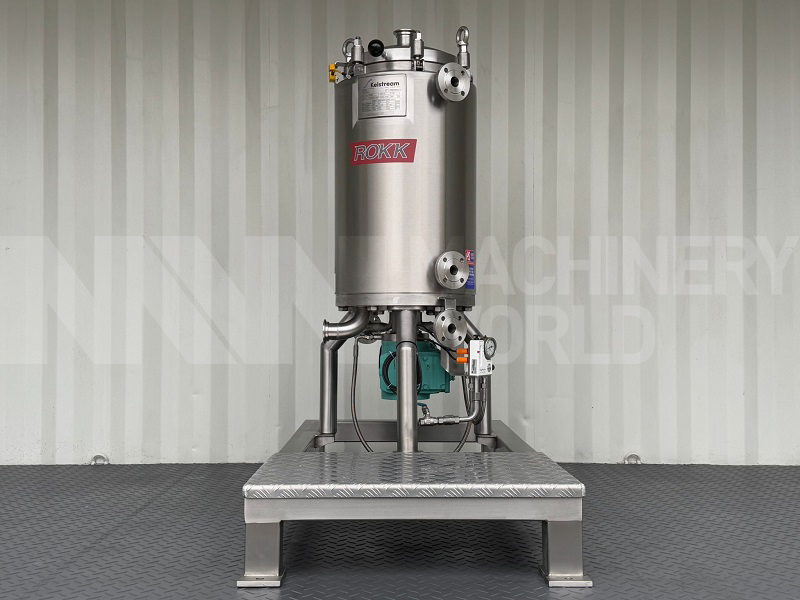

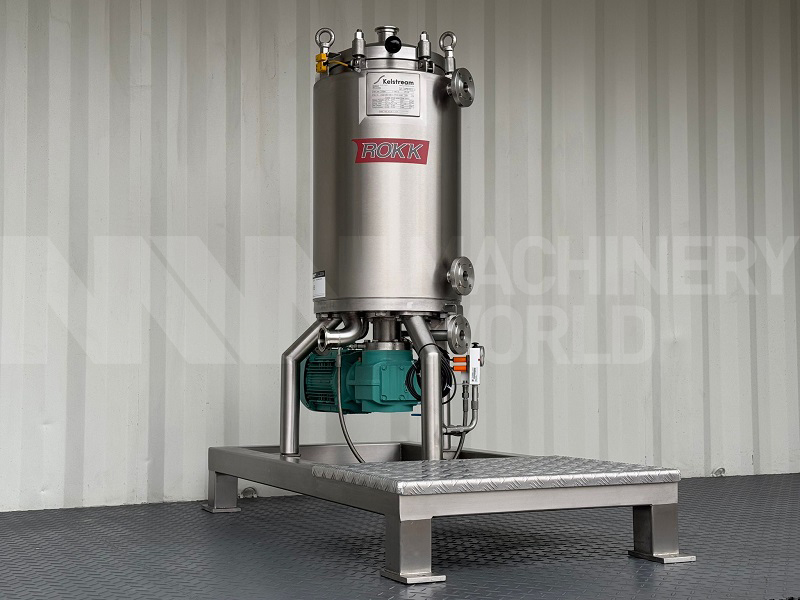

Gpi Kelstream F100 Scraped Surface Heat Exchangers (Brand New)

Scraped Surface Heat Exchanger:

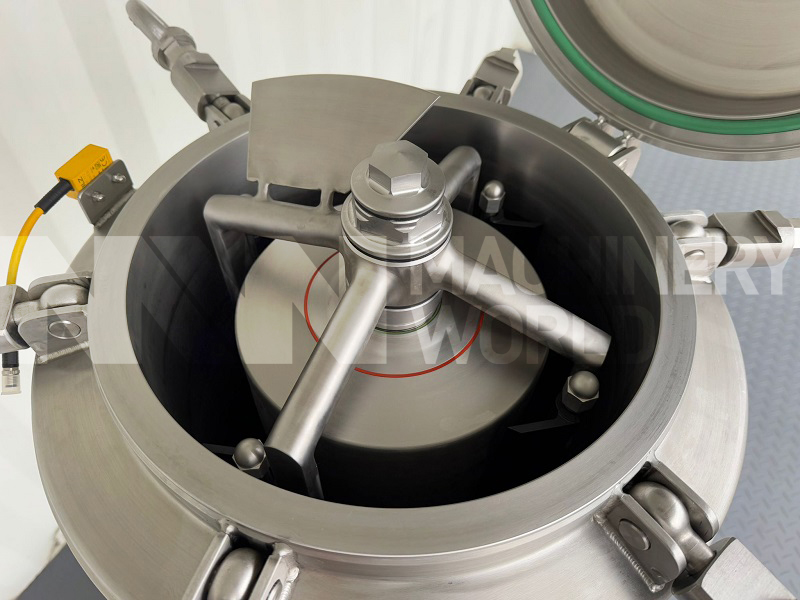

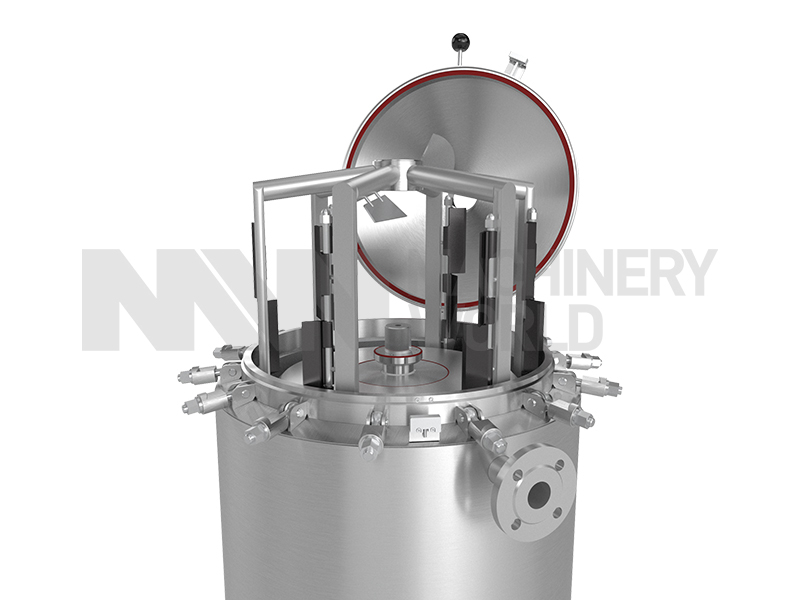

The Gpi Kelstream F100 Scraped Surface Heat Exchanger is a vertically arranged unit that incorporates dual concentric heated surfaces, specifically engineered to optimize heat transfer for a variety of applications, including food, feed, pharmaceuticals, and other non-food industries. This advanced thermal processing solution combines the benefits of multiple heat exchanger designs into a single apparatus, effectively handling highly viscous materials such as mashed potatoes. It boasts a significant heated surface area relative to its size, ensuring minimal spatial requirements while preserving the quality of the product.

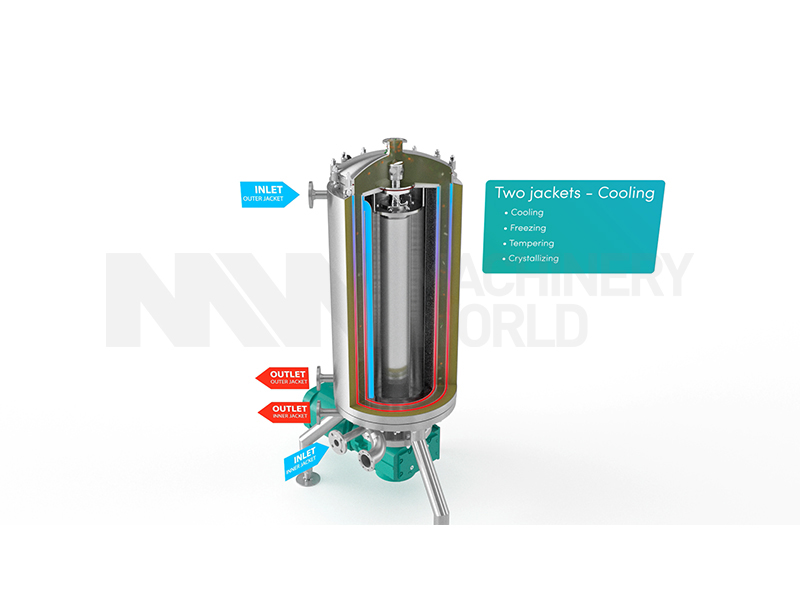

The Gpi Kelstream F100 is equipped with two separate heat transfer surfaces, ensuring that the heating or cooling media remains entirely segregated from the product zone. The media options include glycol, ice water, liquid ammonia, steam, or hot water. This Scraped Surface Heat Exchanger is adept at managing the heating and cooling of products that contain solid components, with a maximum size of 25mm, all while safeguarding the product’s original characteristics throughout the thermal processing.

Patented Cartridge Seal:

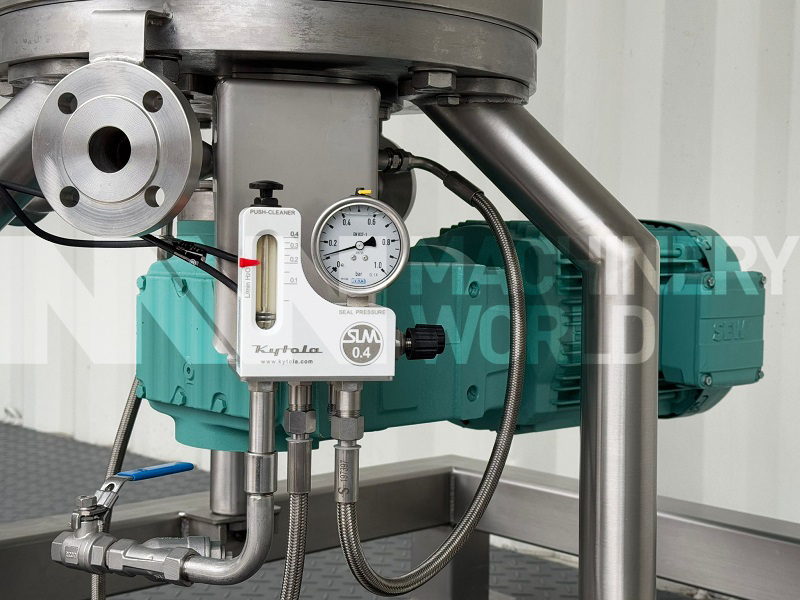

The Gpi Kelstream F100 Scraped Surface Heat Exchanger is equipped with a hygienic Lipseal that functions independently of barrier fluid. For situations requiring a different sealing method, there are options for single or double mechanical seals, as well as a variety of barrier fluids to choose from.

Clean-In-Place CIP Cleanable:

The Gpi Kelstream F100 Scraped Surface Heat Exchanger is fully compatible with the current CIP system. The Kelstream F100 can be cleaned in a counterflow manner, allowing the scraping mechanism to rotate in either a clockwise or counterclockwise direction. This ensures optimal cleaning of the Gpi Kelstream Scraped Surface Heat Exchanger.

Processes:

Application:

Soups & Sauces: Tomato Sauces, General Sauces, Dressings, Salsa, Hummus, Soup, Starch Slurry, Spreads etc

Confectionery: Fat Cream, Chocolate, Caramel etc

Fruit: Fruit Filling, Cake Filling, Fruit Puree, Jam, Marmalade, Fruit Sauce, Apple Pulp etc

Dairy: Milk Concentrate, Cheese Sauce, Yoghurt

Food: Mashed Potato, Mechanically De-boned Meat, Ready-to-Eat Fillings, Egg, Jelly, Peanut Butter etc

Cosmetic & Pharmaceutical: Lotions, Creams, Wax, Toothpaste etc

Specification

• Make: Gpi De Gouwe, Holland
• Model: Kelstream
• Type: F100
• Function: Continuous Scraped Surface Heat Exchanger
• Fabrication Number: 724184-190
• Year of Fabrication: 2024
• Product Contact Parts: Duplex Stainless Steel
• Heated Surface Area: 1 sq. M
• Capacity: Approx 100 to 400kg per Hour (Varies depending on product, viscosity and the temperature profile)
• Drive Motor Power: 7.5kw, 3-Ph, 415V & 50Hz
• Inner Vessel Operating Pressure: 10 Bar
• Inner Vessel Max Operating Temperature: 130 deg C
• Inner Vessel Min Operating Temperature: -5 deg C
• Inner Vessel Max Density: 1,000 kg per cubic meter
• Inner Vessel Volume: Approx 30L (Varies depending on product)
• Inner Jacket Min Operating Pressure: 0 Bar
• Inner Jacket Max Operating Pressure: 6 Bar
• Inner Jacket Min Operating Temperature: -5 deg C
• Inner Jacket Max Operating Temperature: 130 deg C
• Inter Jacket Volume: 30L
• Outer Jacket Min Operating Pressure: 0 Bar
• Outer Jacket Max Operating Pressure: 6 Bar
• Outer Jacket Min Operating Temperature: -5 deg C
• Outer Jacket Max Operating Temperature: 130 deg C
• Outer Jacket Volume: 5L

Country of Manufacture

The Netherlands
