Description

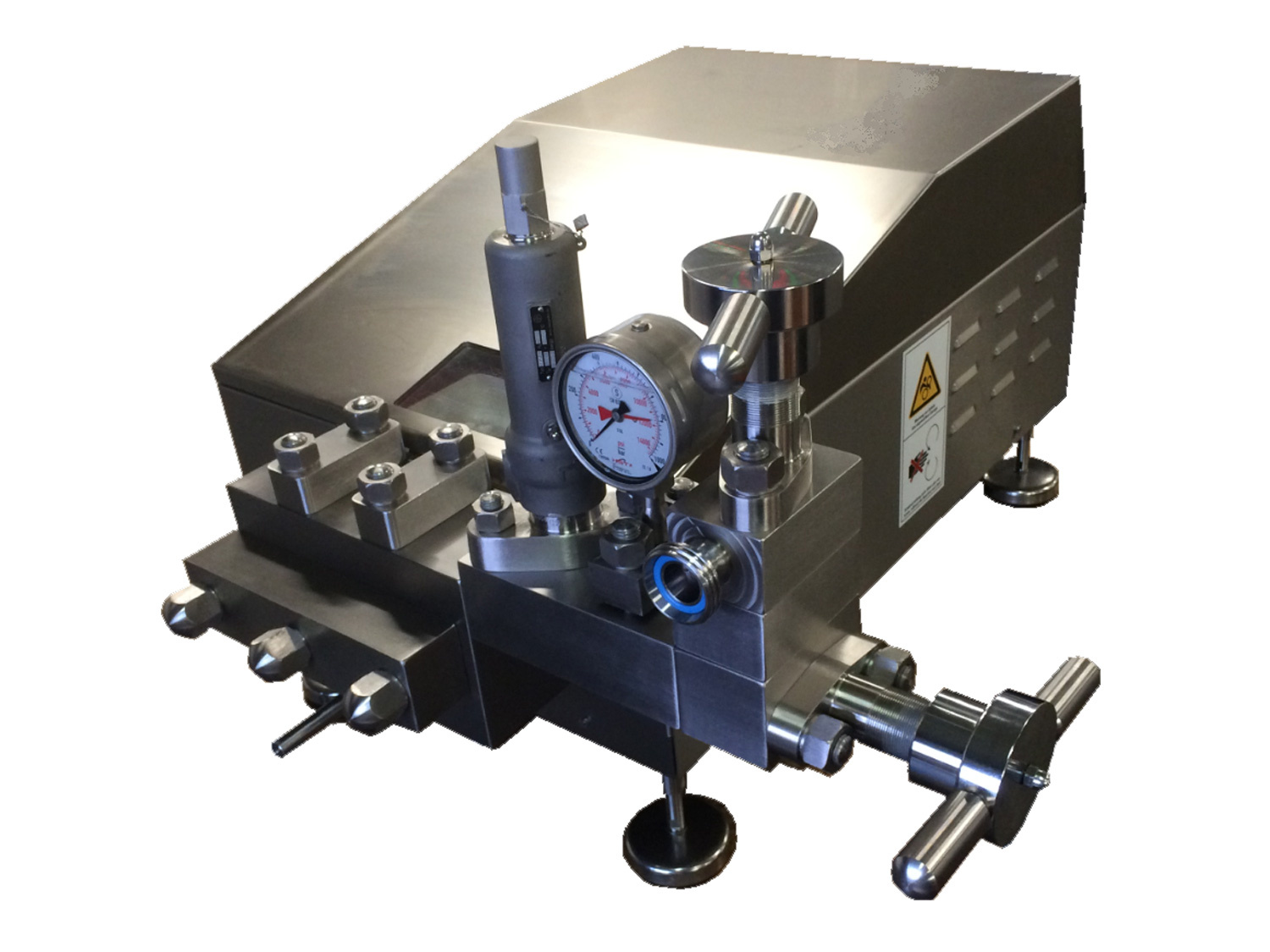

The HL 1 is a high-pressure piston pump in a duplex or triplex configuration fitted with a homogenizing device. The pistons are orientated horizontally. Depending on the application, the homogenizer is available in single-stage or two-stage versions. A choice of valve materials is available, e.g. stainless steel and sintered materials, to handle a wide range of different products.
The cylinder block is made of high-alloy, forged, corrosion-resistant stainless steel and has a minimum of wearing parts. The machine allows the CIP due to the high-quality surface and avoidance of dead space.
Technical Data
Homogenizer
- Cylinder block material : in stainless steel DIN EN 1.4405
- Pump valves: Ball type in material StelliteTM alloy
- Gear Type: eccentric shaft
- Frame material : painted steel
- Motor : 3 kW/ IE3 / 400V-50Hz-3ph
- special equipment: Product hopper 5 liter and recirculation pipe
Control Panel
- Complete wired on HL1 with machine starter, 5m cable, power plug
Specification
- Max. 285 l/h
- Homogenizing pressure up to 700 bar
- Absorbed motor power: max. 3 kW
- Aseptic execution optional
- Poppet valve for low viscous and slightly abrasive
- products
- Ball valves for high viscous and abrasive products
- Made in Germany
Weight with Motor: max. 300 kg
Disc valves
For low-viscosity and only slightly abrasive products
Machine type | Max. pressure (bar) | Max. throughput (L/h) |
---|---|---|
200T | 200 | 260 |
250T | 250 | 230 |
400T | 250 | 170 |
Ball valves
For abrasive and high-viscosity products
Machine type | Max. pressure (bar) | Max. throughput (L/h) |
---|---|---|
200K | 200 | 200 |
250K | 250 | 160 |
400K | 400 | 125 |
The HL 1 is a high-pressure piston pump in a duplex or triplex configuration fitted with a homogenizing device. The pistons are orientated horizontally. Depending on the application, the homogenizer is available in single-stage or two-stage versions. A choice of valve materials is available, e.g. stainless steel and sintered materials, to handle a wide range of different products.
The cylinder block is made of high-alloy, forged, corrosion-resistant stainless steel and has a minimum of wearing parts. The HL 3 delivers high CIP performance due to the high-quality surface and avoidance of dead space. A variety of cylinder block designs are available for septic and aseptic processing of a broad range of products.

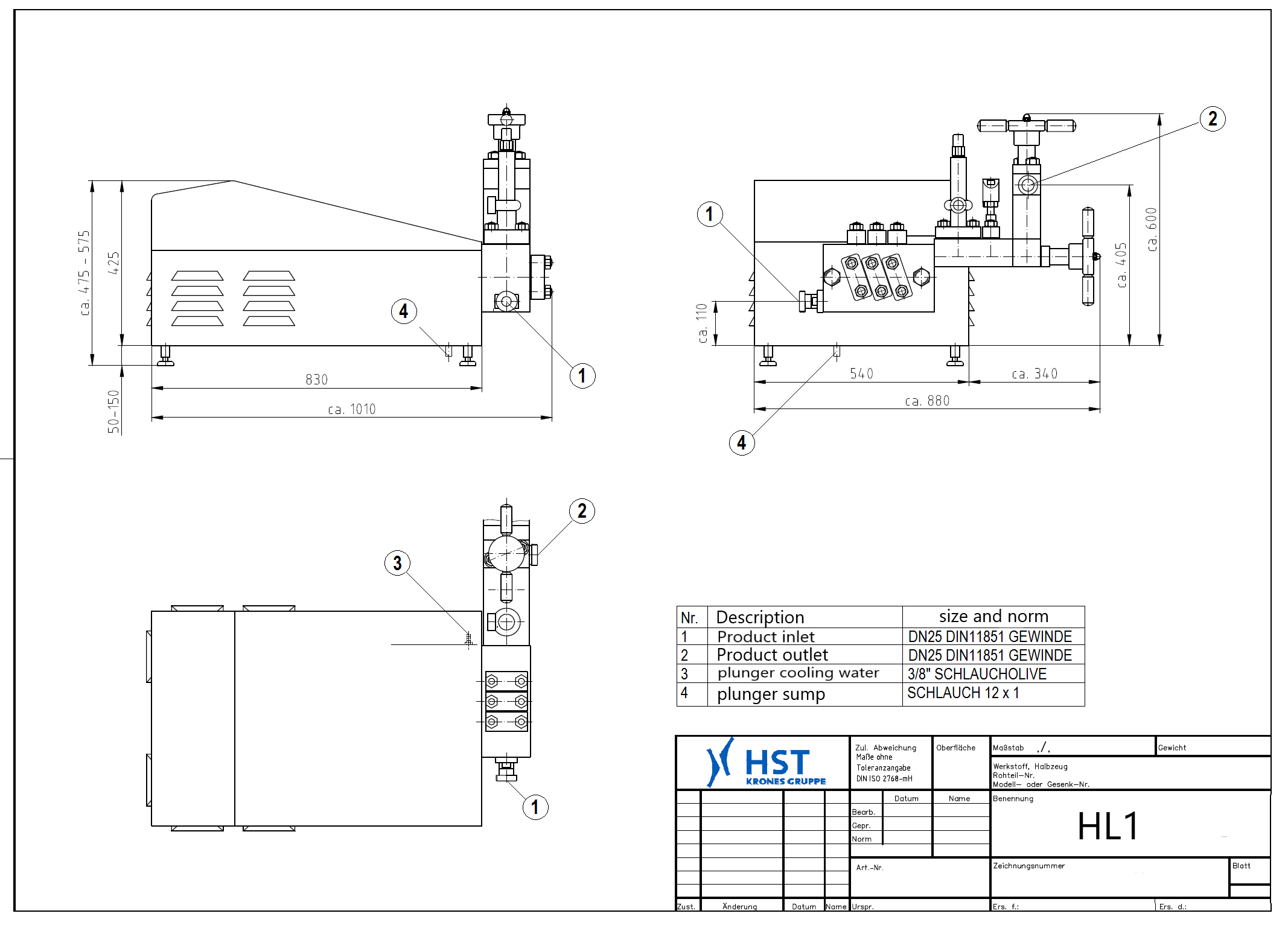

Dimensions
- L x W x H (mm) : 1010 x 996 x 475
- Weight : 250 kg
Applications
- Dairy Industry (e.g. yoghurt, milk, cream, cheese)
- Spray drying applications: e.g. milk powder
- Ice cream mix
- Beverage Industry (e.g. fruit juices, fruit concentrates, fruit purees and Liqueurs)
- Homogenization of various tomato products
- Chemical applications (e.g. polymerization, wax, latex)
- Pharmaceutical applications (e.g. enteral nutrition, parenteral nutrition)
- Biotechnological applications (e.g. various cell disruption)
