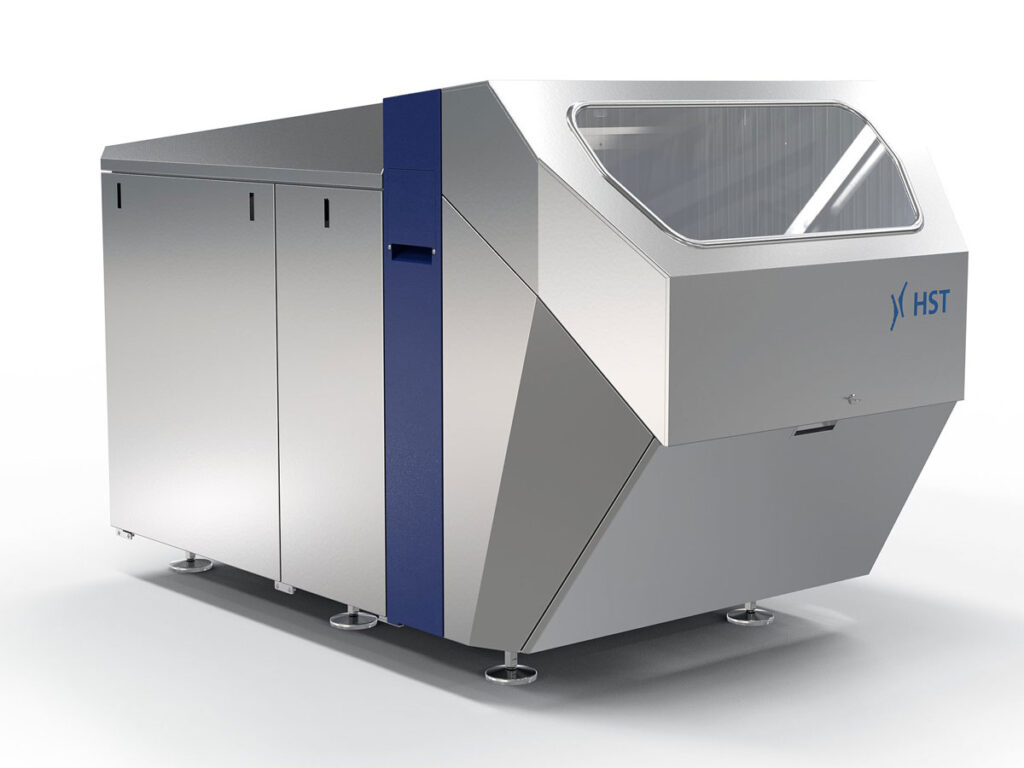

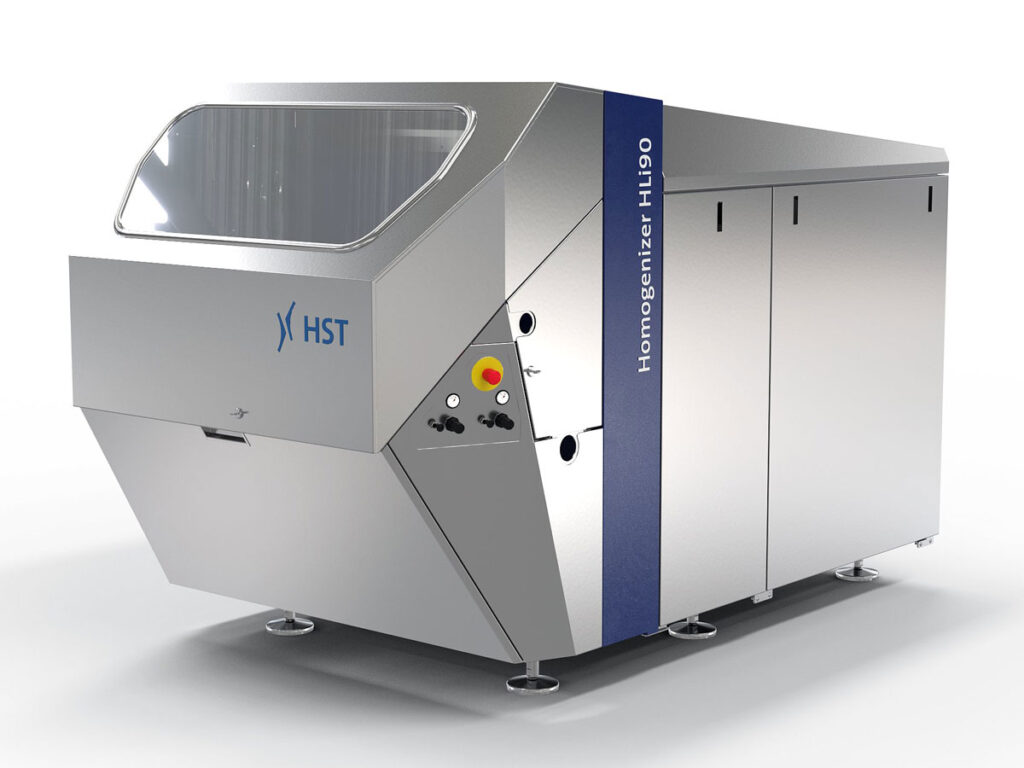

HST HLI90 Homogenizer

Description

The HLI90 is a high-pressure piston pump with three pistons and a homogenizing device. The pistons are orientated horizontally. Depending on the application, the homogenizer is available in single-stage or two-stage versions. A choice of valve materials is available, e.g. stainless steel and sintered materials, to handle a wide range of different products.

The cylinder block is made of high-alloy, forged, corrosion-resistant stainless steel and has a minimum of wearing parts. The HLI90 delivers high CIP performance due to the high-quality surface and avoidance of dead space. A variety of cylinder block designs are available for septic and aseptic processing of a broad range of products

The advantage of this machine is that the gear oil is no longer water-cooled, because this gear is an integrated transmission which does not require a lubricating oil cooling. The advantage for the customer are that important resources of water and energy are saved, as no oil pump is required.



Specification
  • Max. 21.200 Liter per hour
  • Homogenizing pressure up to 750 bar
  • Absorbed motor power: max. 90 kW
  • Optional in aseptic execution
  • Poppet valves for low viscous and slight abrasive products
  • Ball valve for high viscous and abrasive products
  • Integrated lubrication system

Weight incl. motor:  max. 4.000 kg



Technical Data

Homogenizer

  • Cylinder block material : in stainless steel DIN EN 1.4405
  • Pump valves: Poppet or ball type in material StelliteTM alloy
  • Gear Type: integrated gear without forced oil lubrication
  • Frame material : stainless steel
  • Motor : max. 90 kW/ IE3

Automation

  • Machine control via control cabinet
  • Optional:
  • PLC Siemens S7-1200/1500 or Allen Bradley including tested software
  • Touch panel HMI Siemens KTP
  • Control cabinet air conditioning
  • Plug&Play solution: Machine and control cabinet are tested together



Poppet valves

Poppet valves for low viscous and  slight  abrasive products



Model Max. Pressure Max. Capacity
 HLI90 (bar) (Liter per hour)
-100T 100 21.500
-150T 150 17.500
-200T 200 13.000
-250T 250   9.600
-300T 300    8.000
-350T 350    6.600
-550T 550    4.200



Ball valves

For abrasive and high viscous products

Model Max. Pressure Max. Capacity
HLI90 (bar) (Liter per hour)
-150K 150 15.300
-200K 200 11.700
-250K 250    8.300
-350K 350    6.000
-550K 550    3.800
-750K 750    2.900



Dimensions
  • L x W x H (mm) : 2550 x 1500 x 1800
  • Weight : 4.000 kg



Applications
  • Dairy Industry (e.g. yoghurt, milk, cream, cheese)
  • Spray drying applications: e.g. milk powder
  • Ice cream mix
  • Beverage Industry (e.g. fruit juices, fruit concentrates, fruit purees and Liqueurs)
  • Homogenization of various tomato products
  • Chemical applications (e.g. polymerization, wax, latex)
  • Pharmaceutical applications (e.g. enteral nutrition, parenteral nutrition)
  • Biotechnological applications (e.g. various cell disruption)
