Teknoice Teknofreeze 800

Description

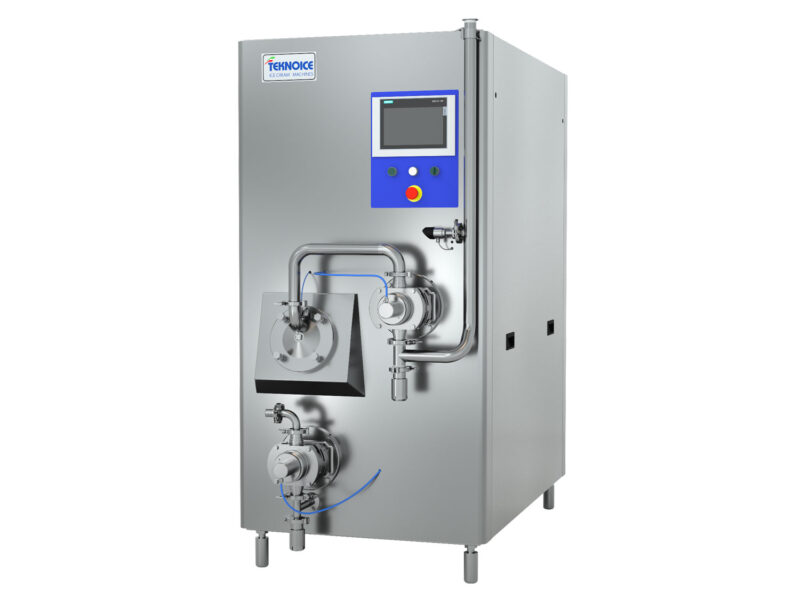

Continuous freezer entirely made in stainless steel, with removable side panels for easy maintenance and inspection.
Available in the electronic version (EL) and electromechanical version (EM)

Capacity 250 – 800 l/h

– Freon 507 refrigeration compressor
– dasher motor
– double air-mix pistons pump
– inclined freezing barrel (innovation introduced to increase energy saving and to facilitate maintenance and cleaning operations), complete with dasher and scraping blades
– freezer barrel pressure DHW safety valve
– manual valve to adjust ice cream pressure in the freezer barrel
– CIP cleaning program incorporated
– set-up for CIP cleaning
– DHW pipes connections
– Compressed air sterilisation system with high-efficiency active carbon filters with sterilised cartridge and filter

Using the touch screen (on the electronic version EL) on the electronic panel, it is possible to start and control the following phases and relative operating parameters:
– hourly production capacity
– input mix temperature
– ice cream output temperature
– ice cream stiffness
– overrun
– pressure inside the barrel
– compressor parameters control
– speed, air, hot gas adjustment
– ice cream recipe storage; all these functions can be automatically called-up when necessary.

Using electrical panel (on the electromechanical version EM), it is possible to start and control the following phases and relative operating parameters:
– digital ammeter to indicate the stiffness of ice cream
– digital indicator of hourly production of ice cream
– digital indicator of the ice cream overrun
– inverter production speed adjustment
– pressure gauge to indicate the ice cream pressure inside the freezer barrel
– automatic/manual hot gas adjustment system (optional)
– mix supply centrifugal pump
