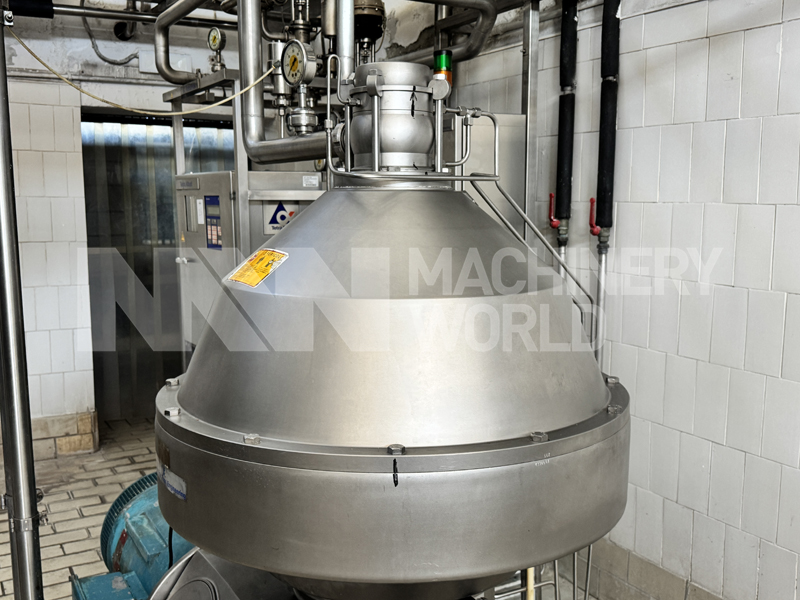

15,000 LPH Alfa Laval HMRPX 614 HGV Milk Cream Centrifuge Separator

Description

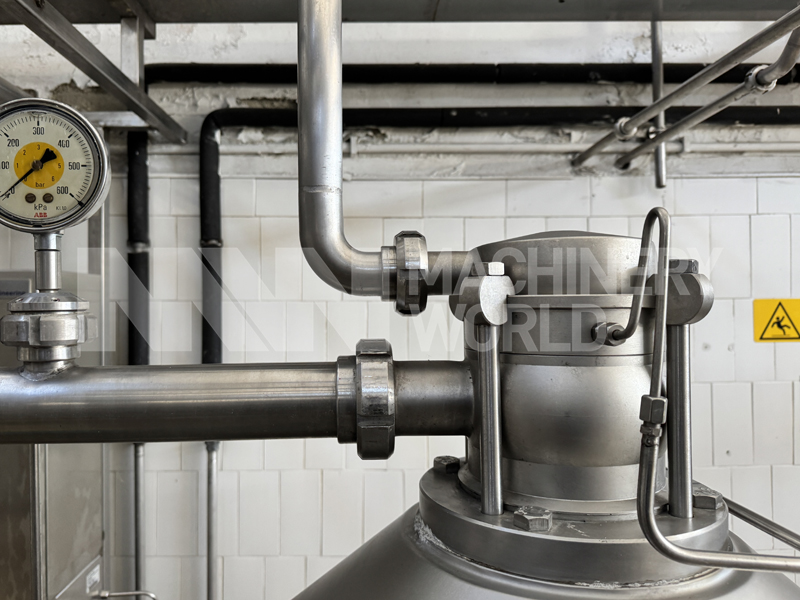

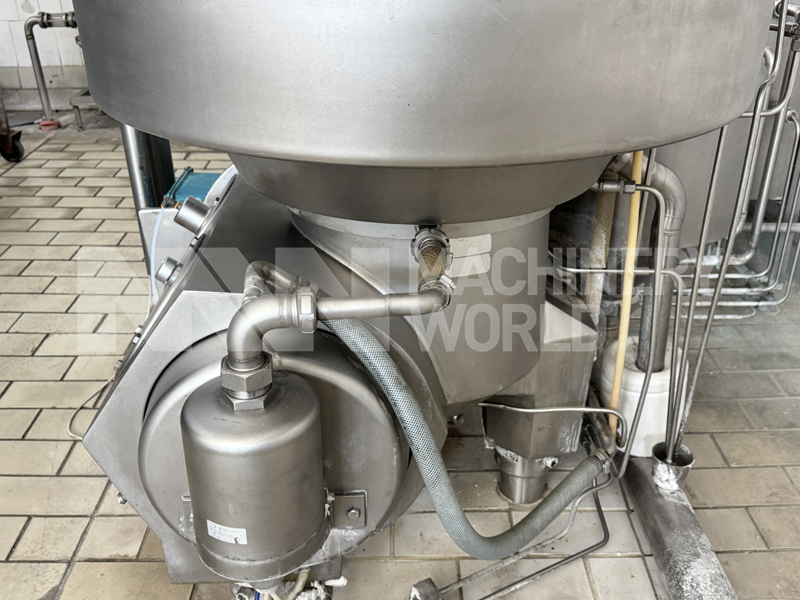

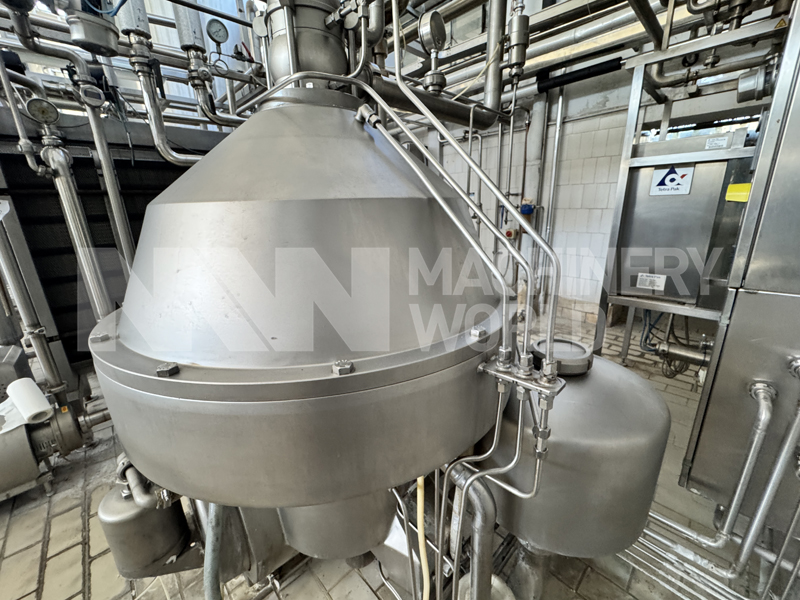

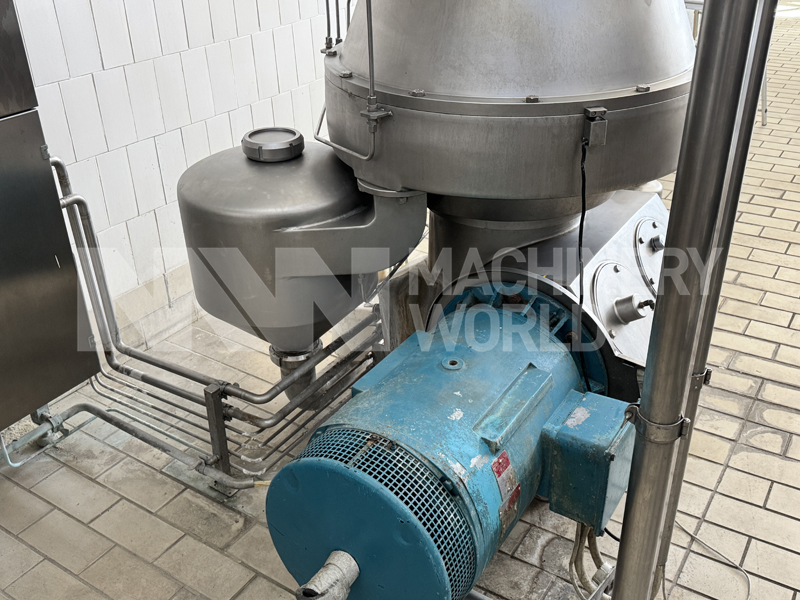

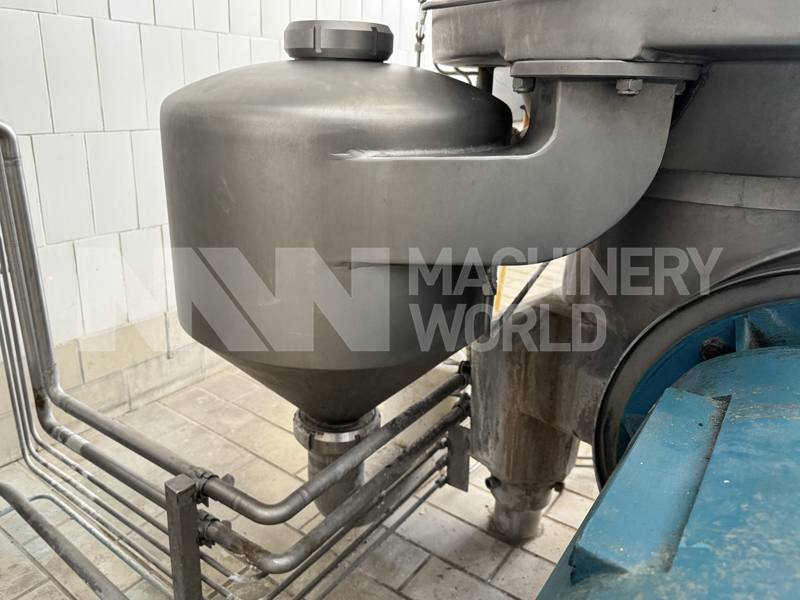

This used Alfa Laval HMRPX 614 HGV-74C-50 Cream Separator / Skimmer is in very good condition and is a self-cleaning dairy disc-stack separator designed for reliable milk/cream separation and skimming, with a rated capacity of 15,000 liters per hour, bowl speed 4,266 rpm, and an 18.5 kW motor (380V, 50 Hz, 1,470 rpm, 36 Amp, 3-phase). This Alfa Laval HMRPX 614 Separator comes with Baseplate, Bowl, Cyclone, Motor, OWM Water Valve, and Service Tools for maintenance, and includes a modern PLC control panel upgraded new in 2019 with a Siemens PLC and touchscreen HMI for easy operation, monitoring, and automated control, making it an excellent used Alfa Laval cream separator solution for dairies and milk processing plants seeking high-efficiency separation with updated automation. Currently available Ex Stock at Machinery World (UK), this Separator is available for immediate sale.

Specification

• Manufacturer: Alfa Laval, Sweden
• Model: HMRPX 614 HGV 74C 50
• Function: Milk Cream Centrifuge Separator
• Manufacturing Number: 4110567
• Separator Capacity: Skimming Capacity: Approx 15,000 LPH Standardisation Capacity: Approx 25,000 LPH

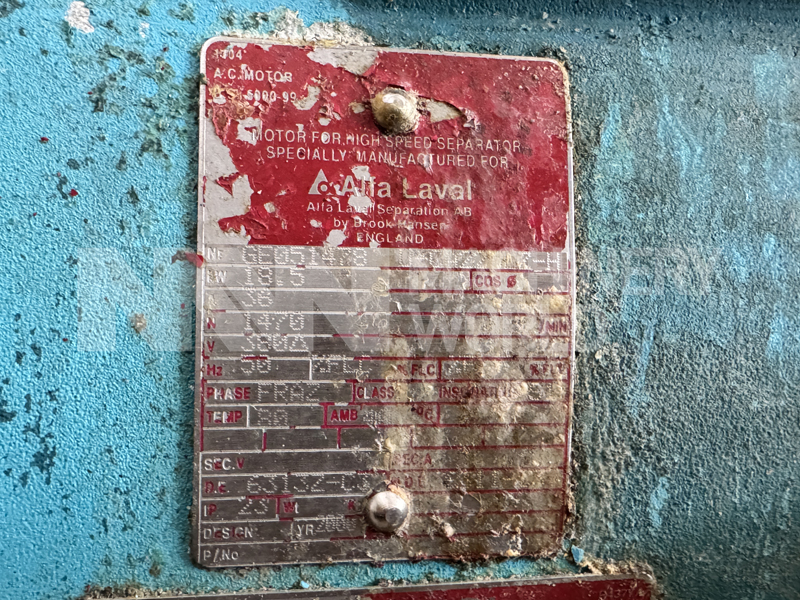

• Total Installed Power: 18.5kw, 3-Ph & 50Hz

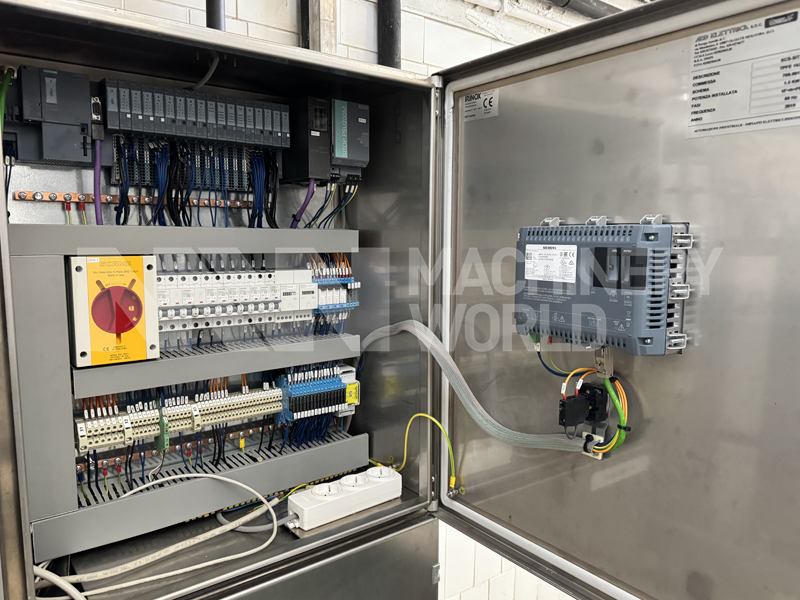

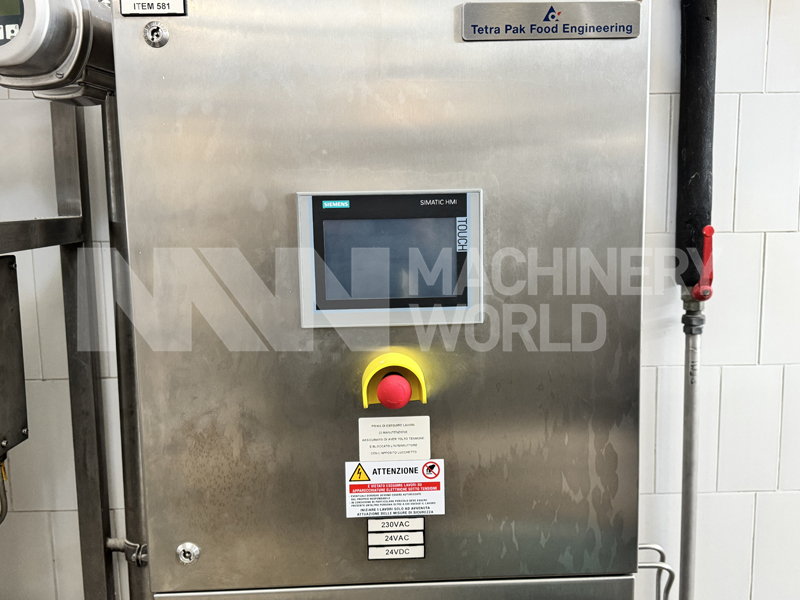

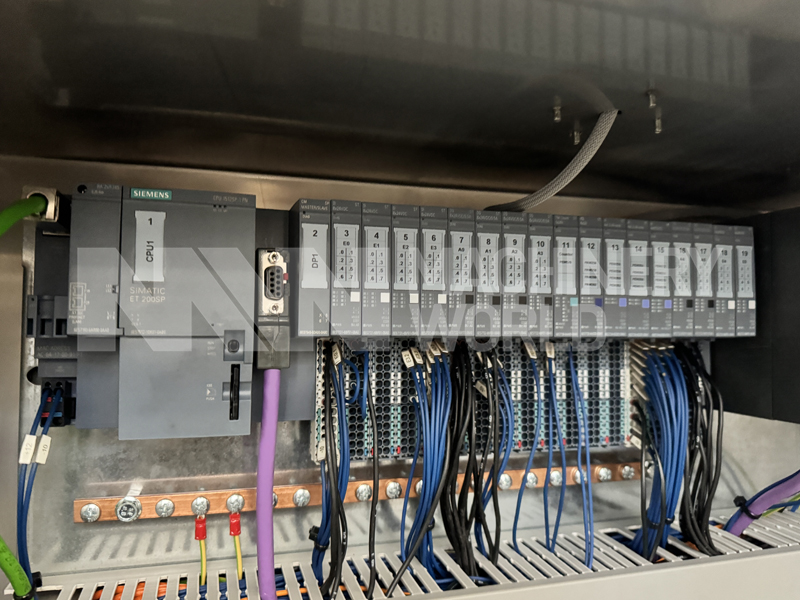

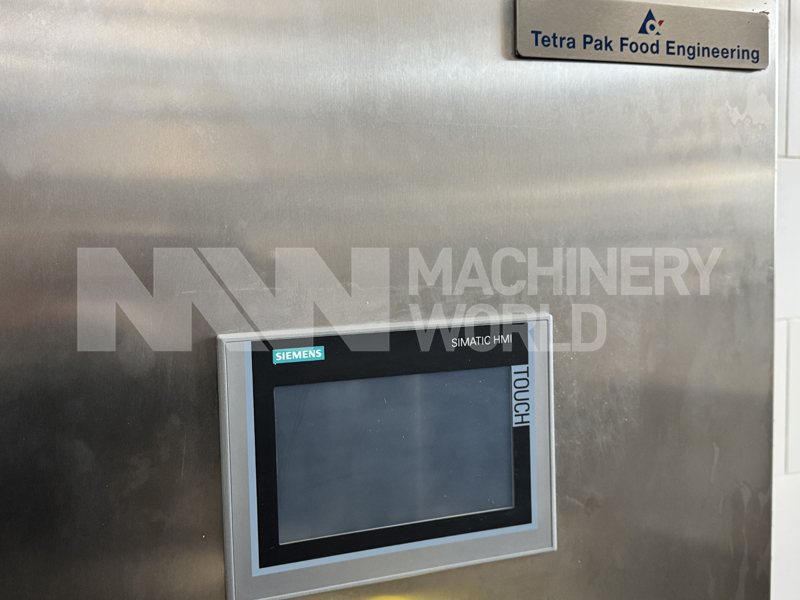

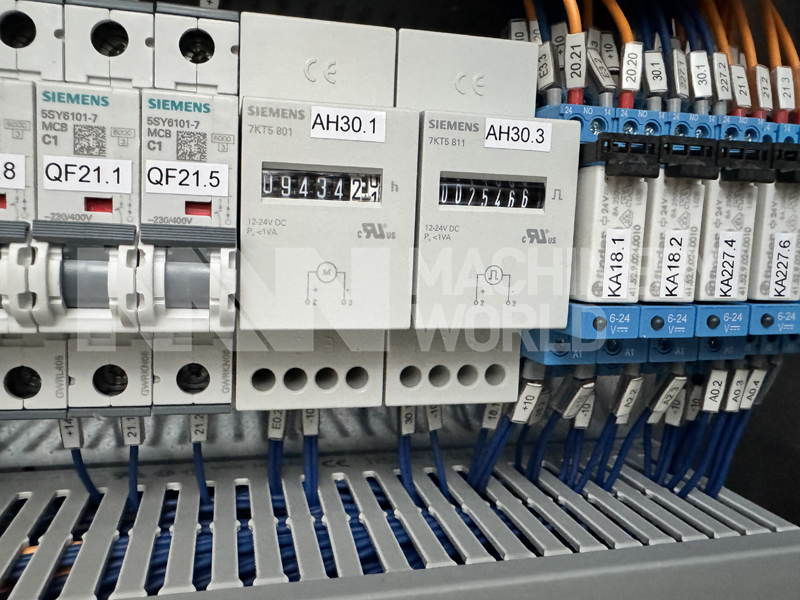

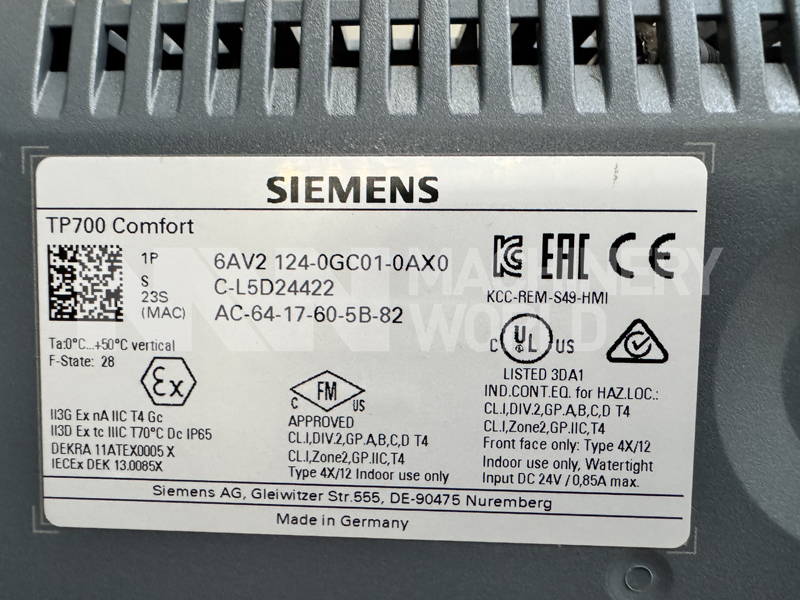

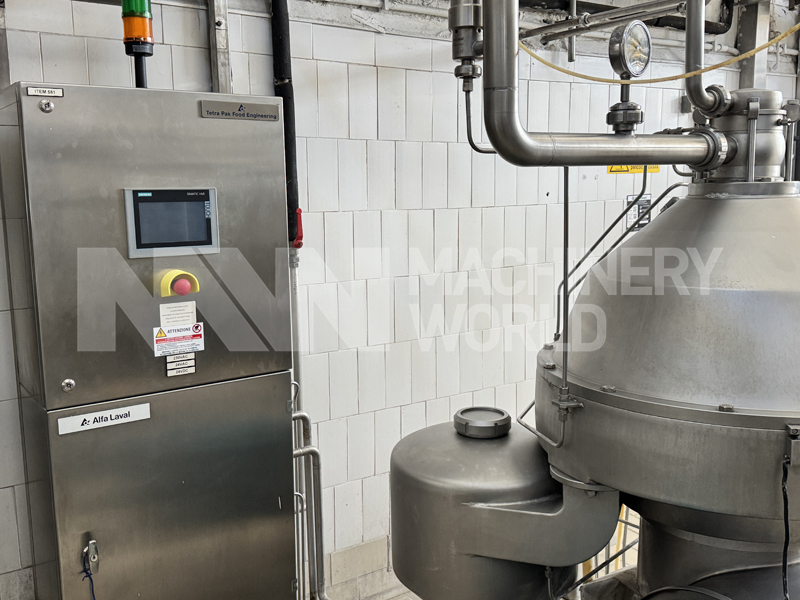

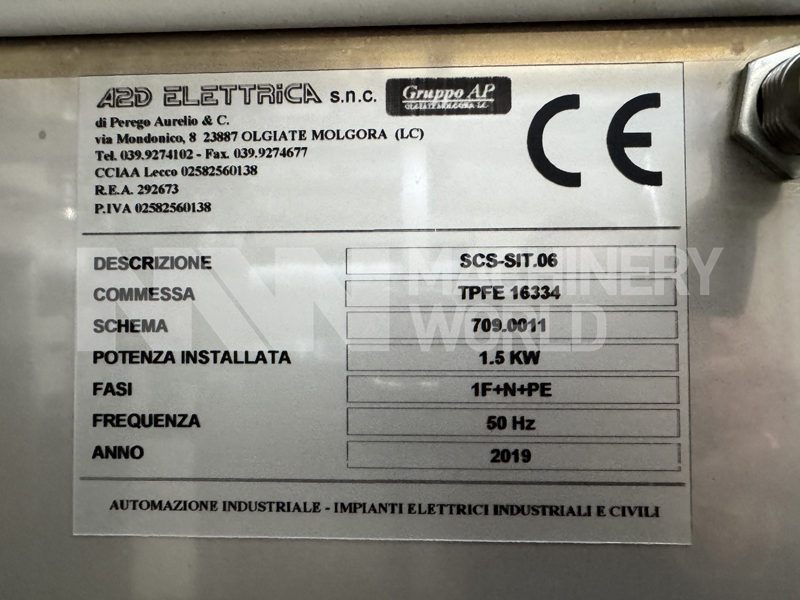

• Control Panel: Comee with an Upgraded Control Panel (New in 2019) with Siemens PLC and Siemens Touch Screen HMI.

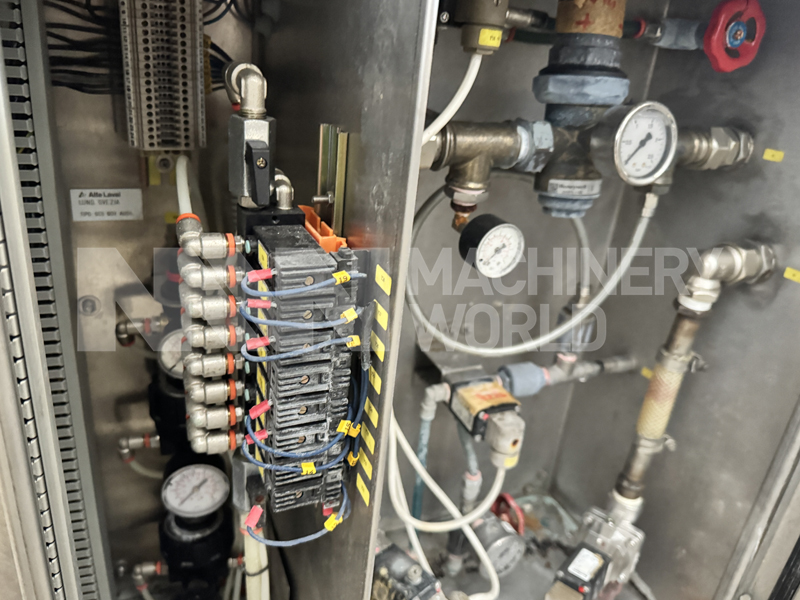

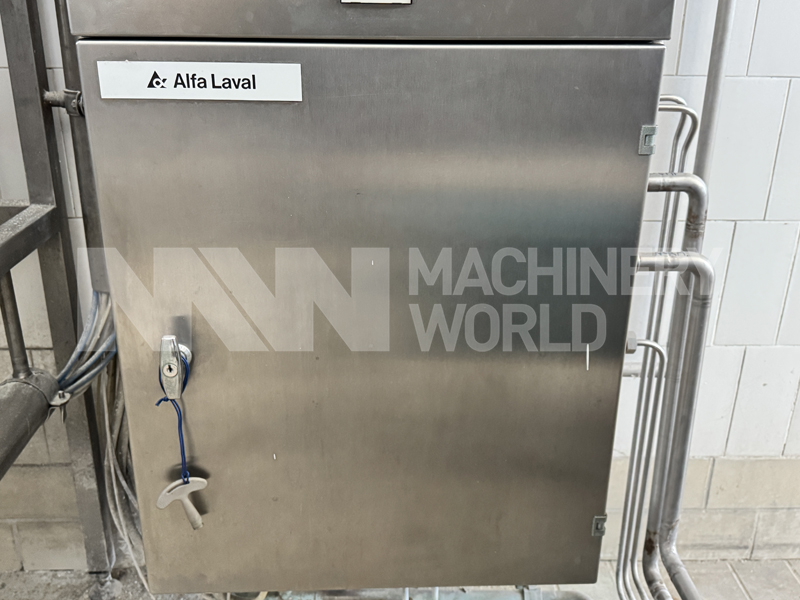

• Additional Details: Separator comes with Bowl, Baseplate, Control Panel, Water Panel & Tools
• Instruction manual supplied.

Dimensions

• Length: 2000mm
• Width: 1050mm
• Height: 1750mm
• Weight: Approx 1,700kg

Country of Manufacture

• Sweden
