2,500 Ltr Sordi 316 Grade Stainless Steel Jacketed Tank with Sharp Conical Bottom and Scraped Surface Mixer (Year 2022 – NEVER USED)

Description

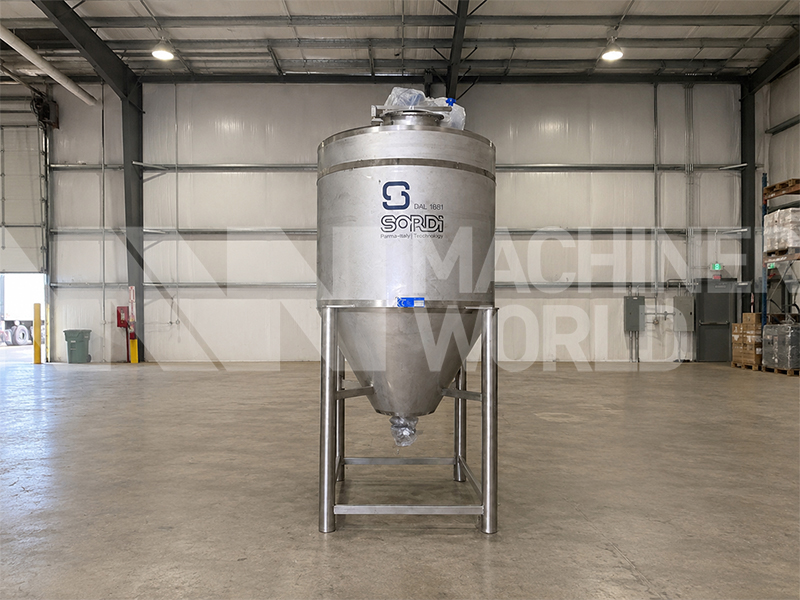

Never used 2,500 litre Sordi stainless steel jacketed process tank fitted with a slow-speed, full-sweep scraped surface mixer. Manufactured in 2022, these tanks have never been installed or used in production and remain in excellent condition.

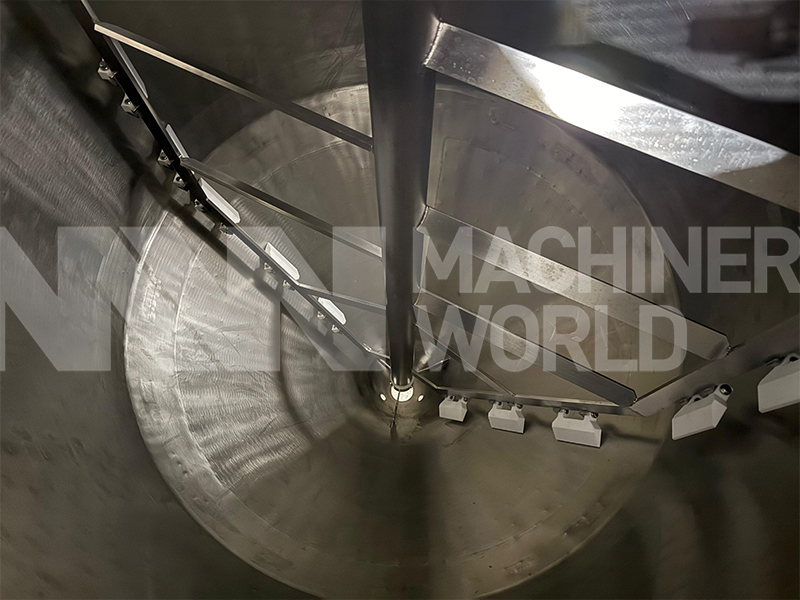

Originally designed for the production and processing of cream cheese, each tank features a sharp conical bottom for efficient product discharge and a PTFE scraped surface agitator. The slow-speed mixer continuously sweeps the internal heat-transfer surface, helping to provide uniform mixing while reducing product build-up on the tank wall. The full-sweep scraped surface agitator is particularly suitable for products requiring gentle mixing, consistent heat transfer and reduced product adhesion to the internal tank surface. The tank is fitted with a recirculation double jacket suitable for circulating heating or cooling fluids, allowing controlled product heating, cooling or temperature maintenance. Product-contact parts are manufactured from AISI 316 stainless steel, with non-product-contact parts and support legs manufactured from AISI 304 stainless steel. The tank also includes an insulated vessel body, CIP cleaning heads, inspection manway and sanitary product connections. Its hygienic stainless steel construction makes it suitable for processing viscous, heat-sensitive and dairy-based products.

Application

• Cream cheese
• Processed cheese and cheese sauces
• Yogurt and cultured dairy products
• Chocolate and confectionery products
• Ice cream mixes
• Cream and dairy desserts
• Custards, sauces and fillings
• Other viscous or heat-sensitive food products

Quantity Available

• 2x identical Sordi 2,500 litre scraped surface process tanks are available.

Specification

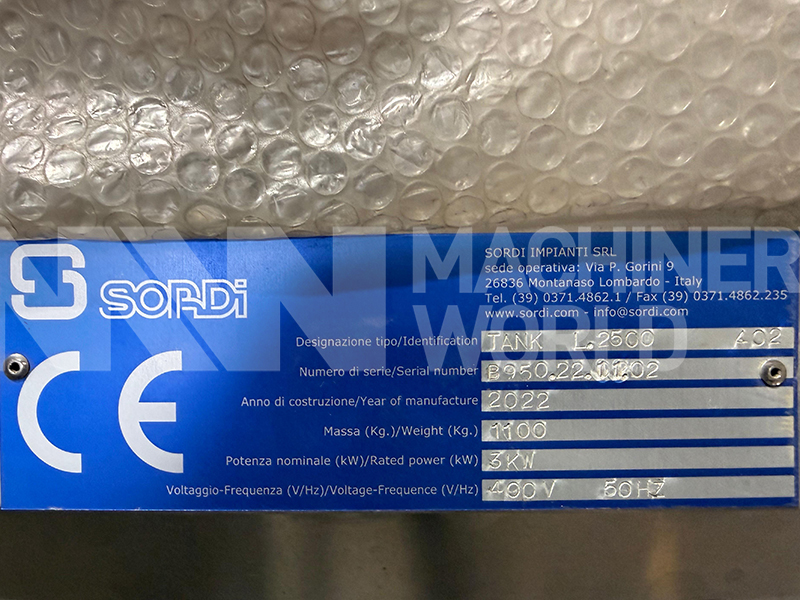

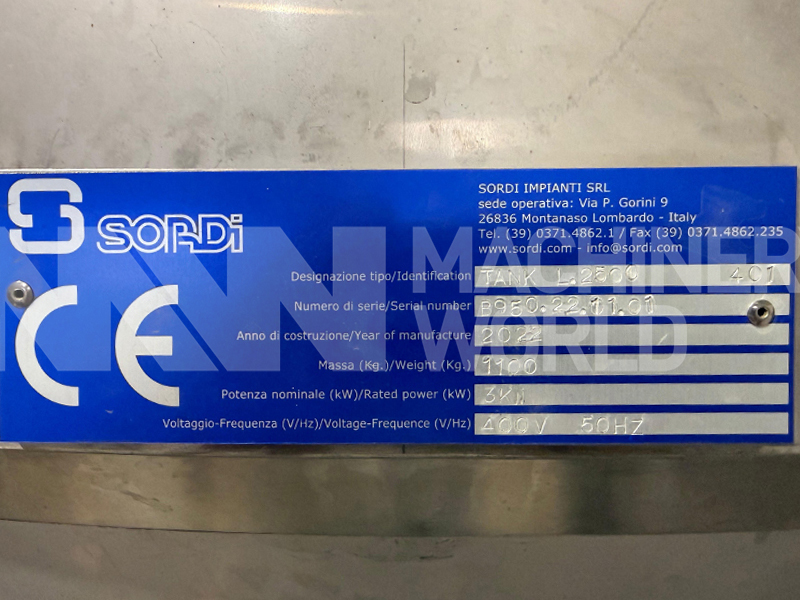

• Manufacturer: Sordi Impianti SRL, Italy
• Model: Tank L.2500
• Tank identification numbers: 401 and 402
• Serial numbers:
  • Tank 1: B950.22.11.01
  • Tank 2: B950.22.11.02
• Year of manufacture: 2022
• Condition: Never used & never installed
• Nominal capacity: Approx 2,500 litres
• Cylindrical section capacity: Approx 2,000 litres
• Conical section capacity: Approx 660 litres
• Tank design: Vertical cylindrical vessel with sharp conical bottom
• Product-contact material: AISI 316 stainless steel
• Non-product-contact material: AISI 304 stainless steel
• Support legs: AISI 304 stainless steel
• Mixer type: Slow-speed, full-sweep scraped surface agitator
• Scraper material: PTFE
• Agitator speed: Approximately 20 rpm
• Motor power: 3 kW
• Electrical supply: 400 V / 50 Hz
• Jacket type: Recirculation dimple jacket
• Jacket application: Heating (or) cooling
• Maximum jacket water inlet pressure: 1.5 bar
• Insulation thickness: 80 mm
• Product inlet: DN40
• Product outlet: DN100
• Vent connection: DN25
• Instrument connections: 1.5-inch
• Instrument provisions: Temperature probe, high-level, low-level and level transmitter connections
• Cleaning system: Internal CIP cleaning heads
• Access: Inspection manway
• Technical documentation: Available

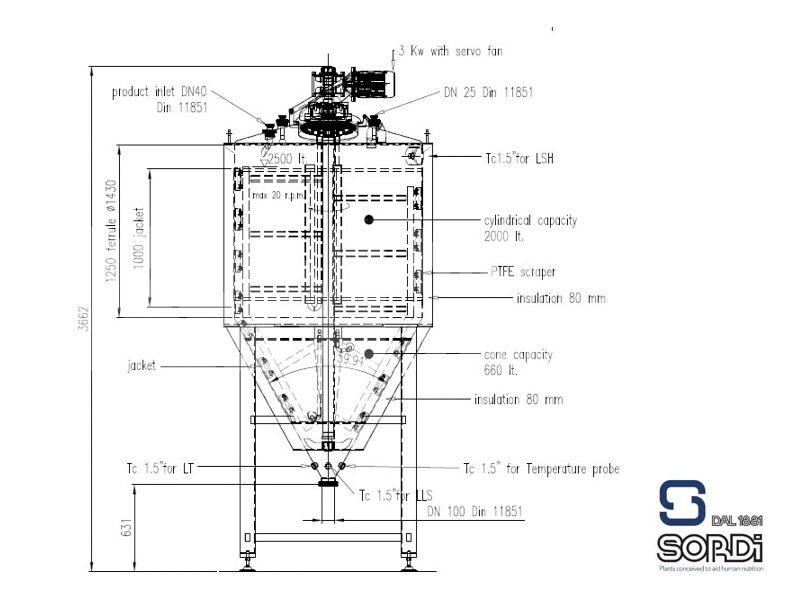

Dimensions

• Approximate overall height: 3,662 mm
• Tank outside diameter: Approximately 1,430 mm
• Cylindrical vessel height: Approximately 1,250 mm
• Jacketed cylindrical height: Approximately 1,000 mm
• Conical section capacity: Approximately 660 litres
• Cone angle: Approximately 60°
• Floor-to-bottom outlet height: Approximately 631 mm

Country of Manufacture

• Italy
