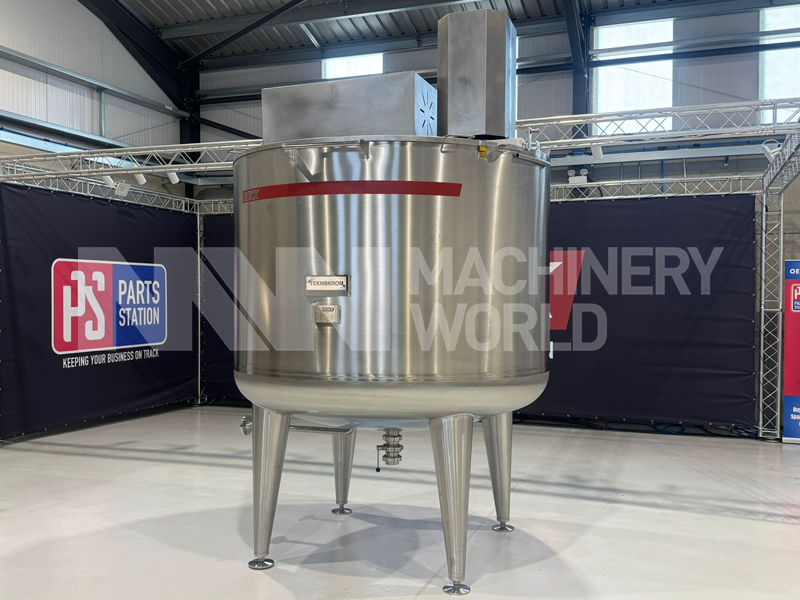

3,760L 316 Grade Stainless Steel Jacketed Tank with Scraped Surface Mixer and 30kw High Shear Mixer (BRAND NEW – YEAR 2026)

Description

This high-quality 3,760-litre stainless steel mixing tank has been designed for demanding processing applications across the food, dairy, pharmaceutical, cosmetic and chemical industries. Manufactured by Teknokrom, the vessel features AISI 316 stainless steel product-contact surfaces with an AISI 304 stainless steel exterior, ensuring excellent corrosion resistance, hygiene and durability.

The tank is equipped with a powerful dual mixing system comprising a 7.5kW anchor agitator with scrapers for efficient surface mixing and a 30kW Hommak Milkotek top-entry high shear mixer operating at 1,500 RPM for rapid product homogenisation. A serpentine heating/cooling jacket fitted to both the cylindrical body and tank base provides effective temperature control, while 100mm Rockwool insulation minimises heat loss and improves energy efficiency.

Additional features include a hinged top lid with magnetic safety interlock and safety grid, PT100 product temperature probe, 3-inch bottom discharge fitted with a stainless steel butterfly valve, adjustable stainless steel legs, and a fully integrated control panel incorporating frequency inverters for both mixers, digital temperature display, emergency stop and warning beacon.

Built for hygienic production and reliable long-term operation, this industrial mixing vessel offers outstanding mixing performance, precise process control and robust construction, making it an ideal solution for a wide range of manufacturing processes.

Specification

Manufacturer: Teknokrom

Capacity

• Total capacity: Approx. 3,760 litres
• Working capacity: Approx. 90%

Construction

• Product-contact surfaces: AISI 316 stainless steel
• External/non-product-contact surfaces: AISI 304 stainless steel
• Flat top with hinged lid
• Dished bottom
• Four adjustable AISI 304 stainless steel support legs

Mixing System

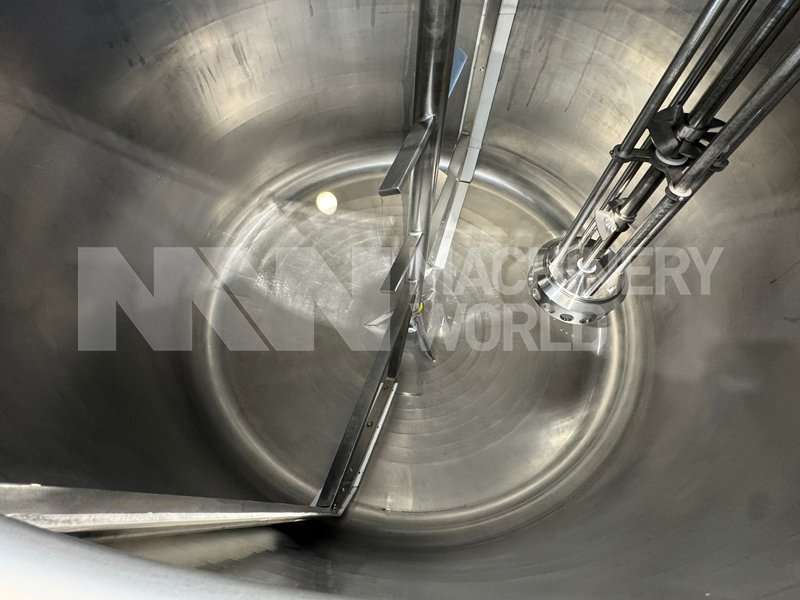

• 7.5kW anchor mixer with scraper blades
• 21 RPM gearbox reducer
• 30kW Hommak Milkotek top-entry high shear mixer
• High shear mixer speed: 1,500 RPM

Jacket & Insulation

• Serpentine heating/cooling jacket on cylindrical body
• Additional half-pipe serpentine jacket on tank base
• Jacket working pressure: 6 bar
• Tank operating pressure: Atmospheric
• 100mm Rockwool insulation
• AISI 304 stainless steel insulation cladding
• 1¼" EN 1092-1 Type 11B PN10/16 flange jacket connections

Tank Features

• Hinged top lid with magnetic safety interlock
• Stainless steel safety grid
• PT100 product temperature probe
• 3" stainless steel air vent
• 3" bottom outlet fitted with Cr-Ni stainless steel butterfly valve

Control Panel

• Variable speed frequency inverter for high shear mixer
• Variable speed frequency inverter for anchor mixer
• Digital PT100 temperature display
• Emergency stop switch
• Warning beacon

Dimensions

• Internal diameter: 1,800mm
• External diameter: 2,000mm
• Cylindrical height: 1,250mm
• Discharge height: 500mm
• Overall height: 3,250mm

Material Thickness

• Top: 8mm
• Cylindrical shell: 5mm
• Bottom: 5mm
• Insulation thickness: 100mm
