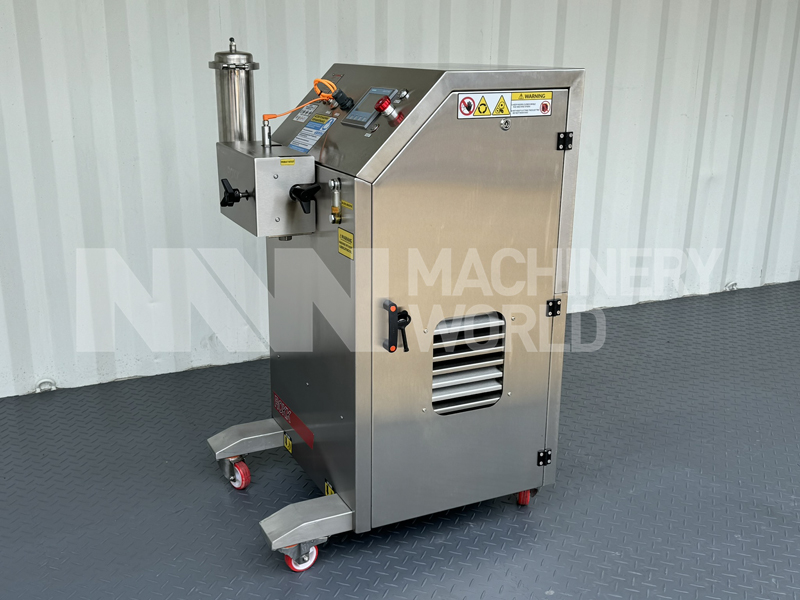

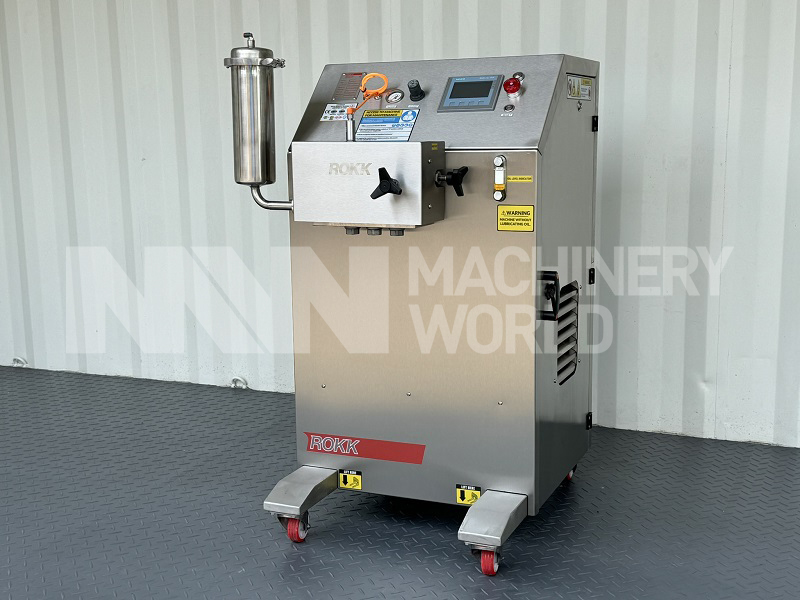

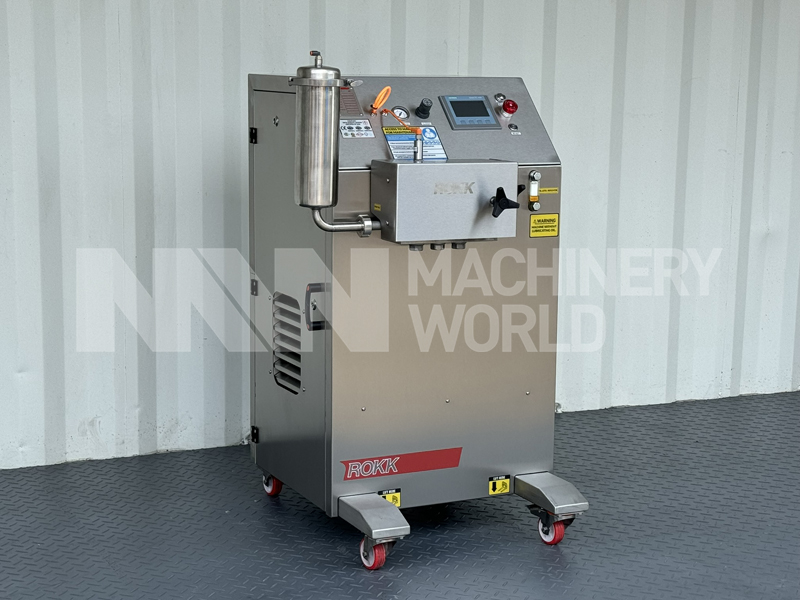

50 LPH ROKK Series 2 (1,000 Bar) High Pressure Lab Homogeniser – BRAND NEW

Description

The ROKK Series 2 High Pressure Homogenisers and High Pressure Piston Pumps have excellent performance and reliability in the latest design concept. This ROKK Series 2 Homogeniser has a working capacity of approx 50 LPH at a maximum operating pressure of 1000 Bar (14,500 PSI). The MonoBlock (compression head) is manufactured out of a high tensile, corrosion resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features removable top, bottom and front flanges for easy maintenance and has an ultra clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high viscosity products. This ROKK Series 2 High Pressure Lab Homogeniser comes with Ball Valve highly suited  for viscous and abrasive products.

Specification

• Brand: ROKK Processing, United Kingdom
• Model: 2-Series
• Function: High Pressure Piston Homogeniser

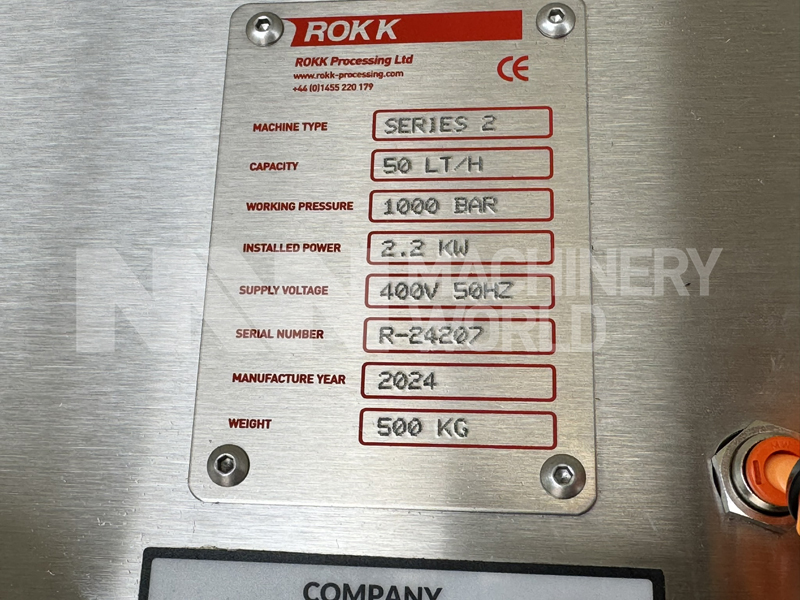

• Serial Number: R-24207
• Capacity: 50 Litres per hour
• Max. Working Pressure: 1,000 Bar (14,500 PSI)
• Number of Stages: 2-Stage Homogeniser
• Homogenising Valve Design: Ball Valve
• Homogenising Valve Material: Stellite Welded
• Piston Material: Ceramic Pistons
• Number of Pistons: 3
• Piston Diameter: 10mm

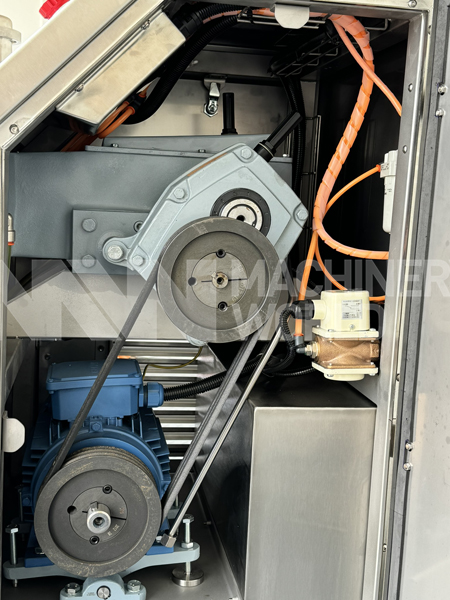

• Total installed power: 2.2Kw
• Electrics: 380V / 50 Hz / 3 Phase

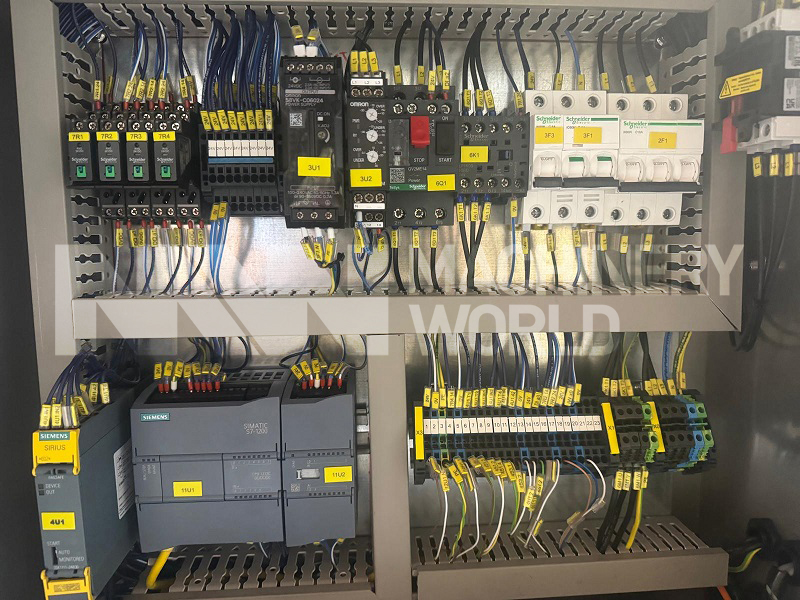

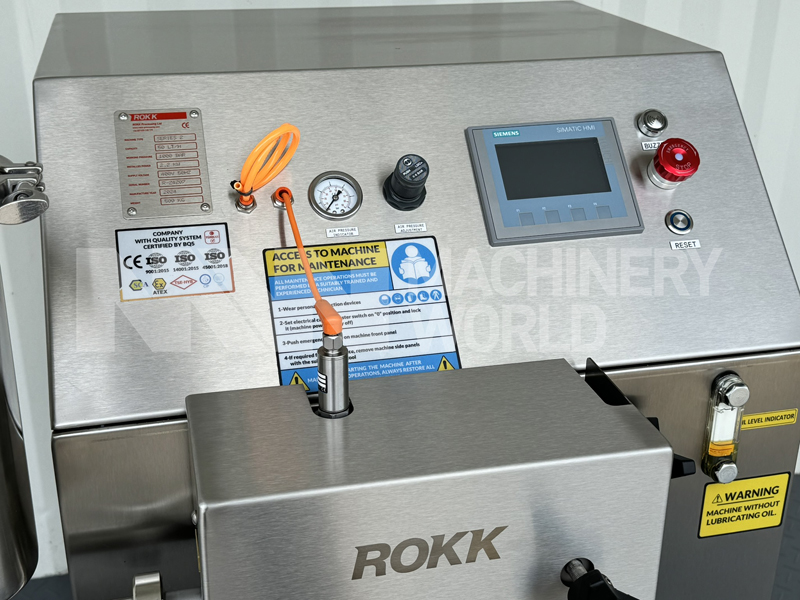

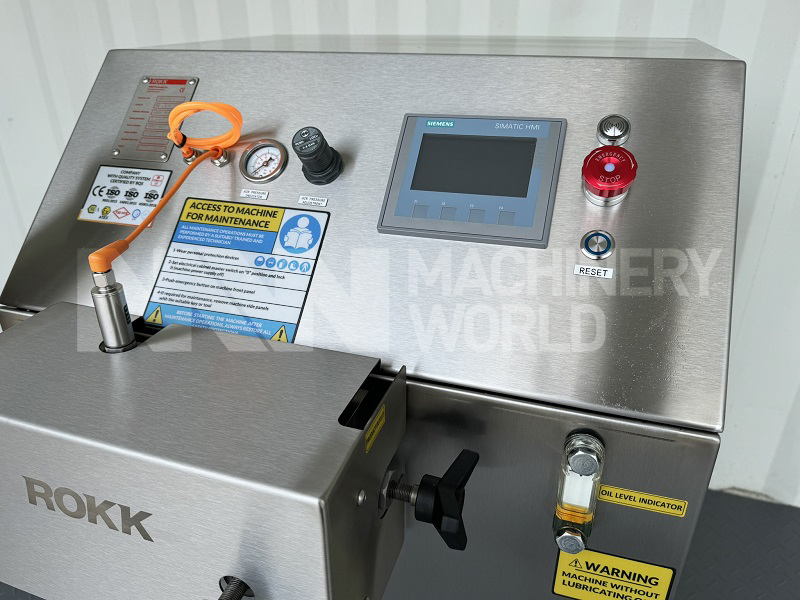

• Controls: Fully integrated with Siemens PLC including Siemens HMI Display Panel.
• Additional Details: Homogeniser comes mounted in Castor Wheels, making it mobile.

Dimensions

• Length: 92 cms
• Width: 70.4 cms
• Height: 120 cms
• Weight: 250 kgs
