500L Skerman Stainless Steel Jacketed Tank with Scraped Surface Mixer

Description

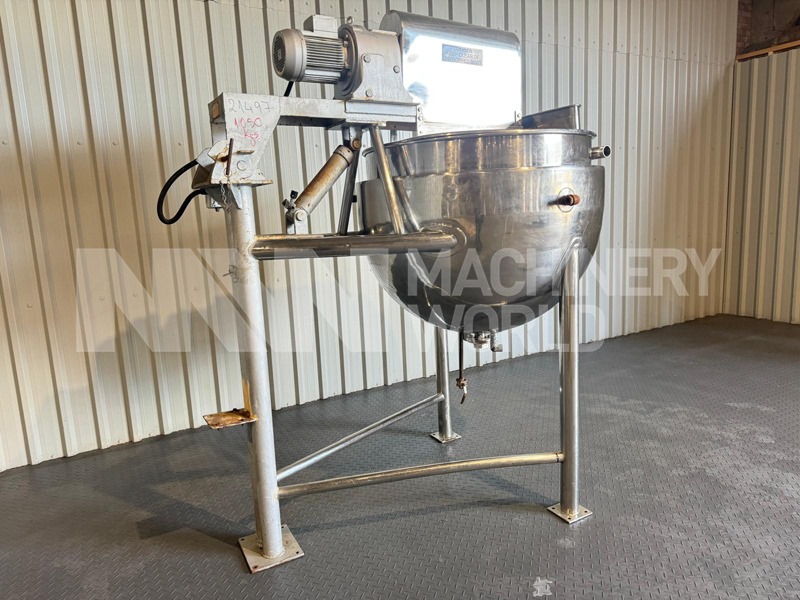

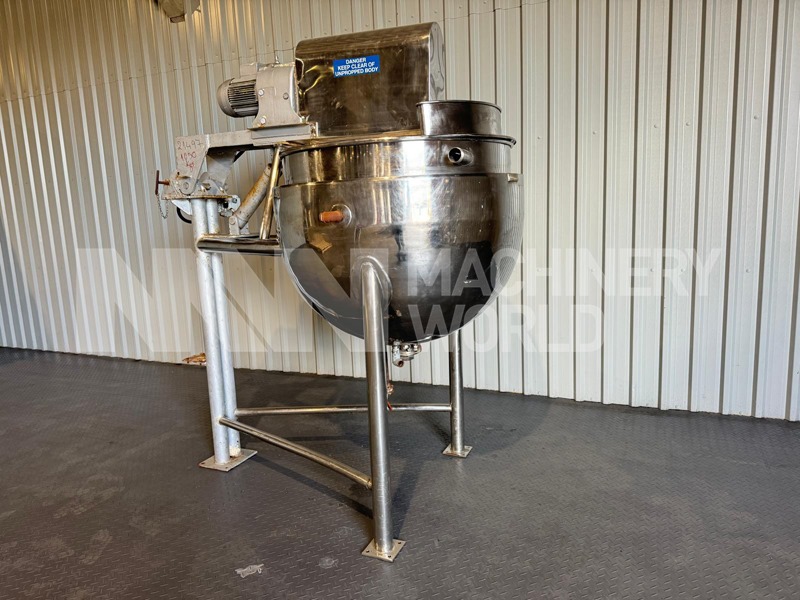

This is a used Skerman Stainless Steel Jacketed Tank with Scraped Surface Mixer. This Jacketed Tank has an internal volume of approx 500L and comes equipped with a Scraped Surface Mixer. Scraped Surface Mixer is installed on a bridge on top of the tank, which can be raised using a Hydraulic Cylinder. This 500L Skerman Stainless Steel Jacketed Tank with Scraped Surface Mixer was previoulsy used at a Confectionery Industry in the UK and available for immediate sale.

Specification

• Make: Skerman Engineering, England
• Function: Jacketed with Scraped Surface Mixer
• Material of Construction: 304 Grade Stainless Steel
• Total Internal Volume: Approx 500L
• Jacketed: Yes, Jacketed for Steam or Hot Water
• Jacketed Area: Sides and Bottom Hemisphere

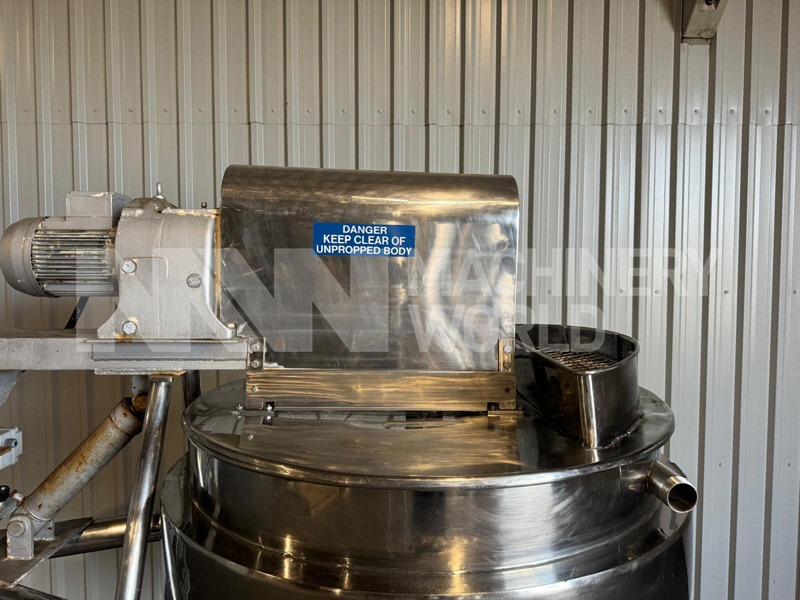

• Mixer: Top Mounted and Scraped Surface Mixer
• Motor Power: 2.2kw

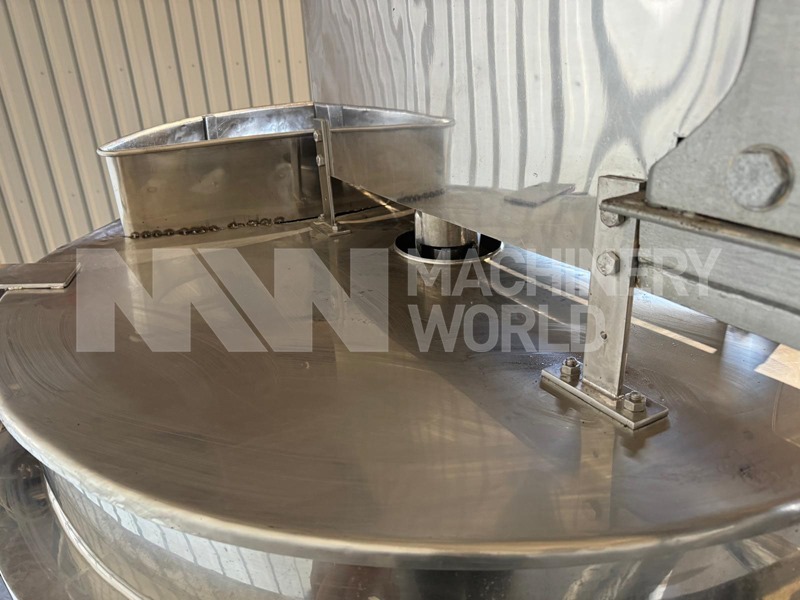

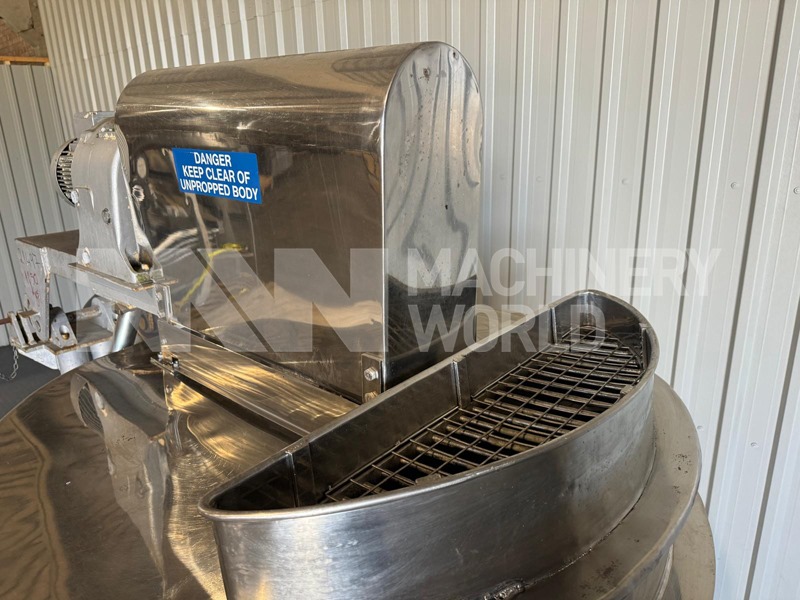

• Safety Mesh Integrated to Lid
• Mixer mounted on Bridge, which can be raised using Hydraulic Piston Cylinder
• Not Included: Hydraulic Power Pack to Lift Mixer Bridge Assembly

Dimensions

• Width: 1600mm
• Overall Height: 2400mm
• Height to Lid: 1900mm
• Barrel Height (Excluding Bottom Dish): 500mm
• Internal Dia: 1000mm

Country of Manufacture

England
