600 LPH GEA Niro Soavi ONE 7TS (210 Bar) High Pressure Homogeniser (Year 2014)

Description

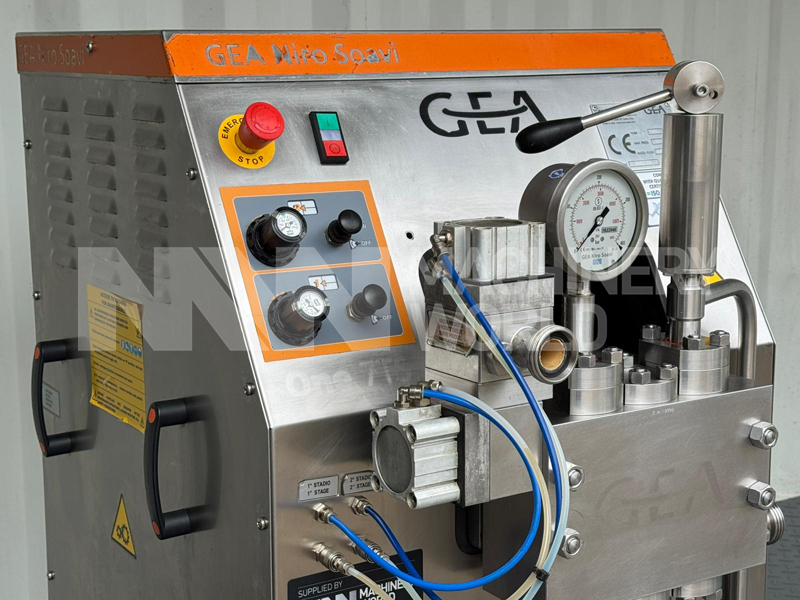

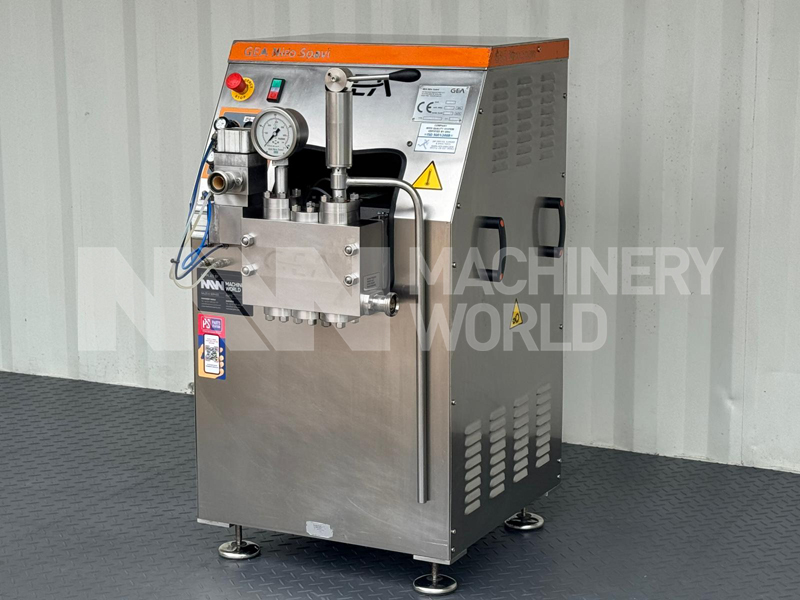

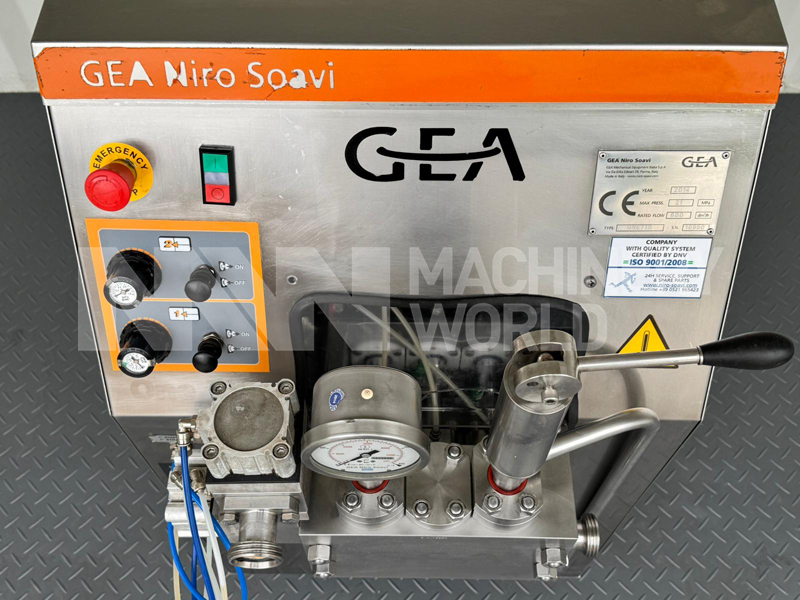

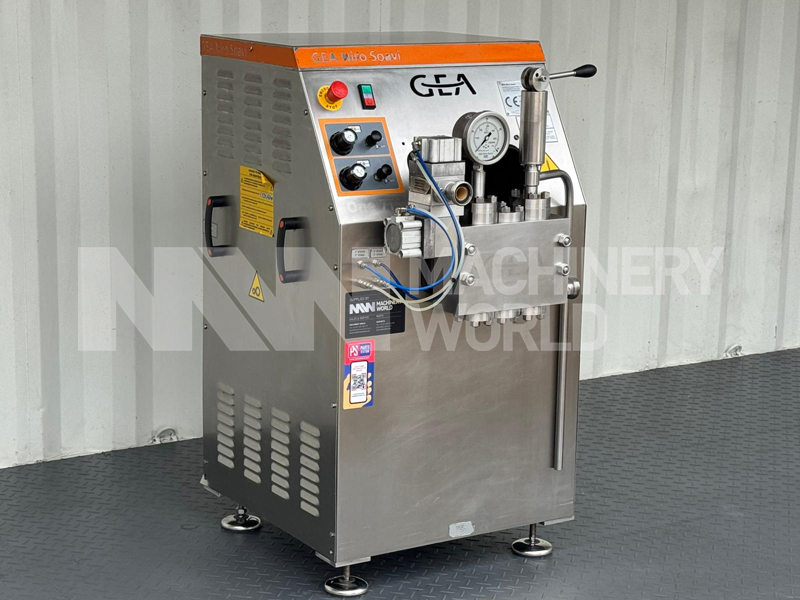

This is a used GEA Niro Soavi ONE 7TS two-stage high pressure homogeniser, 600 LPH capacity at 210 bar (3,045 PSI), year 2014. Constructed in stainless steel for hygienic processing, this unit offers efficient particle size reduction and emulsification across dairy, beverage, food, and pharmaceutical applications. Equipped with a high-performance plunger pump, two-stage homogenisation head for enhanced product stability, and designed for continuous, reliable operation in demanding production environments. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.

Specification

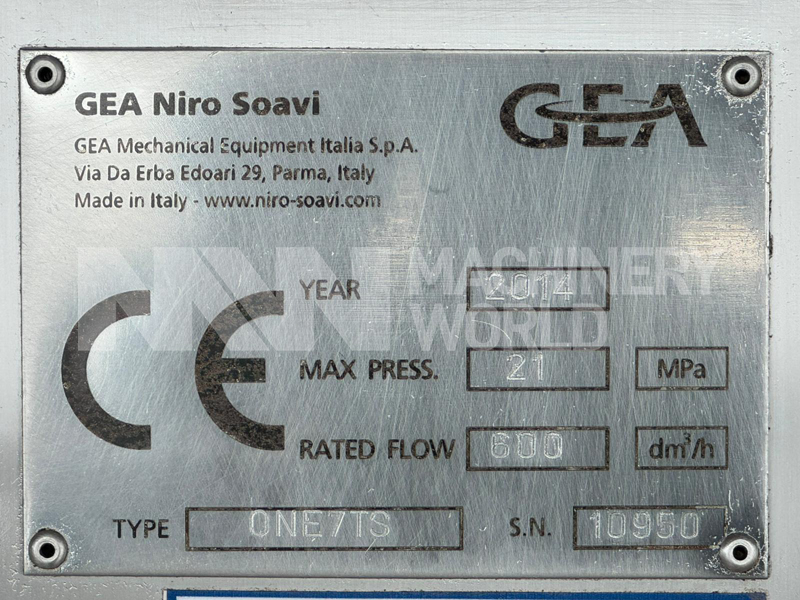

• Manufacturer: GEA Mechanical Equipment, Italy
• Type: ONE 7TS
• Serial Number: 10950
• Function: High Pressure Homogeniser
• Capacity: Approx 600 litres per hour
• Year of Manufacture: 2014
• Max. Working Pressure: 210 bar (3,045 PSI)
• Number of stages: 2-Stage Homogeniser

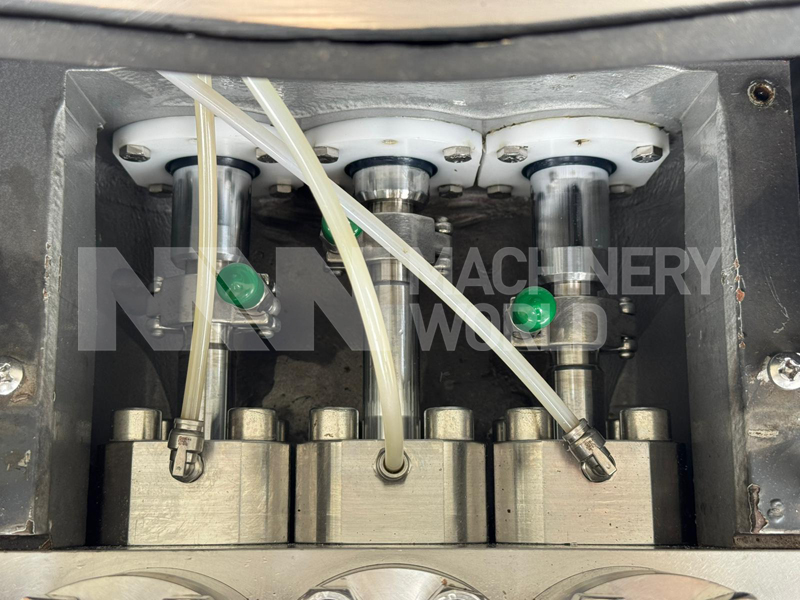

• Number of Pistons/Plungers: 3x Pistons/Plungers
• Finish: Stainless Steel

Dimensions

• Length: 830mm
• Width: 760mm
• Height: 1170mm

Country of Manufacture

Italy
