Alfa Laval Foodec 209 Centrifuge Decanter (Year 2020 – NEVER USED)

Description

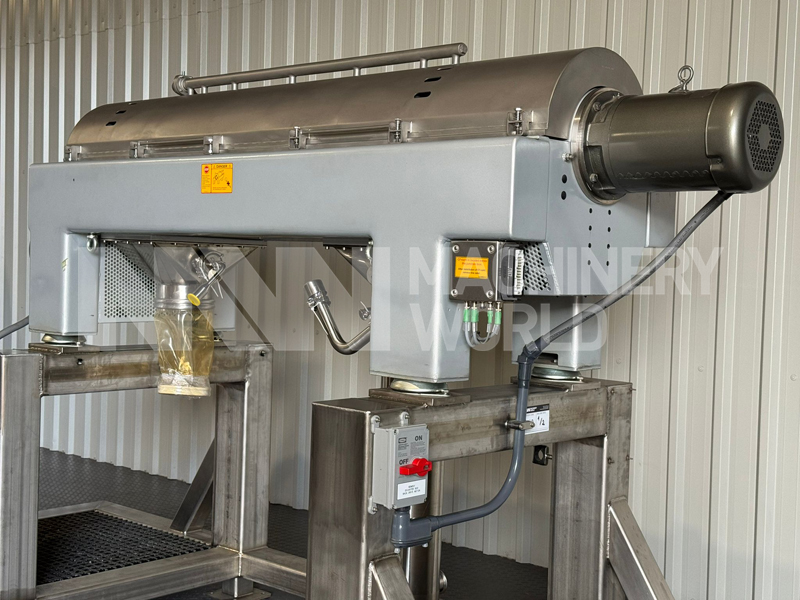

This is a never used Alfa Laval Foodec 209 Centrifuge Decanter, which comes fully mounted on a Stainless Steel Skid. Alfa Laval Foodec Decanter Centrifuges are engineered specifically for food processing industry, where maintaining strict hygiene is essential to meet stringent sanitary requirements. They are well-suited for applications in the food industry that require efficient separation of solids from liquids. Alfa Laval Foodec systems ensure high yield and deliver clarified liquid with very low solids content. For operations with especially demanding cleaning standards, the Alfa Laval Foodec Hygiene range offers enhanced design features that simplify and speed up cleaning, ensuring even greater cleanability. The rotating assembly is mounted on a compact welded frame with bearings at both ends. This design ensures low power use, easy installation, precise control without belts or pulleys, and optimal balance between clarification and recovery even with varying feed conditions. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.

Specification

• Make: Alfa Laval, India
• Type: FOODEC 209
• Function: Centrifuge Decanter

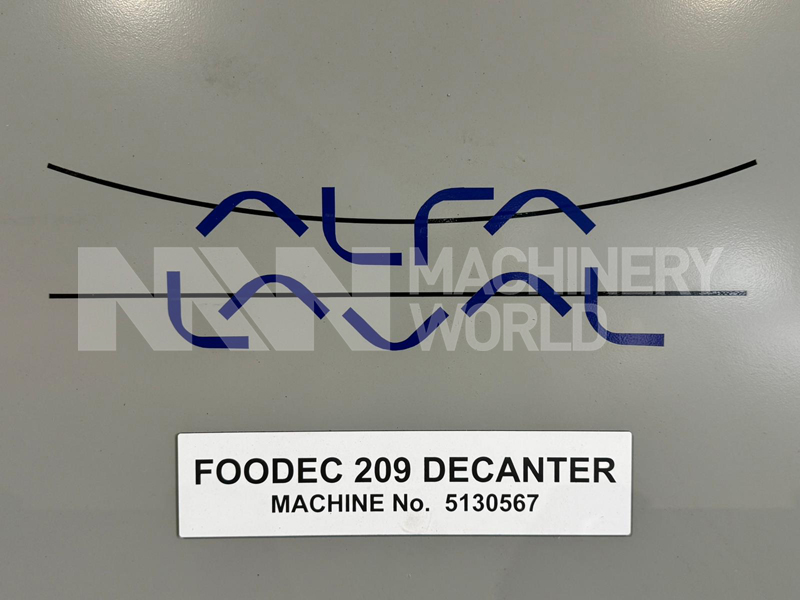

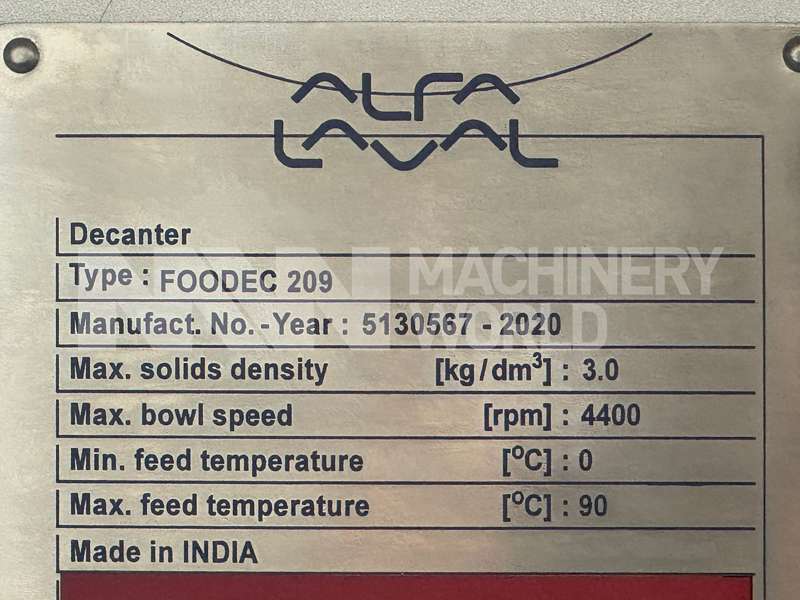

• Manufacturing No: 5130567
• Year of Manufacture: 2020
• Bowl diameter: 280 mm (11 Inches)
• Maximum Bowl Speed: 4,400 RPM
• Maximum G-force: Approx 3030 G
• Material of construction (Product Contact Parts): 316 Grade Stainless Steel
• Conveyor: Single-lead Screw Conveyor
• Drive Motor Power:

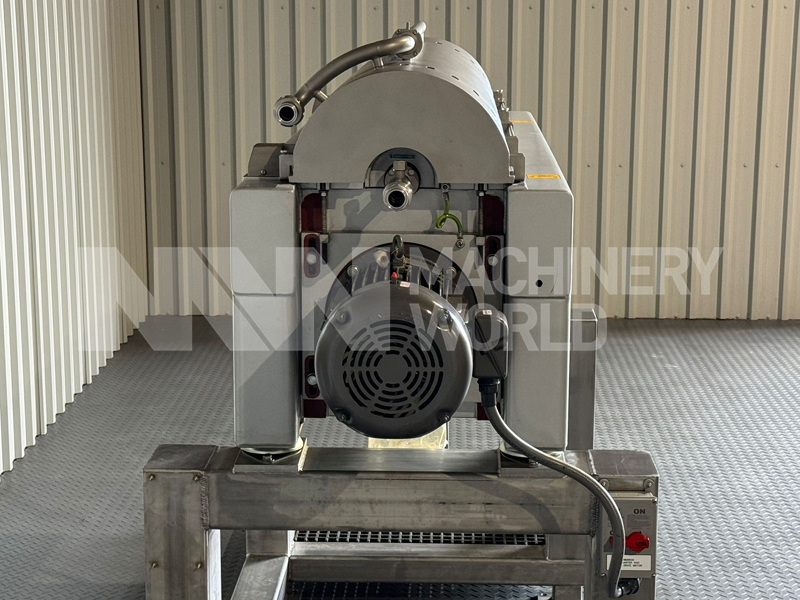

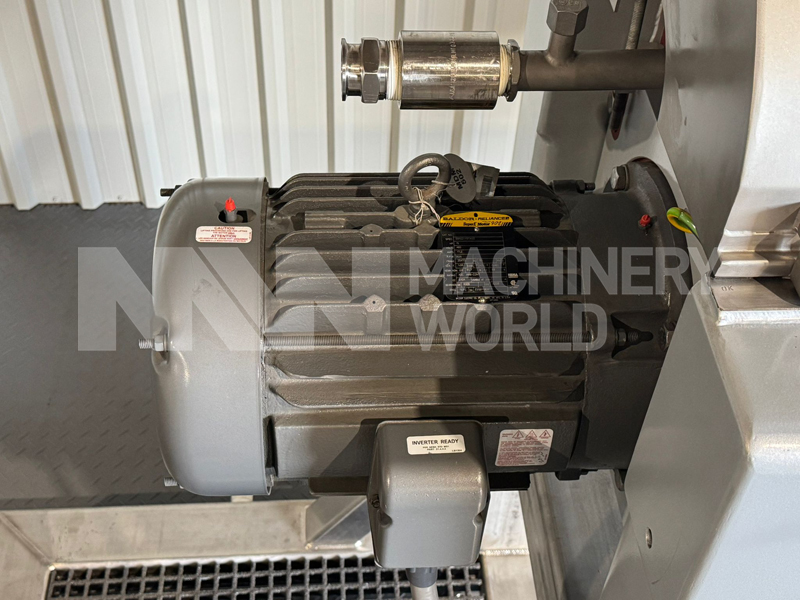

  • Main Drive (Bowl): 15 HP, 460V, 3525 RPM & 60Hz

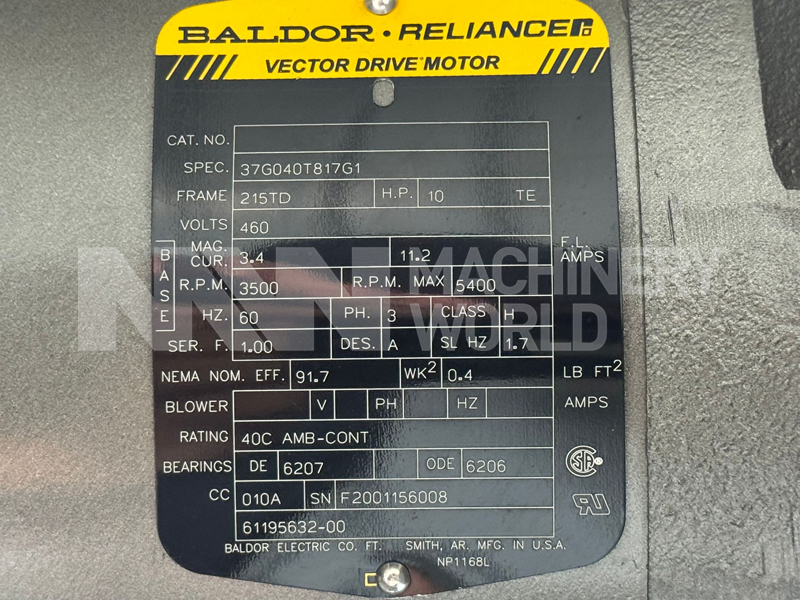

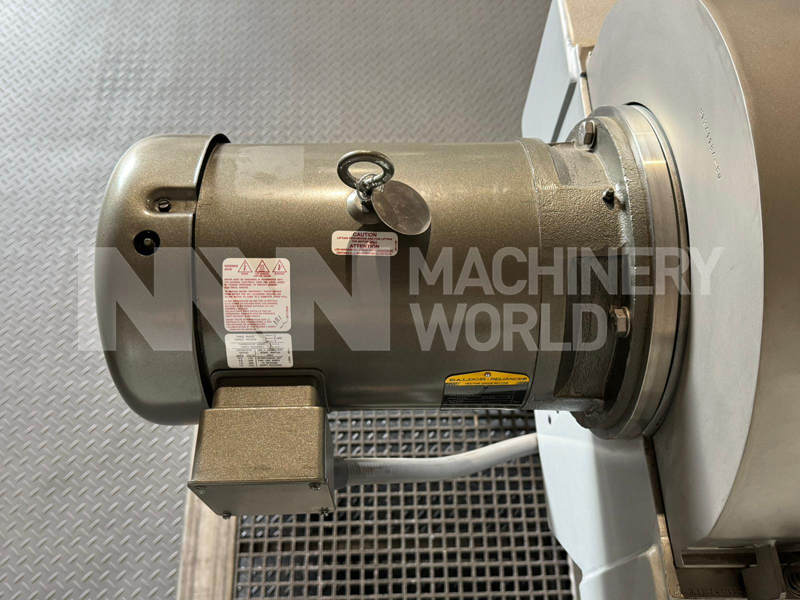

  • Scroll Drive Motor: 10 HP, 460V, 3500 RPM & 60Hz
• Clean-In-Place (CIP) Capabilities: CIP Cleanable

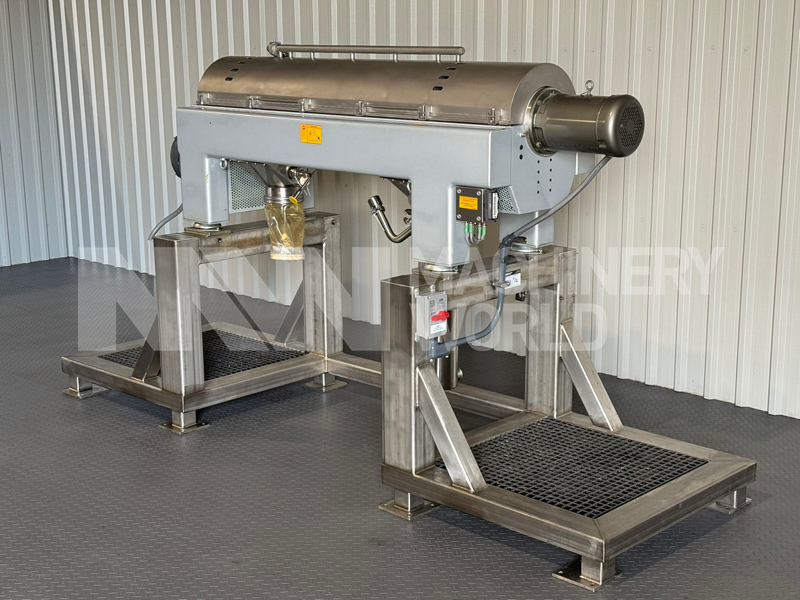

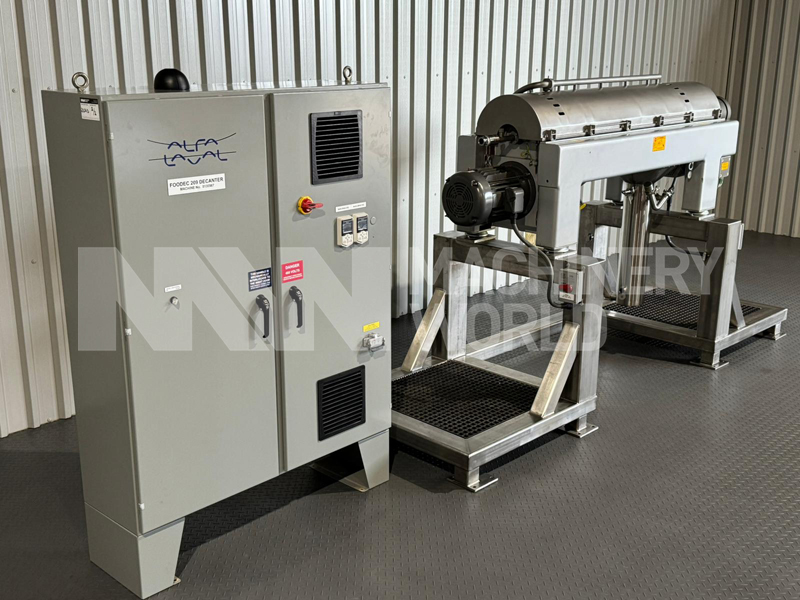

• Support: Comes completely mounted on Stainless Steel Box Sectional Frame

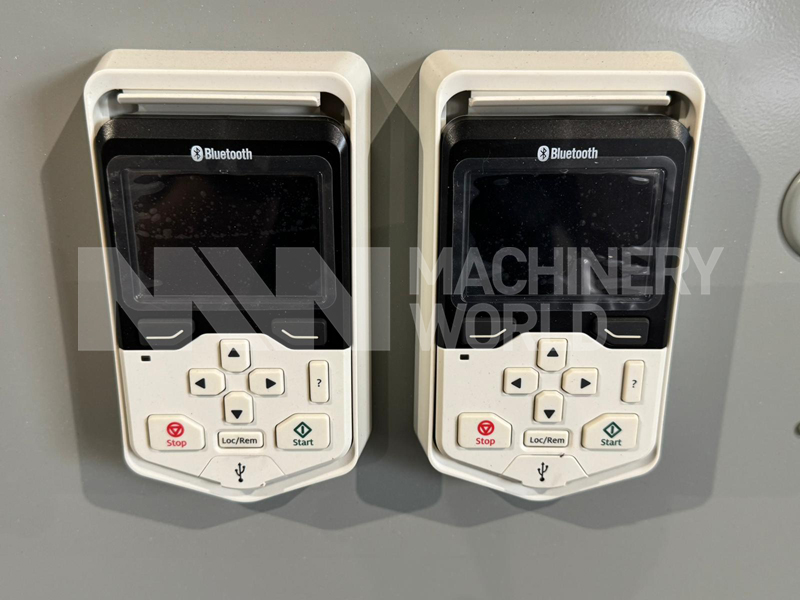

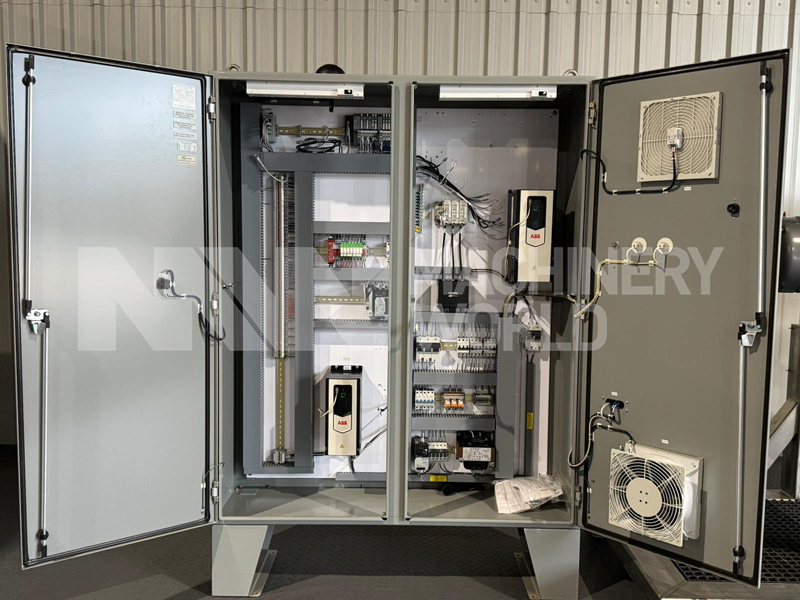

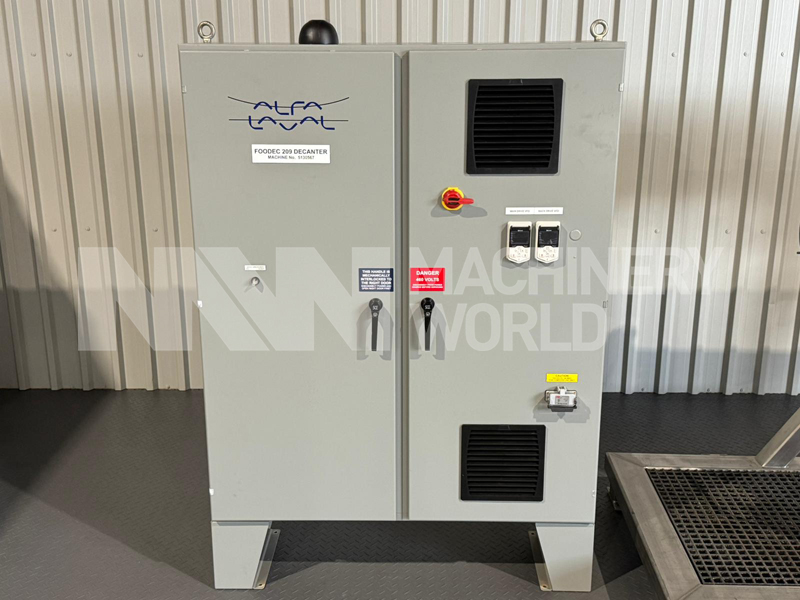

• Control Panel: Free Standing Control Panel with Frequency Controlled Inverters for Speed Control
