Almac FV200 Mozzarella Cooker Stretcher with Direct Steam Injection with Almac FS50-N Mozzarella Moulder (Year 2012)

Description

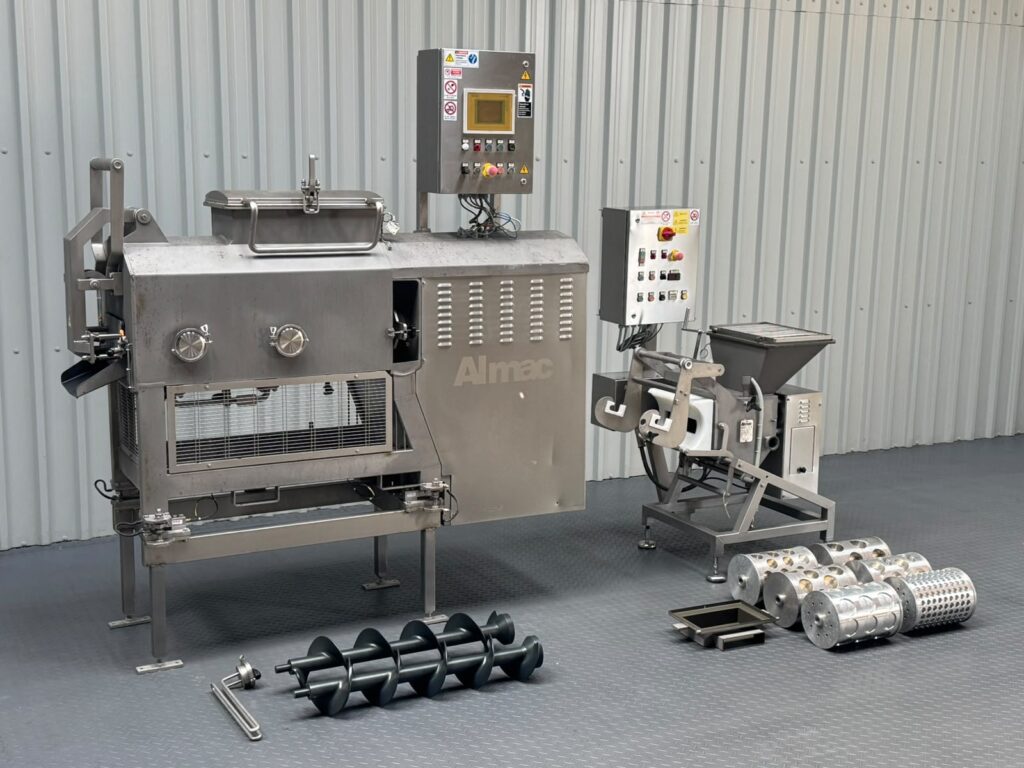

Used Almac FV200 Mozzarella Cooker Stretcher with Direct Steam Injection, supplied together with an Almac FS50/N Mozzarella Moulding Machine and a comprehensive selection of interchangeable moulding drums for producing various mozzarella cheese formats, shapes and portion sizes.

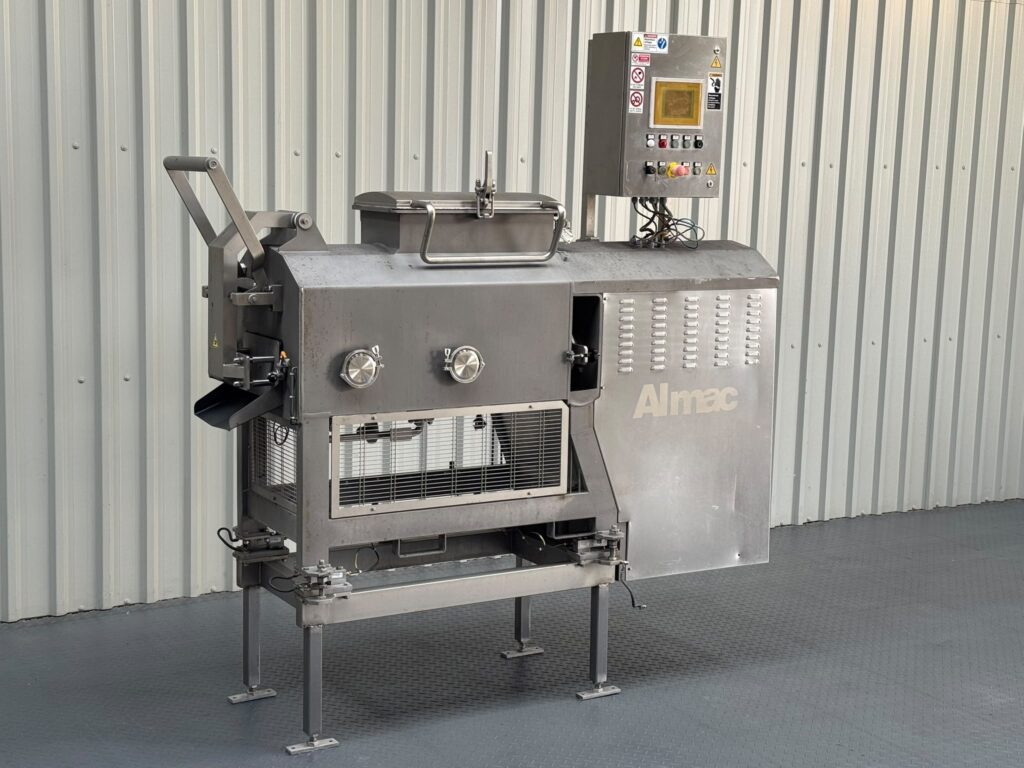

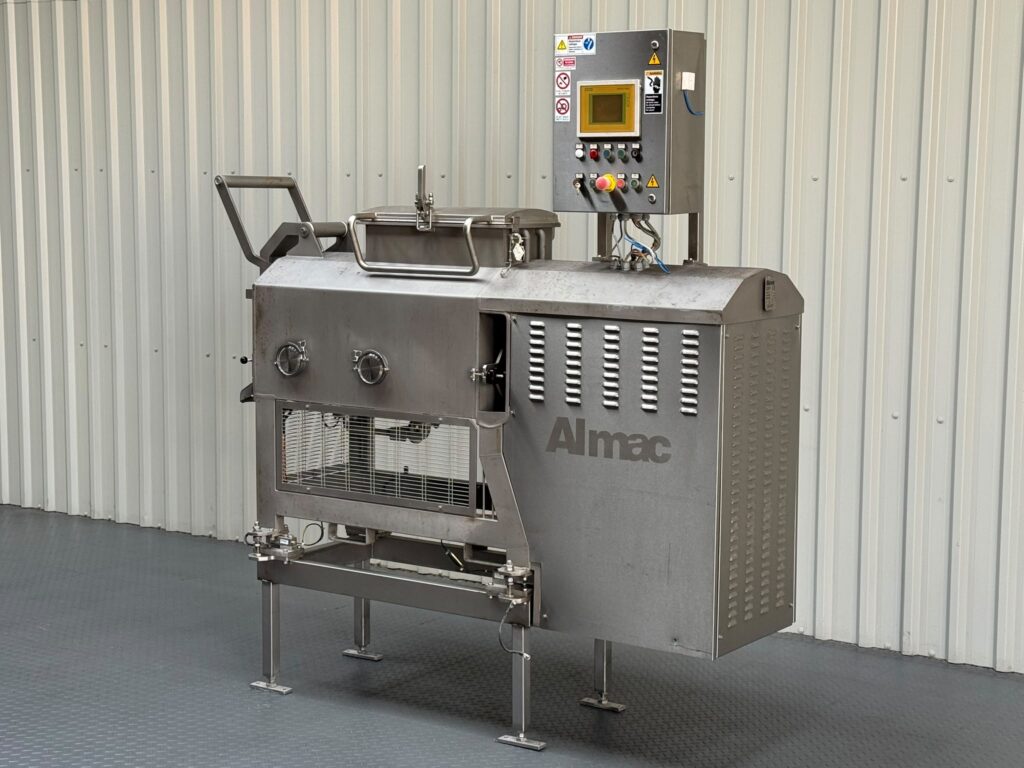

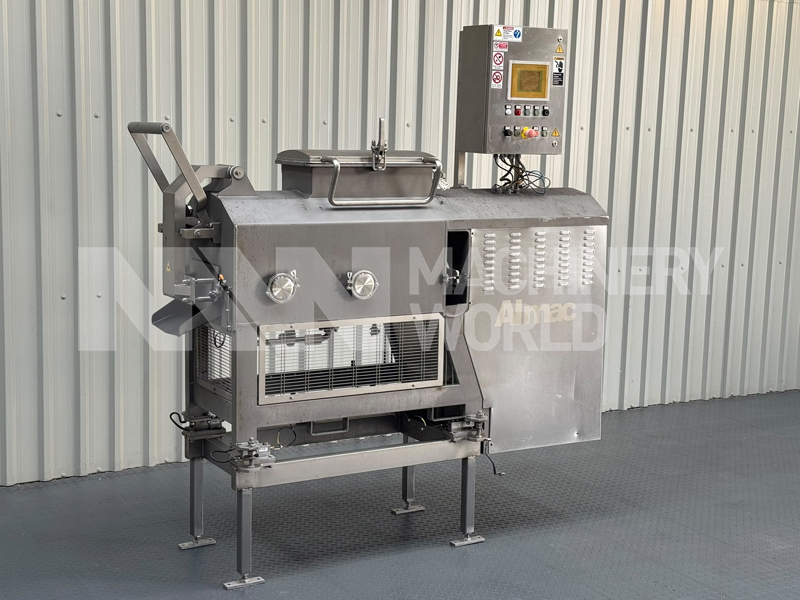

The Almac FV200 steam cooker stretcher is designed for cooking, kneading, stretching and working fresh or prepared curd for the production of mozzarella, pasta filata cheese and processed stretched-curd cheese products. The machine uses twin independently driven stretching augers with electronic variable-speed control to crumble, mix, knead and stretch the cheese before discharging it into the downstream mozzarella moulder. Direct steam is injected into the product through four mushroom-shaped steam injectors. This efficient direct steam injection system provides rapid and uniform heating during the cooking and stretching process and can help achieve a better mozzarella cheese yield, subject to the curd composition, moisture content, recipe and operating parameters. The Almac FV200 cooker stretcher is mounted on integrated load cells, enabling accurate weighing and improved batch control throughout the mozzarella cooking and stretching process. This helps operators achieve consistent batch sizes, repeatable processing and controlled cheese production. It also includes spare Teflon-coated/non-stick augers for the Almac FV200 cooker stretcher, offering useful production flexibility and reducing potential downtime.

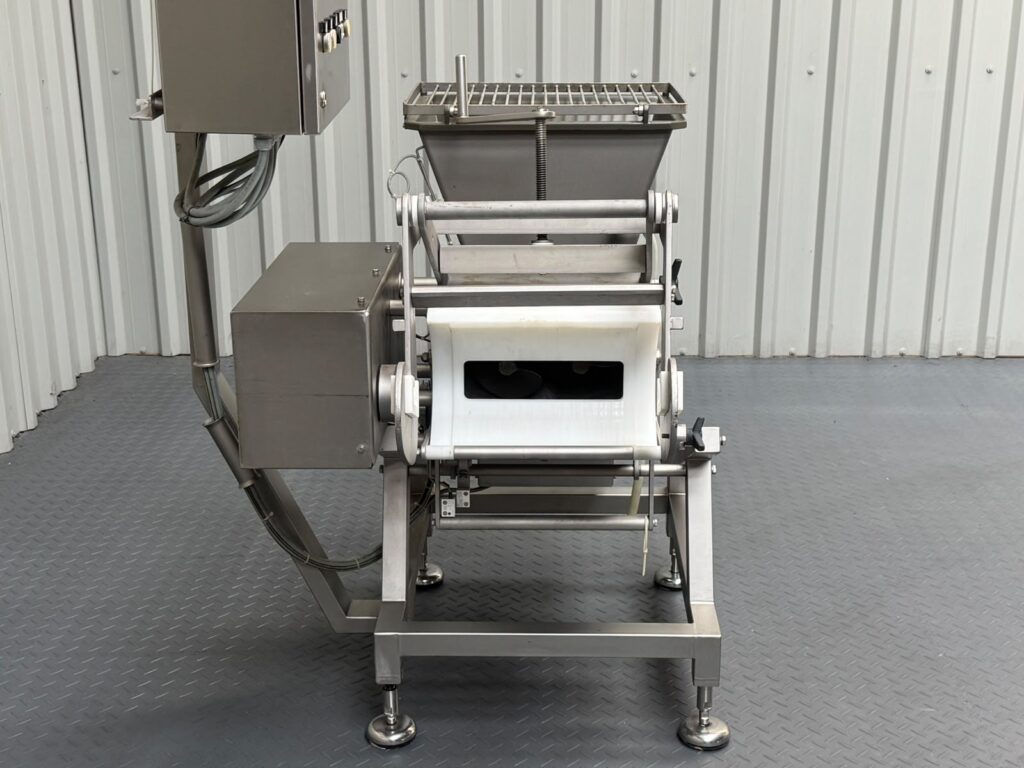

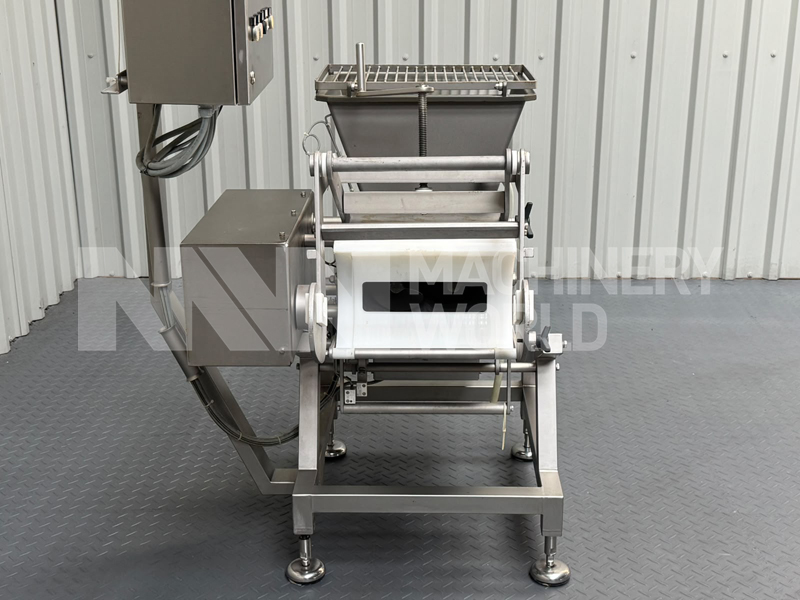

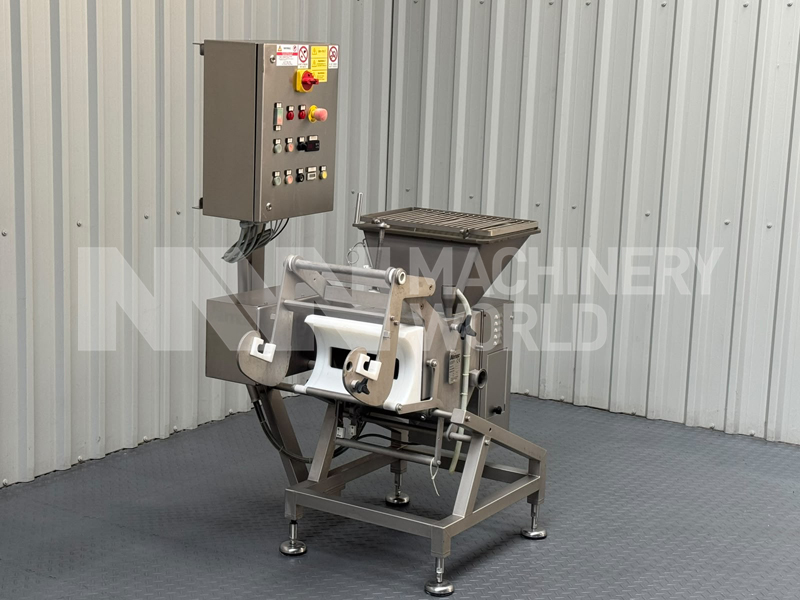

The matching Almac FS50/N mozzarella moulder receives the stretched cheese mass through its loading hopper. Twin mechanically driven feeding augers continuously deliver the pasta filata cheese into the interchangeable rotary moulding drum, producing consistent mozzarella portions. The line is supplied with a selection of interchangeable mozzarella moulds/moulding drums, allowing the production of various mozzarella formats.

Manufactured principally from AISI 304 stainless steel, with food-contact components coated in certified food-grade non-stick material, this used Almac mozzarella production line is suitable for hygienic operation within commercial cheese dairies and industrial dairy-processing plants. The equipment is supplied with integrated electrical control panels, electronic speed control, PLC and touchscreen operator interface. Please note: The downloadable technical documentation and drawings provided below is for guidance and reference purposes only and may not represent the exact specification or configuration of the plant offered for sale.

Key Application

• Cooking, kneading and stretching mozzarella cheese curd
• Production of mozzarella and pasta filata cheese
• Direct steam cooking and stretching of fresh or prepared curd
• Forming and portioning mozzarella into various formats
• Production of spherical mozzarella cheese portions
• Processing stretched-curd and melted-cheese products
• Suitable for dairy factories, artisan cheese producers and industrial mozzarella plants
• Ideal as a compact mozzarella cooker, mozzarella stretcher and mozzarella moulding line

Specification

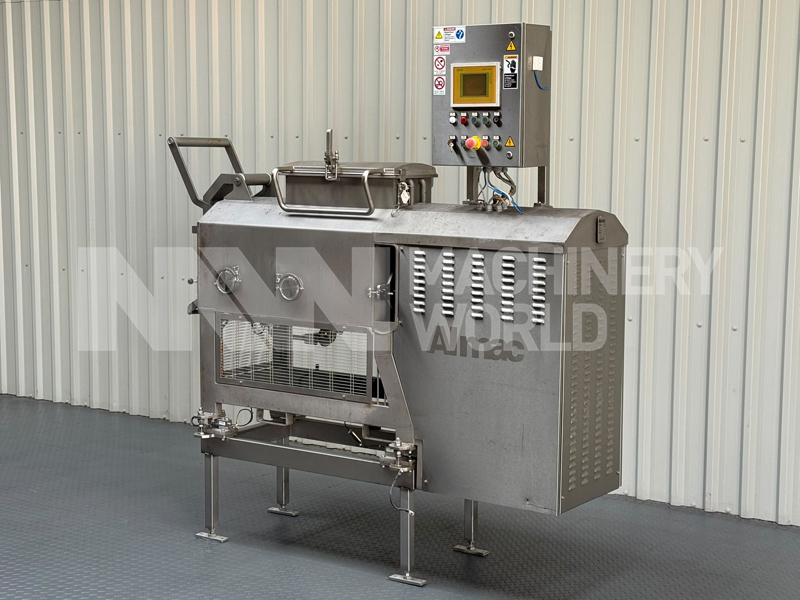

Almac FV200 Mozzarella Cooker Stretcher

• Manufacturer: Almac S.r.l., Italy
• Model: FV200
• Machine type: Steam Cooker and Cheese stretcher
• Serial number: 039
• Year of manufacture: 2012
• Production capacity: Approximately 100 kg per production cycle
• Heating method: Direct steam injection
• Steam injection system: Four mushroom-shaped steam injectors

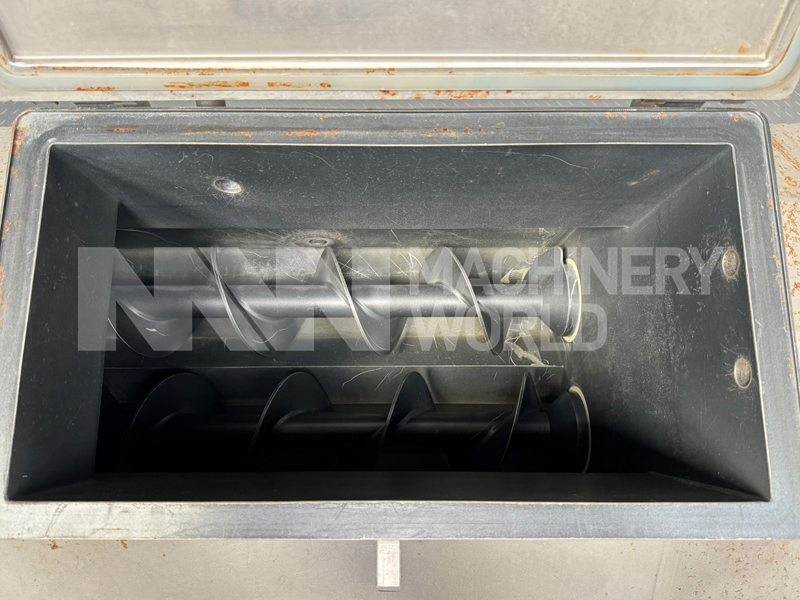

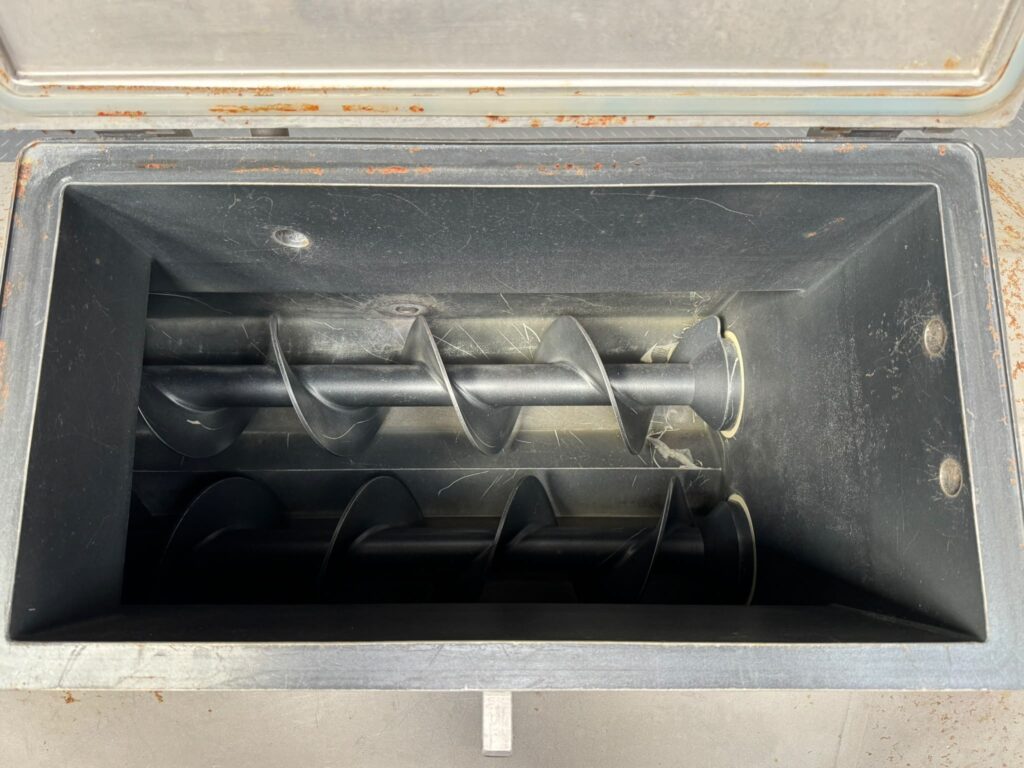

• Processing system: Twin stretching and feeding augers
• Auger drives: Independently motorised
• Speed control: Electronic variable-speed control via frequency inverter
• Product temperature monitoring: Integrated temperature probe
• Processing chamber: Insulated double-wall construction
• Loading cover: Movable cover with hermetic closure
• Construction: AISI 304 stainless steel
• Food-contact surfaces: Certified food-grade non-stick coating

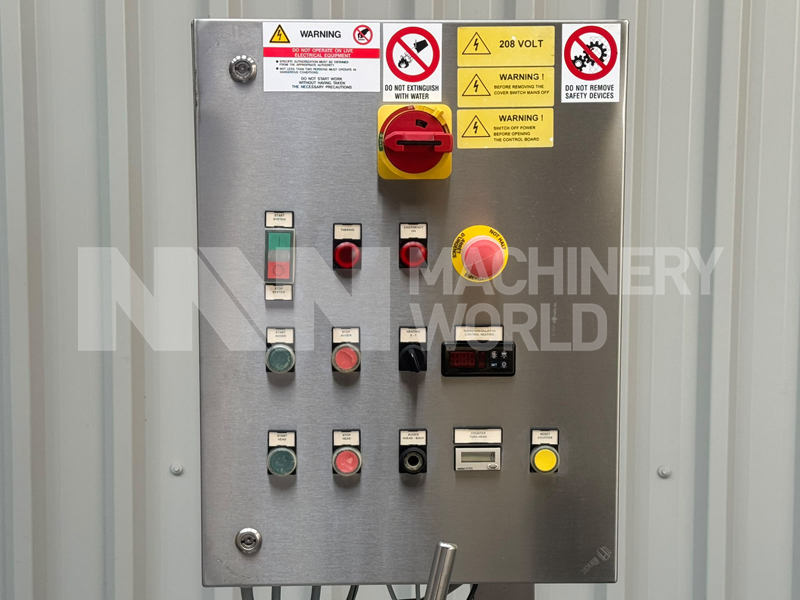

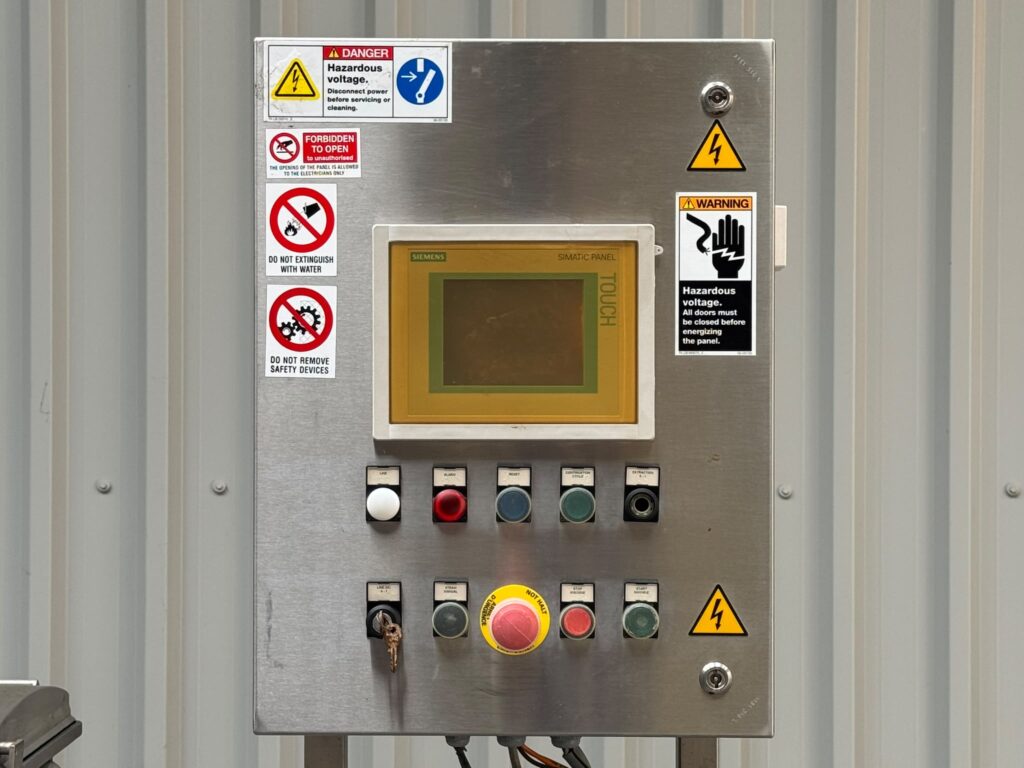

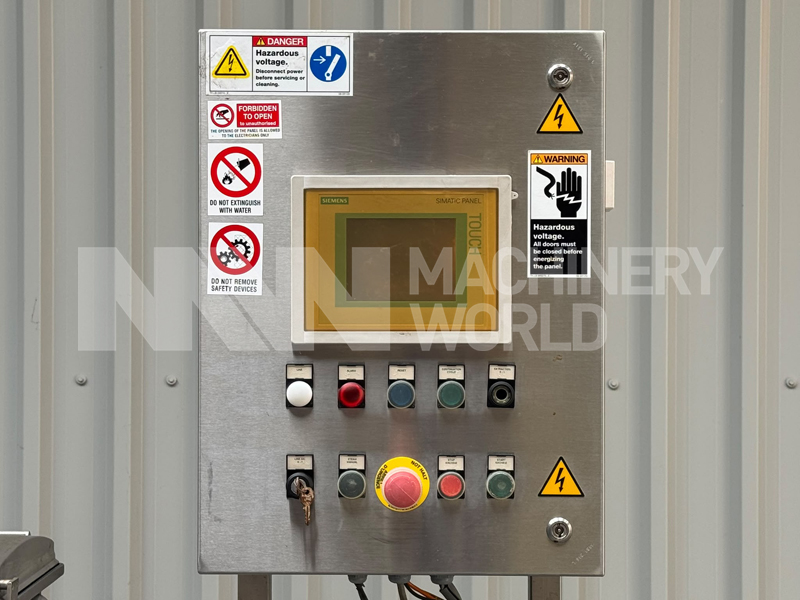

• Controls: Integrated electrical control panel with PLC, inverter and touchscreen HMI
• Safety protection: Mechanical guards, interlocked covers and safety devices
• Electrical supply: 208 V / 60 Hz / 3-phase

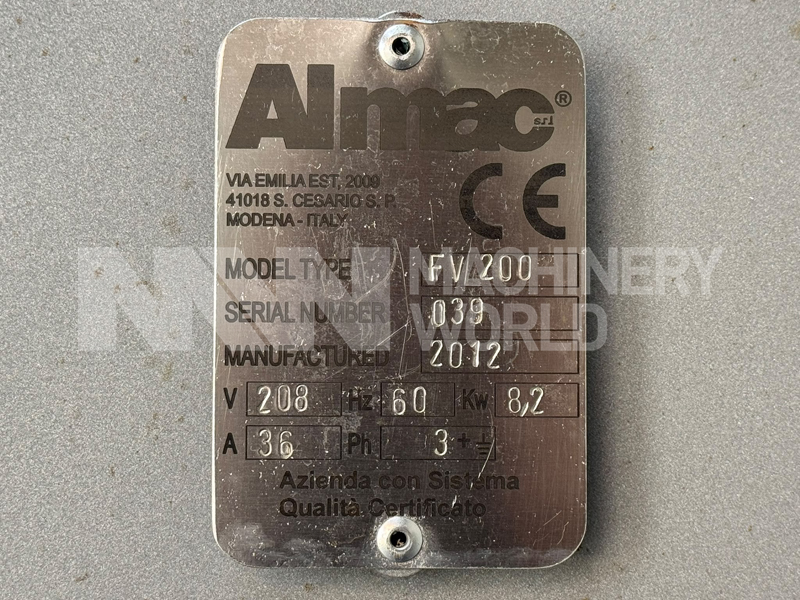

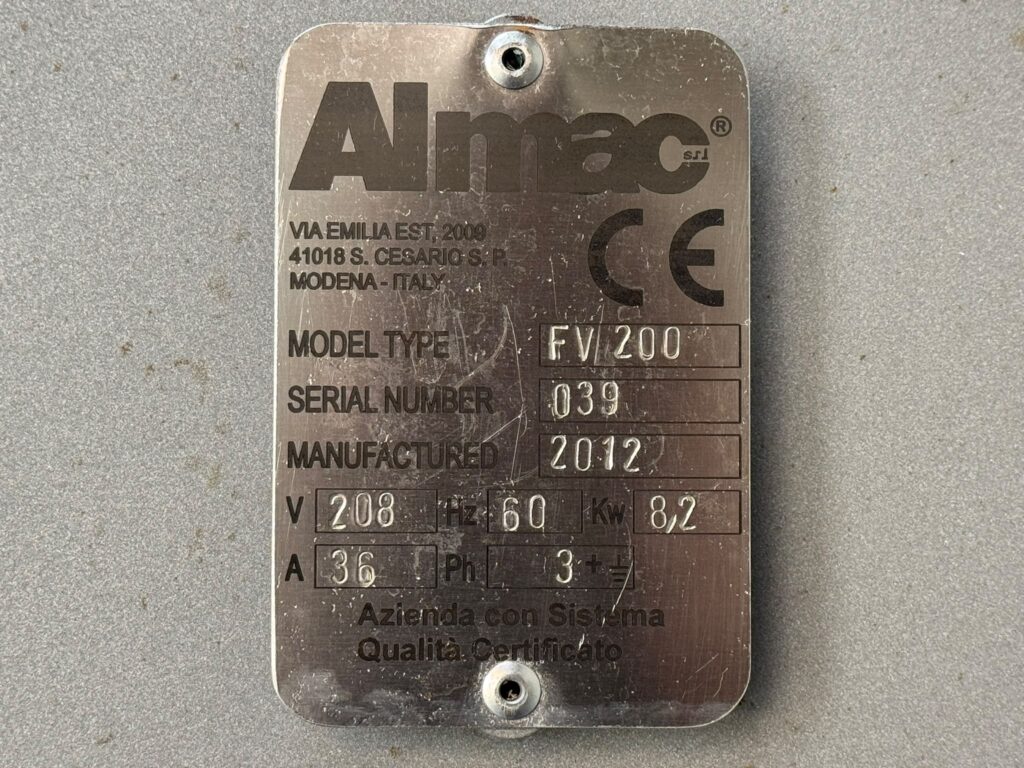

• Motor rating shown on machine plate: 8.2 kW

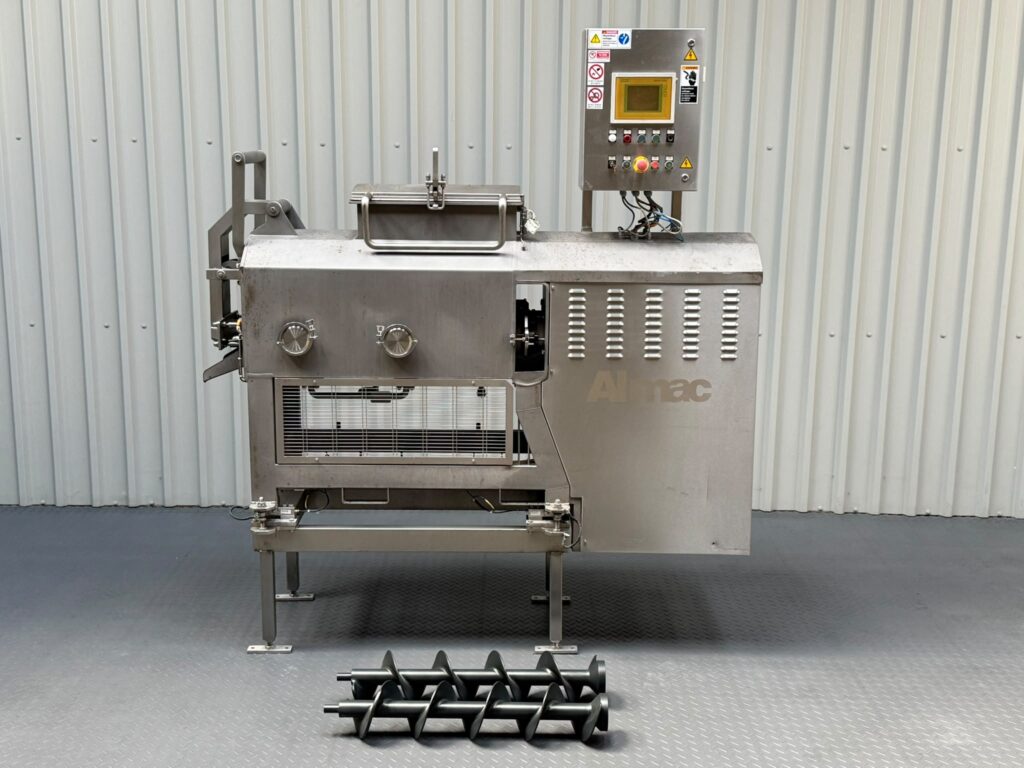

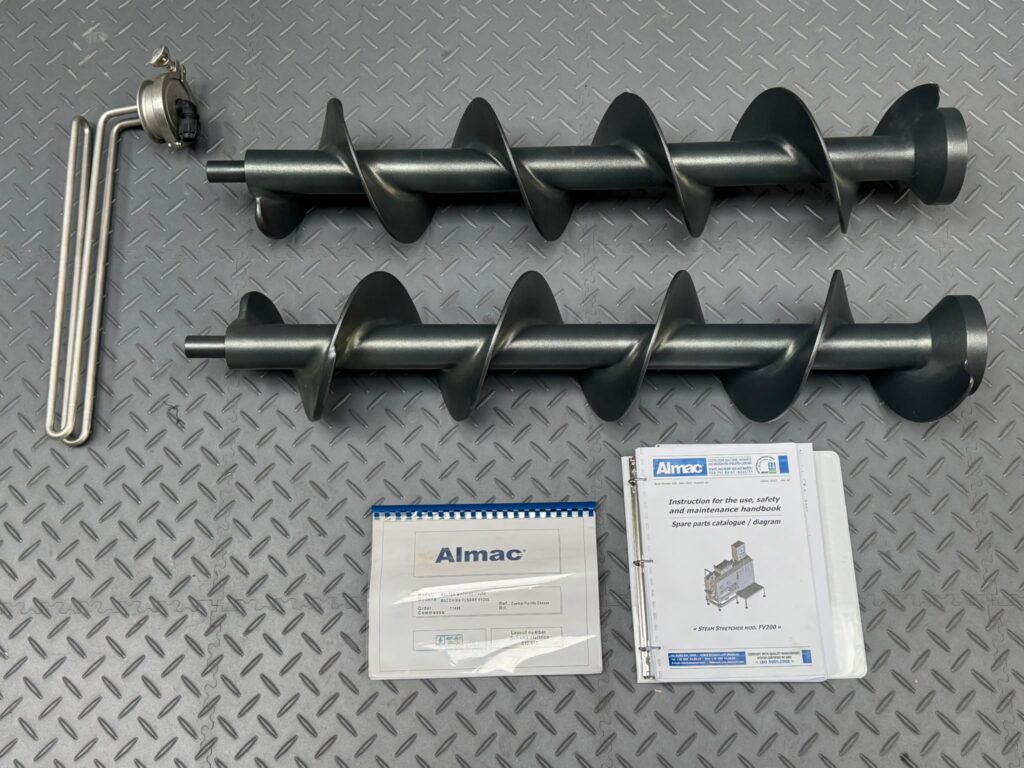

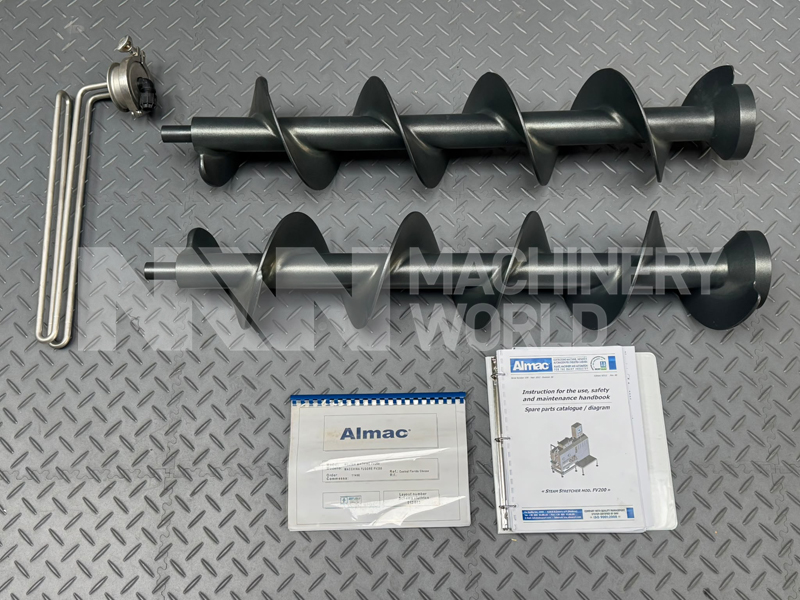

• Included accessories: Spare Teflon-coated/non-stick cooker-stretcher augers

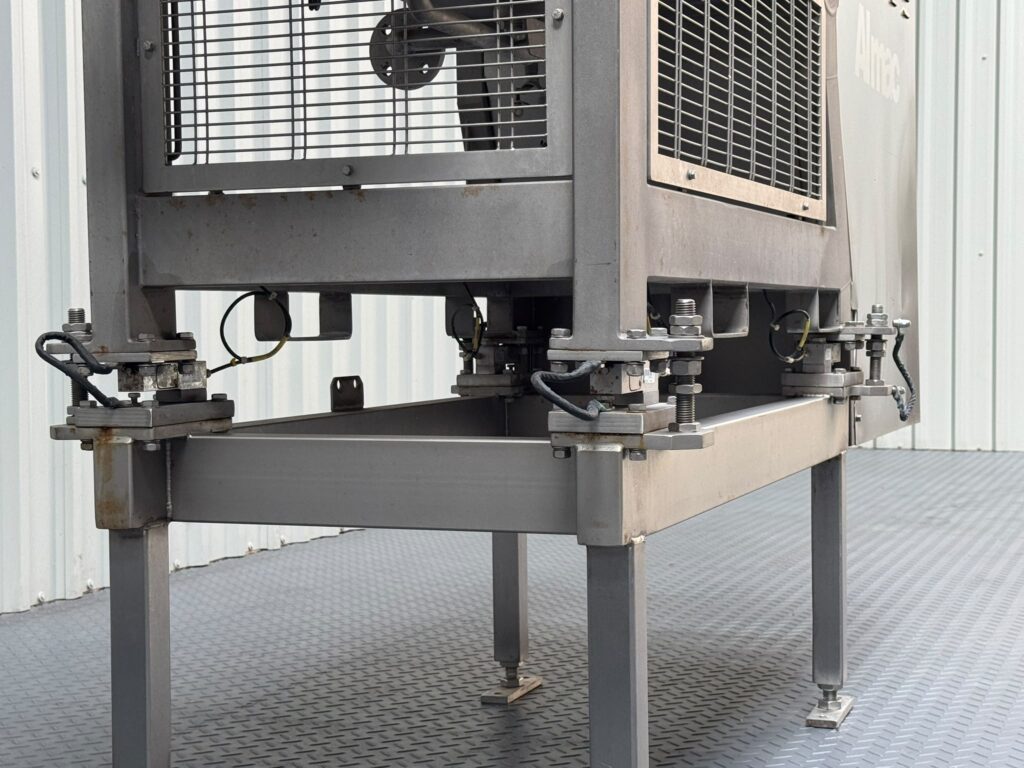

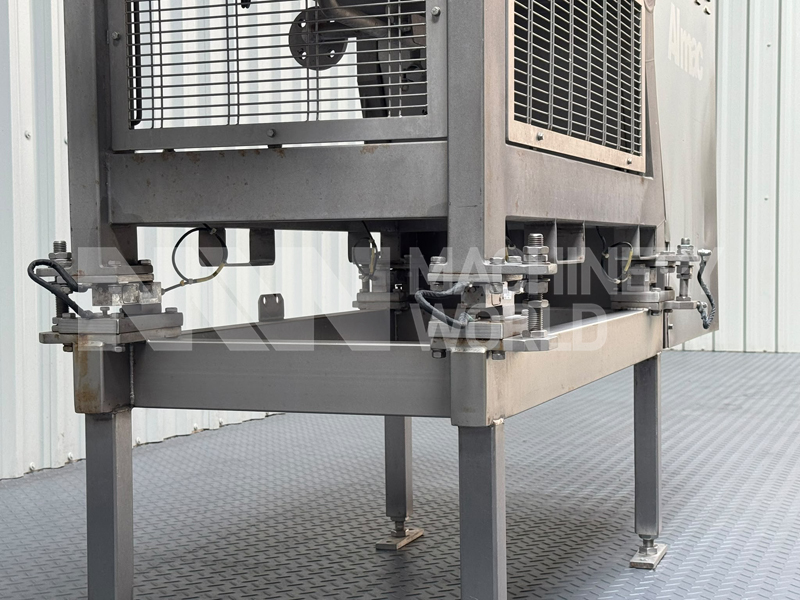

• Batch control: Mounted on integrated load cells for accurate product weighing, batch monitoring and repeatable mozzarella production
• Documentation included with electrical drawings

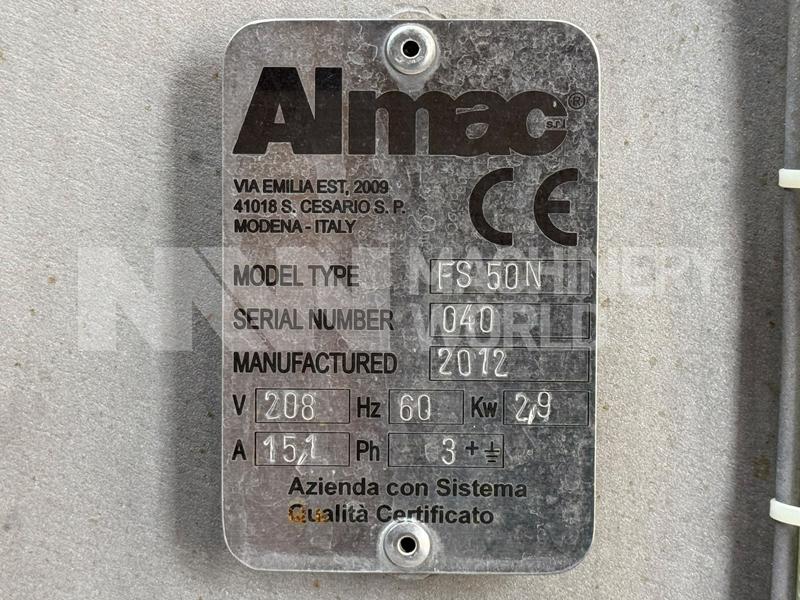

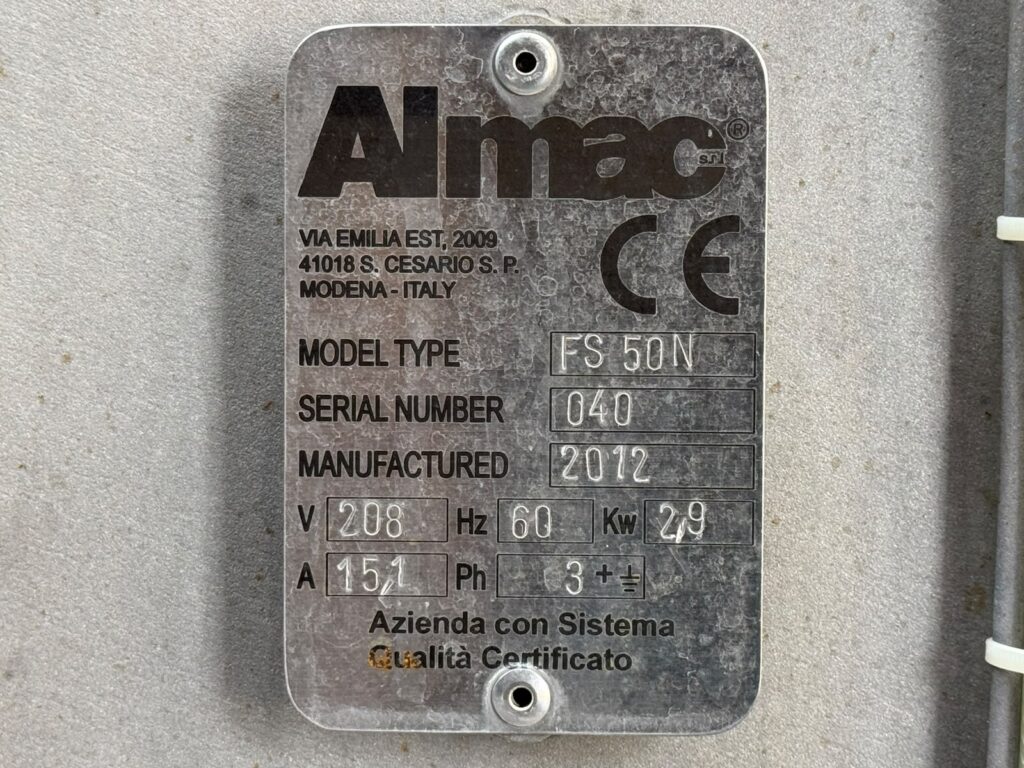

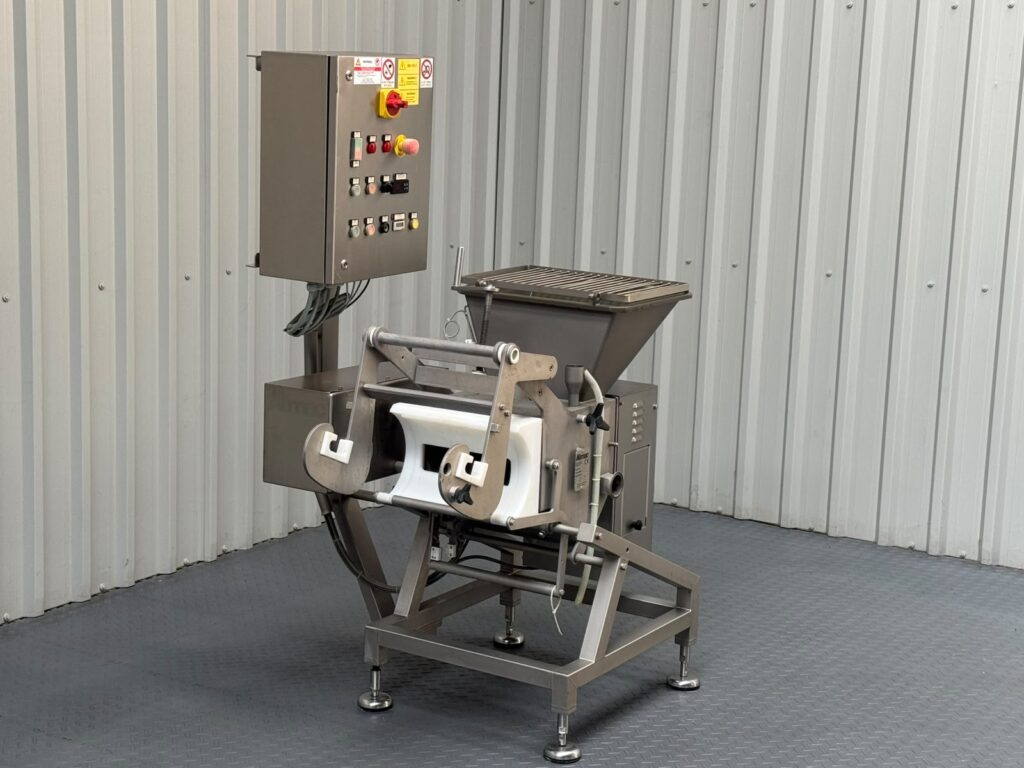

Almac FS50/N Mozzarella Moulder

• Manufacturer: Almac S.r.l., Italy
• Model: FS50/N
• Machine type: Mozzarella and Pasta Filata cheese moulding machine
• Serial number: 040
• Year of manufacture: 2012
• Feeding system: Product loading hopper
• Product transfer: Twin mechanically driven feeding augers
• Moulding system: Interchangeable rotary moulding drum
• Construction: AISI 304 stainless steel
• Food-contact surfaces: Certified food-grade non-stick coating

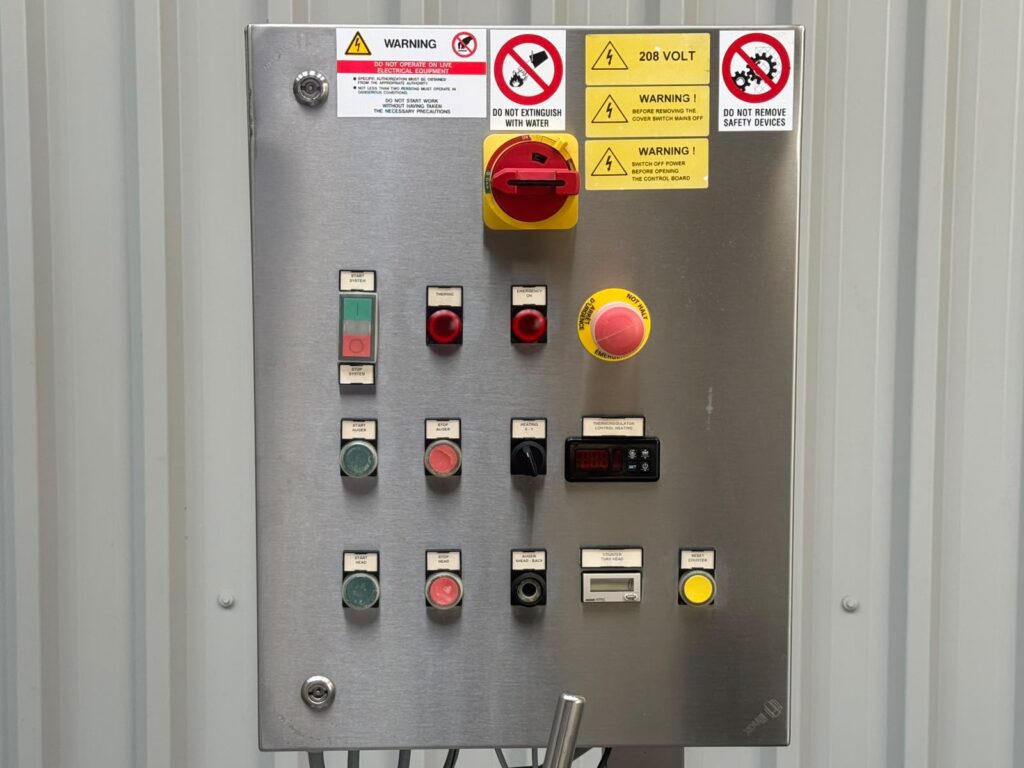

• Controls: Integrated electrical control panel
• Electrical supply: 208 V / 60 Hz / 3-phase
• Motor rating shown on machine plate: 2.9 kW

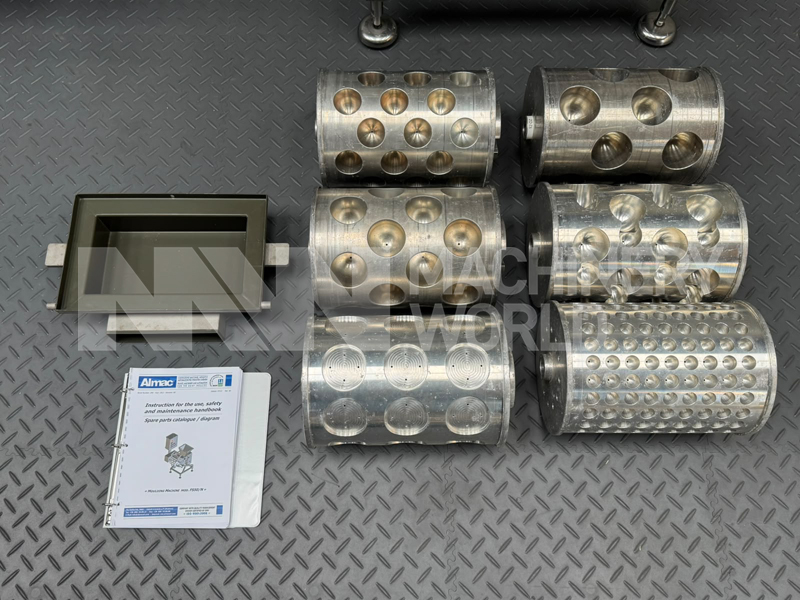

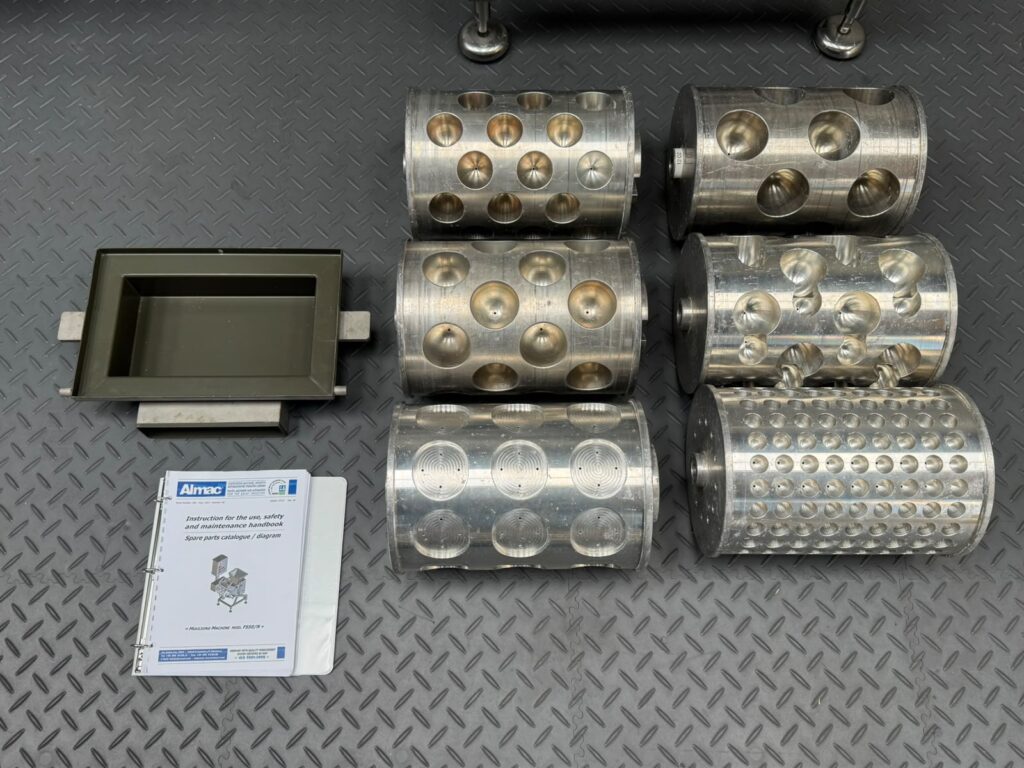

• Included accessories: Selection of interchangeable moulding drums and moulds for producing various mozzarella cheese formats
• Documentation included with electrical drawings

Dimensions

Almac FV200 Cooker Stretcher

• Length: Approximately 2,250 mm
• Width: Approximately 1,450 mm
• Height: Approximately 2,140 mm
• Empty weight: Approximately 870 kg

Almac FS50/N Mozzarella Moulder

• Length: Approximately 1,070 mm
• Width: Approximately 1,110 mm
• Height: Approximately 1,795 mm
• Empty weight: Approximately 290 kg

Country of Manufacture

• Italy
