Fogg 24-Head Filler with 9-Head Integrated Capper Milk Filling Machine

Description

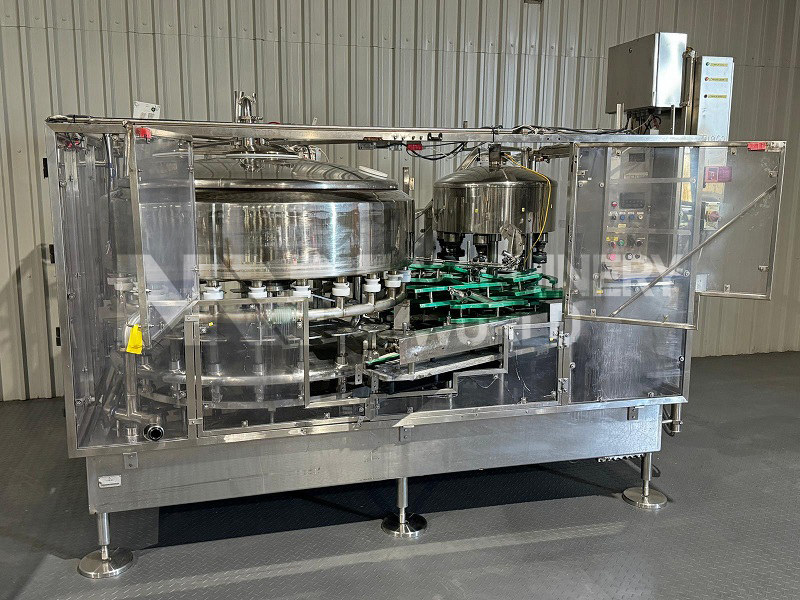

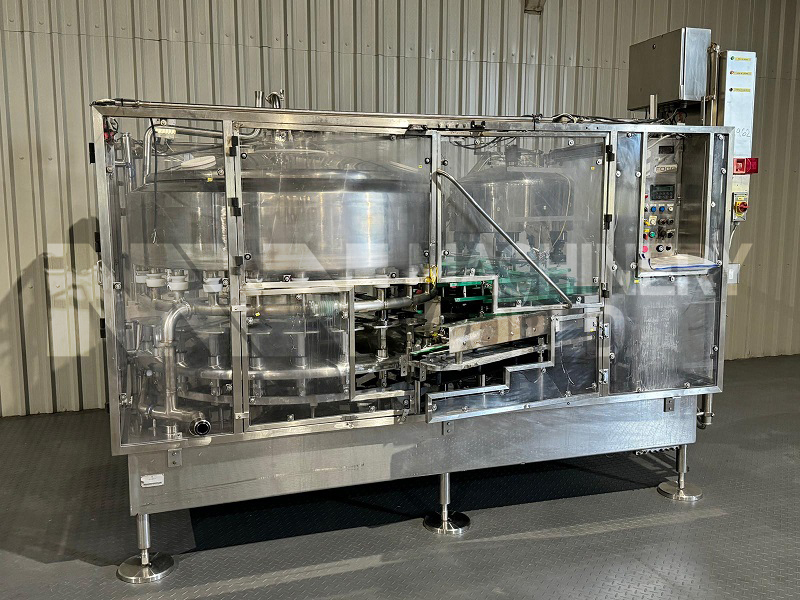

This is an used Fogg 24-Head Filler with a Fully Integrated 9-Head Capper, previously used at a major dairy in the United Kingdom and was previously used for filling HDPE (Plastic) Bottles of Milk in various filling volumes. This Fogg 24-9 Bottle Filling Machine comes with an integrated Control Panel and includes set of change parts to do 4 Pints, 6 Pints, 1 Liter & 2 Liter Plastic Milk Bottles. Currently Ex-Stock Machinery World, this used Fogg 24-9 Filler is available for immediate sale.

Specification

• Manufacturer: Fogg,USA
• Model: 24/9 RH (High Hand Feed)
• Function: Plastic (HDPE) Milk / Juice Bottle Filling Machine
• Capacity: Approx 40 to 70 Bottles per minute (Depending on Fill Volume)

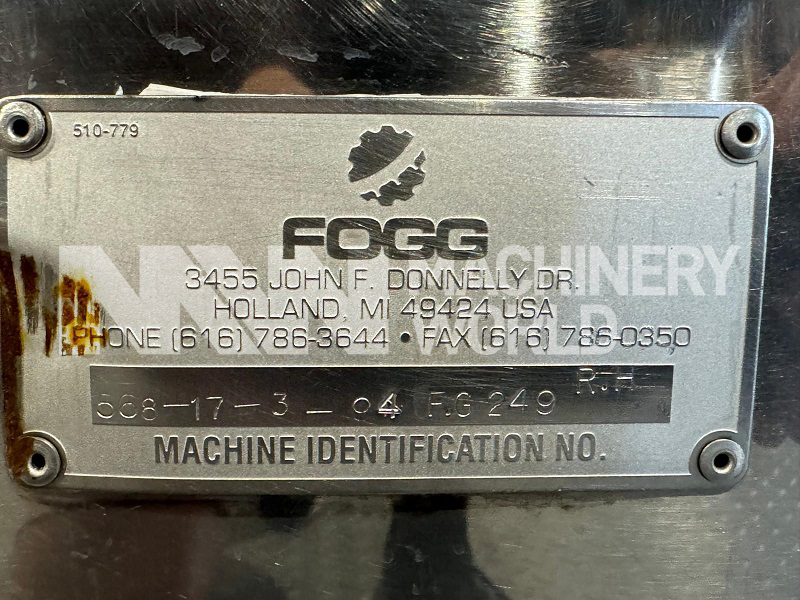

• Serial Number: 568-17-04 F.G 249 R.H

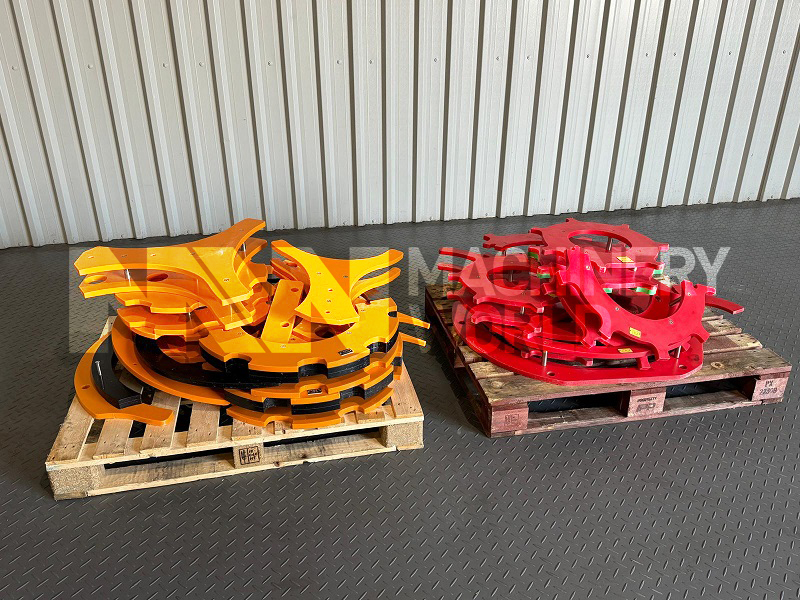

• Includes selection of change parts
• Fill Volumes:
  4 Pints
  6 Pints
  1 Liter
  2 Liter

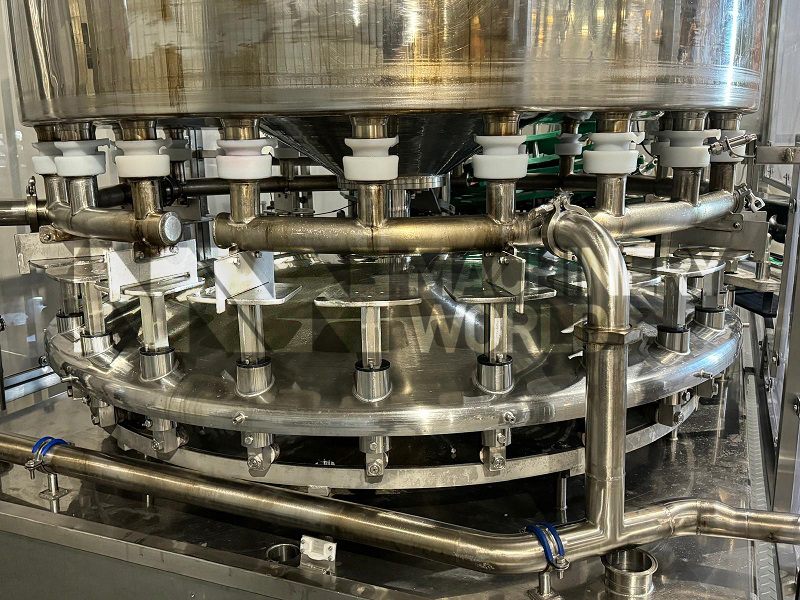

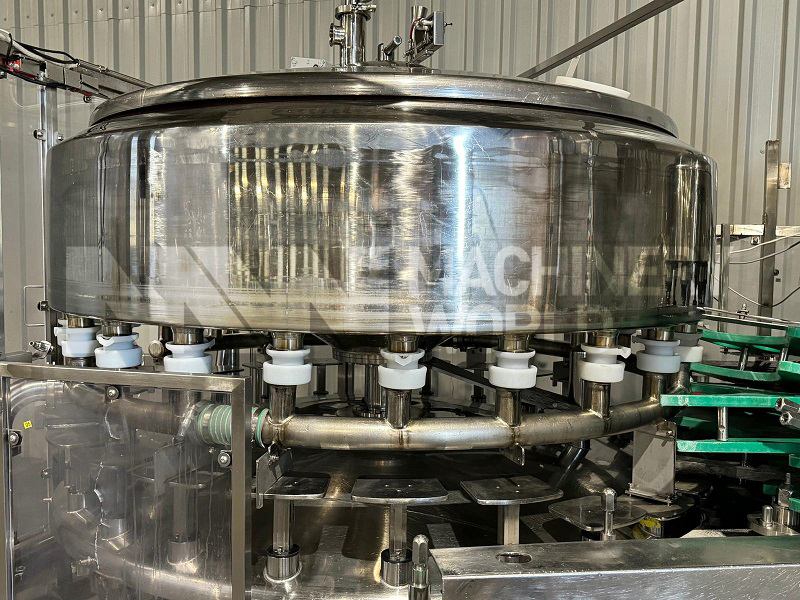

• No. of Filling heads: 24

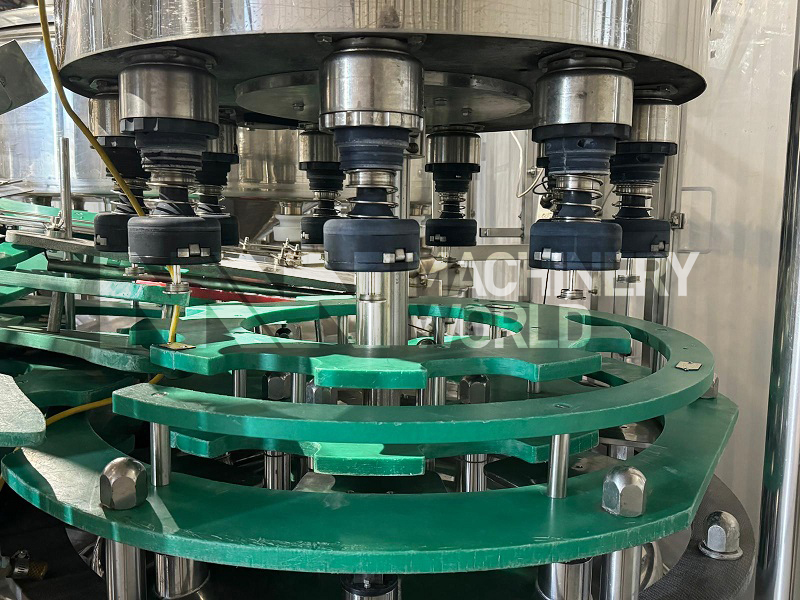

• No. of Capping Heads: 9
• Control: Comes integrated with Filling Machine
• Additional Details: Includes CIP Cleaning Ring and Instruction Manual

Dimensions

• Length: 3900mm
• Width: 3300mm
• Height: 2800mm

Country of Manufacture

USA
