Jorgensen Stainless Steel Static Filter Screen Liquid Solid Separation Sieve with Rotary Scraper

Description

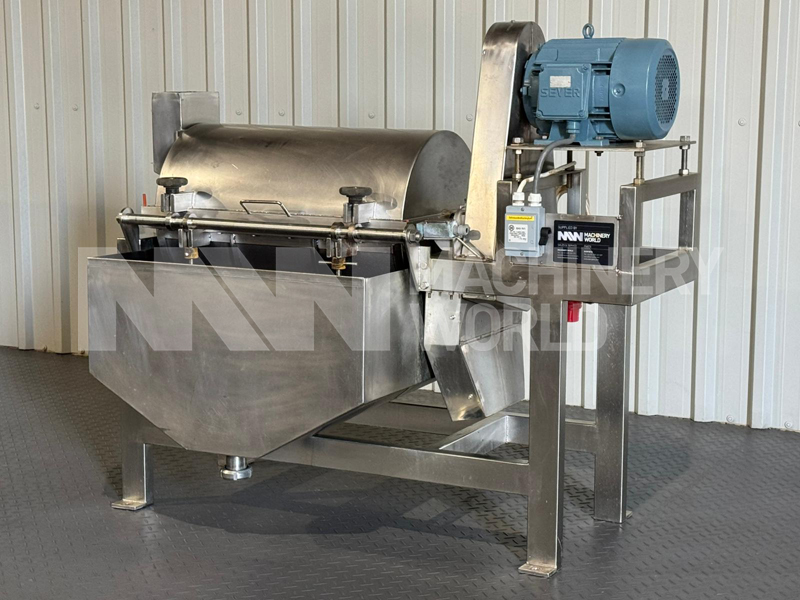

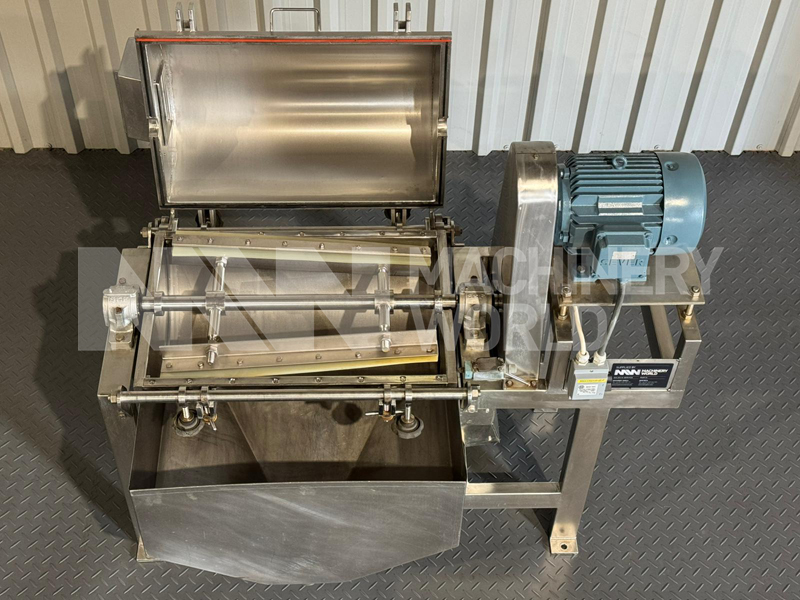

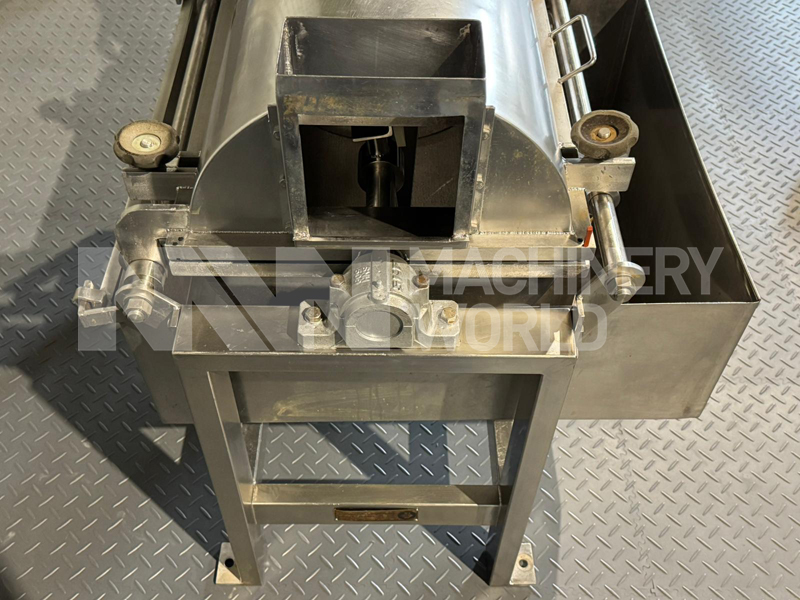

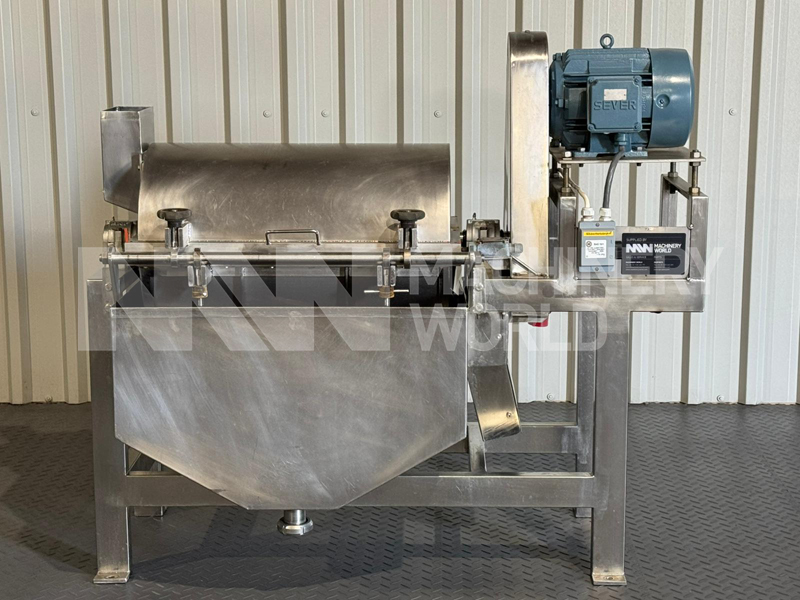

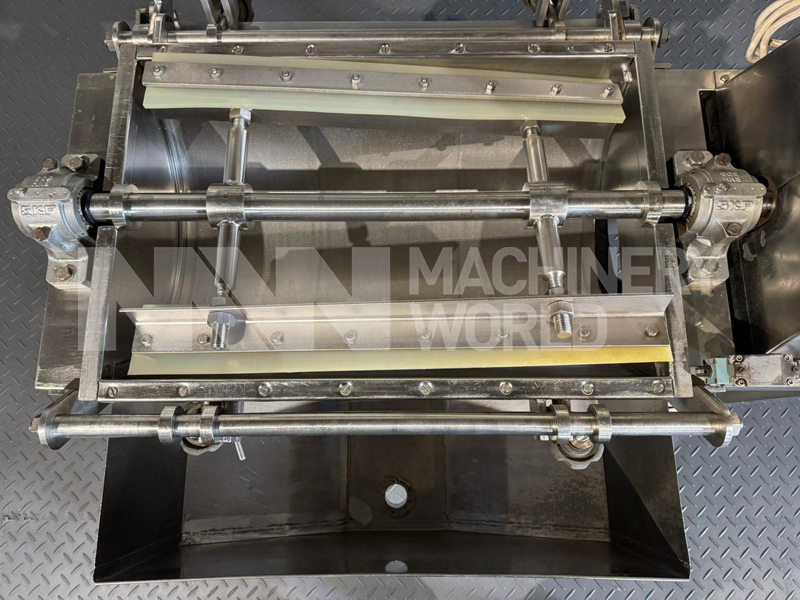

Used heavy duty industrial rotary sieve filter manufactured by Jorgensen Food Engineering APS, Denmark. Designed for continuous liquid and solid separation applications within food processing, wastewater treatment, recycling and industrial production environments. This stainless steel screening or filtering machine features an internally static screening drum with adjustable rotary scraper blades for efficient removal of solids from liquids and slurries. Ideal for filtering cheese cured from whey or other similar applications like food waste, vegetable wash water, processing liquids, slurry separation and industrial screening duties. This Filter Sieve comes fitted with an electric drive motor and mounted on a robust stainless steel frame. The machine includes hinged inspection lid, discharge outlet, adjustable internal scraper assemblies.

Suitable for applications including:

• Liquid and solid separation
• Food processing waste filtration
• Vegetable and fruit wash water filtration
• Sludge and slurry screening
• Industrial wastewater filtration
• Process liquid recovery

Specification

• Make: Jorgensen Food Engineering APS, Denmark
• Model: Static Filter Screen with Rotary Scraper
• Function: Filter Screen Liquid Solid Separation
• Construction: Stainless Steel

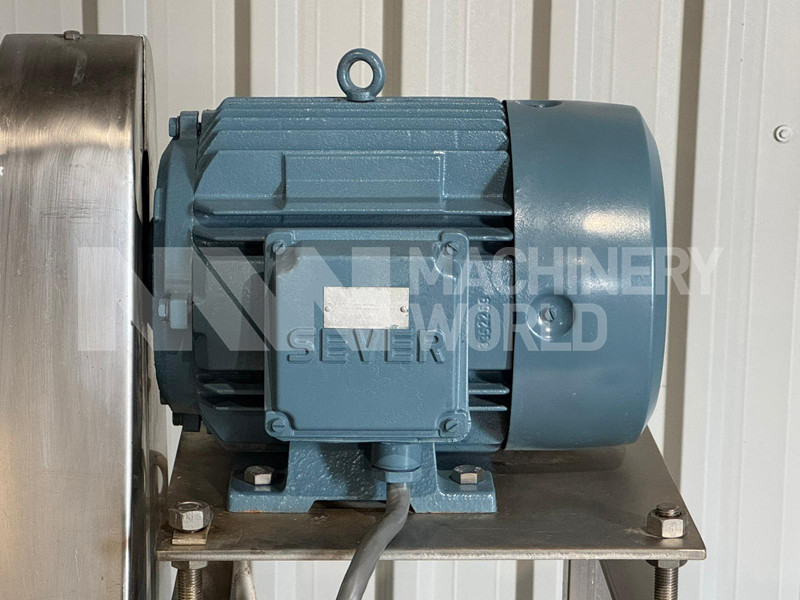

• Motor Drive: 5.5kw, 3-Ph & 50Hz
• Screen Dimension:
  • Width: 750mm
  • Depth: 470mm
  • Radius: 240mm
• Height of Solids Outlet: 340mm
• Height of Product Feed In: 1000mm

Overall Dimensions

• Length: 1520mm
• Width: 900mm
• Height: 1300mm

Country of Manufacture

• Denmark
