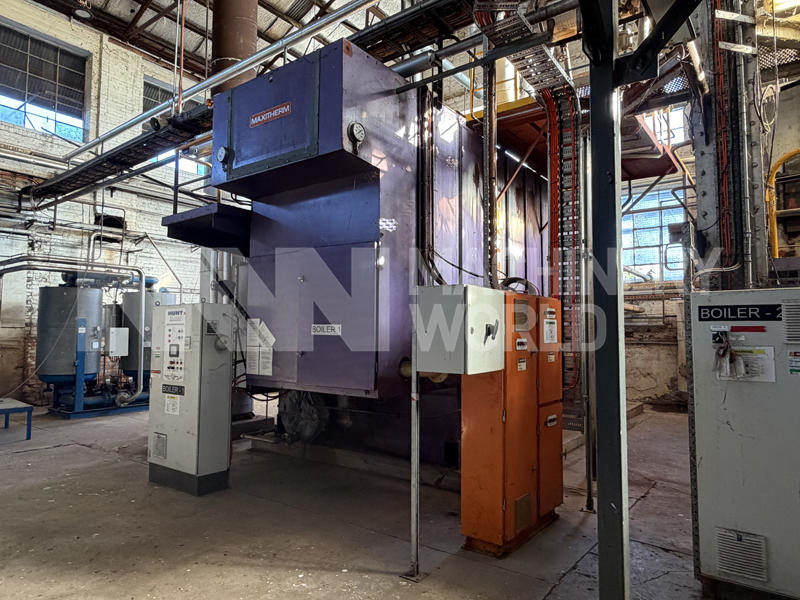

Maxitherm 10MW 40 Bar Natural Gas Fired Steam Industrial Boiler with Stainless Steel Economiser (Year 1996)

Description

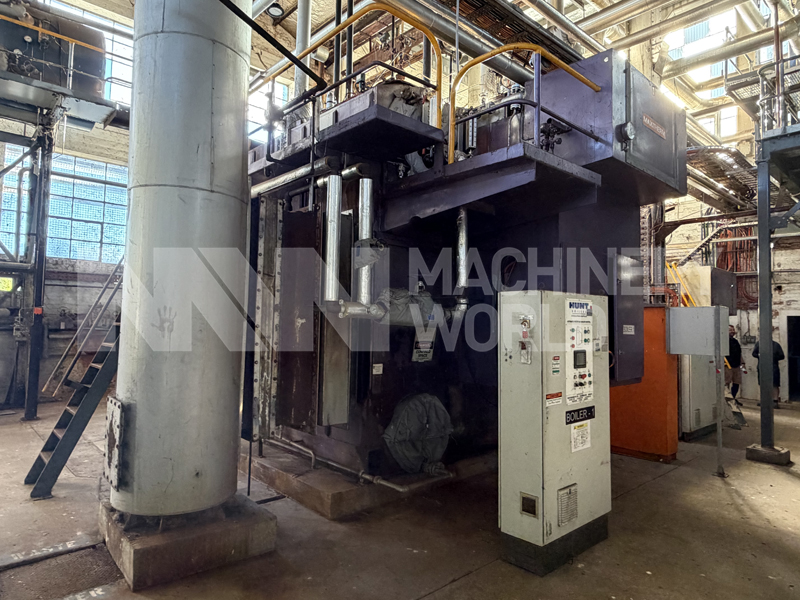

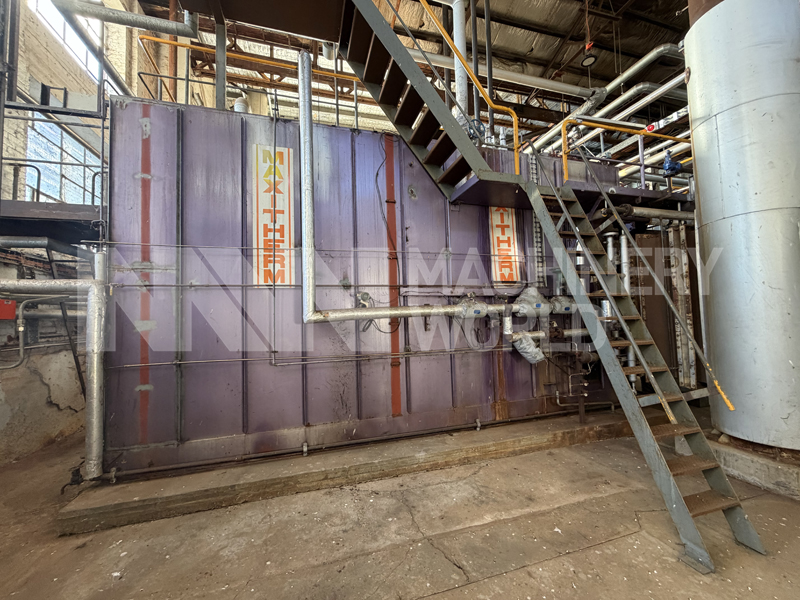

This used Maxitherm 10MW Natural Gas Fired Steam Boiler was manufactured by Maxitherm Boilers Pty Ltd, Sydney, Australia, in 1996. Originally supplied to a dairy processing facility in Cobden, Victoria, the boiler was later relocated to a major dairy processing plant in Maffra, Victoria, where it operated reliably as a 30 Bar process steam boiler, despite its original 40 Bar design pressure, until the factory ceased production in 2023. Designed as a true 10MW industrial packaged steam boiler, the unit features a stainless-steel economiser, modernised controls, and upgraded boiler feedwater pumps, making it an attractive solution for large dairy, food, beverage and industrial processing plants requiring high-capacity steam generation. Throughout its service life the boiler underwent annual statutory inspections, with all preparation and maintenance completed to support inspections by ALS, ensuring a well-maintained operating history. The boiler is offered complete with its replacement stainless-steel economiser, which was installed several years ago. Unlike many boiler packages where the quoted output includes heat recovered from the economiser, this Maxitherm is rated as a true 10MW boiler, meaning the economiser provides additional fuel efficiency rather than contributing to the nominal steam output. The boiler remains installed at its current location and is available for inspection by appointment. This provides prospective purchasers with the opportunity to assess the boiler in situ, review its condition and installation, and inspect the associated ancillary equipment prior to dismantling. Machine walkaround:

Specification

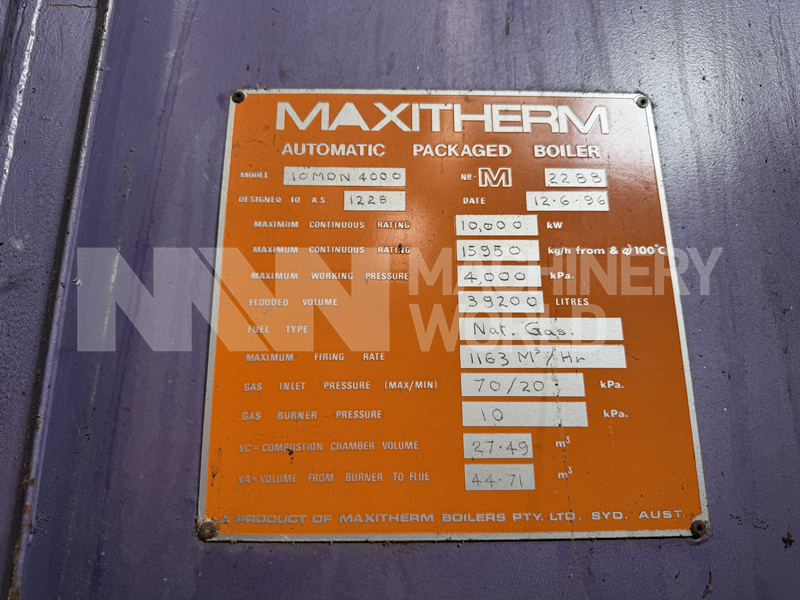

• Manufacturer: Maxitherm Boilers Pty Ltd, Sydney, Australia
• Boiler Type: Automatic Packaged Natural Gas Fired Industrial Steam Boiler
• Model: 10MDN4000
• Serial Number: 2288
• Year of Manufacture: 1996
• Built to: AS 1228
• Boiler Output: 10,000 kW (10 MW) – true boiler output excluding economiser
• Steam Capacity: 15,950 kg/hour
• Maximum Design Pressure: 40 Bar (4,000 kPa)
• Previous Operating Pressure: 30 Bar
• Fuel Type: Natural Gas
• Gas Consumption: 1,163 Nm³/hour
• Gas Supply Pressure: 20–70 kPa
• Burner Gas Pressure: 10 kPa
• Flooded Volume: 39,200 Litres
• Combustion Chamber Volume: 27.49 m³
• Burner to Flue Volume: 44.71 m³
• Fitted with replacement stainless-steel economiser
• Economiser provides additional heat recovery and improved fuel efficiency without contributing to the boiler's rated 10 MW output

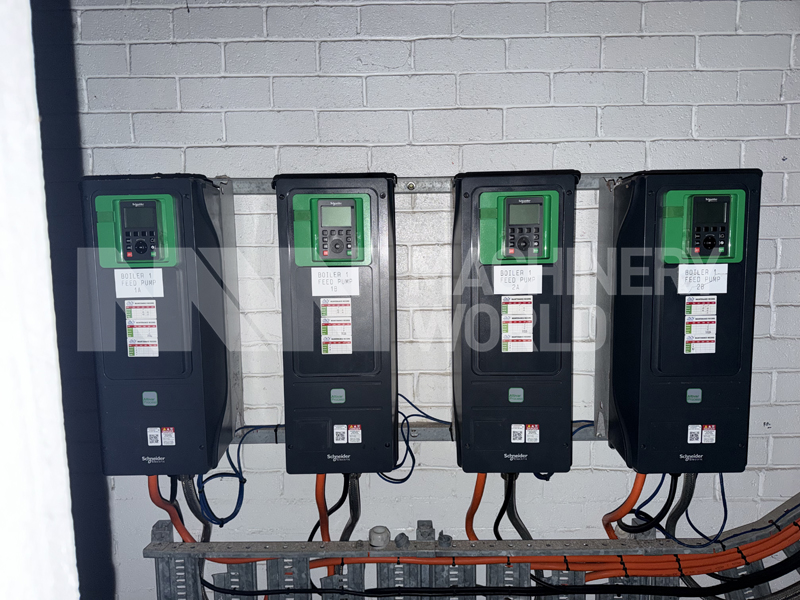

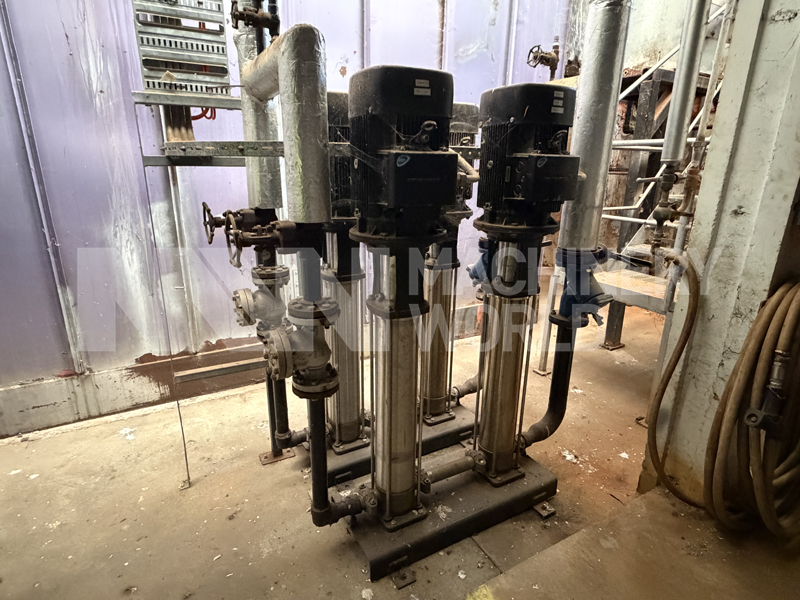

• Boiler feedwater pumps upgraded with jacking pumps

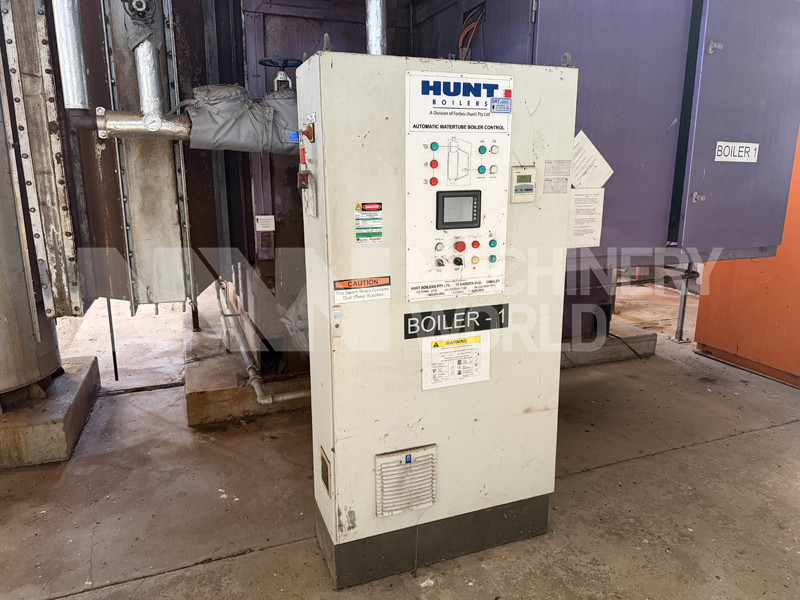

• Control system upgraded circa 2004
• Annual statutory inspections carried out throughout service life
• Regularly maintained and prepared for annual inspections by site engineering personnel
• Suitable for continuous-duty steam generation in dairy, food, beverage and general industrial processing applications

Country of Manufacture

Australia

Typical applications

• Dairy processing plants
• Milk powder production facilities
• Cheese manufacturing plants
• Butter and cream processing
• Food processing and manufacturing
• Beverage production facilities
• Breweries and distilleries
• Pharmaceutical manufacturing
• Chemical processing plants
• Paper and pulp mills
• Textile manufacturing
• Meat and poultry processing
• Edible oil processing
• Sugar and confectionery production
• Timber and wood processing
• General industrial steam generation
• Process heating applications
• District heating and central utility plants
• Large manufacturing facilities requiring high-capacity steam
• Industrial cogeneration (CHP) and energy plants (where process steam is required)
