Description
This used Maxitherm Natural Gas Fired Steam Boiler was manufactured by Maxitherm Boilers Pty Ltd, Sydney, Australia, in 1992. Originally supplied as a 6MW briquette-fired packaged steam boiler to a dairy processing facility in Koroit, Victoria, the boiler was subsequently converted to natural gas firing before being relocated to a major dairy processing plant in Maffra, Victoria, where it supplied 17.5 Bar (1,750 kPa) process steam to the site’s existing steam distribution system until the factory ceased production in 2023.
As part of the conversion, the original briquette firing system was removed and replaced with a Maxitherm wind box natural gas burner, increasing the boiler’s output from its original 6MW to an operating capacity of approximately 7–7.5MW. Although the conversion was originally intended to achieve an 8MW output, the boiler was reportedly operated at around 7.5MW due to combustion air limitations at the existing factory.
The boiler has also benefited from a number of significant upgrades during its service life, including a replacement economiser to improve thermal efficiency and reduce fuel consumption, together with a modernised control system installed circa 2004. In addition, the original briquette-fired furnace floor has been covered with refractory, providing potential for future conversion to an alternative solid fuel system if required.
Throughout its service life, the boiler underwent regular maintenance and statutory inspections, ensuring a well-maintained operating history suitable for continued industrial service.
The boiler is offered complete with its replacement economiser, providing additional heat recovery and improved operating efficiency. Its robust Maxitherm construction, upgraded combustion system and proven operating history make it an excellent solution for dairy, food, beverage and general industrial processing facilities requiring reliable, high-capacity steam generation.

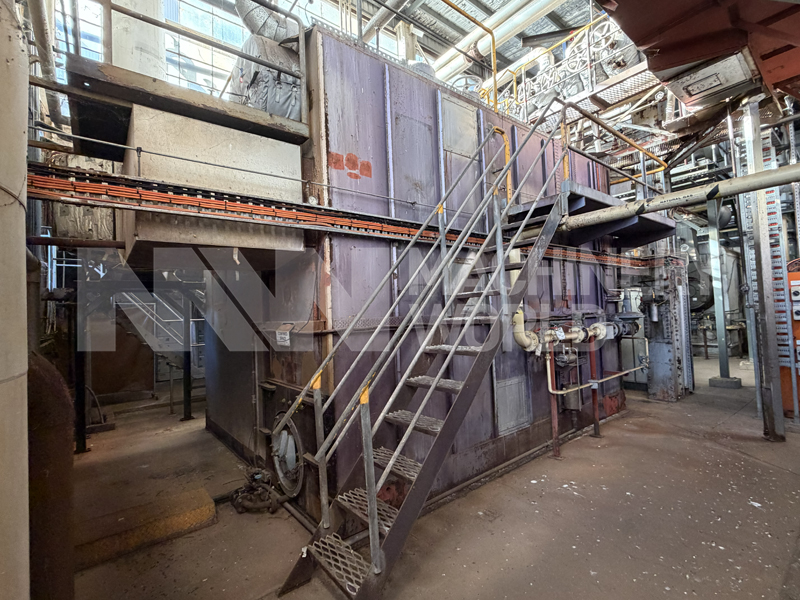

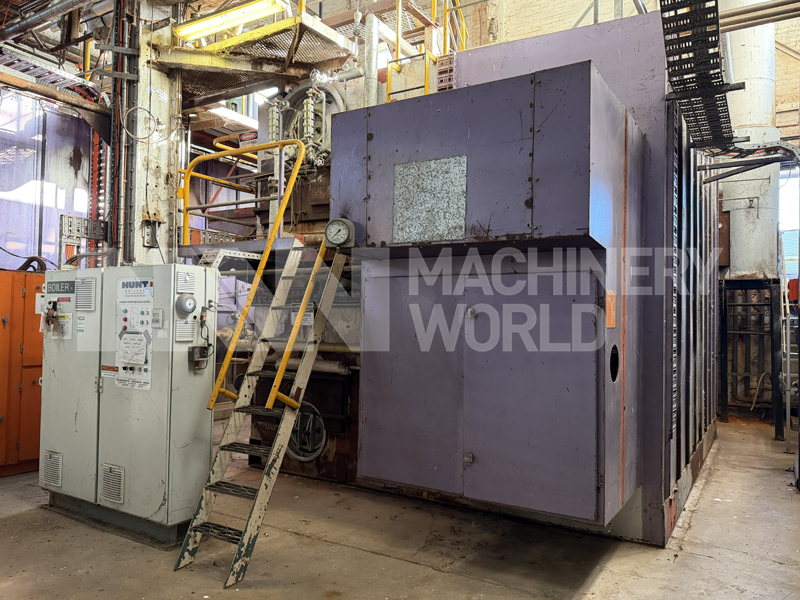

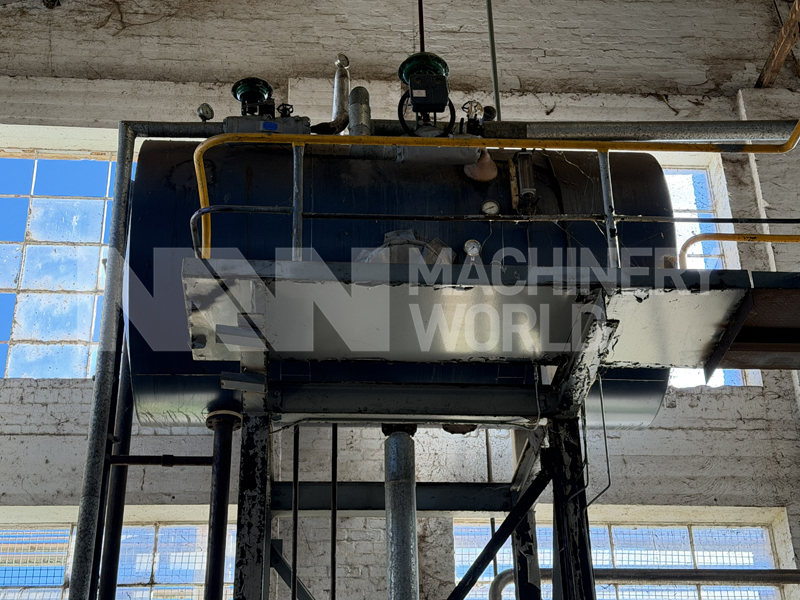

The boiler remains installed at its current location and is available for inspection by appointment. This provides prospective purchasers with the opportunity to assess the boiler in situ, review its condition and installation, and inspect the associated ancillary equipment prior to dismantling.
Specification

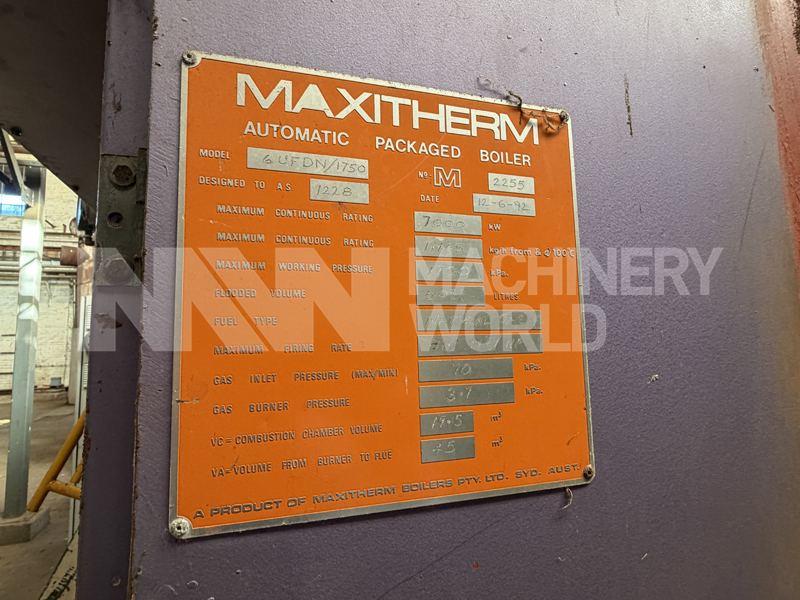

- Manufacturer: Maxitherm Boilers Pty Ltd, Sydney, Australia
- Boiler Type: Automatic Packaged Natural Gas Fired Steam Boiler
- Model: 6UFDN1750
- Serial Number: 2255
- Year of Manufacture: 1992
- Built to: AS 1228
- Original Boiler Output: 6,000 kW (6 MW) – originally briquette fired
- Converted Output: Approx. 7,000–7,500 kW (7–7.5 MW) following conversion to natural gas firing
- Steam Capacity: 11,145 kg/hour
- Maximum Design Pressure: 17.5 Bar (1,750 kPa)
- Operating Pressure: 1,750 kPa (17.5 Bar)
- Fuel Type: Natural Gas (converted from briquette firing)
- Maximum Gas Consumption: Approx. 876 Nm³/hour
- Maximum Gas Inlet Pressure: 70 kPa
- Burner Gas Pressure: 31 kPa
- Flooded Volume: 20,520 Litres
- Combustion Chamber Volume: 19.5 m³
- Burner to Flue Volume: 45 m³
- Originally manufactured as a 6 MW briquette-fired boiler for a dairy processing facility in Koroit, Victoria
- Subsequently converted to natural gas firing with the original briquette firing system removed

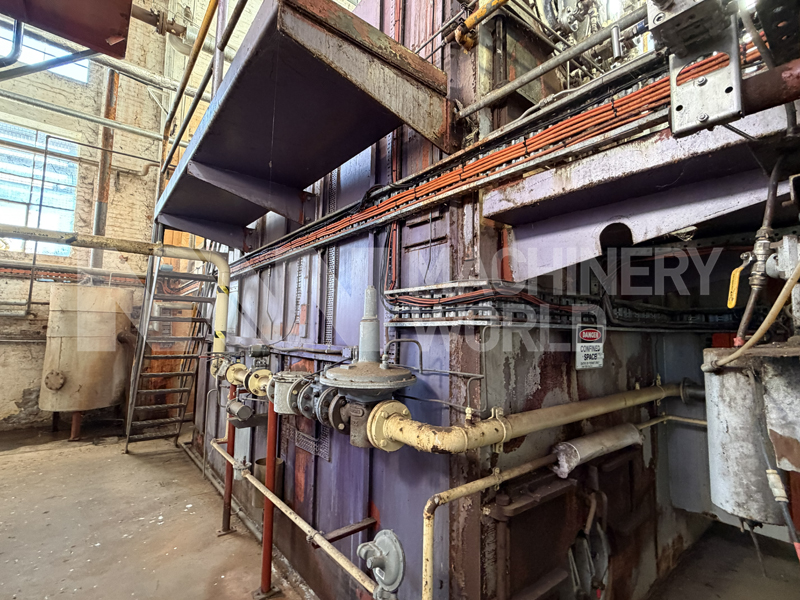

- Fitted with a Maxitherm wind box gas burner
- Boiler output increased to approximately 7–7.5 MW following gas conversion

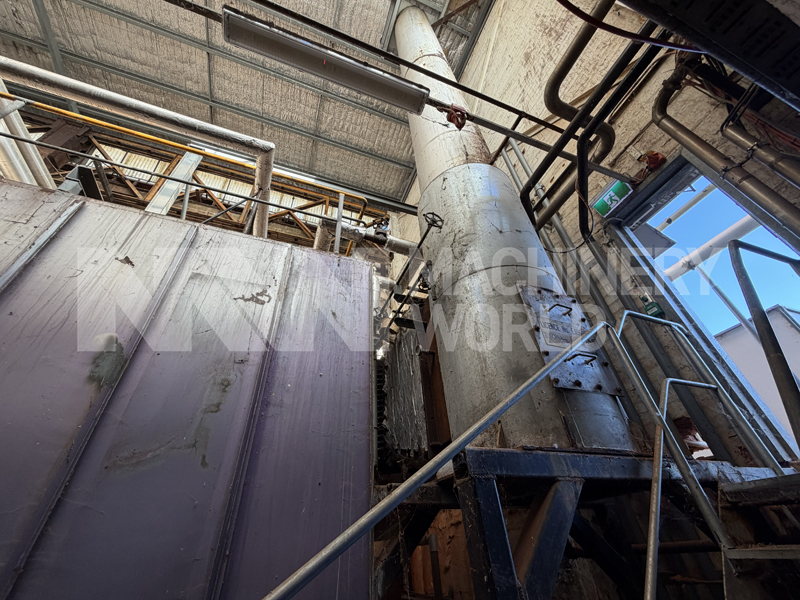

- Existing economiser replaced with a newer unit to improve thermal efficiency and reduce fuel consumption

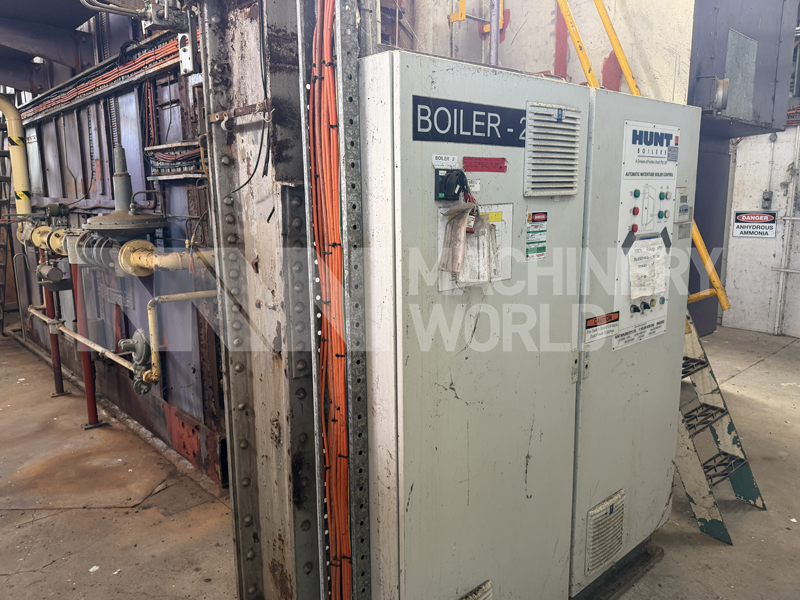

- Boiler control system upgraded circa 2004
- Original briquette firing floor has been covered with refractory, providing the potential for future fuel conversion if required
- Used to supply 1,750 kPa process steam to the site’s existing steam distribution system
- Suitable for continuous-duty steam generation in dairy, food, beverage and general industrial processing applications
Country of Manufacture
Australia
Typical applications
- Dairy processing plants
- Milk powder production facilities
- Cheese manufacturing plants
- Butter and cream processing
- Food processing and manufacturing
- Beverage production facilities
- Breweries and distilleries
- Pharmaceutical manufacturing
- Chemical processing plants
- Paper and pulp mills
- Textile manufacturing
- Meat and poultry processing
- Edible oil processing
- Sugar and confectionery production
- Timber and wood processing
- General industrial steam generation
- Process heating applications
- District heating and central utility plants
- Large manufacturing facilities requiring high-capacity steam
- Industrial cogeneration (CHP) and energy plants (where process steam is required)
