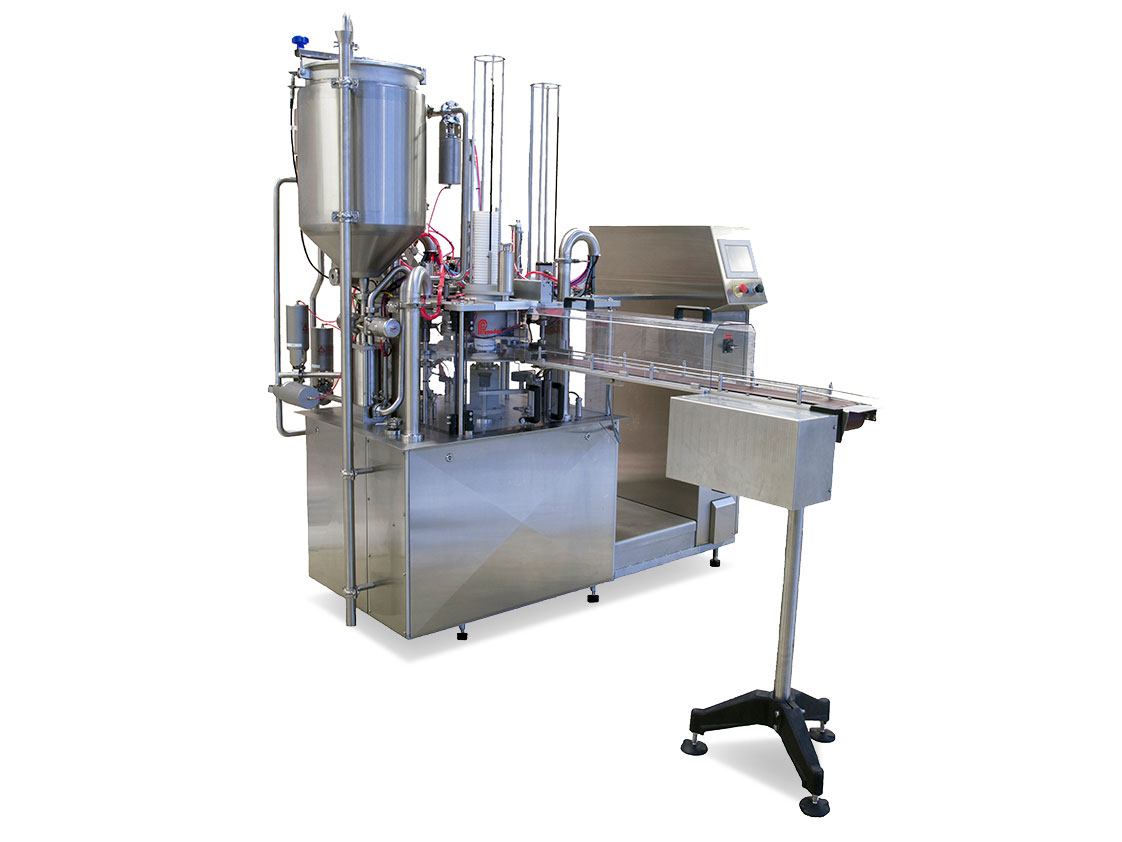

Primodan Prima Basic Filling Machine

A compact filler with a capacity of 1,500 – 2,500 units/hour

The PRIMA filling and sealing machines are constructed for filling liquid, semi-liquid and dry products. The machines will fill and seal ready-made cups, jars, or bottles.

PRIMA machines are very flexible and fast format change-over was the key focus when we first introduced the PRIMA to the market more than 25 years ago.

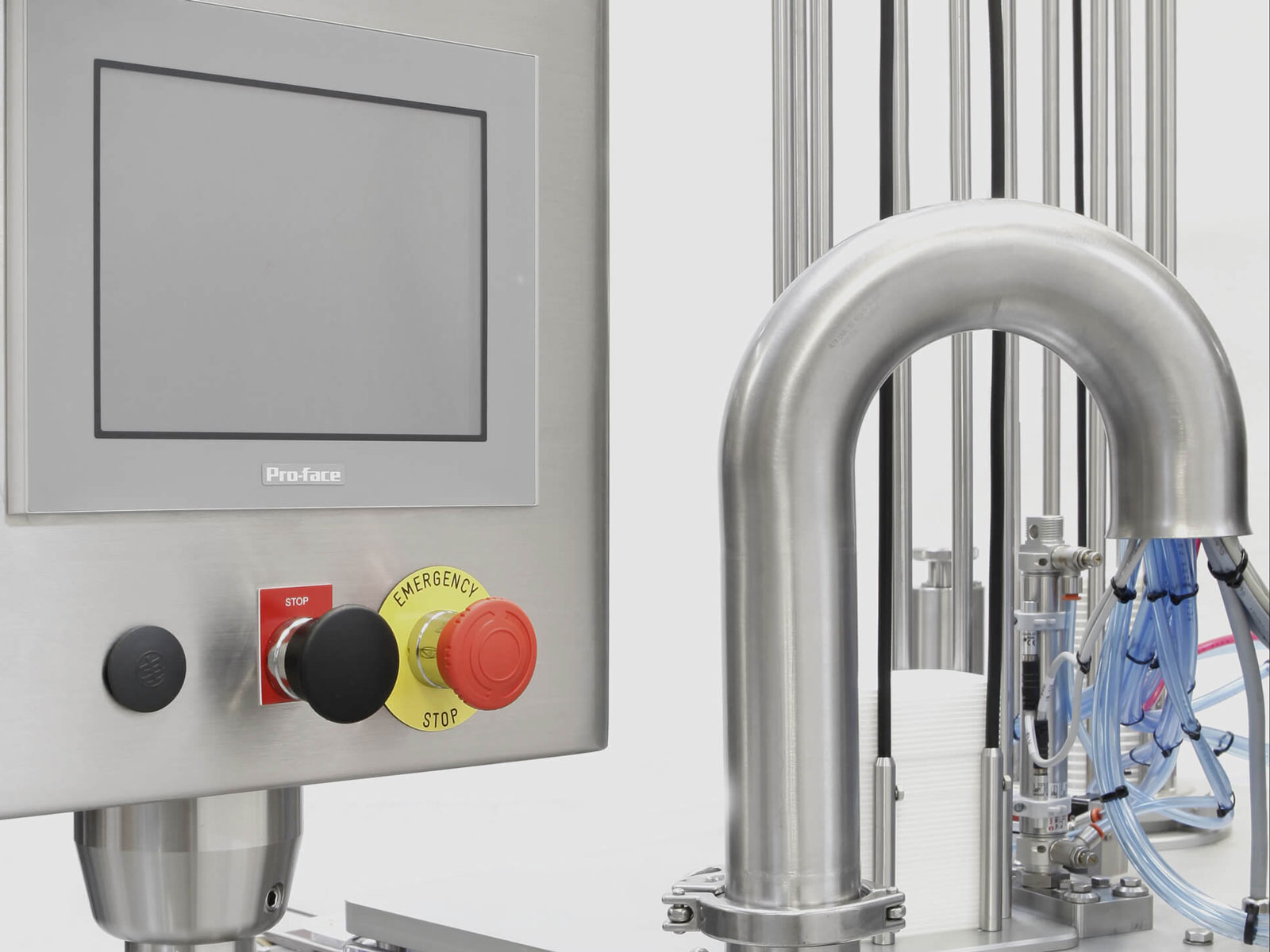

In the latest and most advanced versions, the machines are supplied with a full servo package enabling recipe handling from the panel. Changeovers between various cup heights and filling volumes are also handled from the panel.

Buying a Primodan machine will give you access to extensive experience and you get a machine that is tailor-made to fit your needs and requirements.

Add-on features

The PRIMA can be supplied with cassettes in the turntable, enabling the production of different cups or bottle sizes in the same machine. As an option, it can be delivered as a mobile device enabling the machine to be moved around inside the factory for more flexibility.

The features, which can be added to this compact machine are almost the same as for the bigger machine type ROT-O-MIN. It includes buffers for the cups and snap-on lids for 20 minutes buffer time, UV sterilization of the sealable lids, HEPA sterile air filter and compensator for filling of hot products. The Prima can also be delivered with its own CIP plant in manual or automatic operation (controlled from the PRIMA touch screen panel). This is very practical for smaller factories if CIP plants are not already present in the factory, or for bigger factories where the existing CIP plant´s capacity is pushed to the limit. The PRIMA can naturally also be connected to the existing CIP plant.

Product features

Flexibility

Smaller capacity food producers often need to fill many different products. Despite its size, the PRIMA machine is designed to handle various cup sizes and has room for many different features.

Simplicity

Basically, the machine was intended to be a simple low-cost filling machine for customers with limited needs – simple to use, – simple to maintain. Today the PRIMA is delivered both in a very simple basic and a fully automatic version with many of the applications as of the bigger machines.

Small footprint

Due to its compact design, the PRIMA only takes up a space of 1 x 1 meter.

Up to 3,000 units/hour

PRIMA is available in a one-row edition resulting in a capacity of up to 3,000 units/hour.
