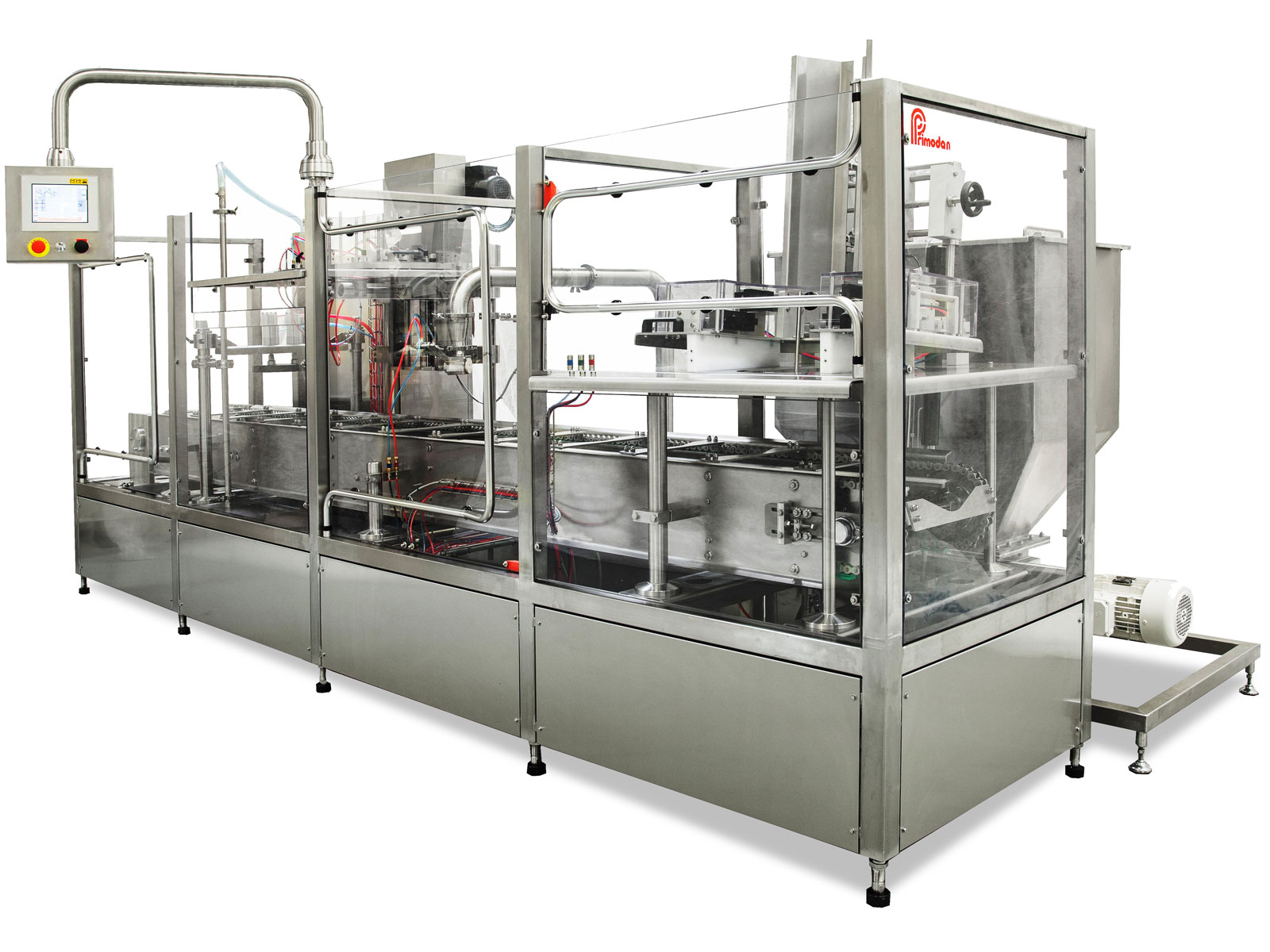

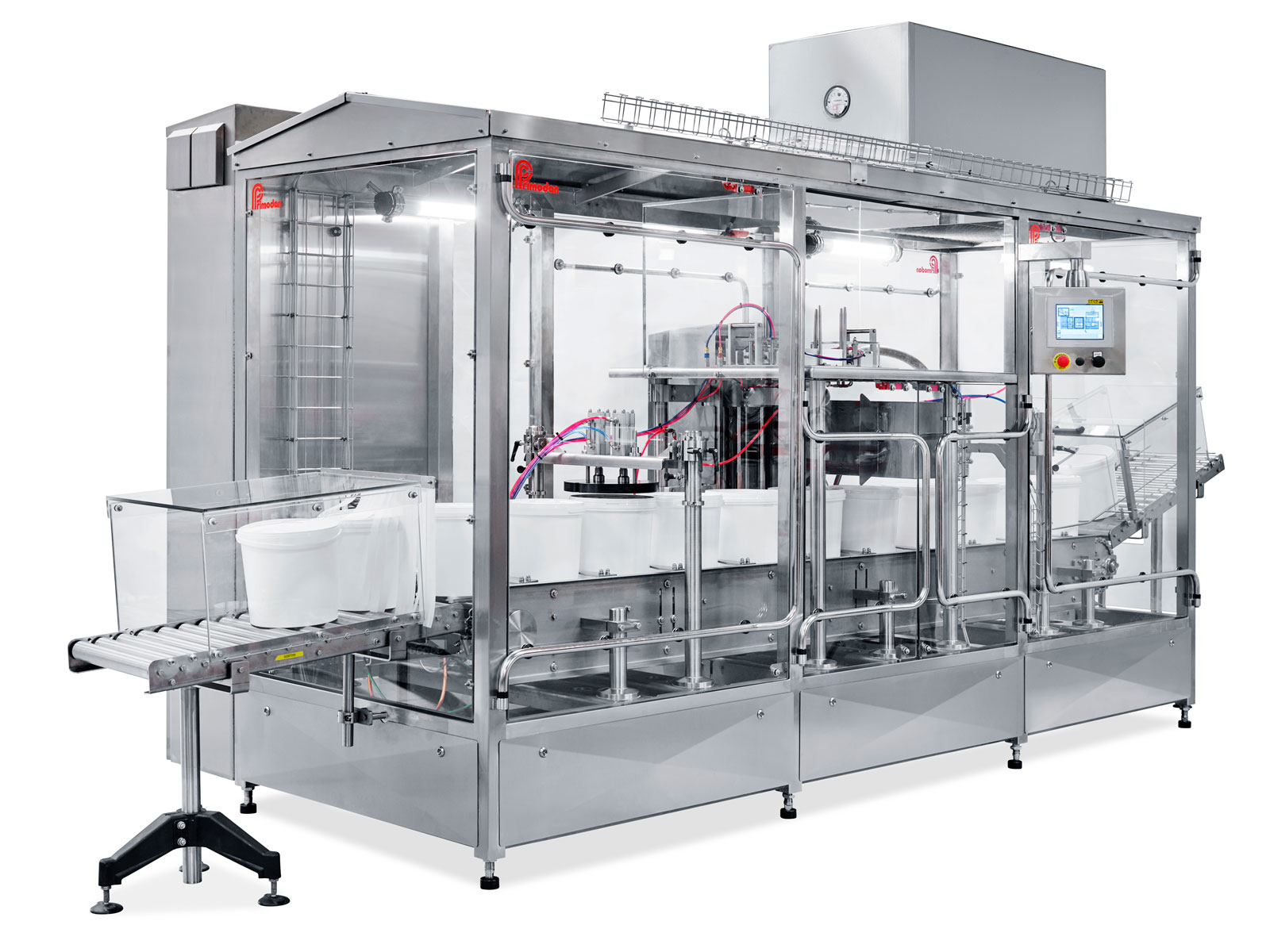

Primodan RT Line Linear Filling Machine

The RT Line for retail containers, has a capacity from 600 – 3,600 buckets/hour

The Primodan RT LINE for buckets is available with a capacity from 600 – 3,600 buckets/hour in 1-4 rows depending on the product to be filled and the bucket dimensions.

The RT LINE is available with a wide selection of options and is tailor-made to meet your demands, regardless of whether you are going to fill liquid, semi-liquid or dry foods. The machine is very easy to clean because of the open frame design.

The drive chain is servo-controlled which makes the machine able to handle several bucket sizes.

Closed roof construction with Hepa filter and overpressure cabin is also an option.

Specifications and options

Technical
Capacity: Up to 3,600 units/hour
Maximum bucket diameter: 300 mm
Pneumatic requirement: Minimum 6 bar
Electrical consumption: 2 kW
Materials: Stainless steel
CE certificate / EU norm

Machine
Bucket dispenser
Filling and load cell
Lid dispenser
Lid press-on with 2 step ventilation

Options
Bucket buffer
Filling system – piston, flow filling or dosing pump
Foil from roll stock
UV-C treatment of roll stock foil
Lid buffer
UV-C treatment of buckets
Pulsed Light treatment of buckets
Central lubrication system
Ultra-clean execution
