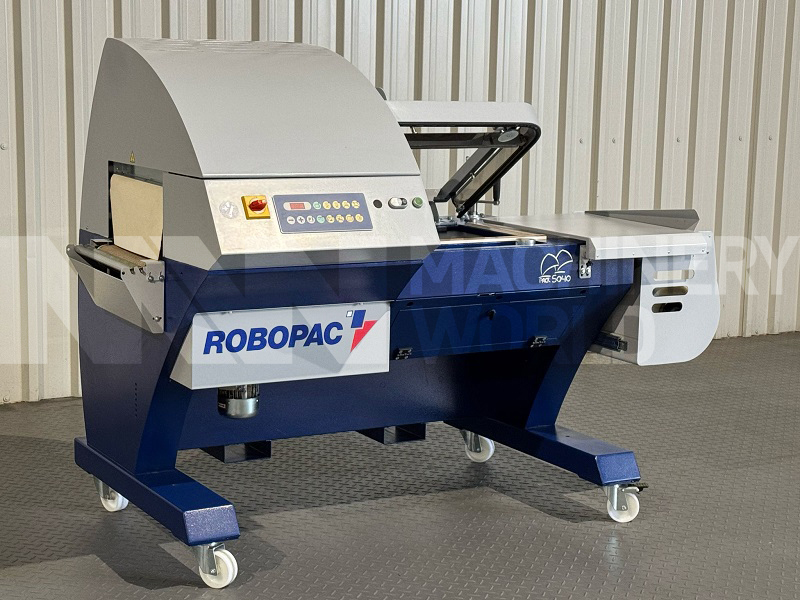

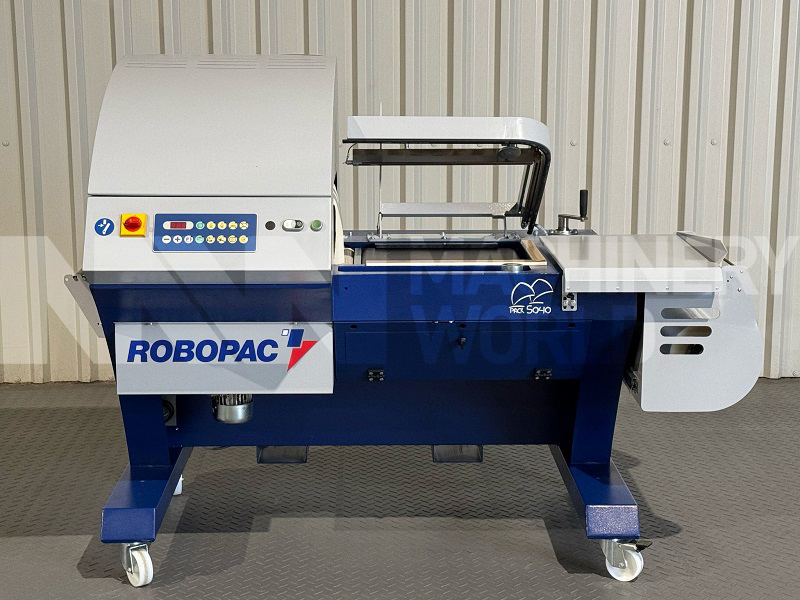

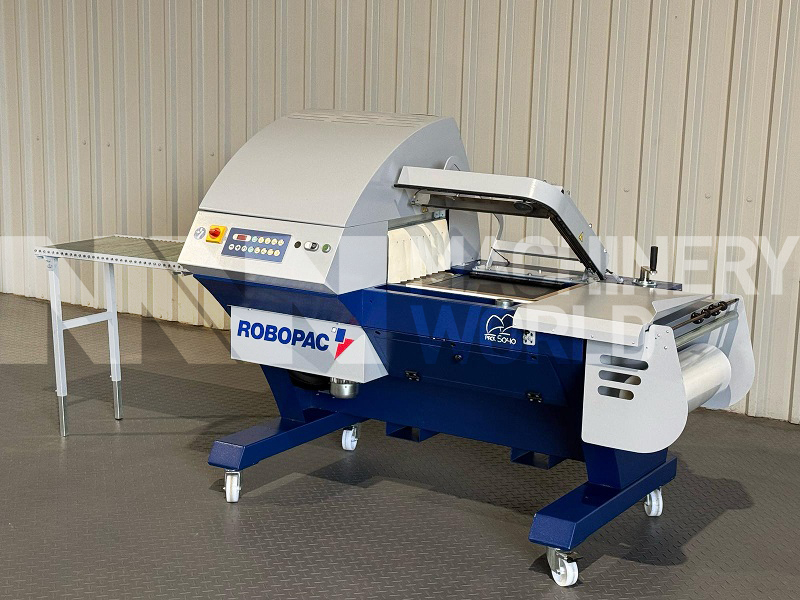

Robopac Pack 5040A Heat Shrink Wrapping Machine with Automatic Sealing Bar Movement (Year 2024)

Description

This is a pre-owned Robopac Pack 5040A Heat Shrink Wrapping Machine. The machine is equipped with Automatic Sealing Bar Movement and has an estimated production capacity of around 900 packs per hour. It is important to note that this capacity may vary depending on the size of the items being processed, the type of film used, and the rate of feeding in and out. Manufactured in 2024, this Robopac Pack 5040A is now available for immediate sale.

Specification

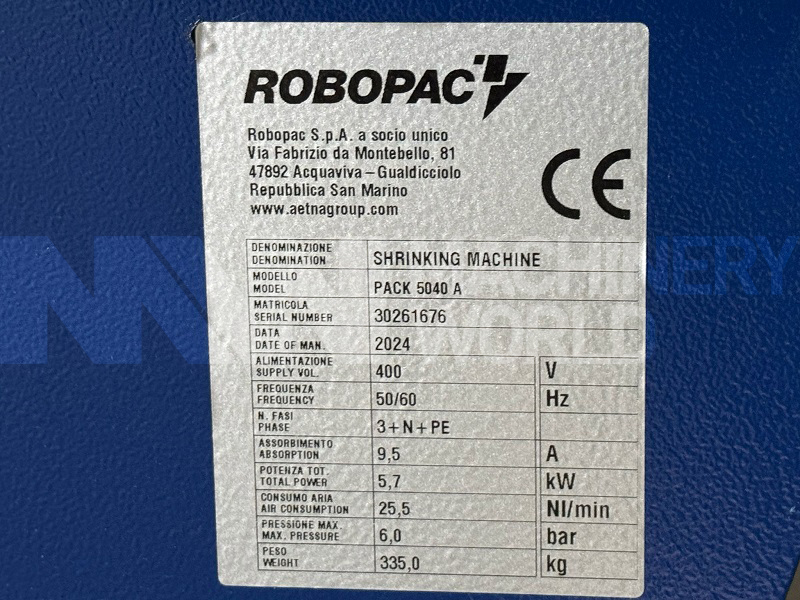

• Make: Robopac S.p.A, San Marino (Europe)
• Model: Pack 5040 A
• Function: Heat Shrinking Machine with Automatic Sealing Bar Movement
• Serial Number: 30261676
• Year of Manufacture: 2024
• Condition: SPARINGLY USED
• Production Capacity: Approx 900 packs per hour (Varies depending on the size of the product being put through, the type of film being used and feed In/Out rate)
• Sealing Conveyor Speed: Upto 43 m/min
• Heating Tunnel Infeed Dimensions: Width 385mm x Height 190mm

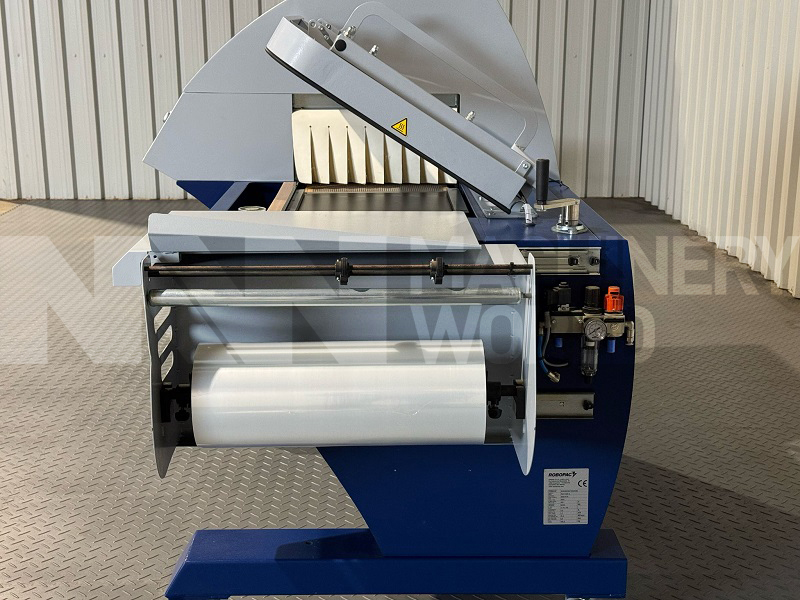

• Max Reel Dimensions: 300mm Dia & 500mm Long
• Max Reel Weight: 31kg
• Supply Voltage: 400v
• Frequency: 50/60Hz
• Total Power: 5.7kw
• Air Consumption: 25.5 NI/min
• Max Air Pressure: 6 Bar

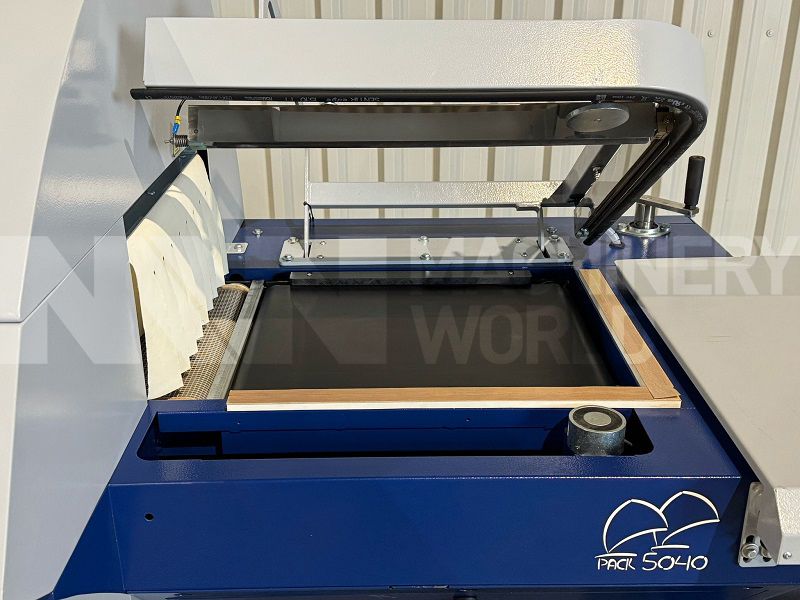

• Sealing Bar: Automatic Sealing Bar Movement
• Controls: Fully Integrated Control Panel with PLC and Frequency Inverter for Speed Control
• Finish: Powder Coated Finish

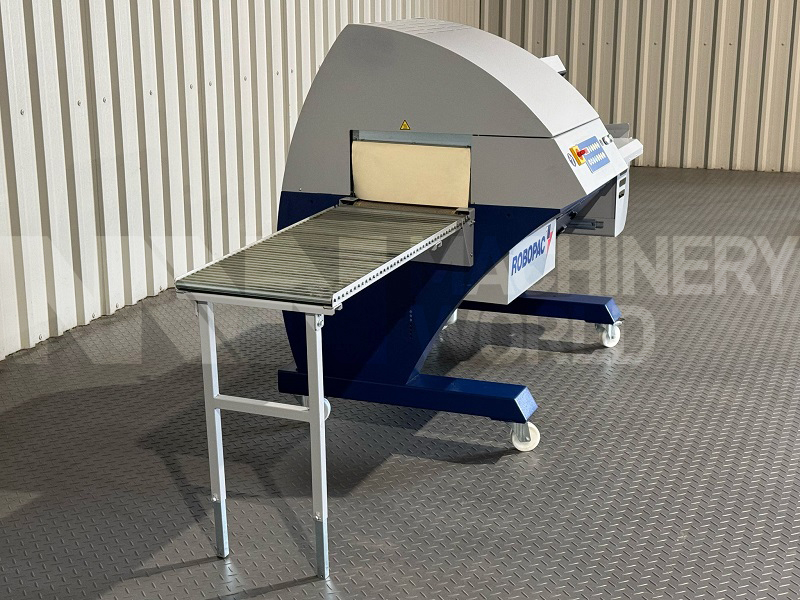

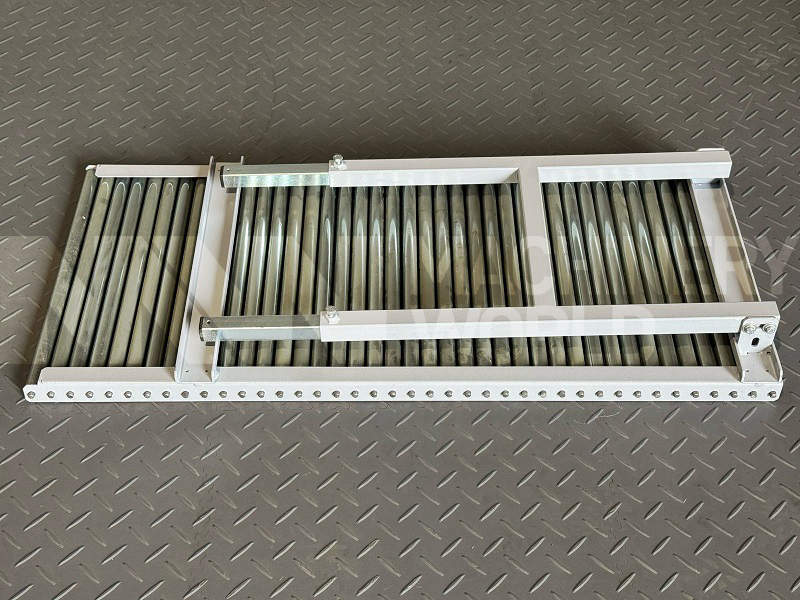

• Conveyor Comes with Feed Out Gravity Roller Conveyor
• Supports: Mounted on Castor Wheels

Product/Box Allowable Dimensions

• Length: 50 (Min) & 450mm (Max)
• Width: 50 (Min) & 350mm (Max)
• Height: 10 (Min) & 190mm (Max)
• Weight: 8kg (max)

Dimensions

• Length: 2232mm
• Depth: 1225mm
• Height: 1446mm
• Weight: Approx 335kgs

Country of Manufacture

Republic of San Marino (Europe)
