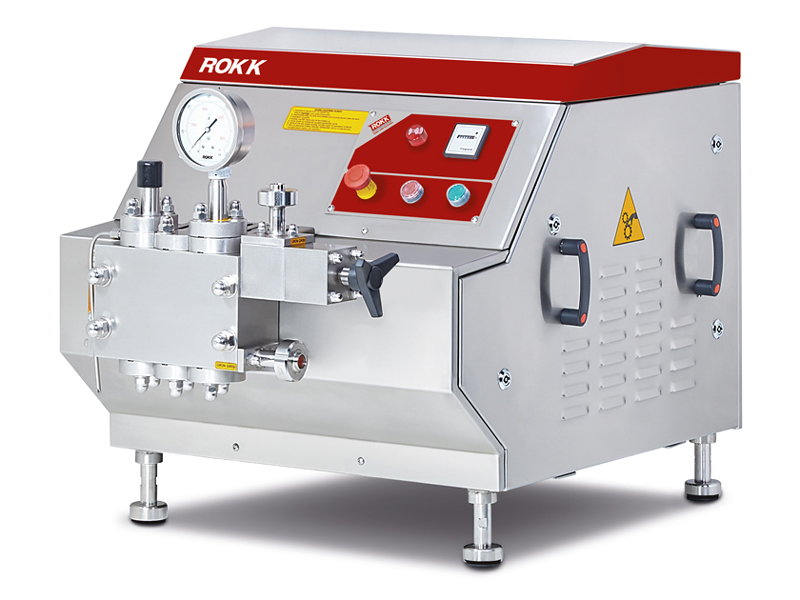

High pressure homogeniser with excellent performance and reliability.
ROKK 2 Series homogenisers / piston pumps are available with capacities from 100-300 lt/h as no stage, one stage or double stage depending on application.
The Principle of Homogenisation
The unhomogenised product enters the valve area at high pressure and low velocity. As the product enters the adjustable, close clearance area between the valve and the seat, there is a rapid increase in velocity with a corresponding decrease in pressure. The intense energy release causes turbulence and localised pressure differences, which tear apart the particles. The homogenised product impinges on the impact ring and exits at a pressure sufficient for the next processing stage.
The MonoBlock (compression head) is manufactured out of a high tensile, corrosion-resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features removable top, bottom and front flanges for easy maintenance and has an ultra clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high viscosity products.
- Manufacturer: ROKK
- Model: 2-Series
- Function: Homogeniser
- *2-Series capacities available ranging from 100-300 litres / per hour
- Number of stages: 2-Stage machine
- Valve design: Mushroom
- Piston design: Stainless steel (Ceramic coated)
- Tungsten carbide homogenising valves
- Total installed power: 3 kW
- Number of plungers: 3
- Includes gear reducer
- Electrics: 380V / 50 Hz / 3 Phase

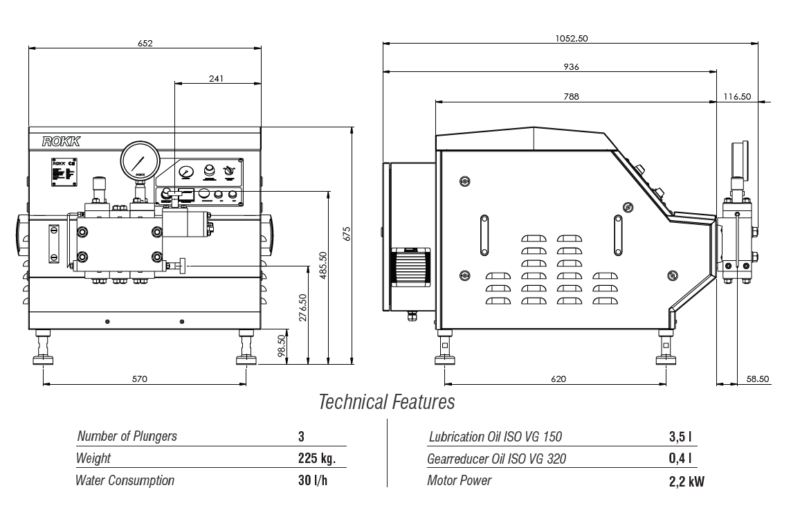

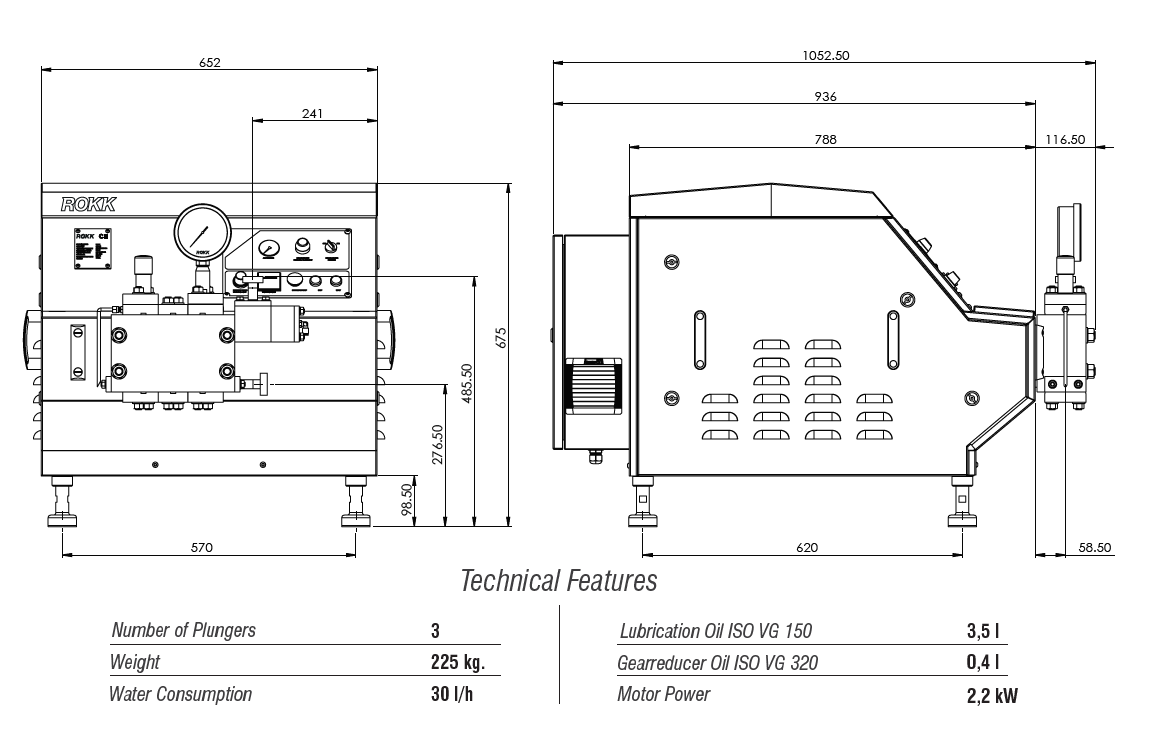

|Dimensions (mm)||652w x 1052d x 675h|
|Capacity||From 100-300 lt/h|
|Motor Power||3 kW|
|Water consumption||50 ltr/hr|
|Number of Plungers||3|
