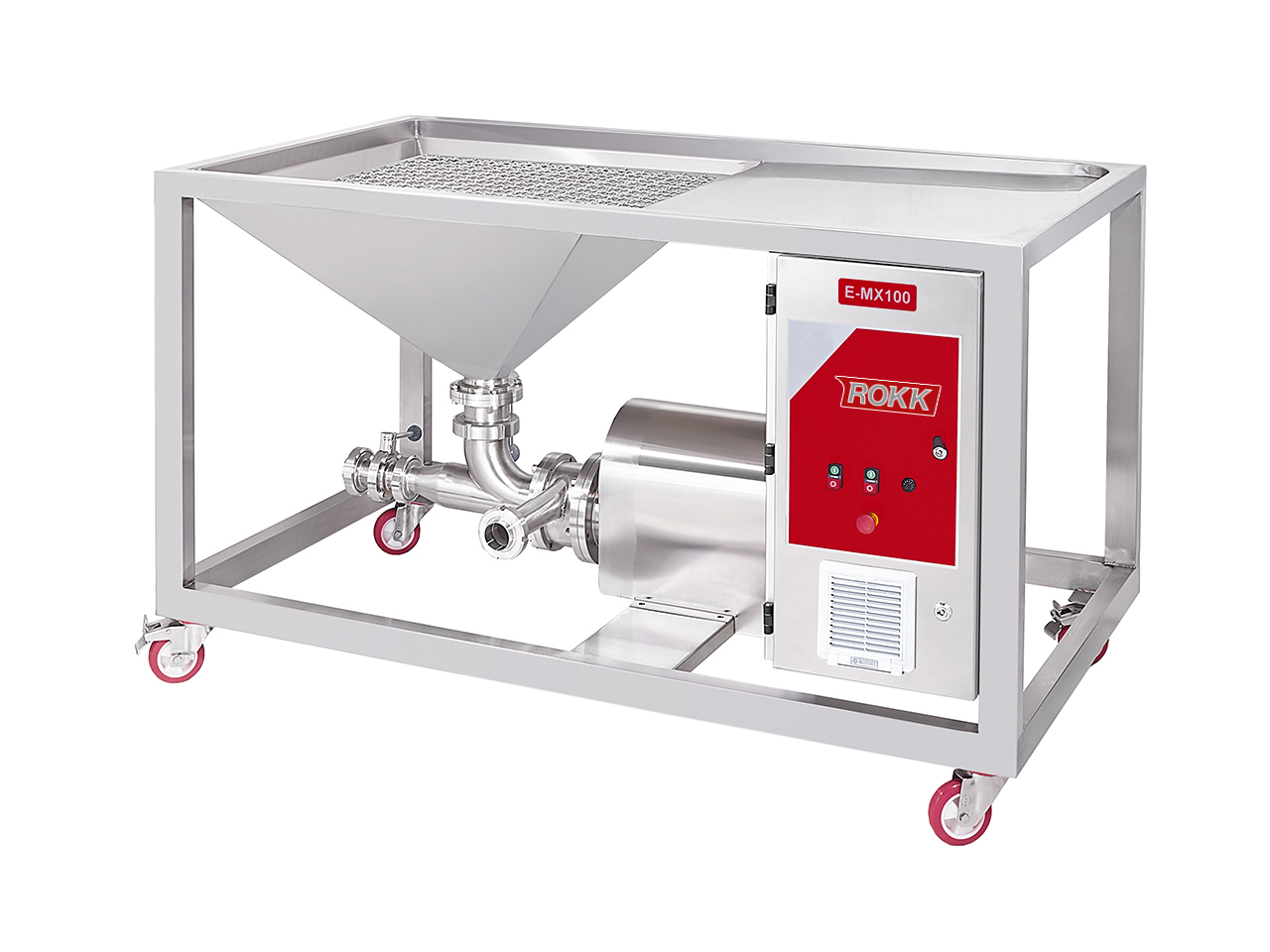

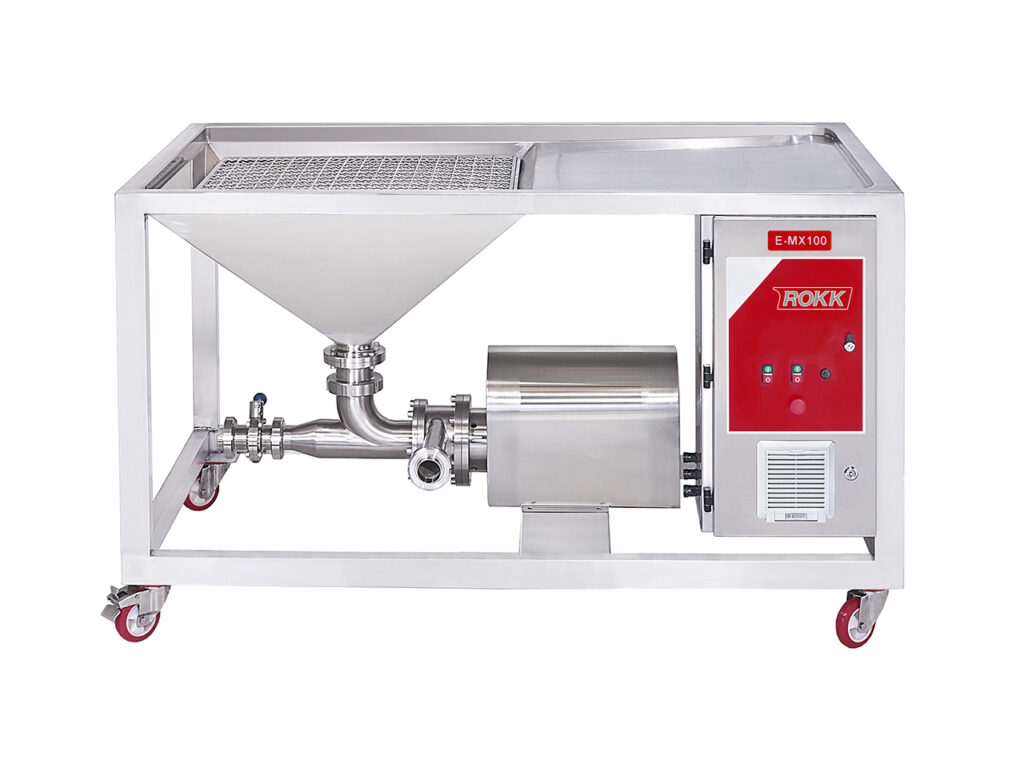

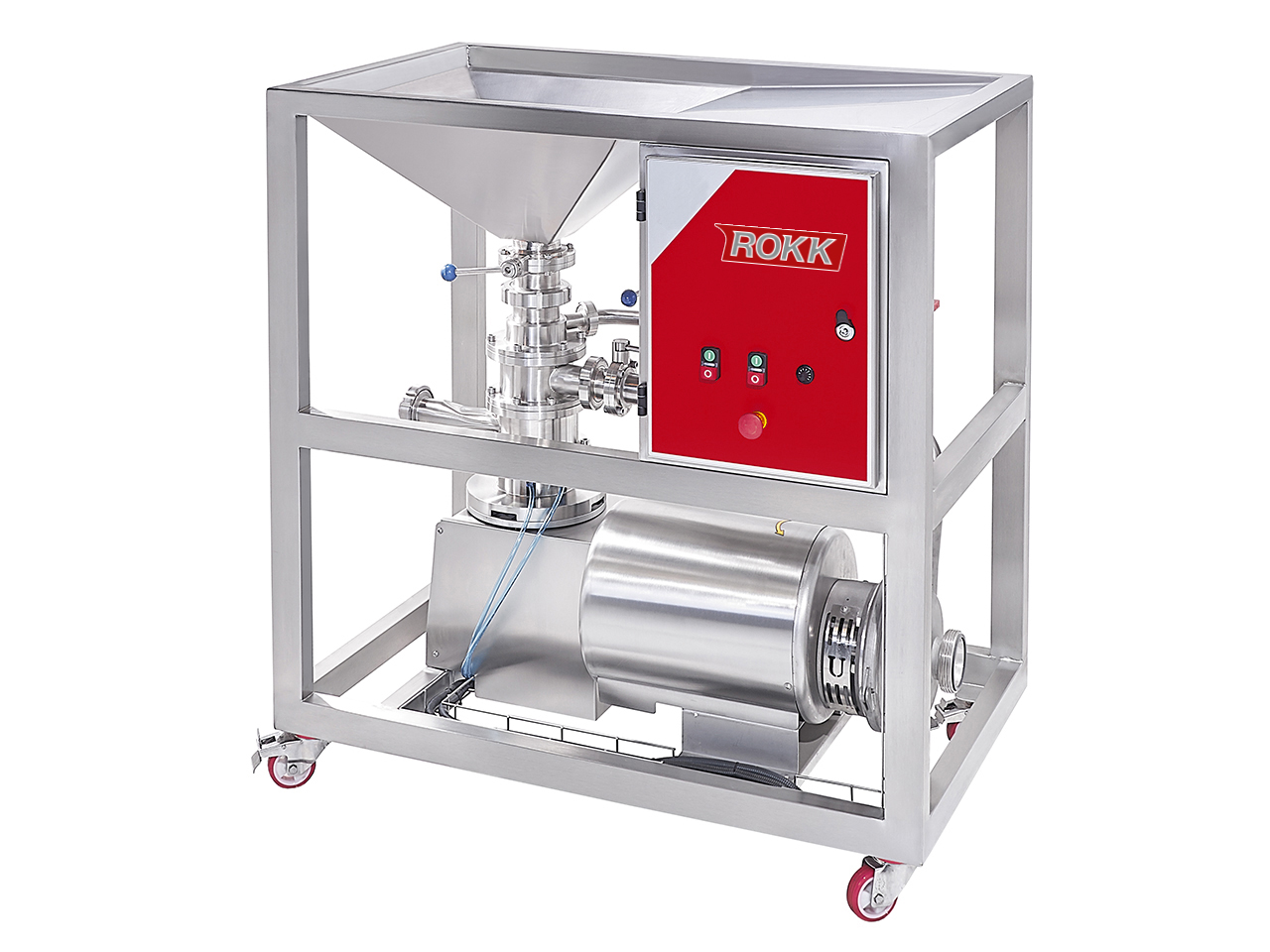

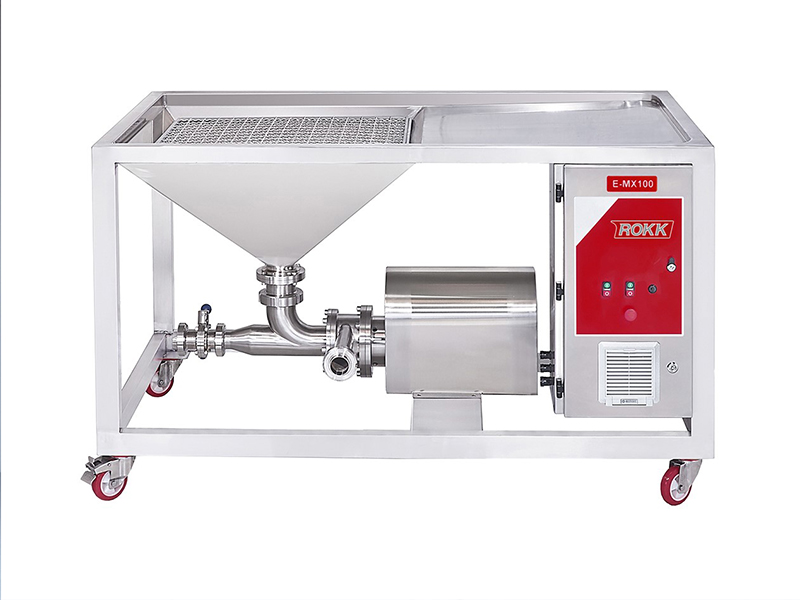

ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixer & Blender ‘Brand New’

BRAND NEW - BUILT TO ORDER

Add to quote
SKU: ROKK-RPB-Powder-Blender Categories: , , ,

Description

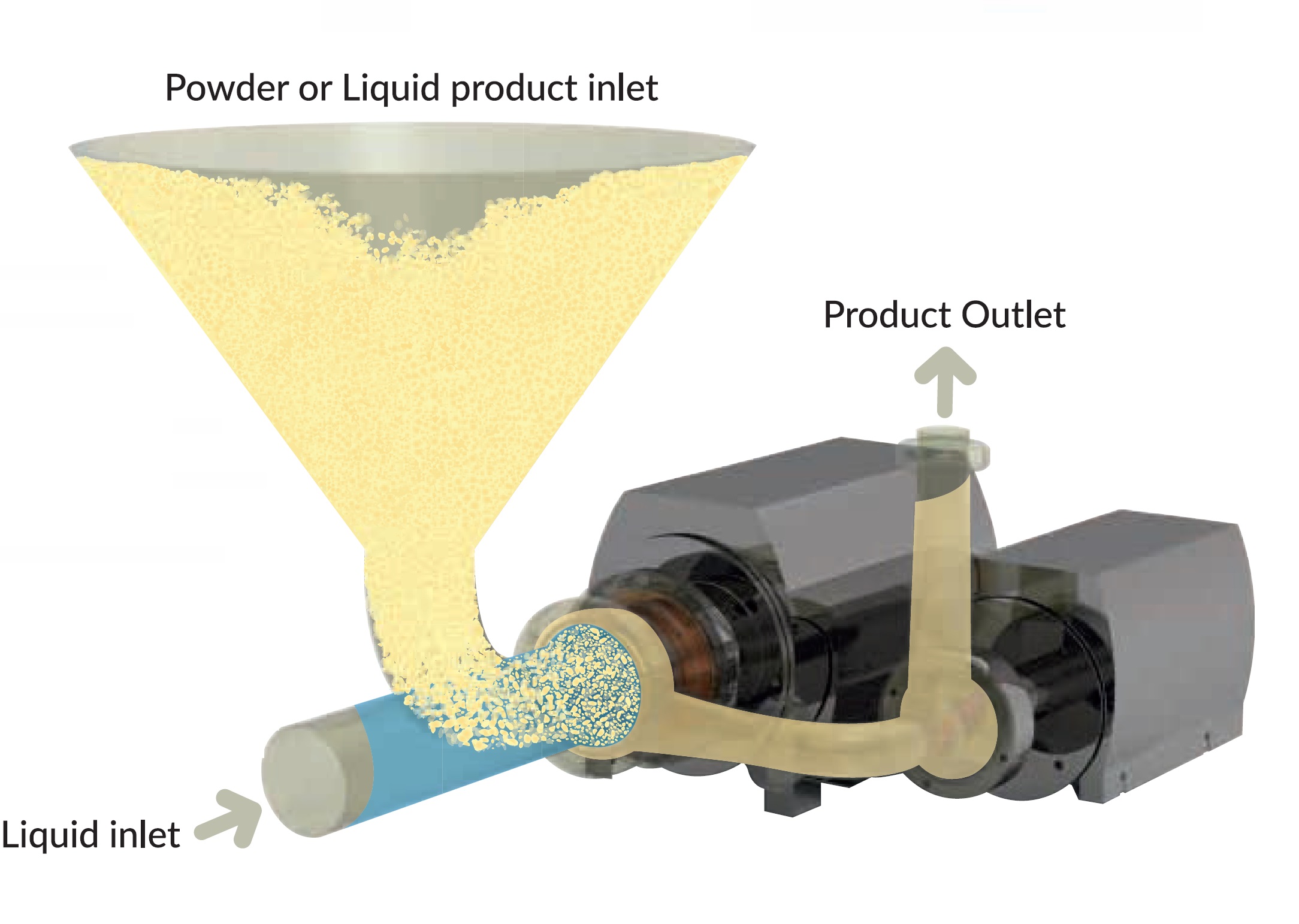

A ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical  and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a ventury, which sucks the powder into the flow stream while on its way to the inline high shear mixer/homogeniser.

MODEL ROKK E- MX10 ROKK E- MX50 ROKK E- MX100 ROKK E- MX100 +
Liquid-Fluid Capacity 750 to 1.000 LPH 5.000 to 10.000 LPH 9.000 to 18.000 LPH 9.000 to 24.000 LPH
Powder Capacity 150 Kg 1,500 Kg 2,500 Kg 4,000 Kg
Motor power 2.2kw 4kw 7.5kw 11kw
Liquid Inlet DN20 DN25 DN40 DN50
Fluid Outlet DN40 DN40 DN50 DN65
Powder Inlet DN40 DN50 DN50 DN65
Dimensions (L x W x H) in mm 900 x 520 x 715 1005 x 560 x 1288 1604 x 943 x 910 1604 x 943 x 910
Nett Weight 75 Kg 120 Kg 190 Kg 220 Kg



Technical Specification:

  • The parts in contact with the product are made of 316L Stainless Steel
  • The frame is made of 304 Stainless Steel
  • Stainless Steel Electrical Control Panel (IP65)
  • Liquid Product Inlet Pressure Gauge
  • Powder Product Inlet Vacuum Pressure Gauge

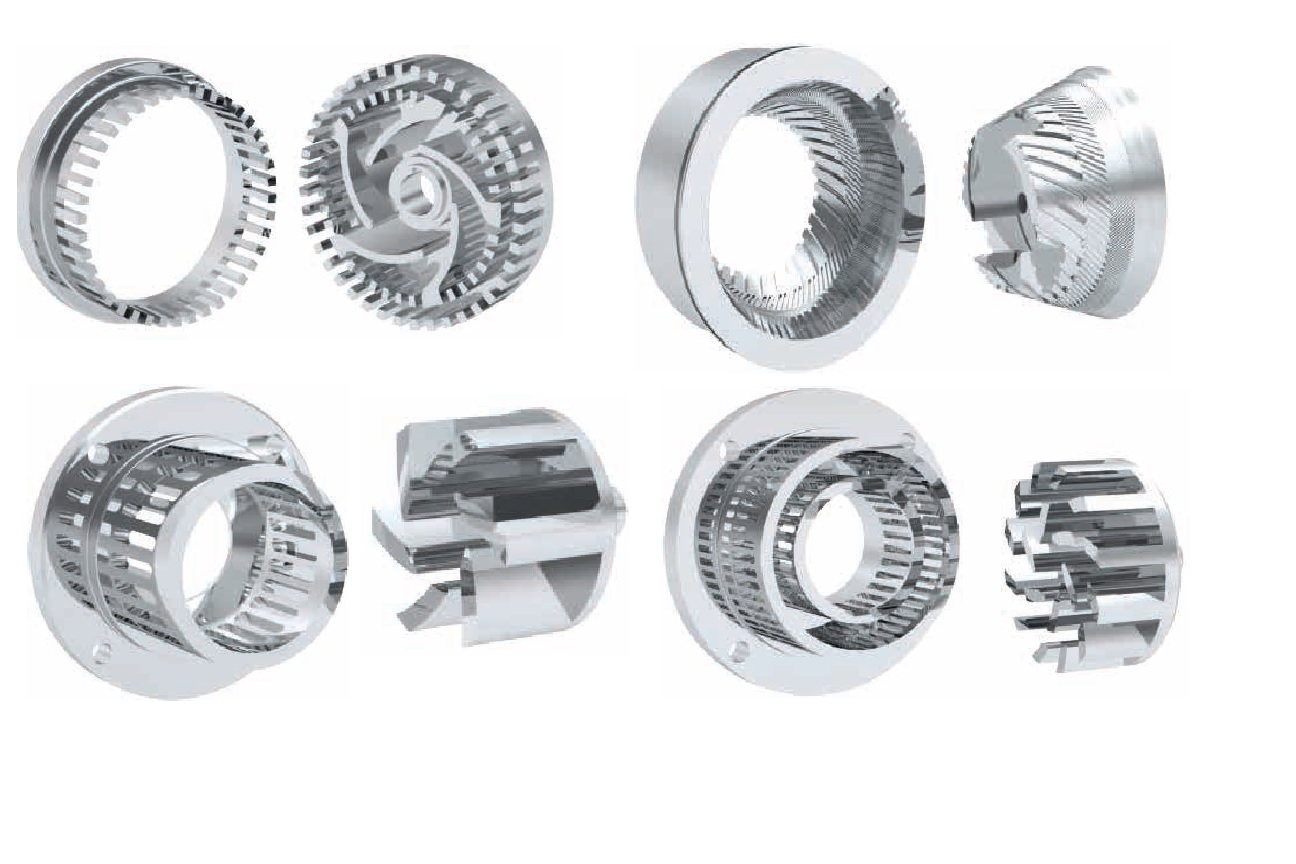

  • Specially Designed Rotor – Stator Disintegration System
  • Application specific High Cutting Force
  • Operator Controlled Powder-Fluid distribution
  • AC Motor
  • Speed Controlled (Frequency Controlled Inverter)
  • Flushed Double Mechanical Seal – Optional for High Operating Temp
  • Minimizes Processing Time
  • Design Suitable for ClP
  • Low Energy Consumption and High Performance
