ROKK RC 200 Chocolate Sauce Heating Tank with Pump (Year 2022)

Description

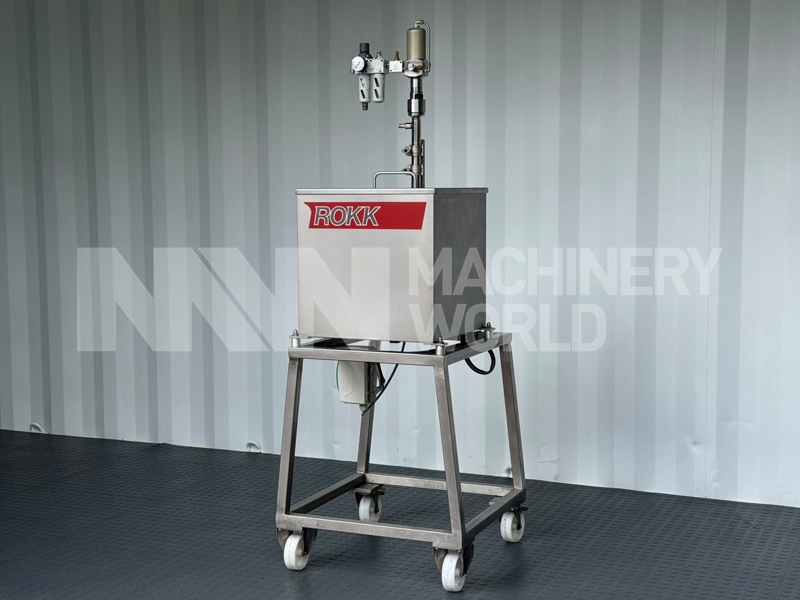

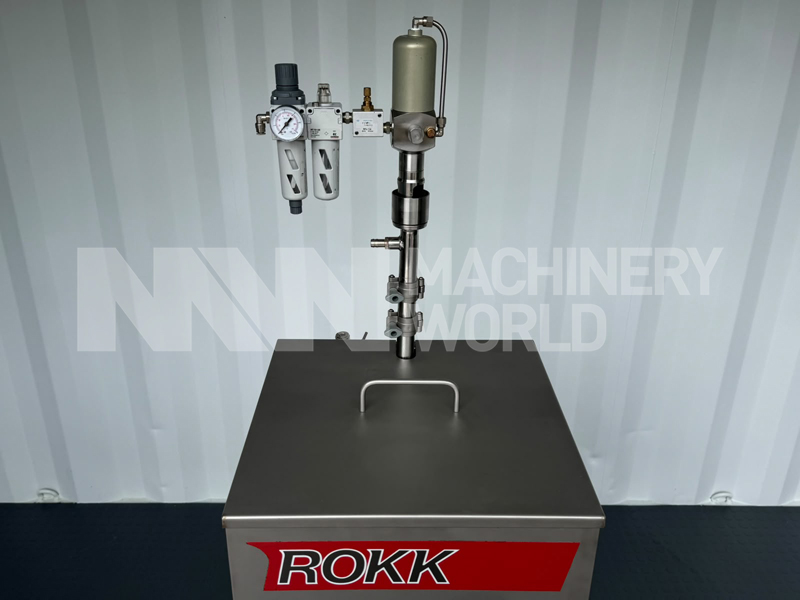

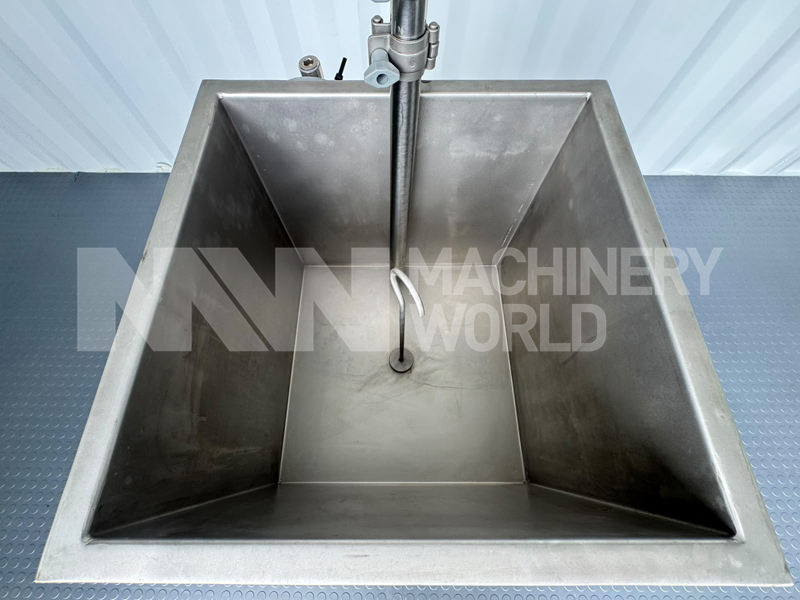

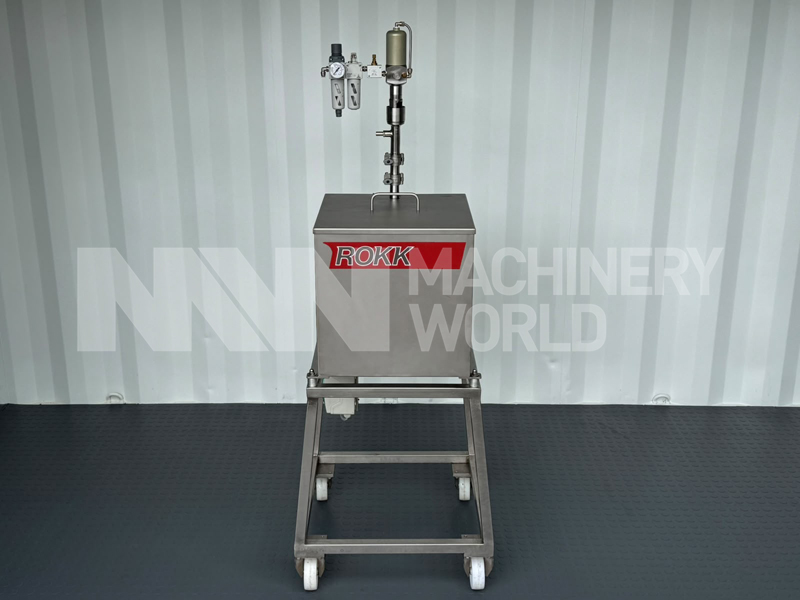

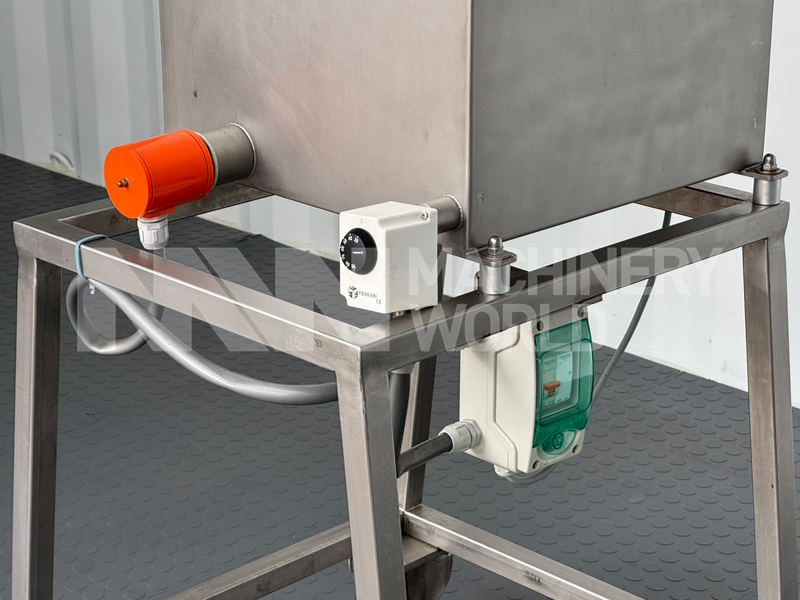

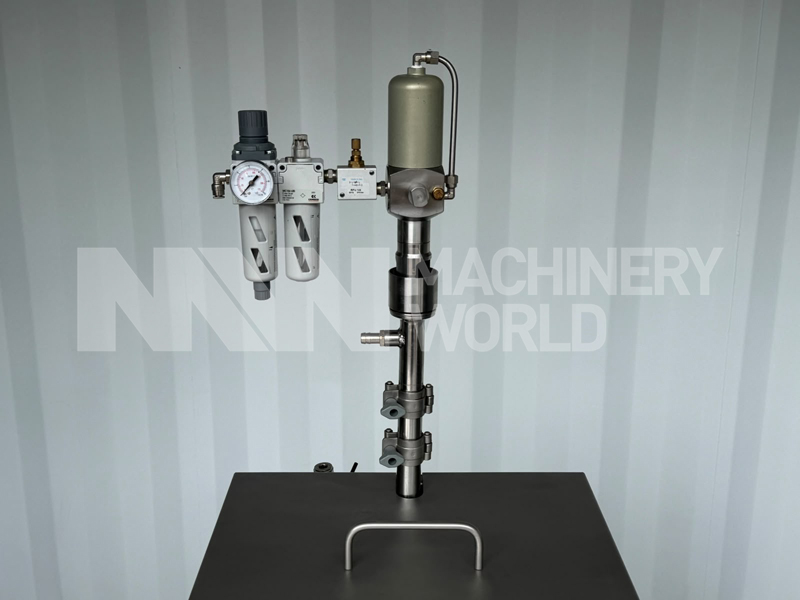

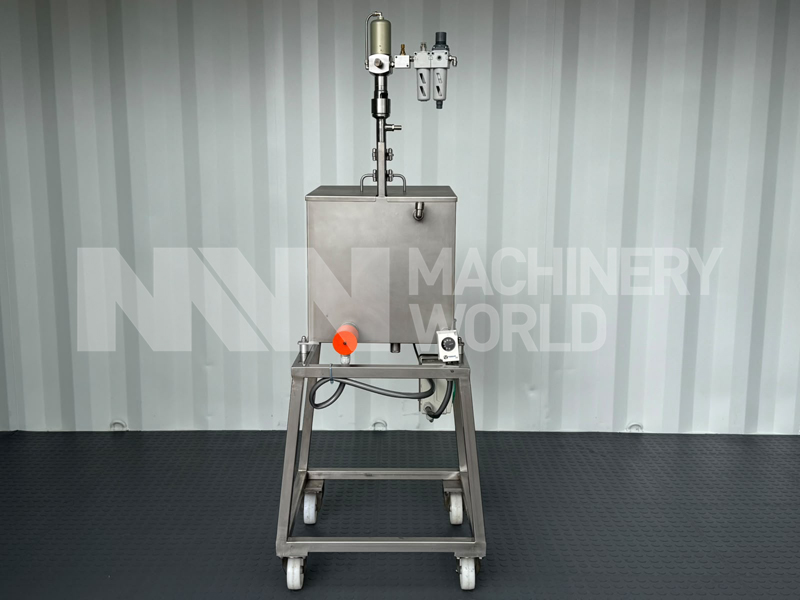

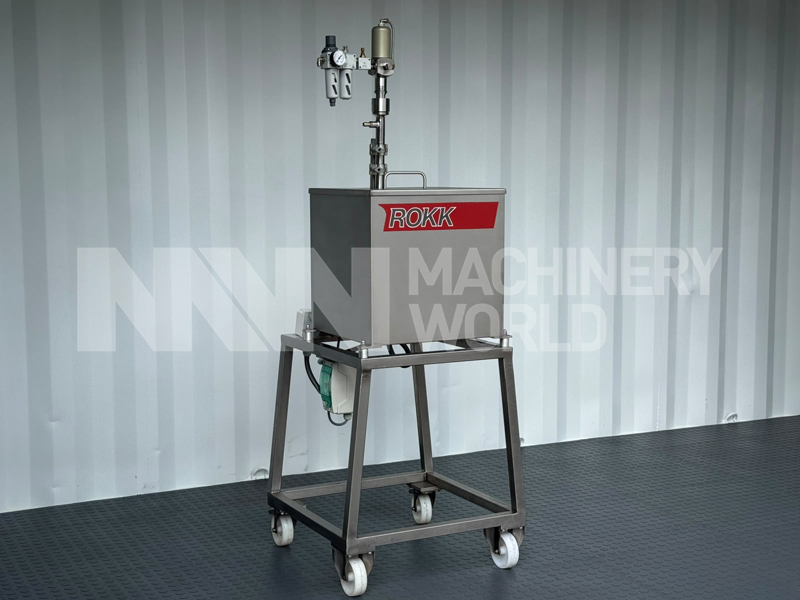

This is a pre-owned RC 200 Chocolate Tank with Pump manufactured in 2022 by ROKK Processing. The RC 200 ripple pump from ROKK Processing is used to inject chocolate or syrup and similar products into the ice-cream as it extrudes from the continuous freezer. It is made up of a vat equipped with heating elements, with a discharge tap and pneumatic volumetric pump that doses the product. The quantity of the chocolate or syrup injected can be varied by adjusting the flow of compressed air supplied to the piston of the pump. The air compressor is not included.

Features

• Manufacturer: ROKK
• Model: RC 200
• Function: Chocolate heating tank
• Variable speed control
• Year of manufacture: 2022
• Minimum flow rate: 35 litres per/hour
• Maximum flow rate: 200 litres per/hour
• Air consumption: 8000 litres / hour @ 6 bar
• Hopper capacity: 40 litres
• Total installed power: 2kW
• Electrics: 240V, Earth, Single phase
• Stainless steel construction
• Pneumatic supply
• Supplied without ripple fittings (Available to order)

Dimensions

• Depth: 62 cms
• Width: 50 cms
• Height: 150 cms
• Weight: 70 kgs
