Description
This pre-owned RR 3800 Fully Automatic Ice Cream Rotary Filler, manufactured by ROKK Processing in 2007. It comes equipped with change parts for a 72mm diameter cup (approximately 125ml) and features both a heat seal and over-lid applicator, offering versatility and precision in packaging.
The RR 3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour. With adjustable fill volumes of between 50ml and 1litre and a mechanicaldrive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR 3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.

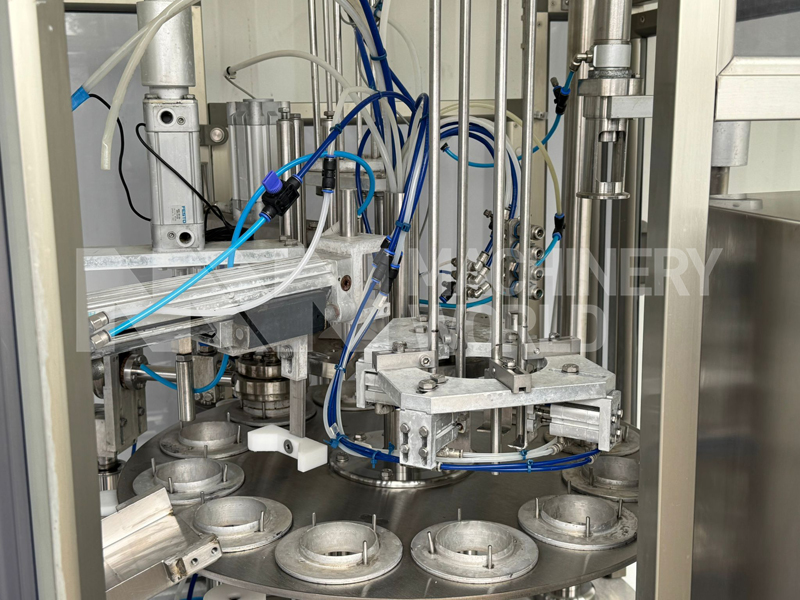

The filling assembly of the RR 3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.

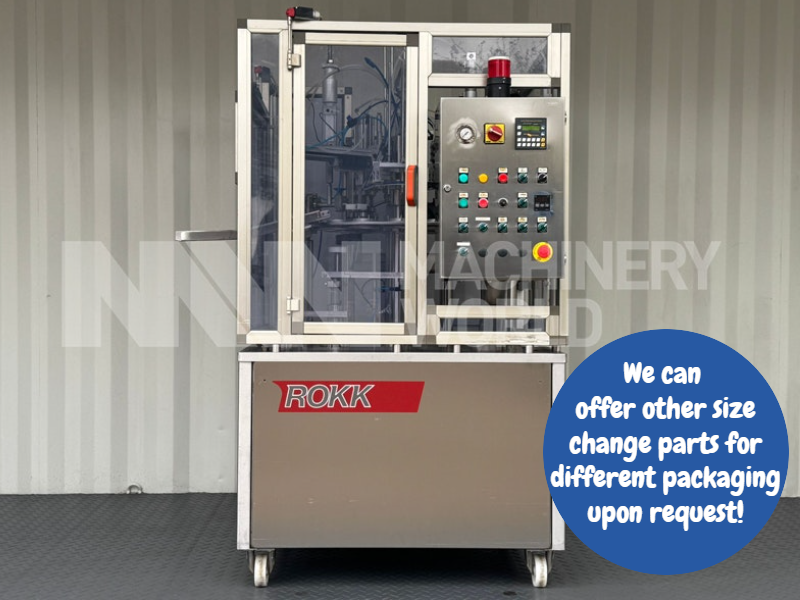

Other change parts for other size packaging are available upon request for an additional cost.
Features

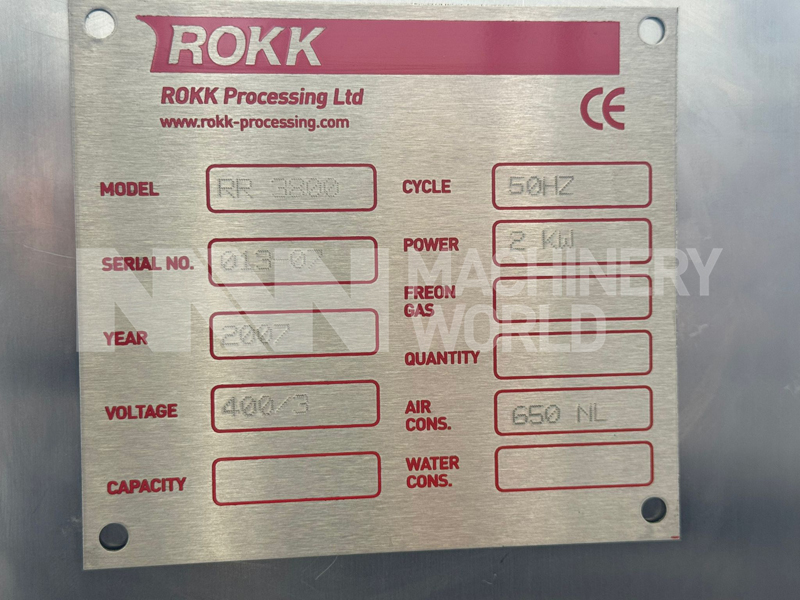

- Manufacturer: ROKK Processing
- Model: RR 3800
- Function: Rotary ice cream tub filler
- Serial number: 013-07
- Year of construction: 2007
- Capacity: 2,400 pieces/per hour
- Change parts: 72mm diameter cup (approx 125ml)
- Number of rows possible: 1
- Machine stations include: Cup drop, Cup fill, Heat seal applicator, Lid applicator, Lid closing device & Eject.
- Electrical consumption: 2 kW
- Air consumption: 650 Nl/min
- Stainless steel construction
- Fully guarded
- Voltage: 400V/50Hz/3 Phase
- Instruction manual supplied
Dimensions
- Length: 105 cms
- Width: 105 cms
- Height: 185 cms
- Weight: 640 kgs
