17,000 LPH Scheffers 4-Effect TVR Evaporator with Mora Horizontal V-Bottom Box Dryer Plant

Description

Used Scheffers Evaporator plant with Mora V-Bottom box dryer for sale, ideal for dairy processing and milk powder production. This complete dairy drying system includes a Scheffers 4-Effect Evaporator with Mora Box Dryer, offering efficient concentration and drying of skim milk, whole milk, and whey. Proven industrial design, high evaporation capacity, and robust construction make this an excellent opportunity for dairy manufacturers seeking a used evaporator and dryer system. This used Scheffers Evaporator Plant with Mora V-Bottom Box Dryer is a complete, heavy-duty dairy processing and drying system, designed for the concentration and drying of milk, dairy or similar suitable products. The front end of the plant features a Scheffers 4-Effect Evaporator, engineered for efficient thermal concentration with optimal steam consumption. The evaporator includes an integrated pre-pasteuriser, making it ideal for hygienic dairy applications. Downstream of the evaporator is a Mora Industries V-Bottom box dryer, historically used in the dairy industry for milk powder, whey powder, and specialty dairy products. Mora box dryers are known for their robust construction and consistent drying performance, particularly in medium-capacity installations.

Specification 4

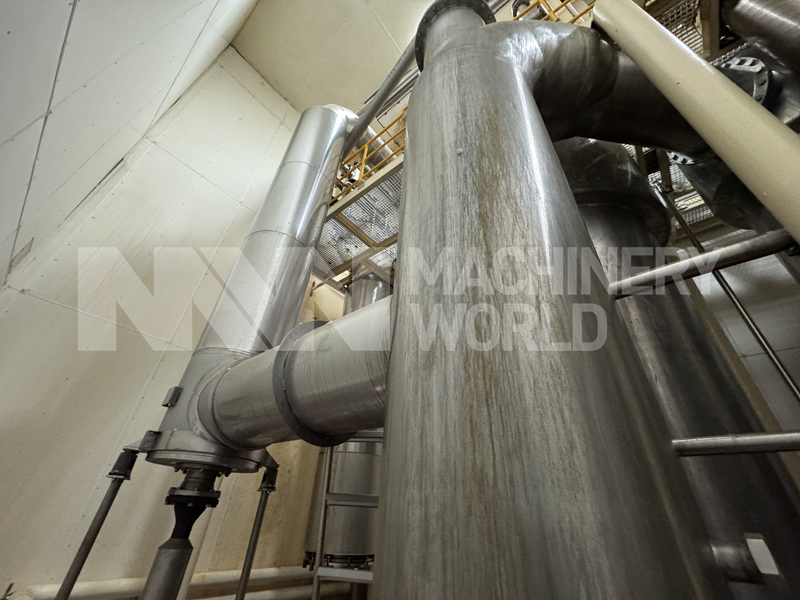

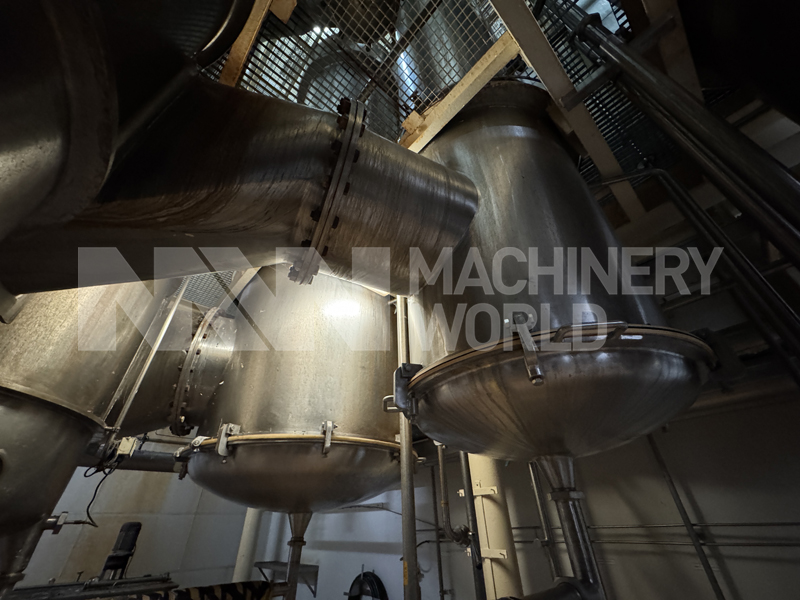

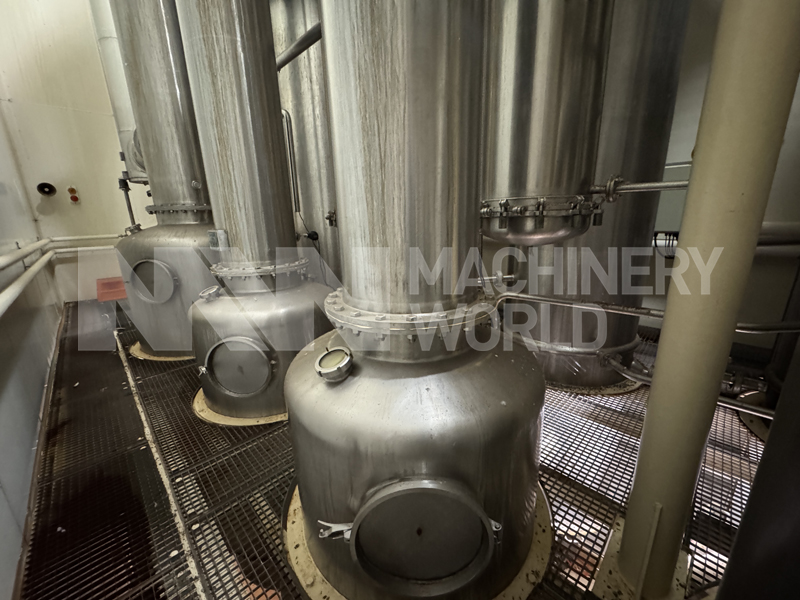

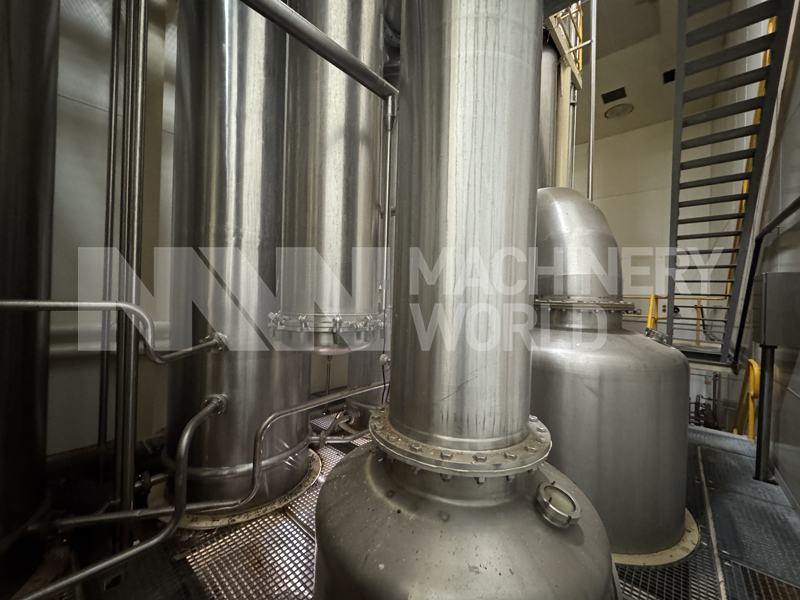

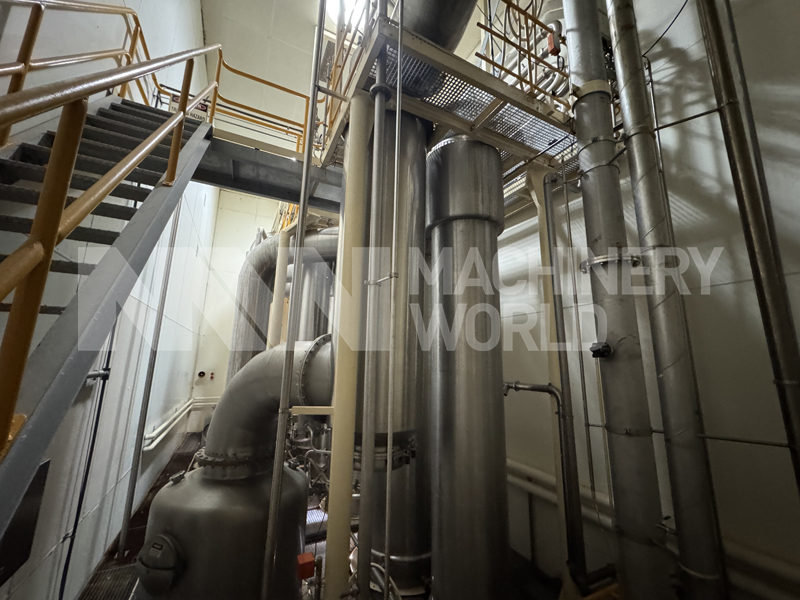

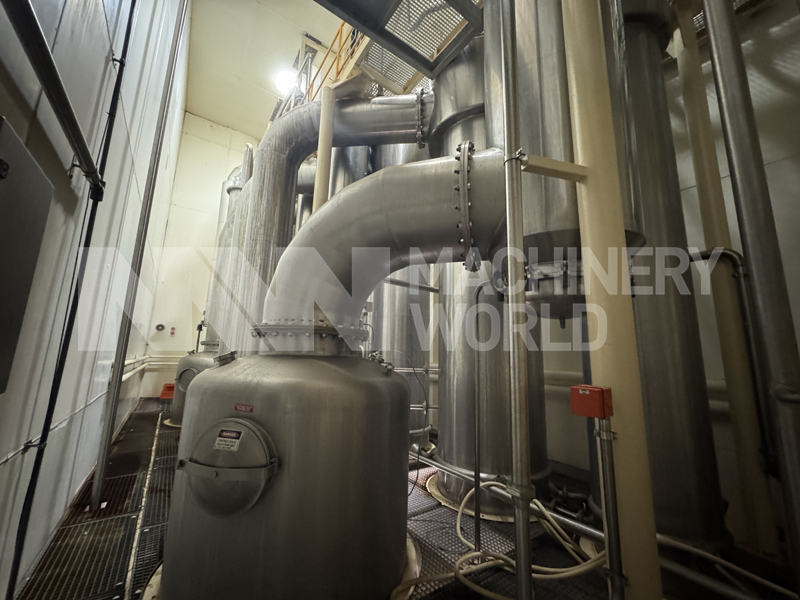

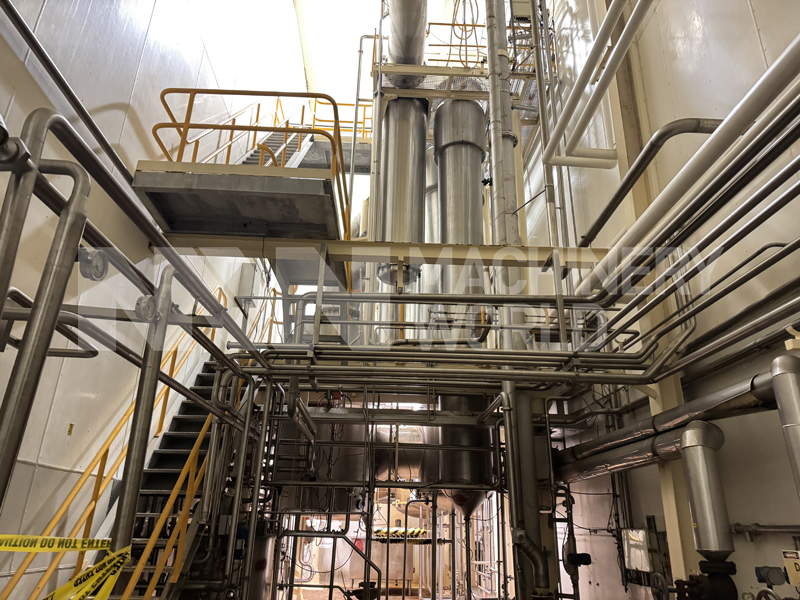

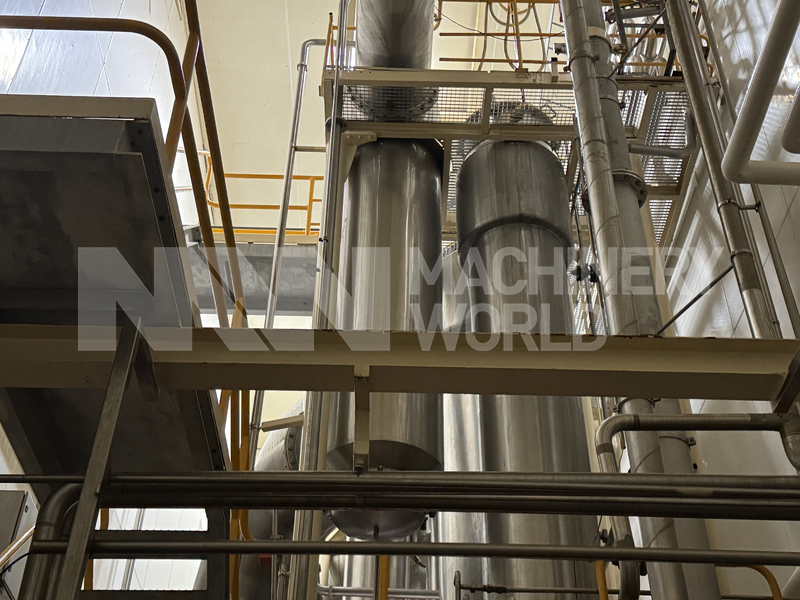

• Evaporator:
  • Make: Scheffers, Holland
  • Type: TVR Falling Film Evaporator Concentrator
  • Number of Effects: 4- Effects
  • Capacity:
    • Skim Milk:
      • Feed In Rate: Approx 17,000 Litres per hour
      • Feed In Total Solids %: 8.8% TS
      • Water Evaporation Rate: Approx 14,000 kg per hour
      • Concentrate Output: Approx 3,000 kg per h at 50% TS
    • Whole Milk:
      • Feed In Rate: Approx 13,000 kg per hour
      • Feed In Total Solids %: 11.2% TS
      • Water Evaporation Rate: Approx 10,000 kg per hour
      • Concentrate Output: Approx 3,000 kg per h
  • Operating Temperature Range: 42°C to 87°C
  • Total Steam Consumption: Approx. 2,500 kg per hour
  • Total Power Consumption: approx. 80kw
  • Water Consumption: Approx 55 m³/h

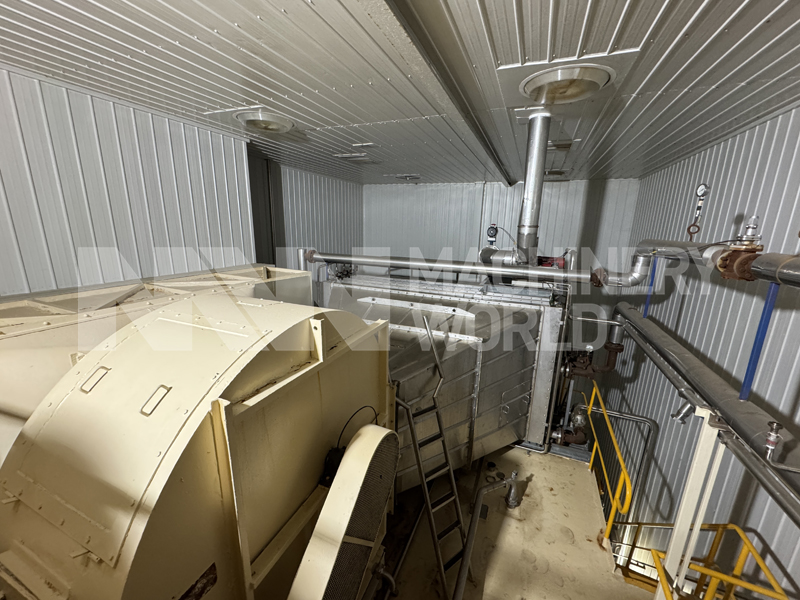

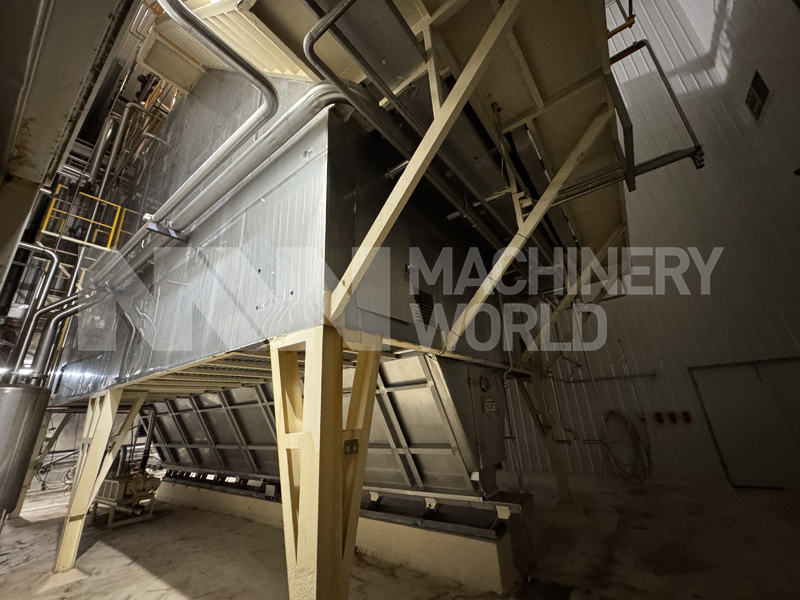

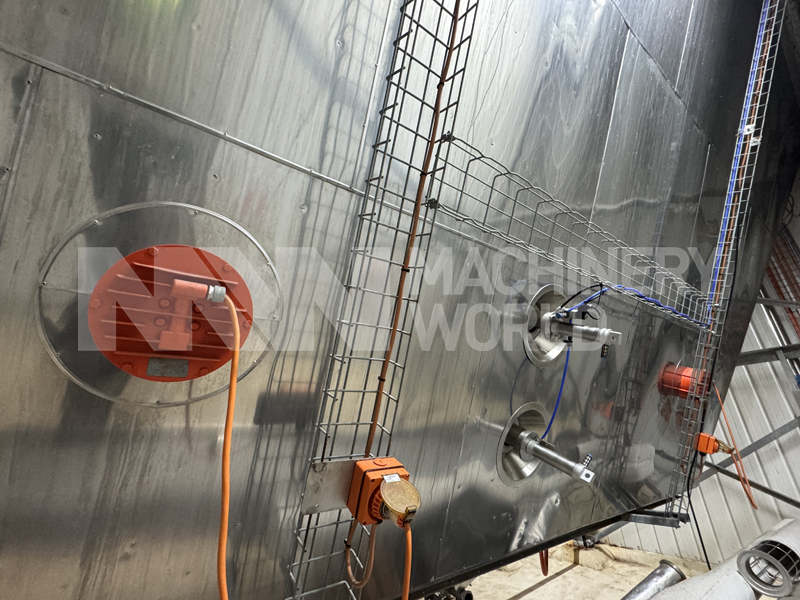

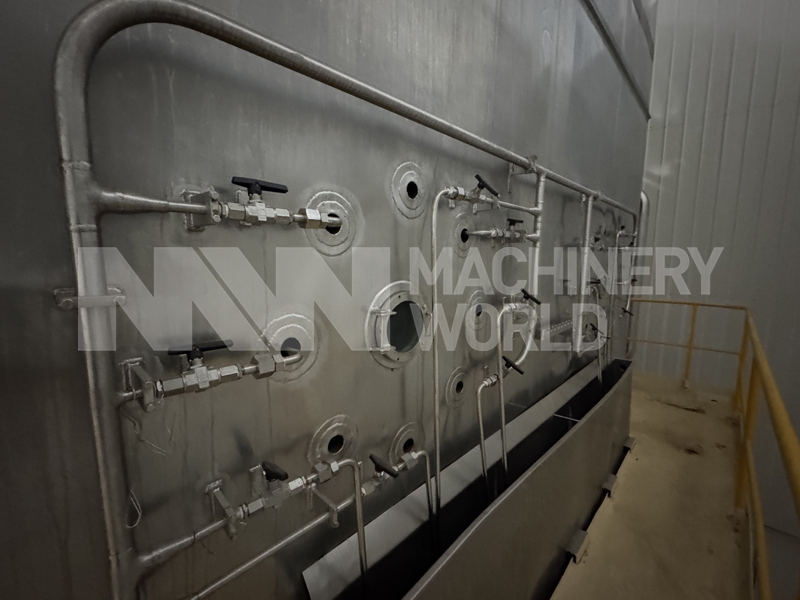

• Dryer:
  • Make: Mora Industries, Inc, USA
  • Type: Horizontal Box Dryer
  • Model: V-Bottom Box Dryer
  • Feed Rate to Spray Dryer: Approx. 3,000 kg per hour
  • Solids In Feed: Approx. 50% Total Solids
  • Water Evaporation: Approx, 1,500 kg per hour
  • Powder Production: Approx. 1,500 kg per hour
  • Features:

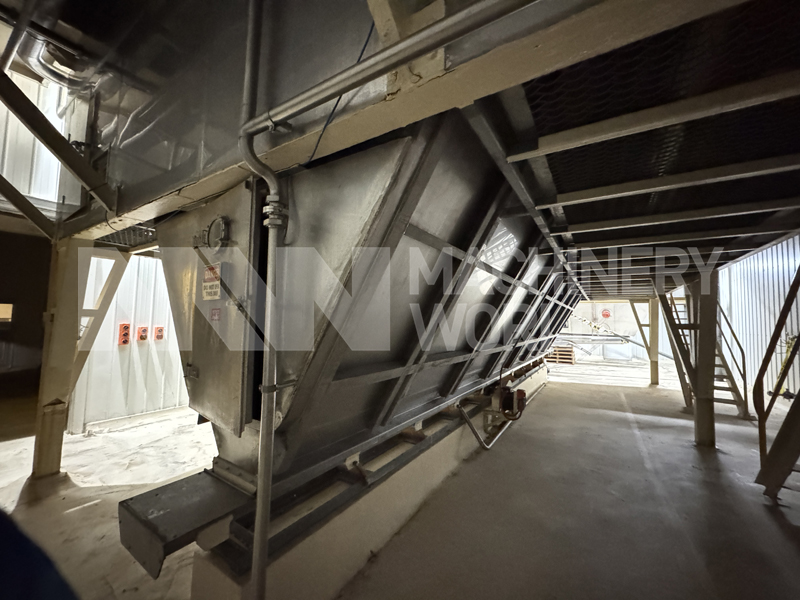

    • V-Bottom design for efficient powder discharge
    • Suitable for dairy or similar concentrates from evaporators
    • Heavy-duty construction
    • Elevated platform with access stairs and maintenance walkways
• Typical Applications:
  • Milk Powder Drying
  • Whey Powder Drying
  • Dairy Ingredient Processing
  • Skim Milk & Whole Milk Concentration
  • Food & Dairy Processing Plants
  • Powder Manufacturing Facilities
