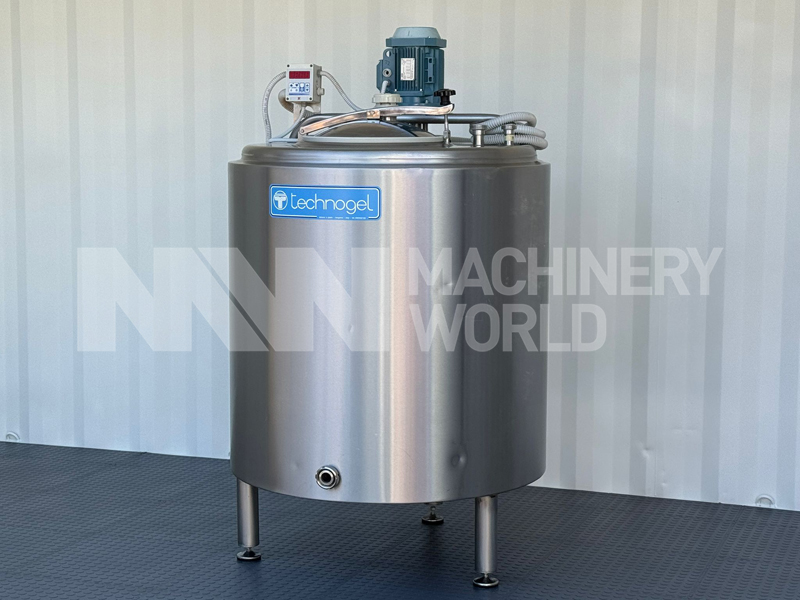

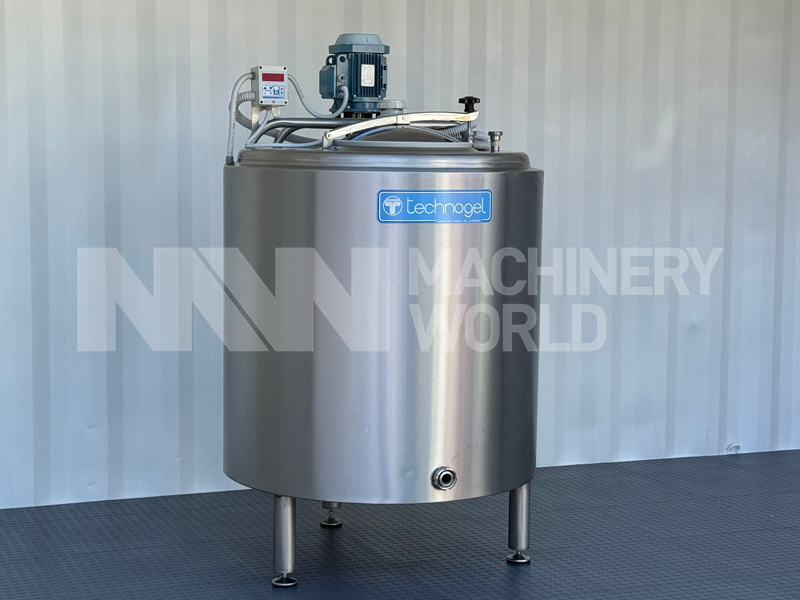

Technogel Jacketed Pasteurisation Tank with High Speed Mixer – 600 ltr

Description

A pre-owned Technogel 600 litre pasteurisation tank, fitted with a high-speed agitator (2800 rpm), utilising hot water as a heat source or, upon request, steam. The heating medium flows into the jacket that is integrated into the wall and bottom of the pasteuriser. The tank has an electronic controller with a large LED display with manhole style lid opening.

Features

• Manufacturer: Technogel
• Model: TPW 600
• Function: Pasteurisation tank
• Capacity: 660 Litres
• Outlet connection: DN25
• The inner tank and outer casing made of AISI 304 stainless steel
• Orientation: Vertical

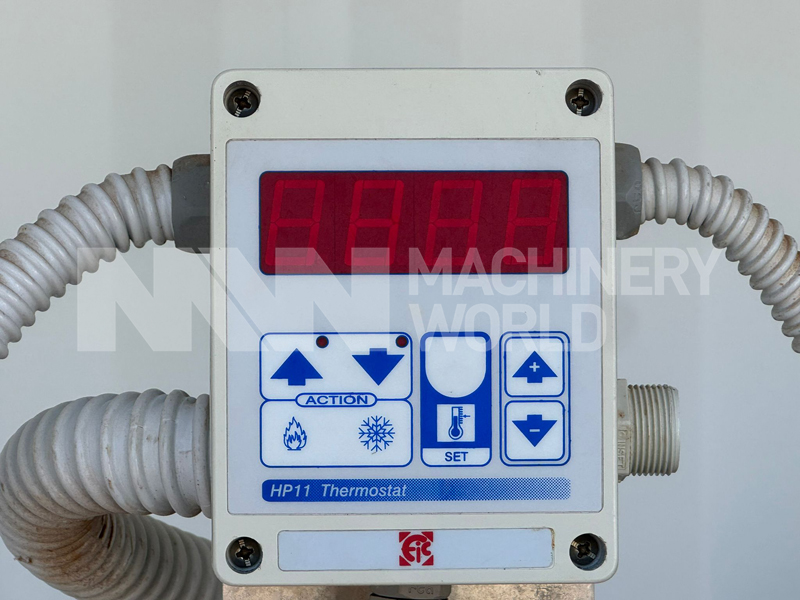

• Temperature controller and digital readout

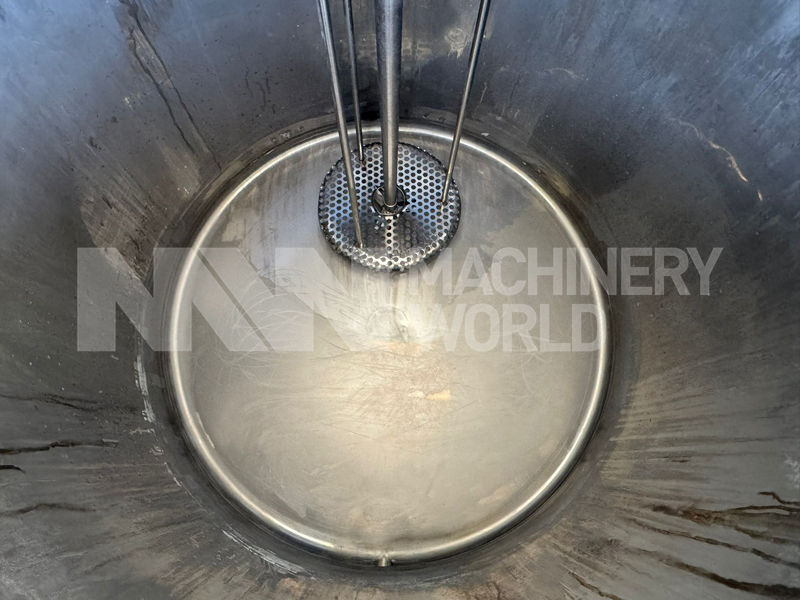

• Propeller type high-speed agitator (2800 RPM)
• Adjustable legs

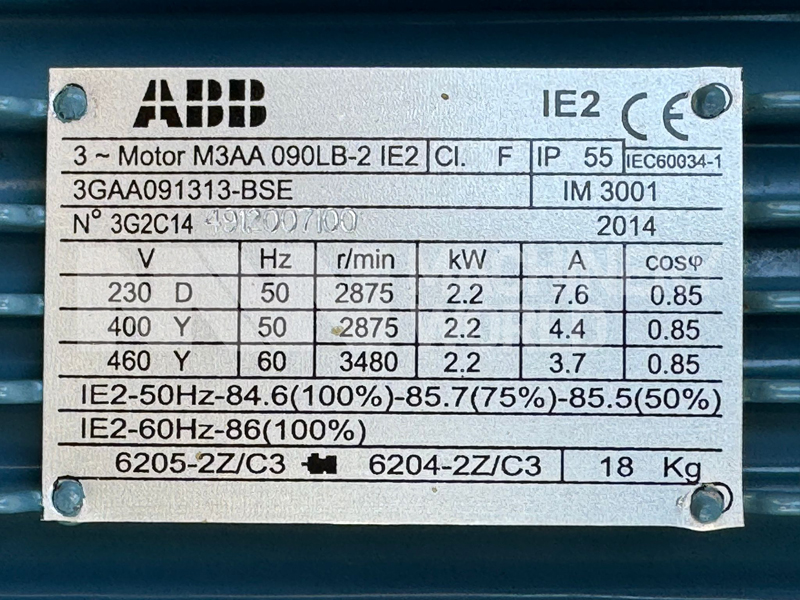

• Total power consumption: 2.2 kW
• Electrics: 400V / 50 Hz/ 3 Phase

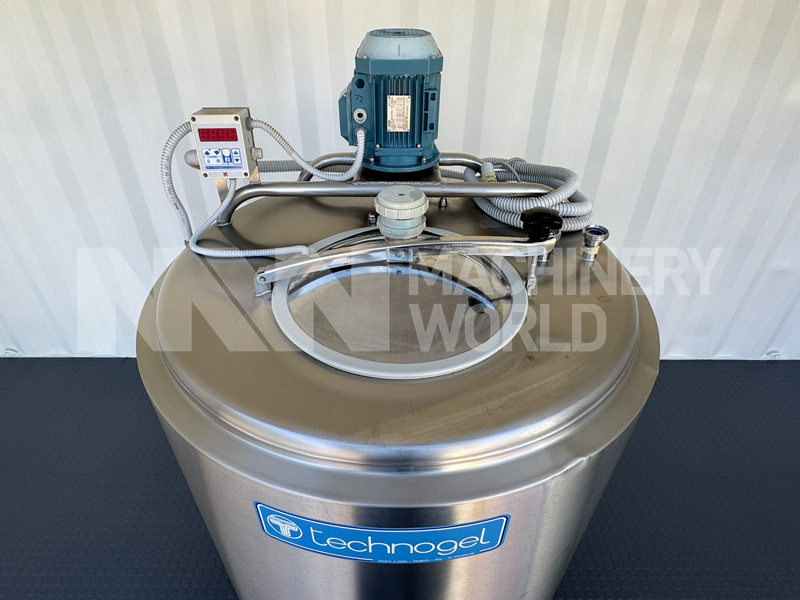

• Manhole style lid opening

Dimensions

• Diameter: 104 cms
• Height: 170 cms
• Weight: 140 kgs

Country of Manufacture

Italy
