IN STOCK AVAILABLE TODAY

SKU: 22517 Categories: , ,
Description

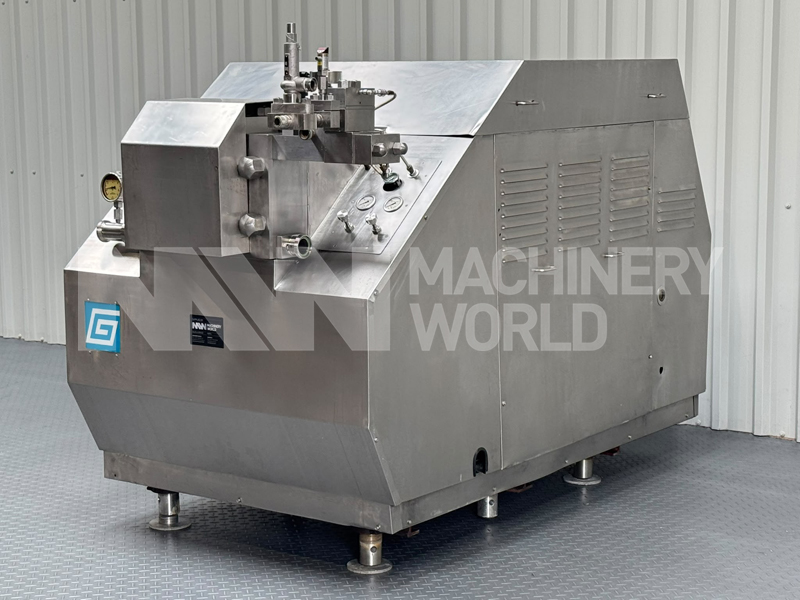

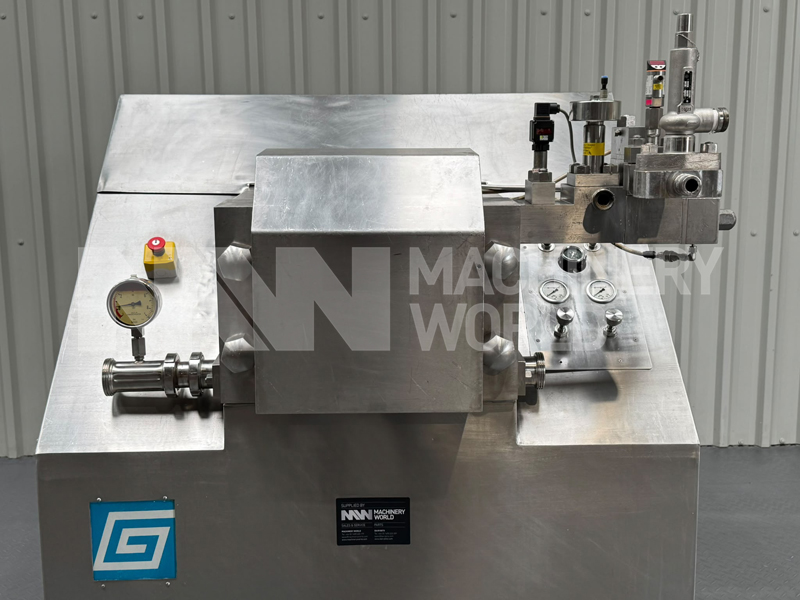

Used APV Gaulin MS45-10TBSX high-pressure, two-stage industrial homogeniser with an approximate processing capacity of 5,000 litres per hour. This heavy-duty APV Gaulin homogenizer is designed for continuous processing applications requiring efficient particle-size reduction, product stabilisation, emulsification and improved product consistency. The homogeniser offers a maximum working pressure of up to 10,000 psi (approximately 689 bar) and features a two-stage homogenising valve arrangement. Two-stage homogenisation can help produce a uniform, stable product while reducing particle agglomeration and improving texture, viscosity, appearance and shelf-life. The machine is powered by a 110 kW electric motor and is supplied with a frequency inverter for variable-speed control. This allows the operator to adjust the homogeniser speed and processing capacity to suit different products and production requirements.

Key Application:

The APV Gaulin MS45-10TBSX homogeniser is suitable for a wide variety of liquid food and industrial processing applications, including:

  • Milk and dairy product homogenisation
  • Cream, yoghurt and cultured dairy products
  • Ice cream mix and dairy desserts
  • Cheese milk and processed cheese applications
  • Plant-based milk and dairy alternatives
  • Oat, almond, soya and other vegetable-based beverages
  • Fruit juice, smoothies and beverage concentrates
  • Sauces, dressings, mayonnaise and emulsified products
  • Liquid food ingredients
  • Nutritional drinks and protein beverages
  • Pharmaceutical and biotechnology products
  • Cosmetic creams, lotions and emulsions
  • Fine emulsification and particle-size reduction
  • Product stabilisation and dispersion
  • High-pressure liquid processing applications
Specification
  • Manufacturer: APV Gaulin, USA
  • Model: MS45-10TBSX
  • Machine Function: High-pressure industrial homogeniser
  • Condition: Used
  • Approximate Capacity: 5,000 litres per hour (The actual processing capacity and achievable operating pressure may vary depending on the product, viscosity, temperature, formulation and required homogenisation pressure.)
  • Maximum Working Pressure: Up to 10,000 psi (690 Bar)

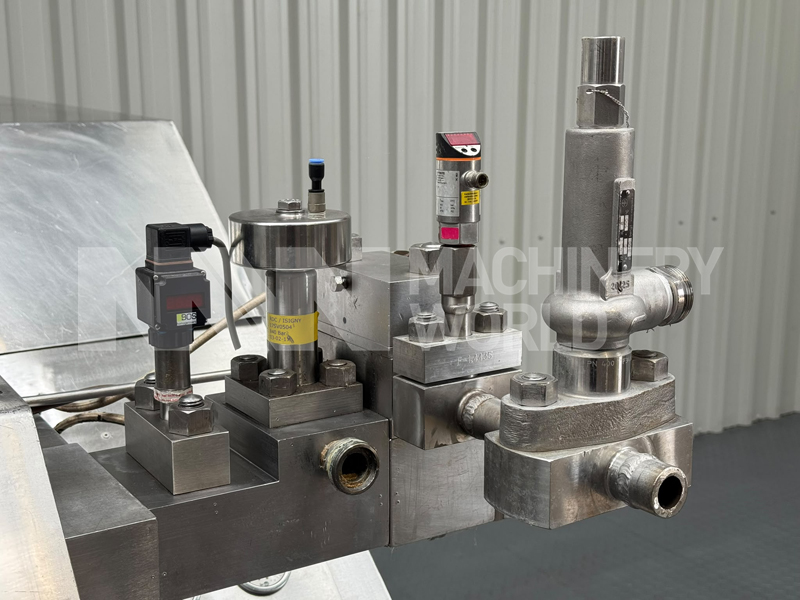

  • Number of Homogenising Stages: 2-stage
  • Type of Homogenising Valve: Ball Valve (Based on the model number)

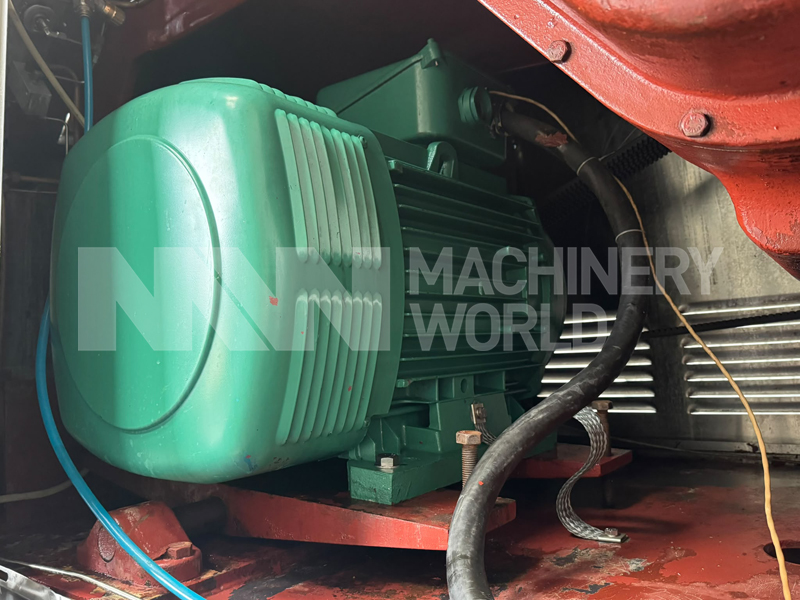

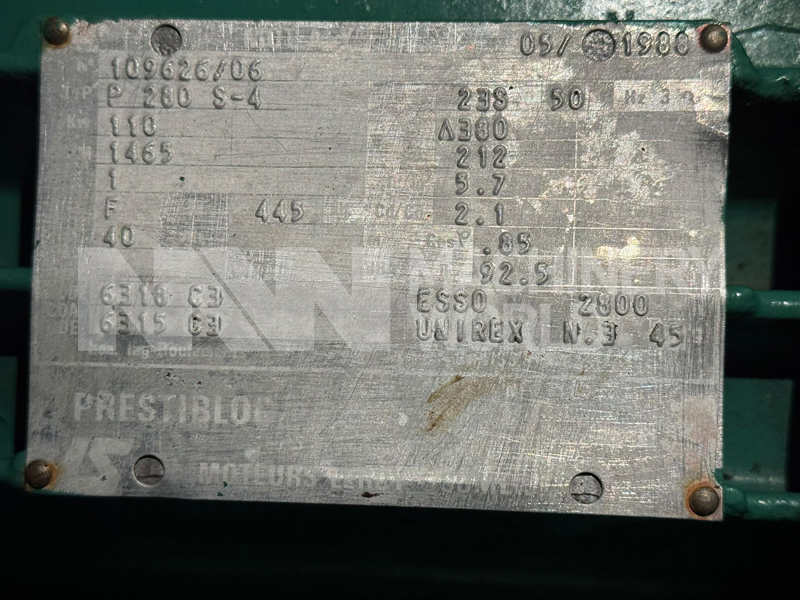

  • Motor power: 110 kW

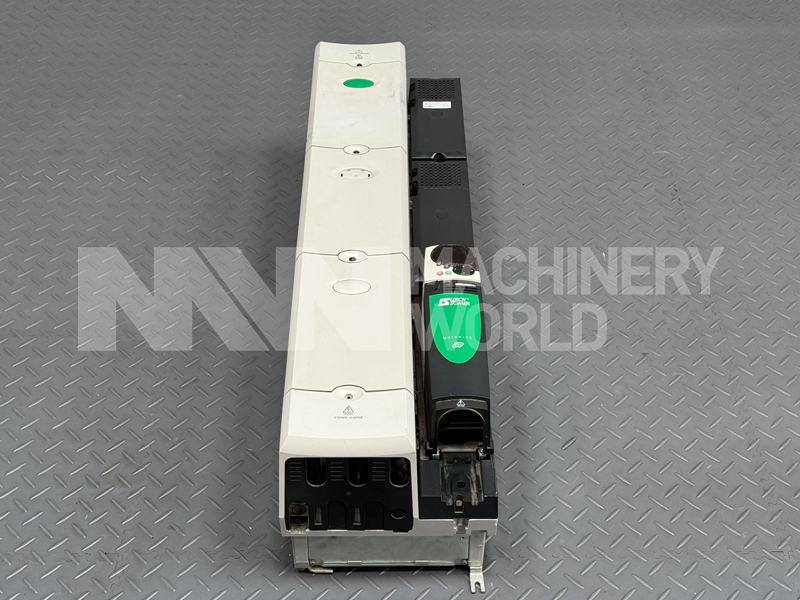

  • Speed control: Frequency inverter (Supplied with Homogeniser)
  • Construction: Robust hygienic stainless-steel external construction

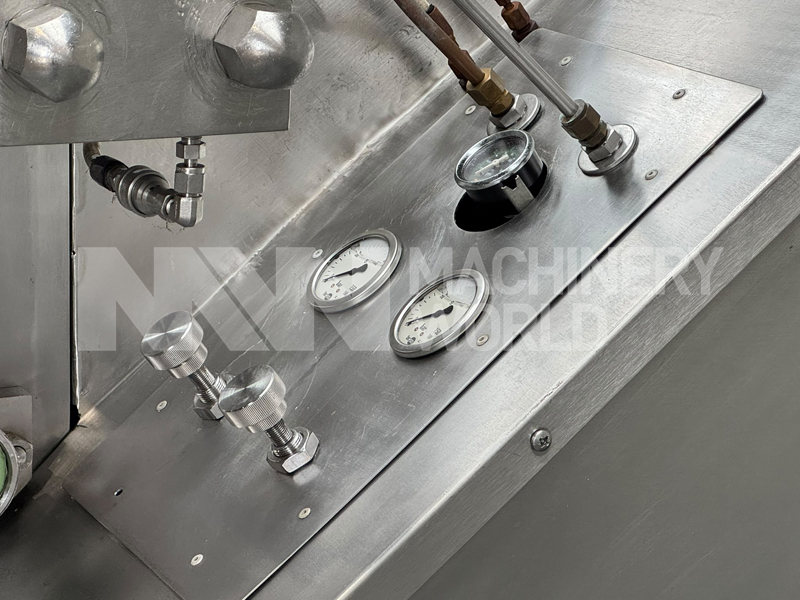

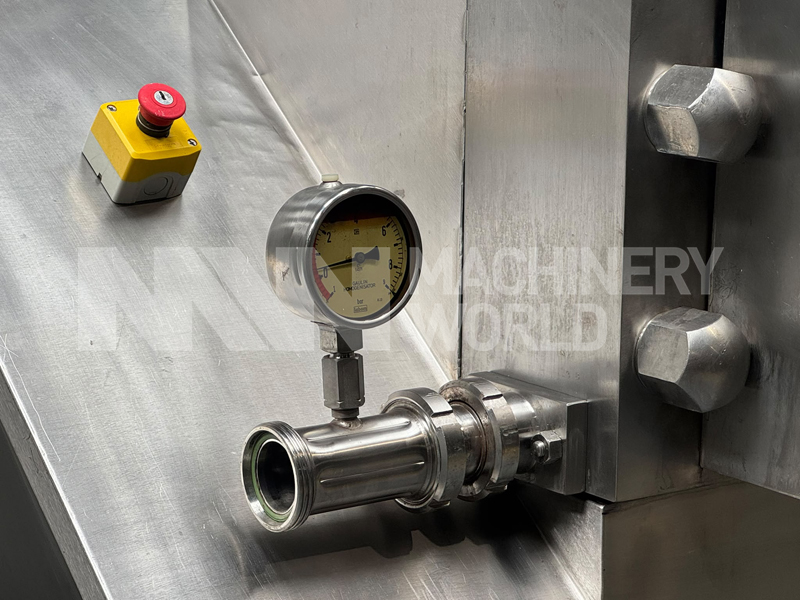

  • Pressure monitoring: Fitted with pressure gauges
Dimensions
  • Length: 2650mm
  • Width: 1450mm
  • Height: 1780mm
  • Approx Weight: 4,500kg
Country of Manufacture
  • USA
