8,000pcs per hour Ital Freezer 4-Lane Linear 500ml Glass Jar Filler (Year 2017)

Description

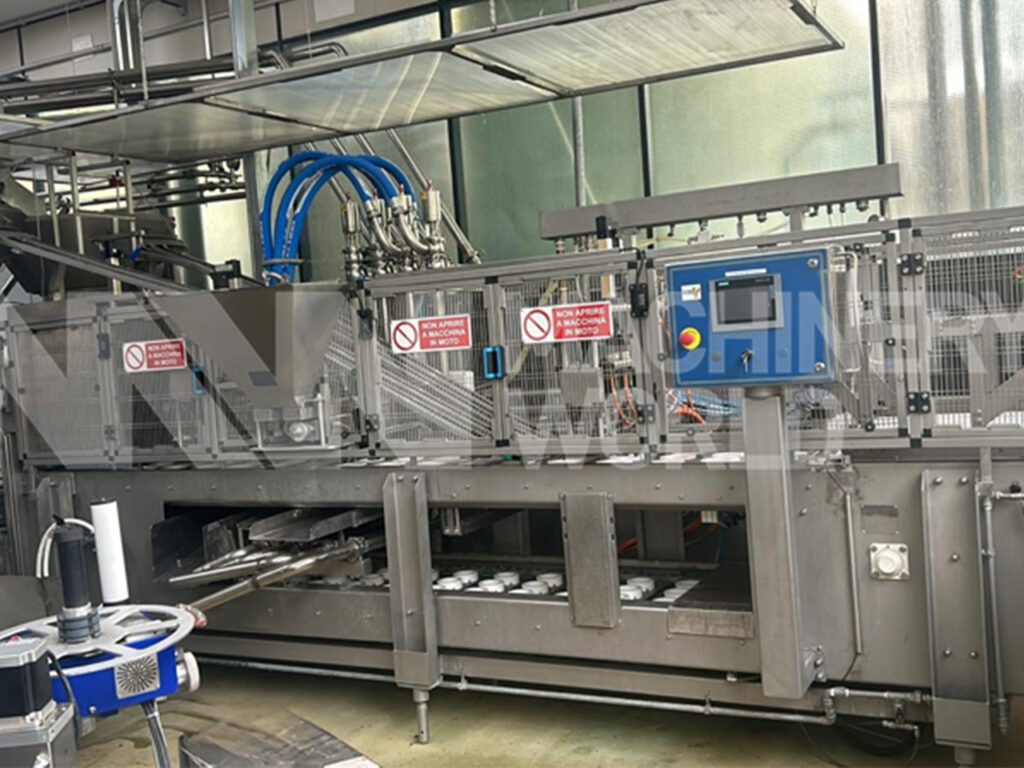

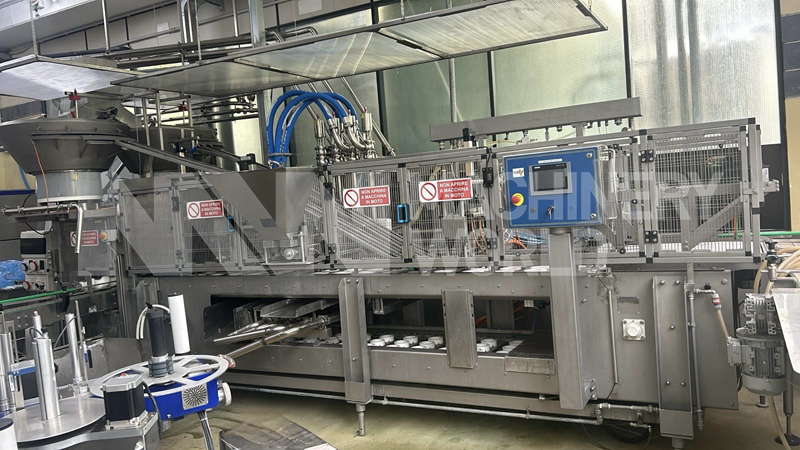

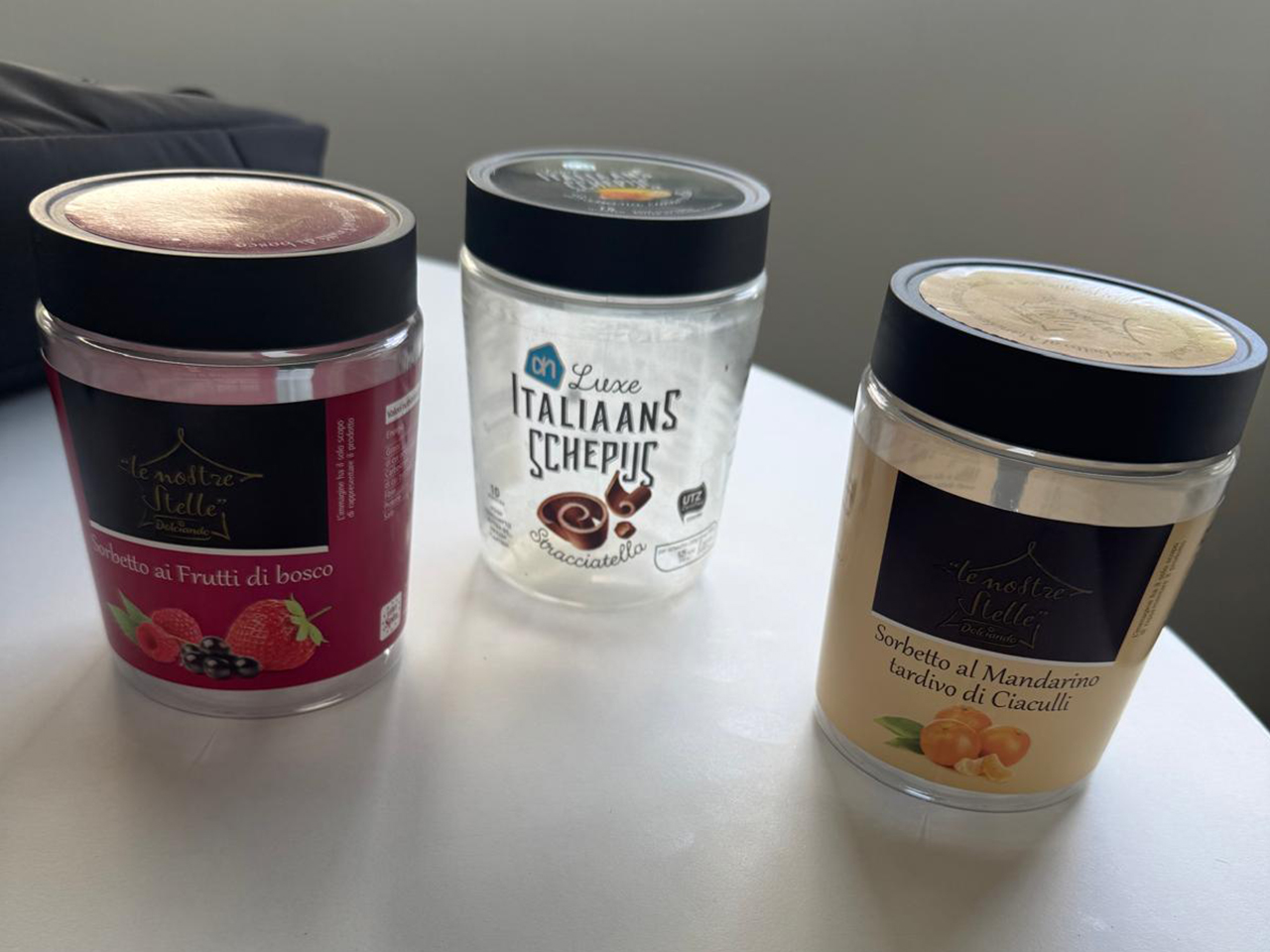

This is a used Ital Freezer 4-Lane Linear Glass Jar Filler. This Ital Freezer 4-Lane Filler is an automatic linear filling machine for filling jars (non-stackable), in 4 parallel lanes with 180 mm pitch, with slatted guides and pockets for jars up to 500 ml, starting from the jar infeed and ending at the jar discharge onto a 500 mm-long conveyor belt. Capacity up to approx 2000 pcs/h per lane and 4x lanes for a total of approx 8000 pcs/h.

Features

• Quick size change possible.
• Electronic operator panel (PLC): Touchscreen. User friendly and easy to operate and it controls the entire production process and stores production parameters which can be recalled whenever needed.
• Very versatile machine: Even during production, each lane can be enabled or disabled, as they are independent.
• Jar loading with four-lane screw feeder and 4-clamp group with grippers.
• Transfer slide (Brushless Motor) into the line (pockets).
• Vibrating hopper for Lid Feeder. Lids inserted manually into a hopper in random orientation, are reorganized by vibration so that the system can select the correct side (concave/convex) and place them correctly onto the jar before screwing.

Filling Machine Stations

• Jar loading
• Pressing module
• Filler for 2 flavors, with variegation
• Dry fruit/nut dosing
• Automatic lid feed
• Automatic lid placement
• Lid screwing unit
• Discharge via conveyor belt

Specification

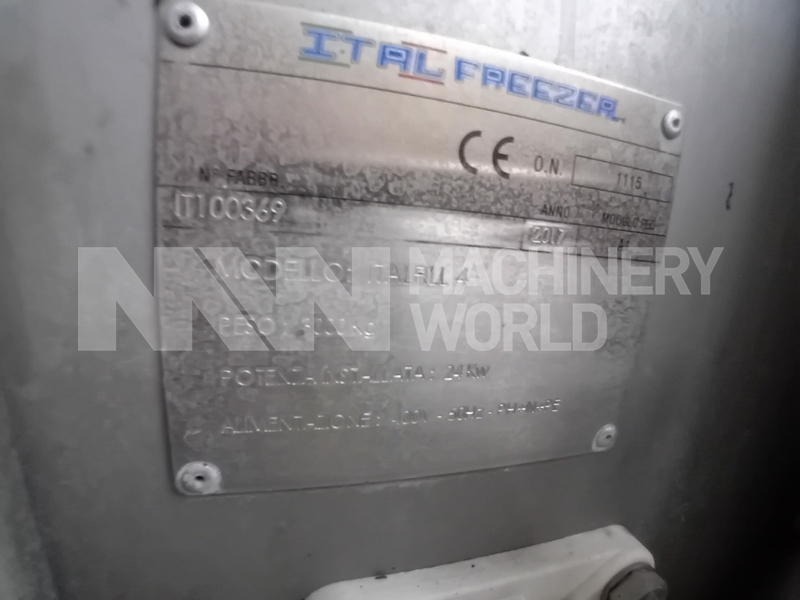

• Make: Ital Freezer, Italy
• Model: ITALFILL 4
• Function: Automatic Glass Jar Filling Machine
• Serial Number: IT100369
• Installed Power: 254kw, 400v & 50Hz
• Fill Capacity: Up to 500ml
• Fill Rate:
  • 1x Lane: Approx 2,000 pieces per hour
  • 4x Lanes: Approx 8,000 pieces per hour

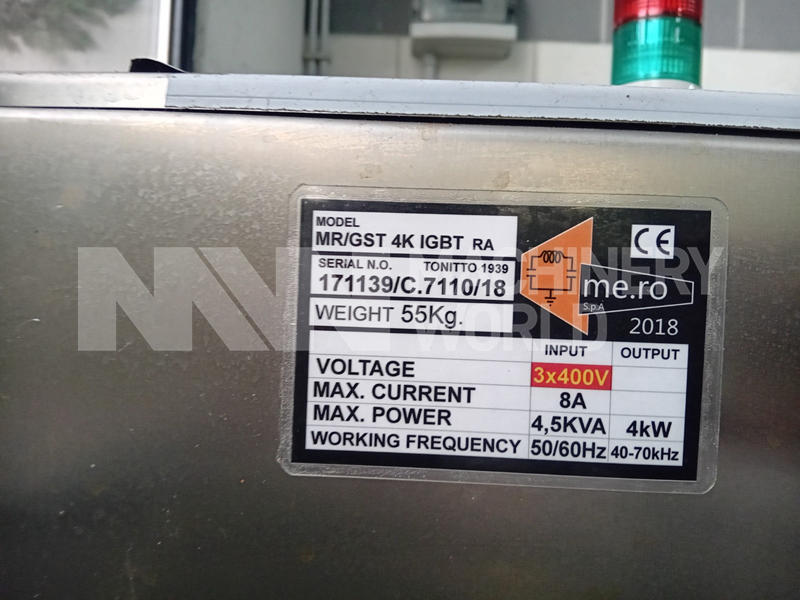

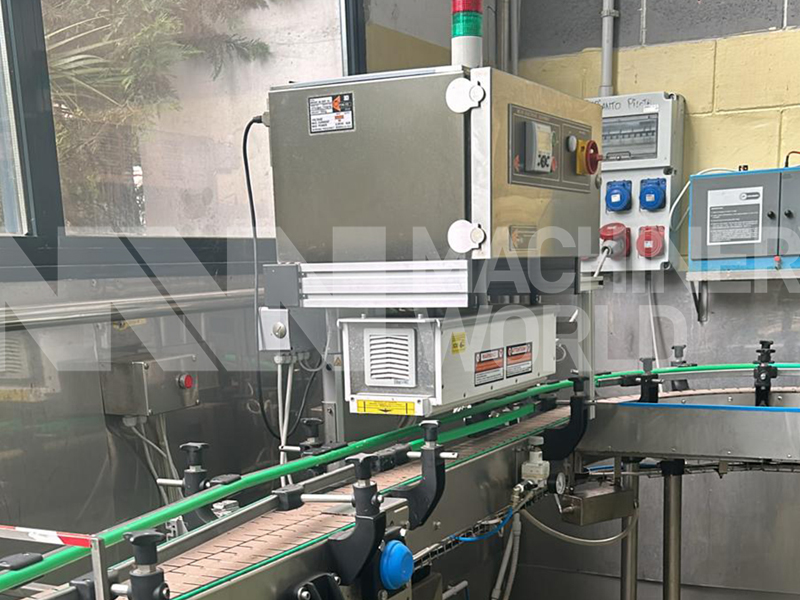

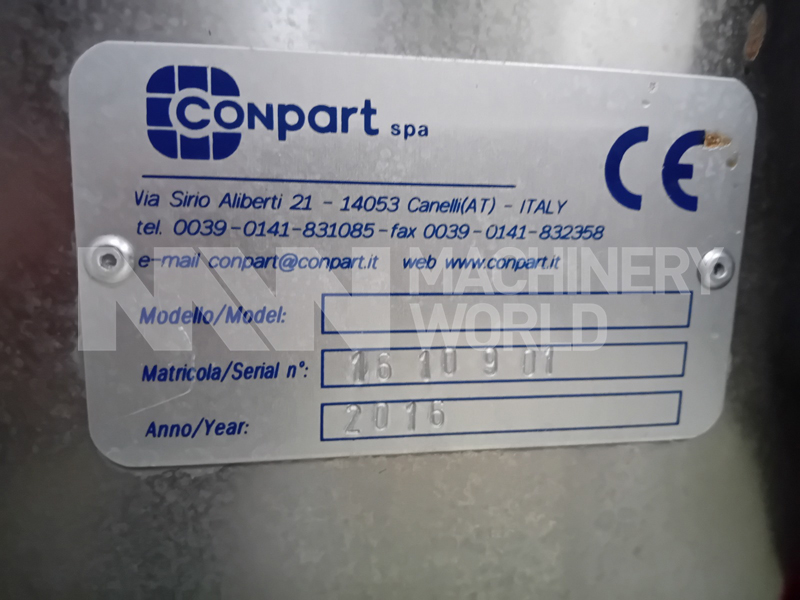

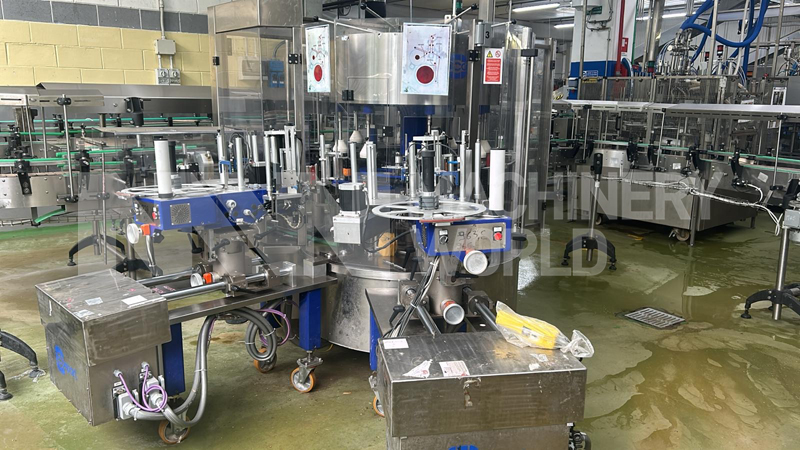

• Additional Details: Comes with  Conpart Rotary Labeller & ME.RO MR/GST 4K IGBT Induction Cap Sealing machine

Approximate Dimensions

• Length: 5900mm
• Width: 950mm
• Height: 1950mm

Country of Manufacture

Italy
