Description

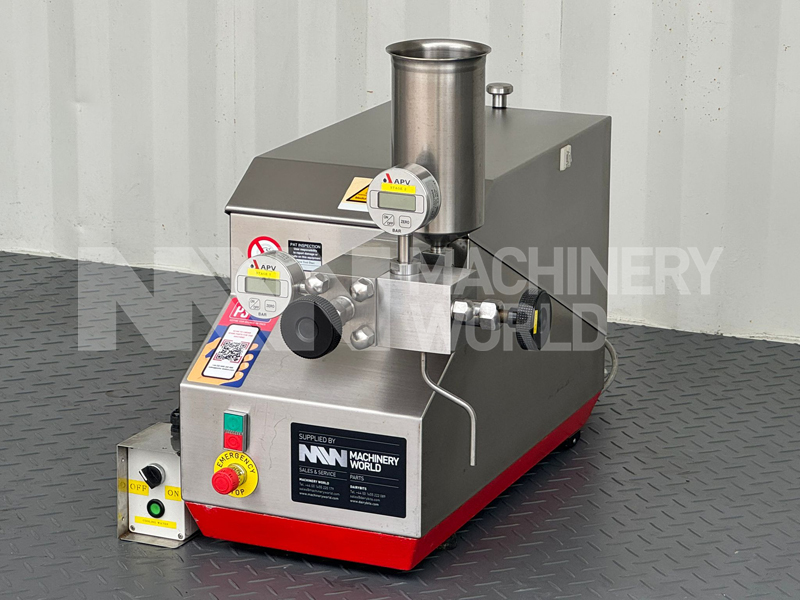

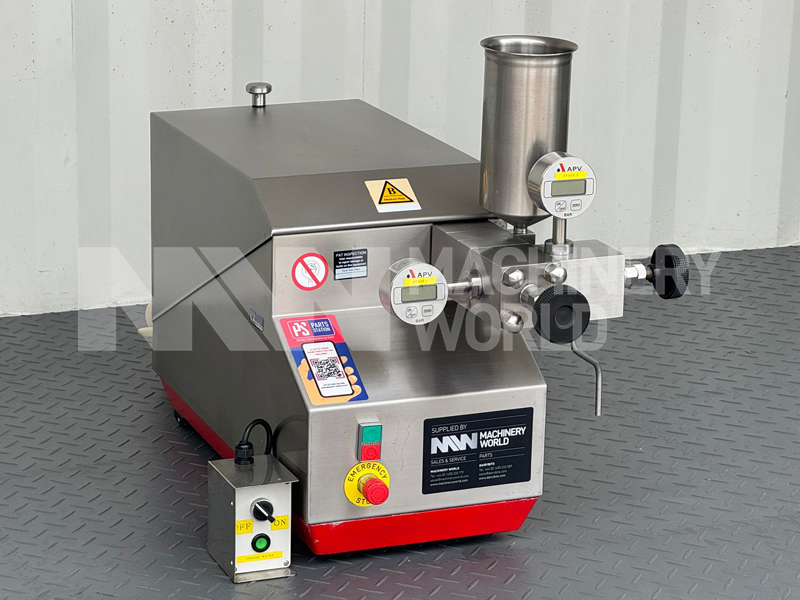

The APV 2000 Lab Homogeniser is a compact, high-performance unit designed for R&D in dairy, food, beverage, chemical, pharmaceutical, cosmetic, and biotech applications. Operating at pressures up to 2000 bar (29,0074 PSI) with a capacity of approx 11 Litres per Hour, it features a unique knife-edge dual-function valve for superior emulsions and dispersions. Its two-stage ceramic homogenising valve delivers narrow particle size distribution and product stability, while the benchtop footprint, digital pressure display, integrated safety system, and minimum sample size of just 100 ml make it ideal for precision laboratory work and scale-up trials. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.
Features

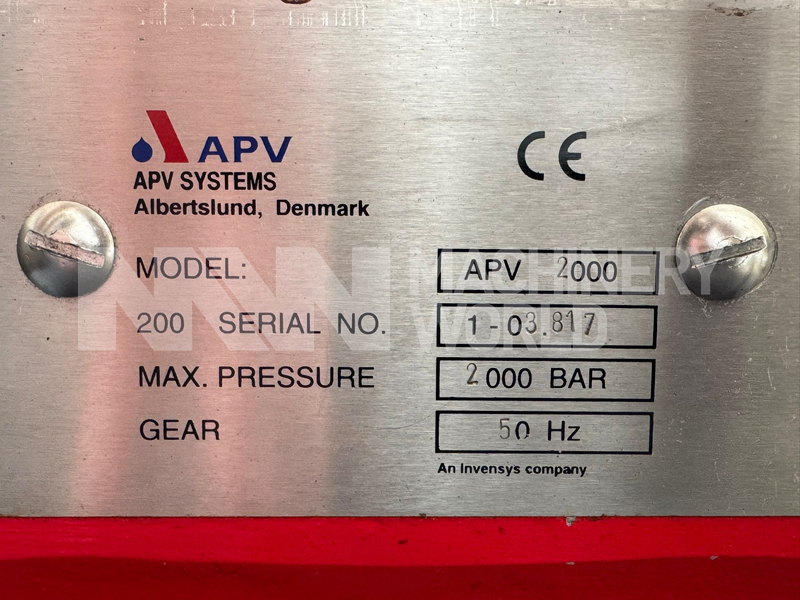

- Manufacturer: APV Systems, Denmark
- Model: APV 2000
- Serial Number: 1-03.817
- Function: High Pressure Lab Series Homogeniser
- Capacity: Approx 11 LPH (Varies depending on product and its viscosity)
- Minimum Test Sample Size: 100 ML
- Max. working pressure: 2000 bar (29,007 PSI)

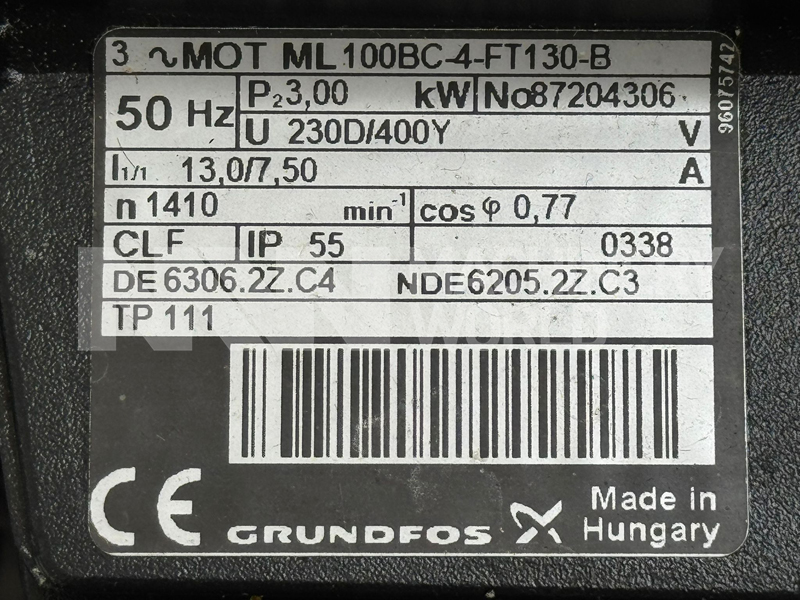

- Motor Power: 3kw, 3ph & 50Hz
- Number of Stages: 2-Stage Homogeniser
- Comes with Product Header Tank
- Plunger/Piston Diameter: 10mm
- Plunger/Piston Material: Ceramic

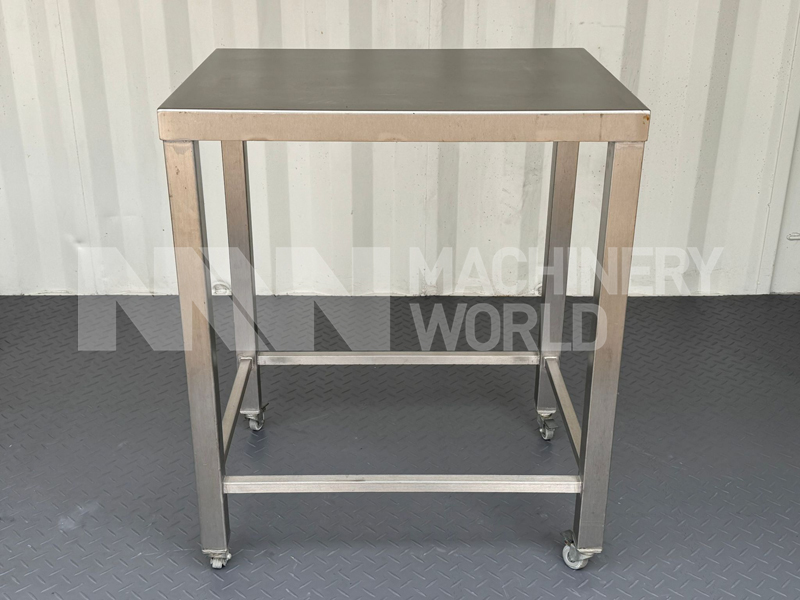

- Table Top Model – Comes with Mobile Stainless Steel Stand
Dimensions
- Length: 818mm
- Width:370mm
- Height:620mm
- Approx Weight: 105kg
Country of Manufacture
Denmark
Download Technical Doc
