Description

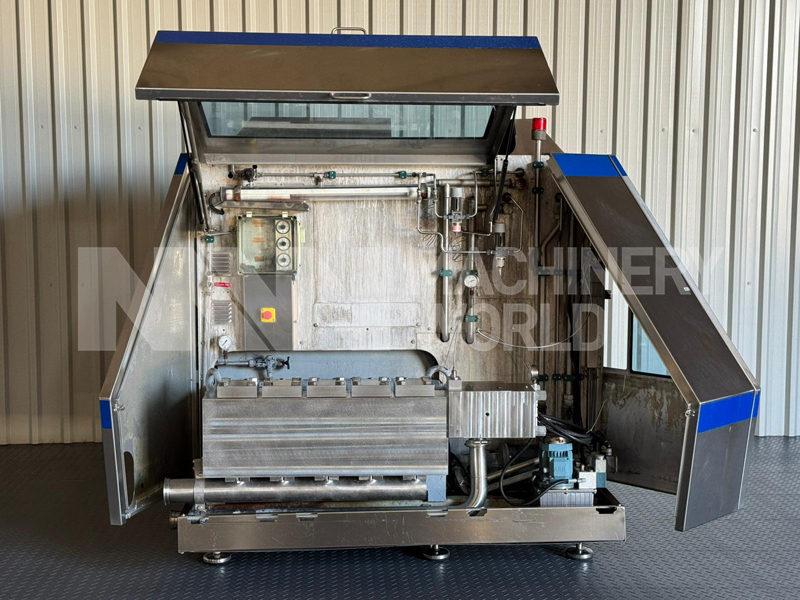

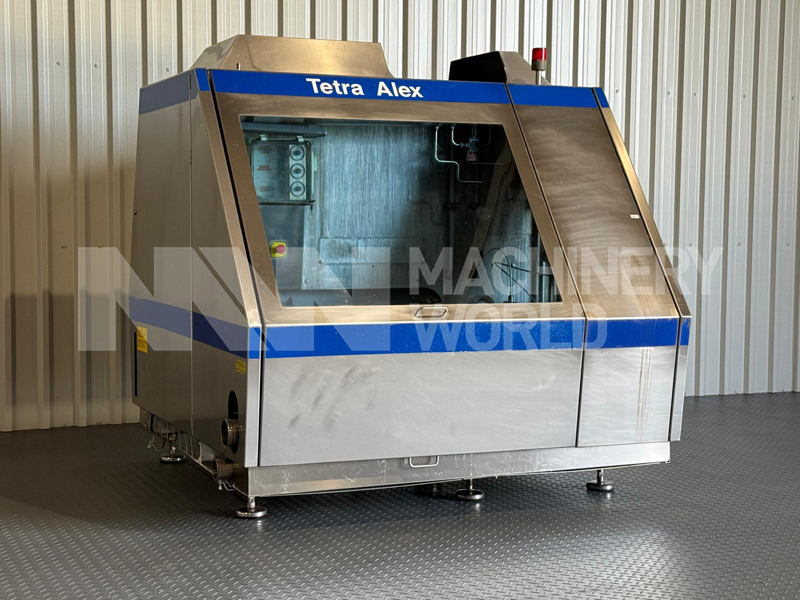

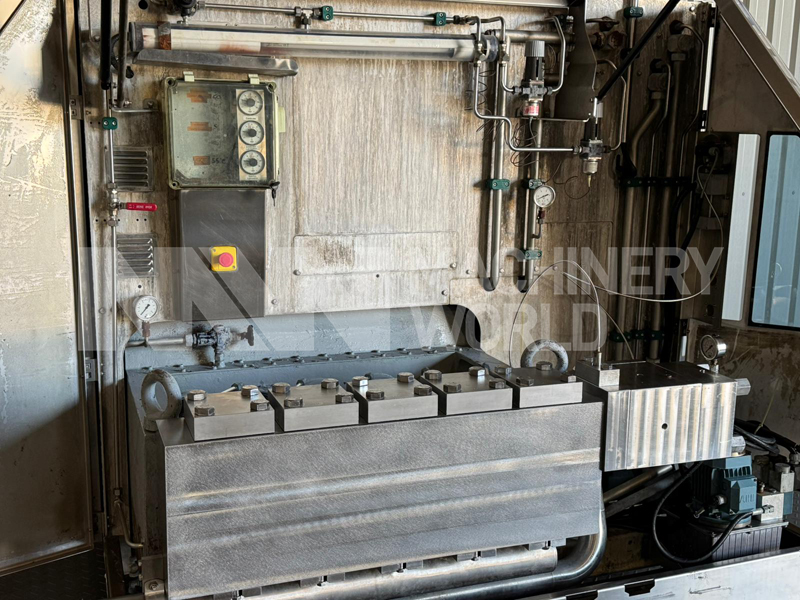

This is a used Tetra Pak Tetra Alex 400 Homogeniser with an approximate capacity range of 6,500 LPH to 16,000 LPH, capable of operating at a maximum pressure of 250 Bar (3,625 PSI). Equipped with a horizontally arranged positive displacement pump featuring three pistons, the Tetra Alex 400 is specifically designed for the high-pressure homogenisation of emulsions and suspensions. It is ideal for processing products such as pasteurised milk, UHT milk, dairy cream, yogurt, condensed milk, ice cream mix, fruit juices, concentrates, and similar applications. The unit is currently in stock and available for immediate sale. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.
Specification

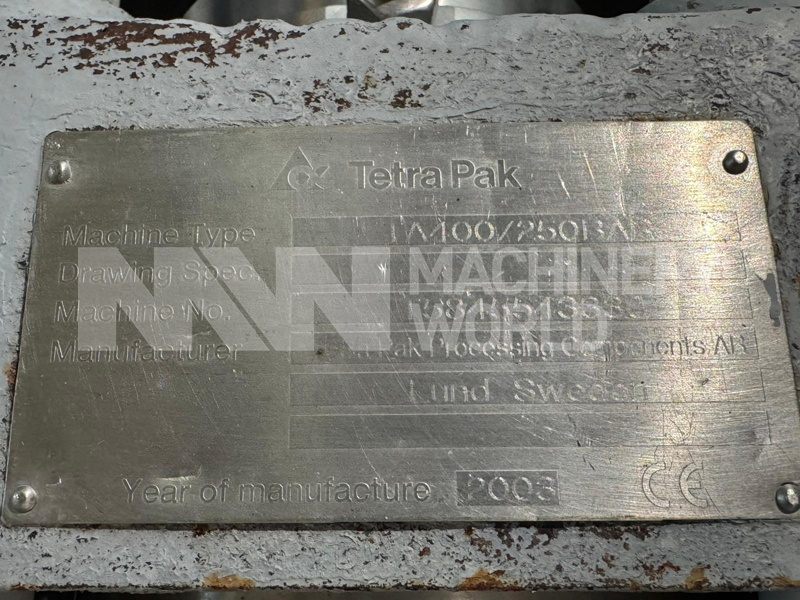

- Make: Tetra Pak, Sweden
- Machine Type: Tetra Alex 400
- Model: High Pressure Piston Homogeniser
- Serial Number: T5845543330
- Year of Manufacture: 2003
- Working Capacity:
- Minimum: Approx 6,500 LPH
- Maximum: Approx 16,000 LPH
- Variable speed achieved via Frequency Inverter (Not Included)
- Working Pressure: 250 Bar (3,625 PSI)

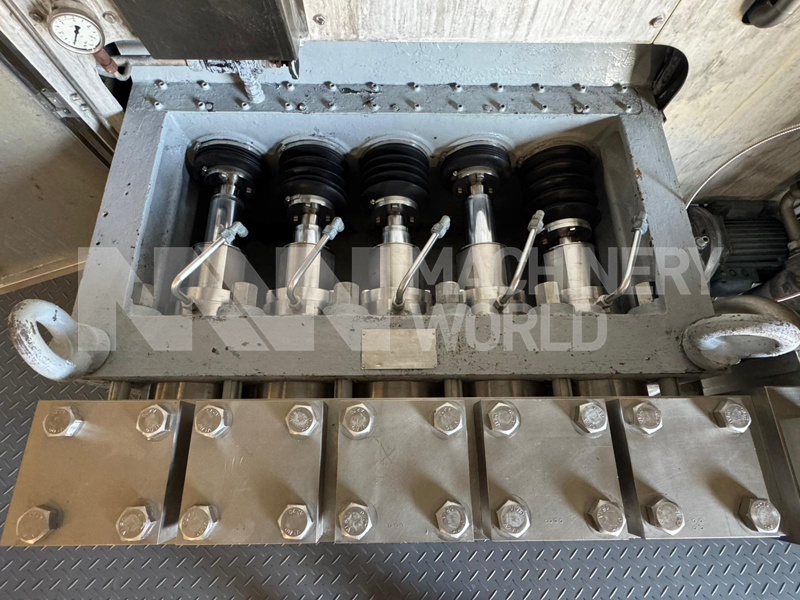

- Number of Pistons: 5-Pistons
- Piston Diameter: 70mm
- Piston Material: Chromium Plated Pistons
- Homogenising Value Design: Mushroom

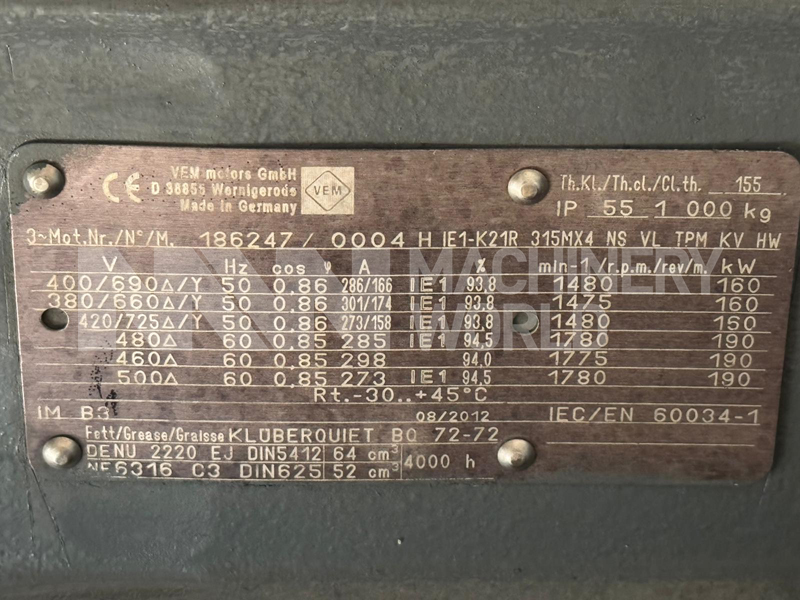

- Motor Power: 160kw, 380V, 3-Ph & 50H
- Finish: Stainless Steel Shroud
- Not Included: Control Panel & Frequency Inverter
Dimensions
- Length: 2090mm
- Width: 1942mm
- Height: 2035mm
Country of Manufacture
Sweden
