Description

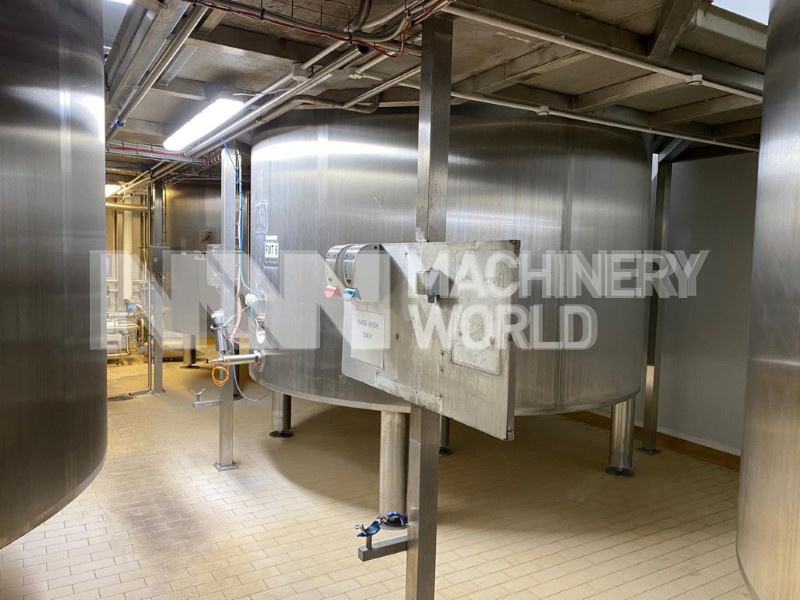

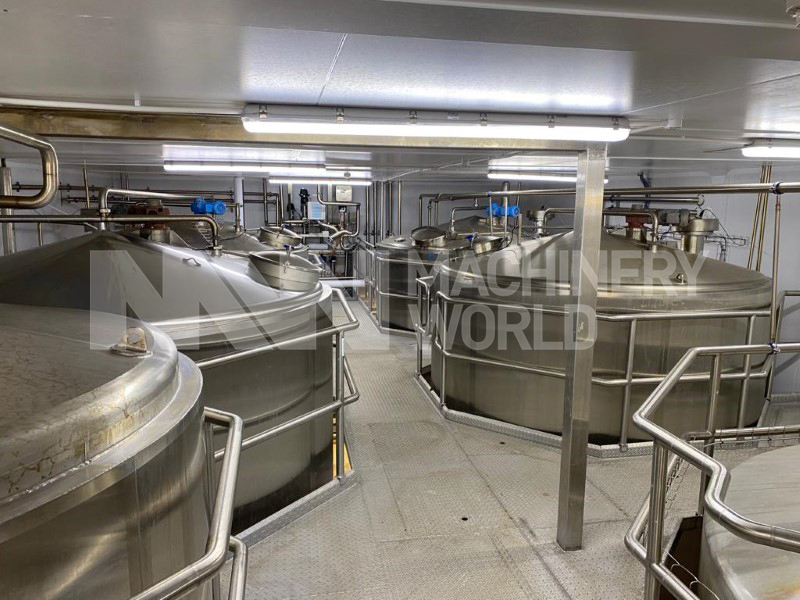

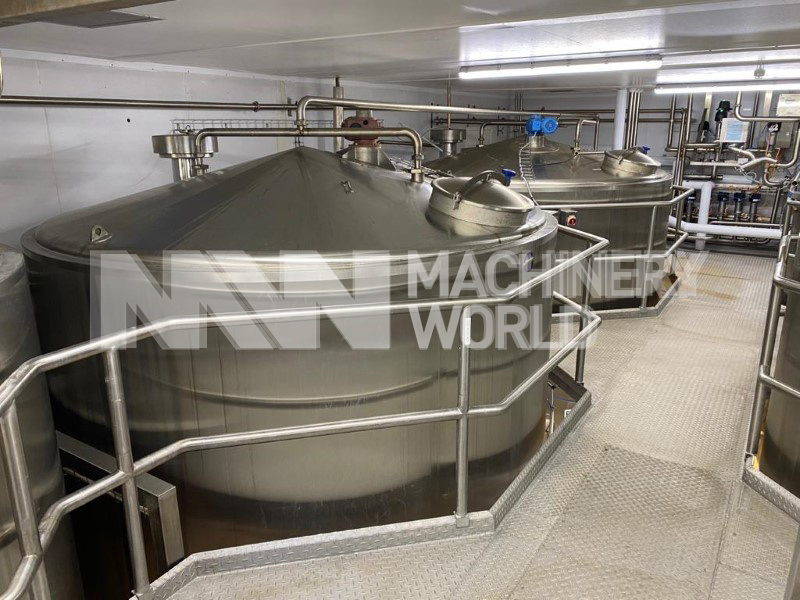

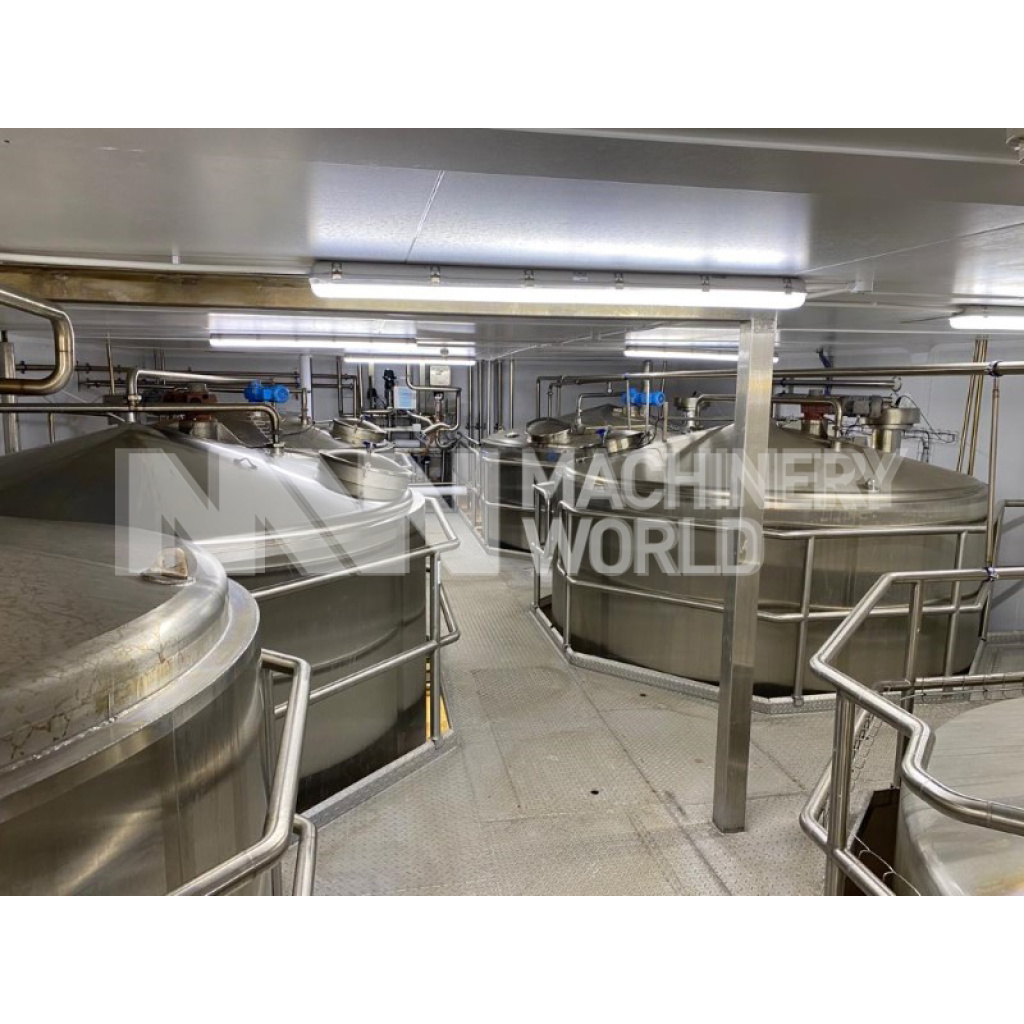

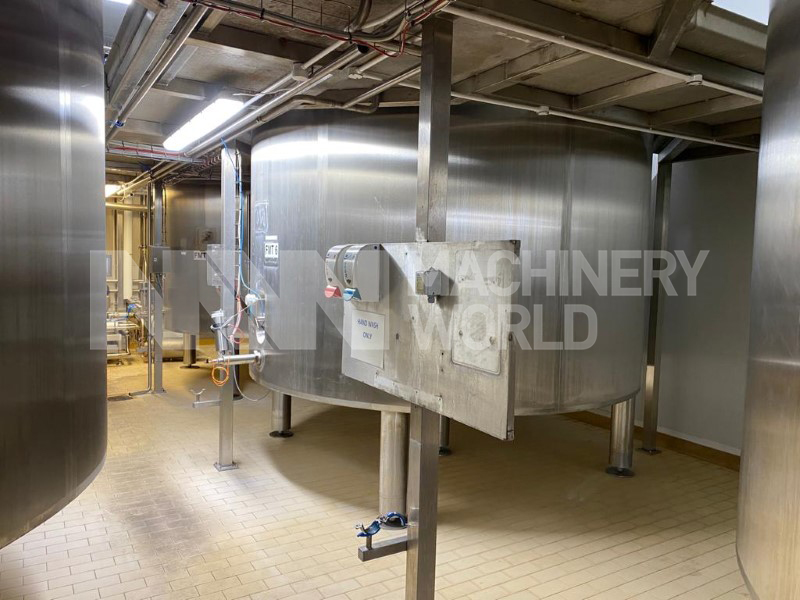

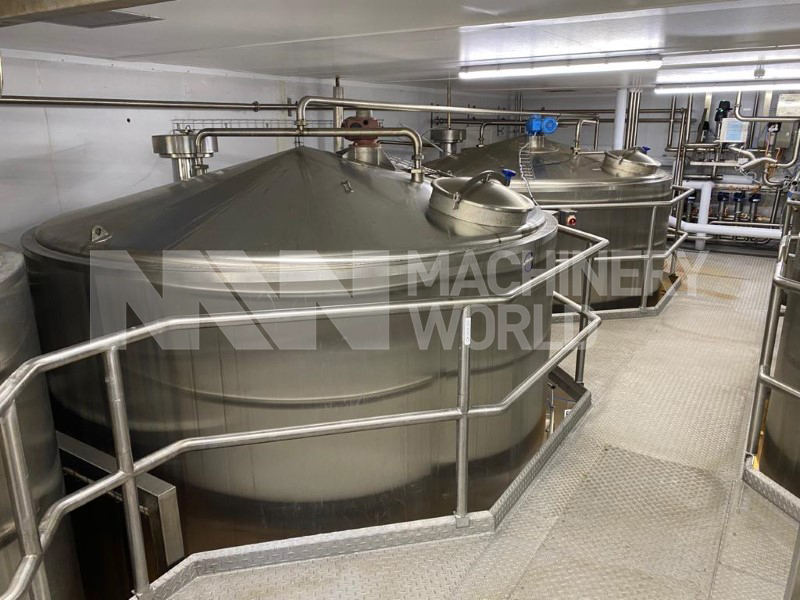

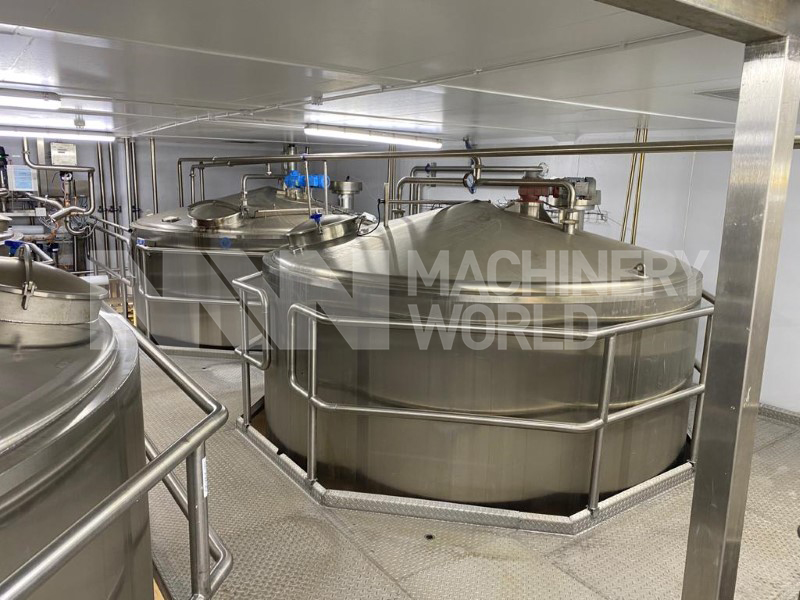

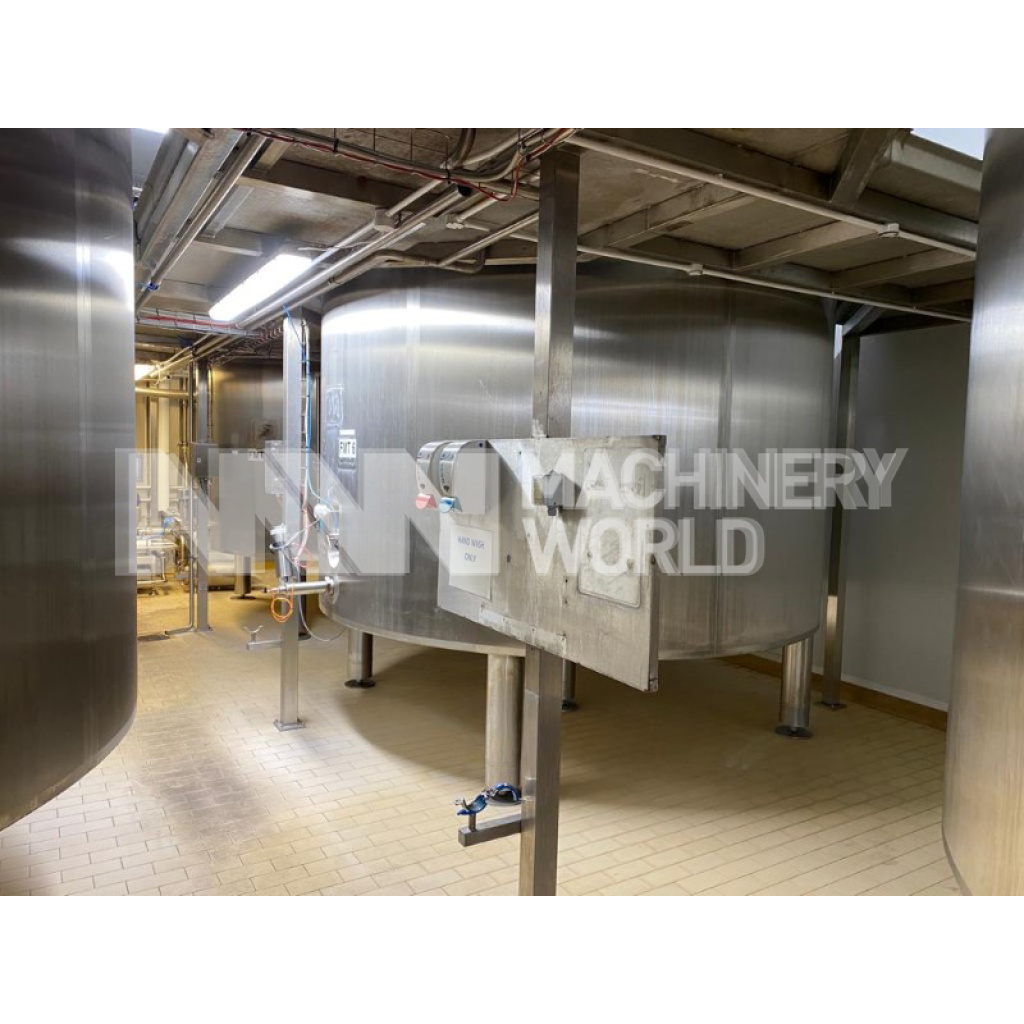

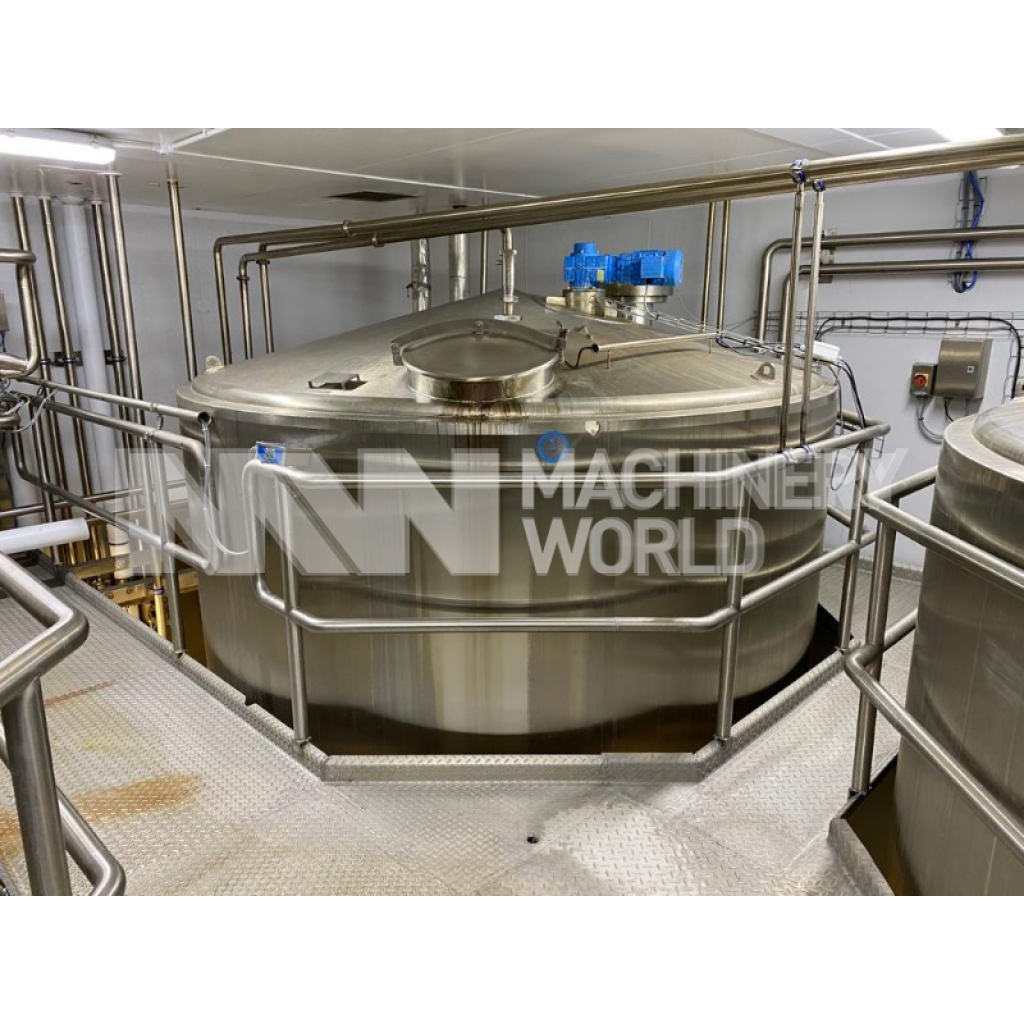

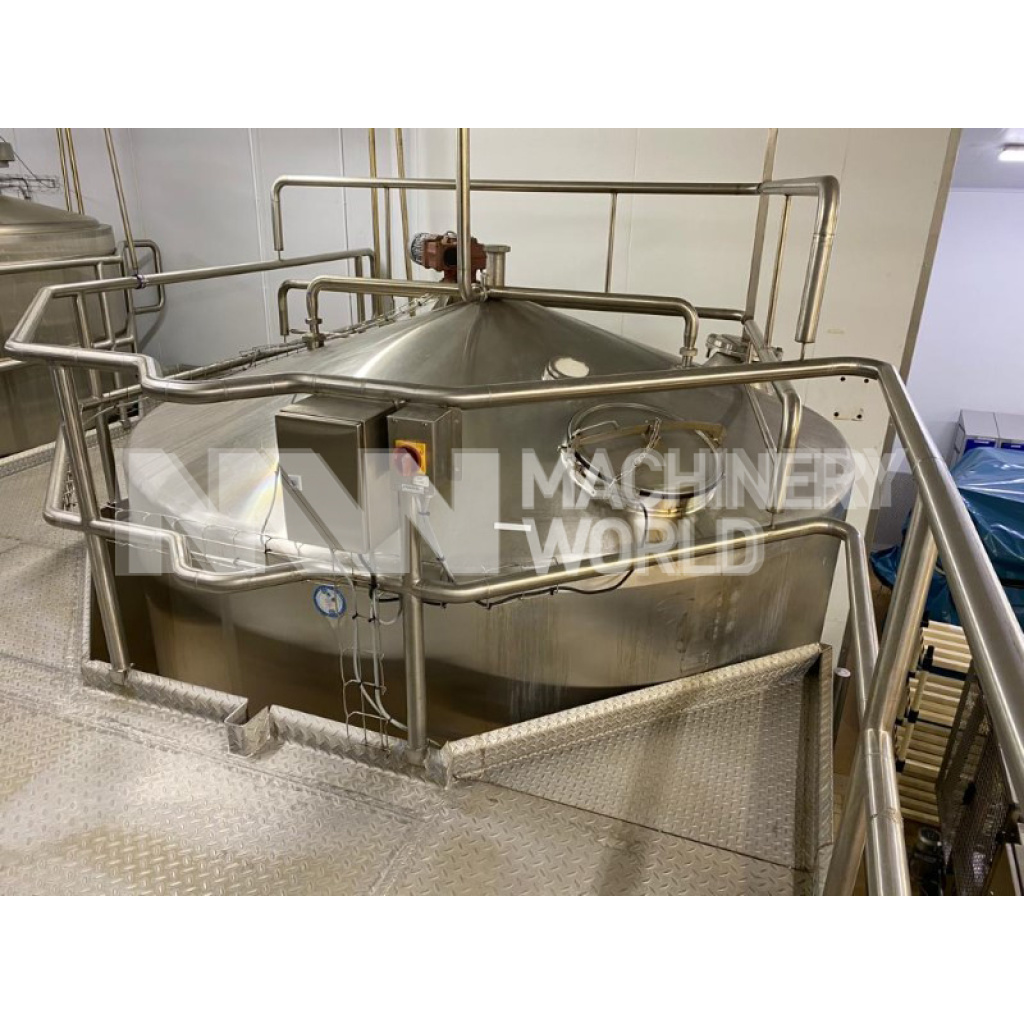

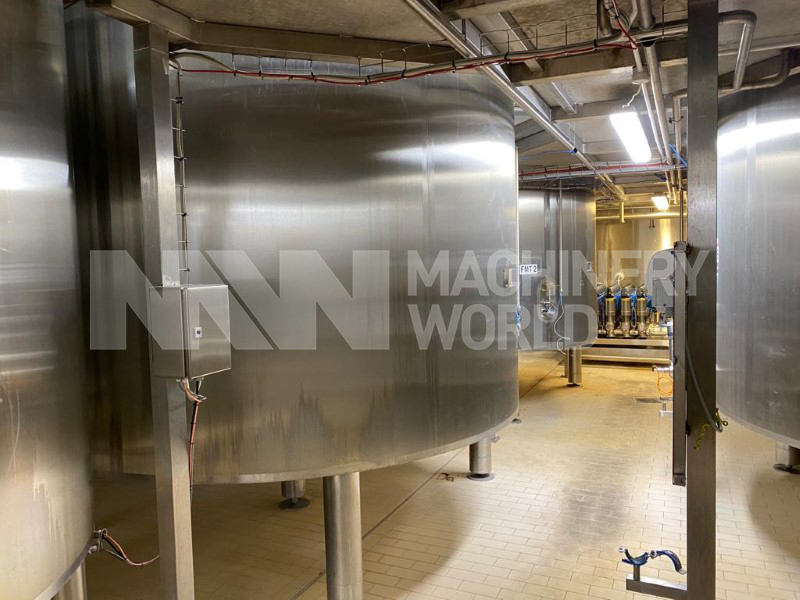

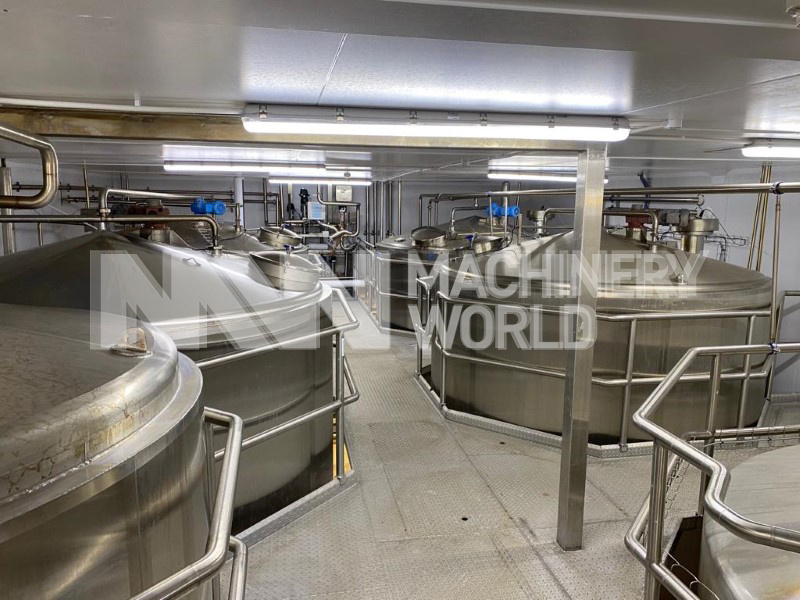

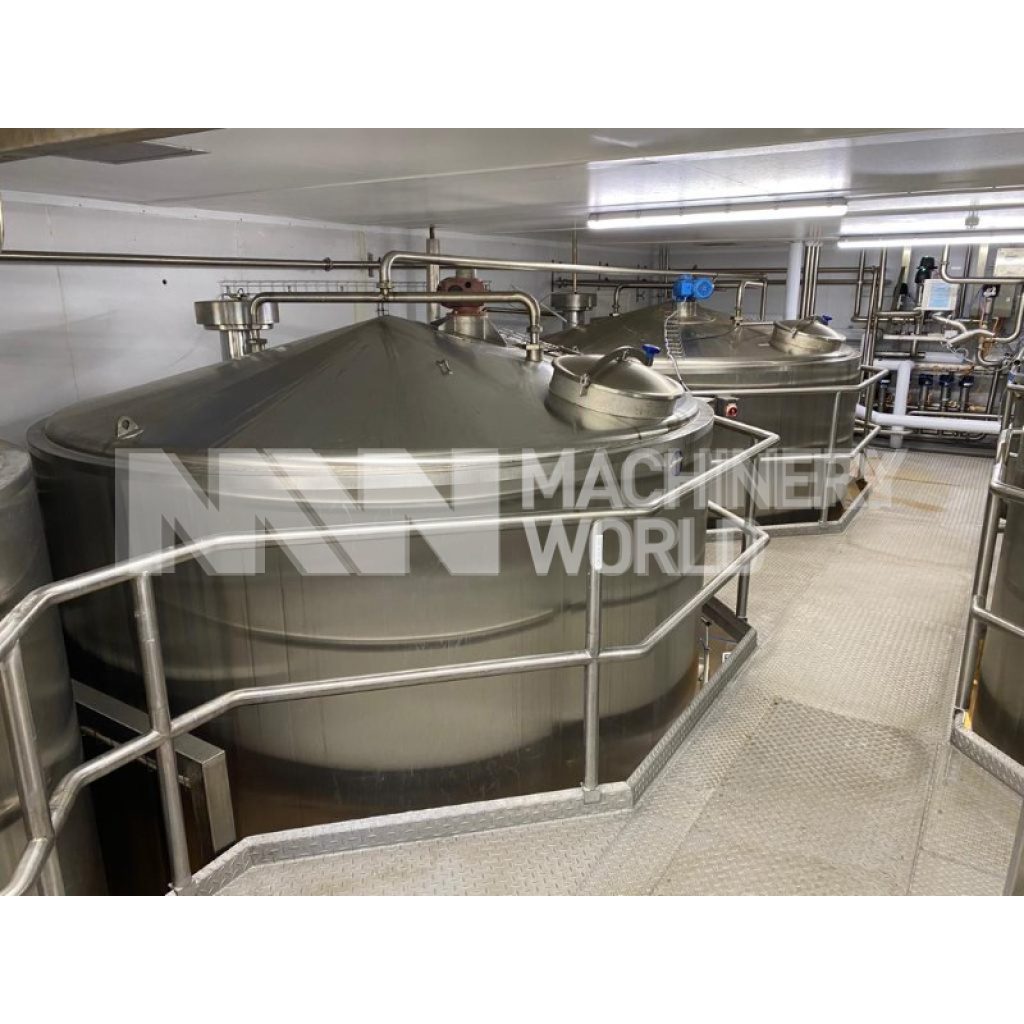

A set of Used 17,000 Litre Stainless Steel Jacketed and Insulated Tanks with Top Mounted Paddle Mixers, manufactured by Tetra Pak in the United Kingdom. These 17,000 Ltr Tetra Pak Jacketed Tank with Paddle Mixer were previously used as Finished Milk Tanks at a major dairy in the UK and available for immediate sale.
Features
- Manufacturer: Tetra Pak
- Function: Jacketed & Insulated storage tank
- Capacity: 17,000 Litres
- Year of manufacture: 2006
- Serial numbers: DFB-4762
- Construction: 304 Grade Stainless Steel

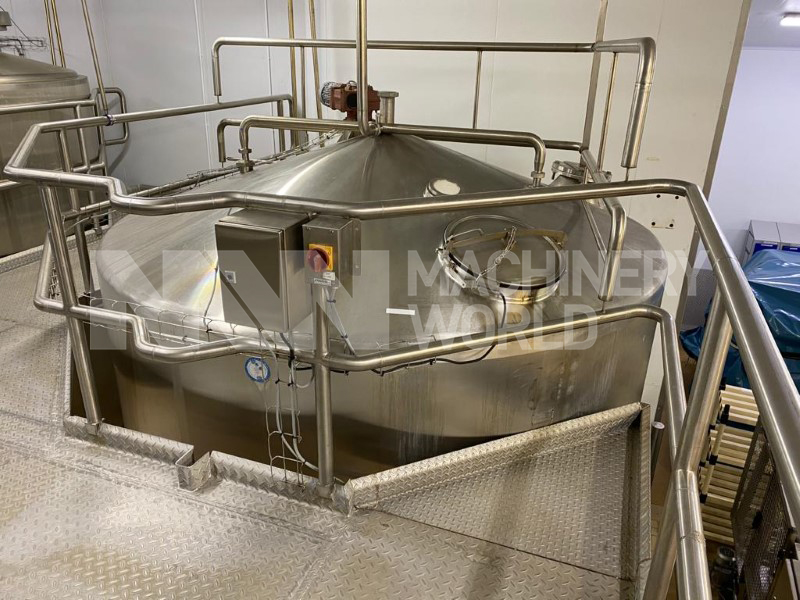

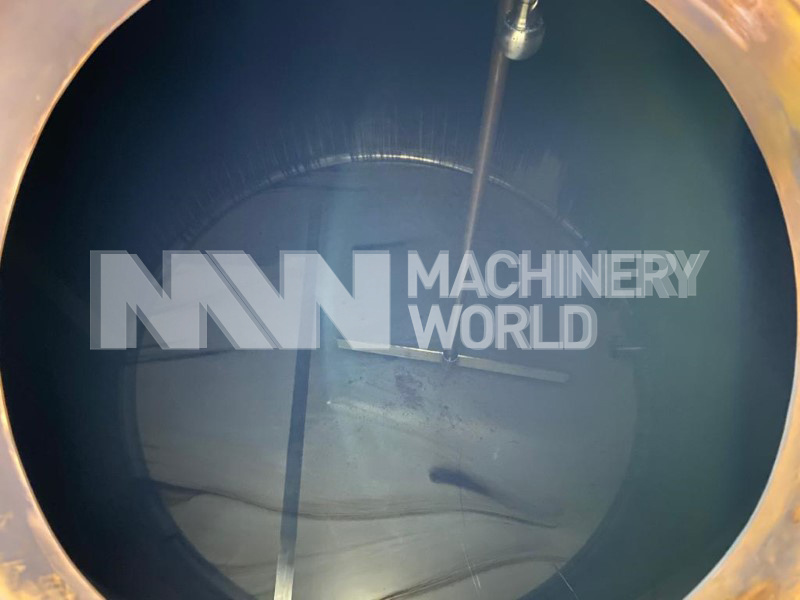

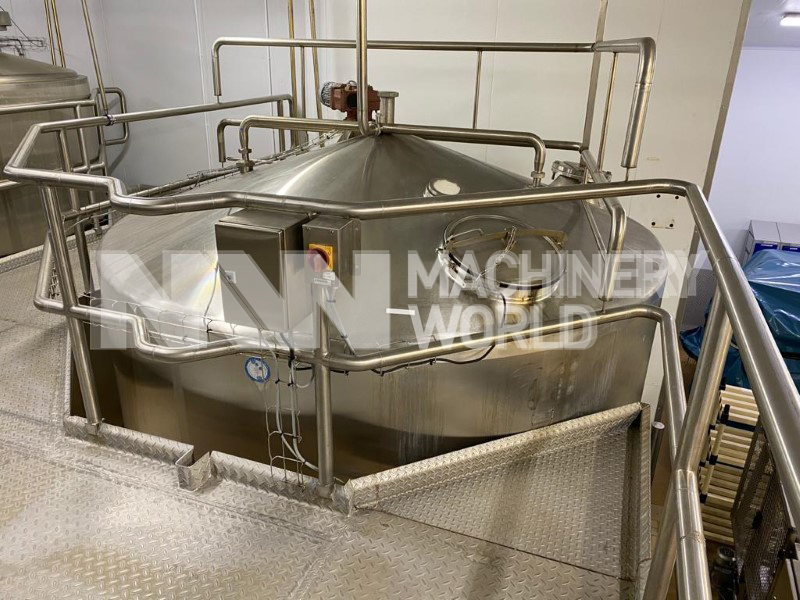

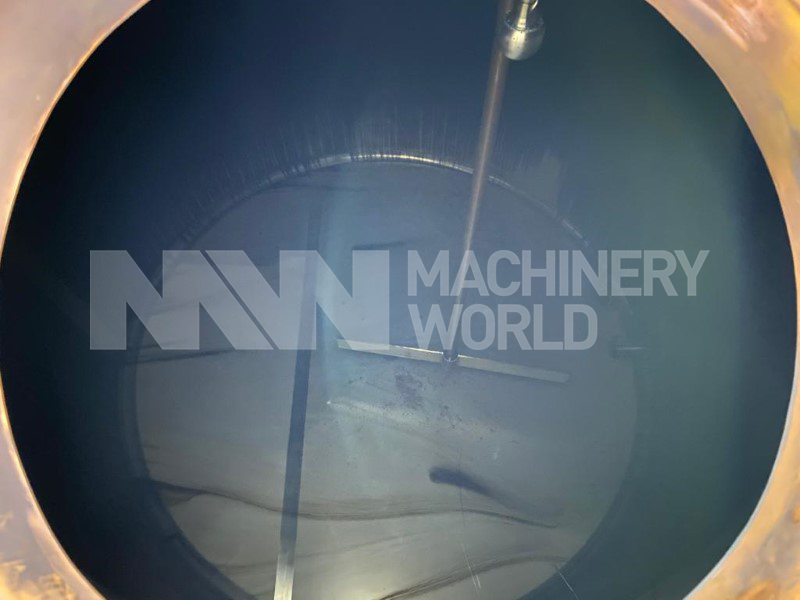

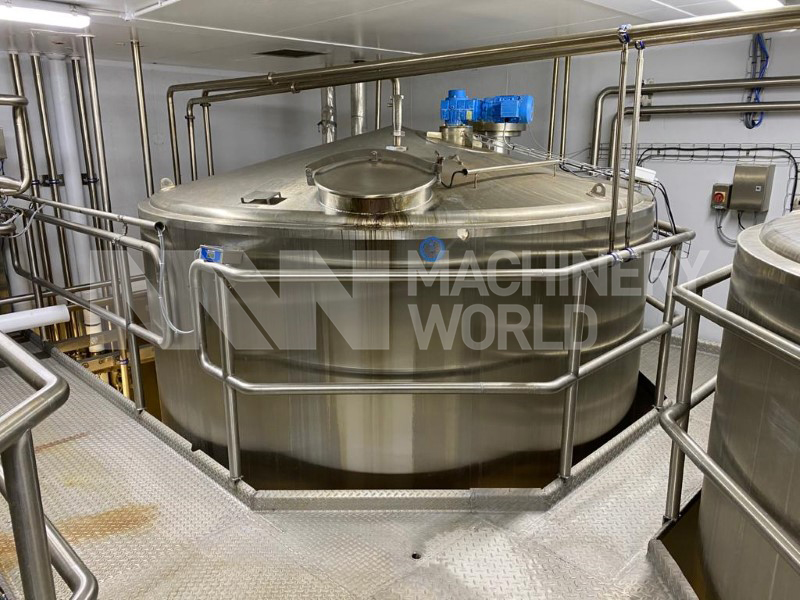

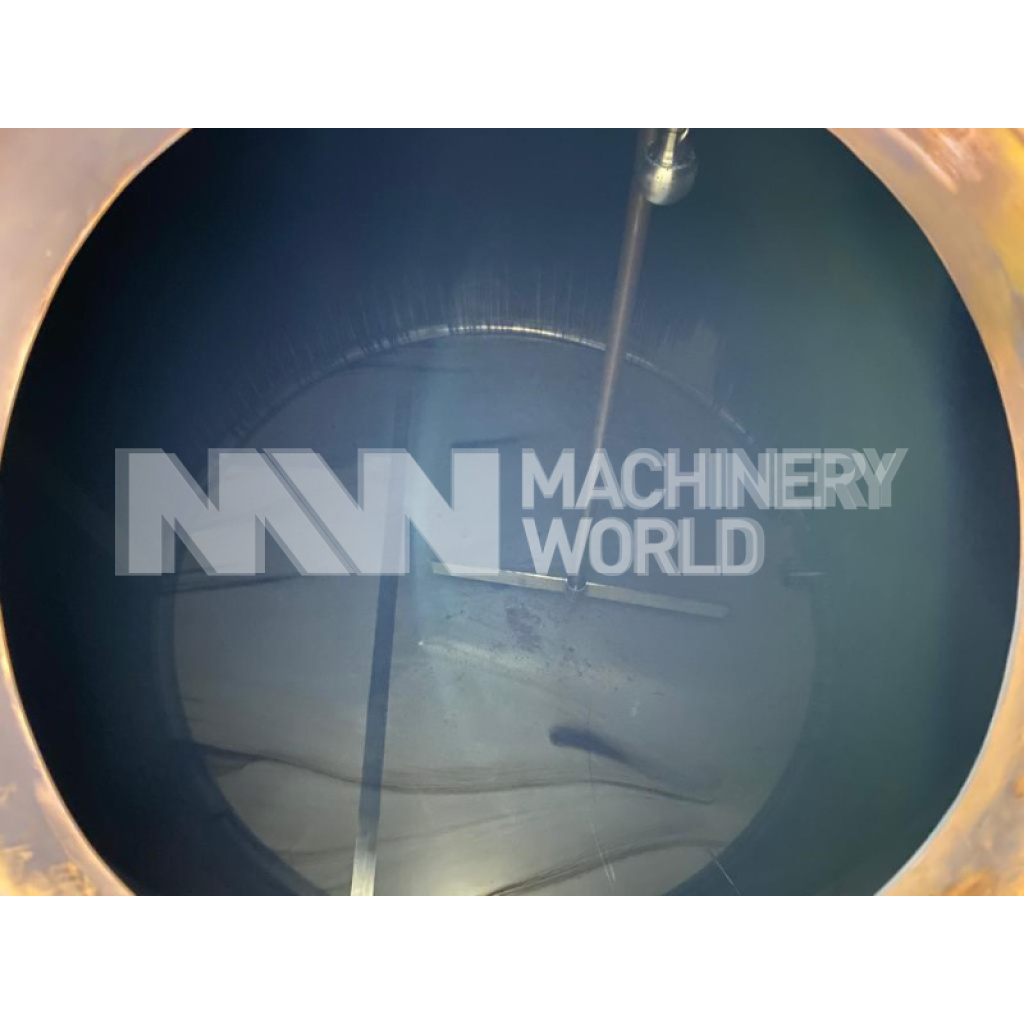

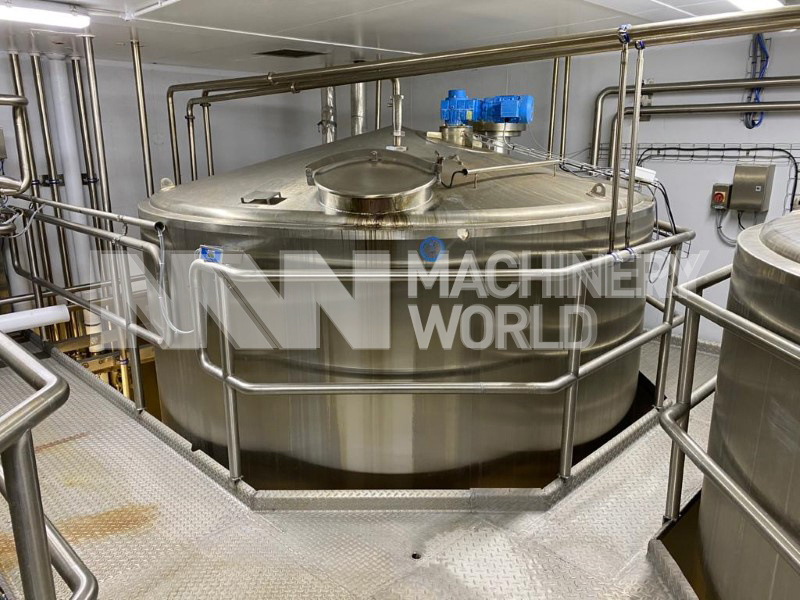

- Mixer: Top Mounted Paddle Mixer
- Orientation: Vertical
- Base: Inclined Base (Sloping towards Outlet – Self Draining)
- Working Temperature: 90 deg C
- Vessel Design Pressure: Atmospheric
- Jacket Working Pressure: 2.5 Bar
- Jacket Test Pressure: 4,5 Bar

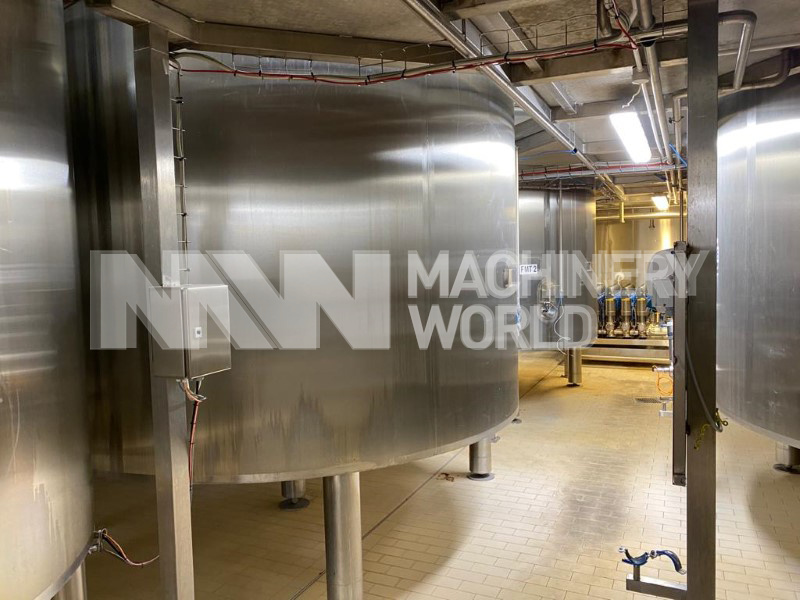

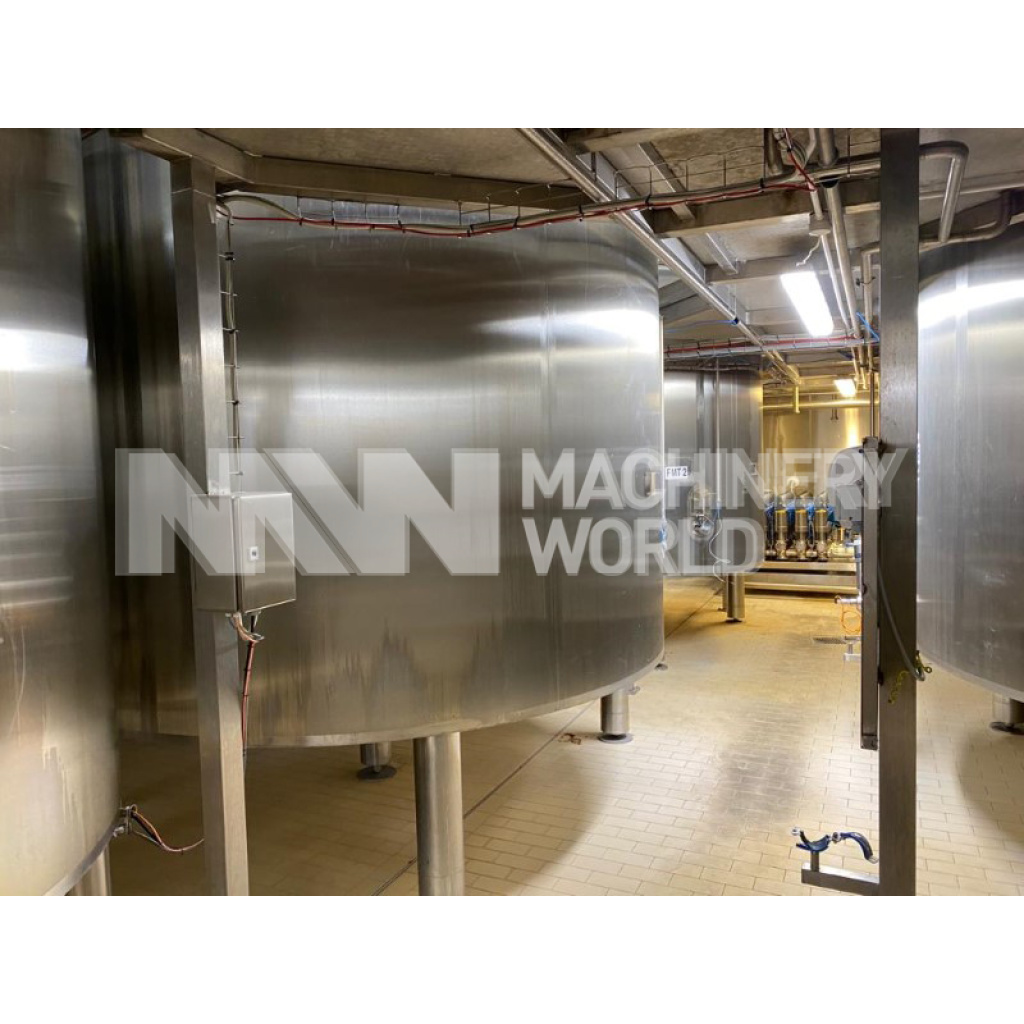

- Supports: 4x Tubular Legs
- Outlet: 2.5 inch
- Man access: Top Manway with Standard Lid
- Vent: Top Mounted Standard Breather Vent
- Electrics: 380V / 50 Hz / 3 Phase
- See ‘Technical Drawing’ attached for further details
Dimensions
- Diameter: 3035mm
- Height: Approx 4100mm
- Weight: Approx 2,280kg
Country of Manufacture
United Kingdom
Download Technical Doc
