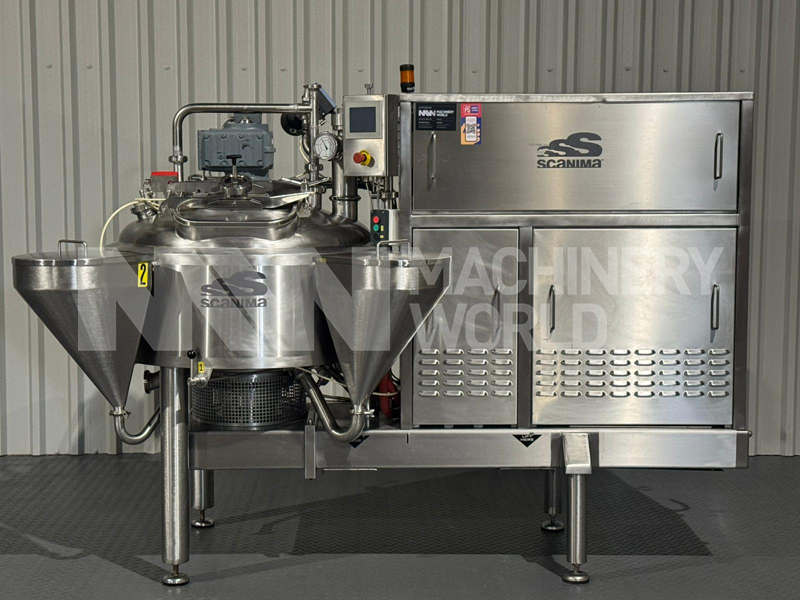

200 Ltr Scanima SRB200 Jacketed Vacuum Rated Universal High Shear Mixer with Direct Steam Injection

Description

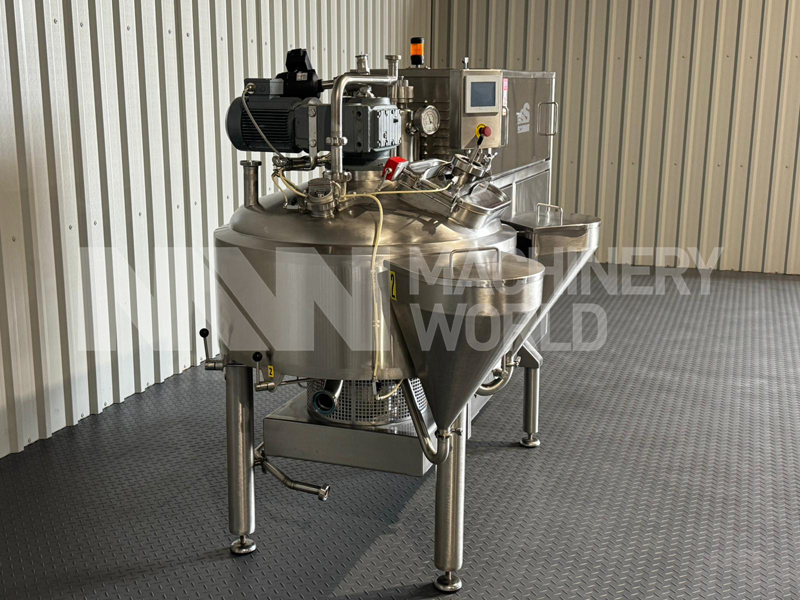

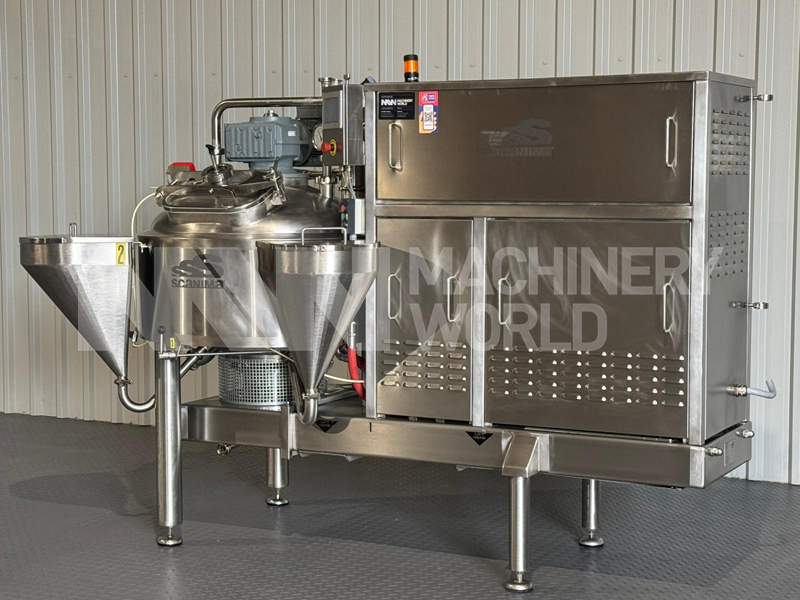

This is a pre-owned Scanima SRB200 Jacketed & Vacuum Rated Universal High Shear Mixer equipped with Direct Steam Injection for rapid heating and precise temperature control during processing under vacuum condition. The unit has a gross capacity of 330 litres, with an internal working volume of approximately 200 litres. It features a bottom-mounted High Shear Turbo Mixer fitted with a disintegration high shear head, and a top-mounted scraped surface mixer for effective mixing, emulsifying, and product scraping during heating or cooling cycles. The vessel is jacketed for thermal regulation and is vacuum capable, supplied with an integrated vacuum pump. This enables processing under vacuum conditions for cooking, concentration, or de-aeration, enhancing product texture and quality. The Direct Steam Injection system allows steam to be introduced directly into the product for faster heating and reduced processing times. Currently held in stock and available for immediate sale, this Scanima SRB200 offers versatility for a wide range of food, dairy, confectionery, and other process applications. For an overview of the general working principle of a Scanima Mixer, please click “Download Technical Doc” below. Please note that certain features of the actual SRB200 offered here may differ slightly from those shown in the generic technical document.

Specification

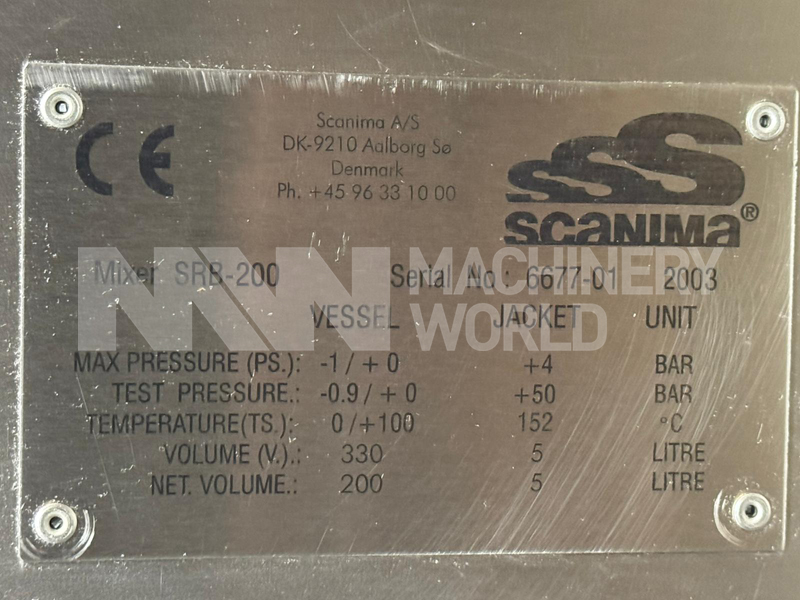

• Make: Scanima A/S, Denmark
• Type: SRB 200
• Model: Jacketed High Shear Vacuum Capable Universal Mixer
• Serial Number: 6677-01
• Year of Manufacture: 2003
• Nett Working Volume: Approx 200 Ltr (Varies depending on product & process)
• Gross Volume of Tank: 330 Ltr
• Jacket: Yes, External Re-circulation Jacket for Hot Water or Steam
• Jacket Working Pressure: 4 Bar

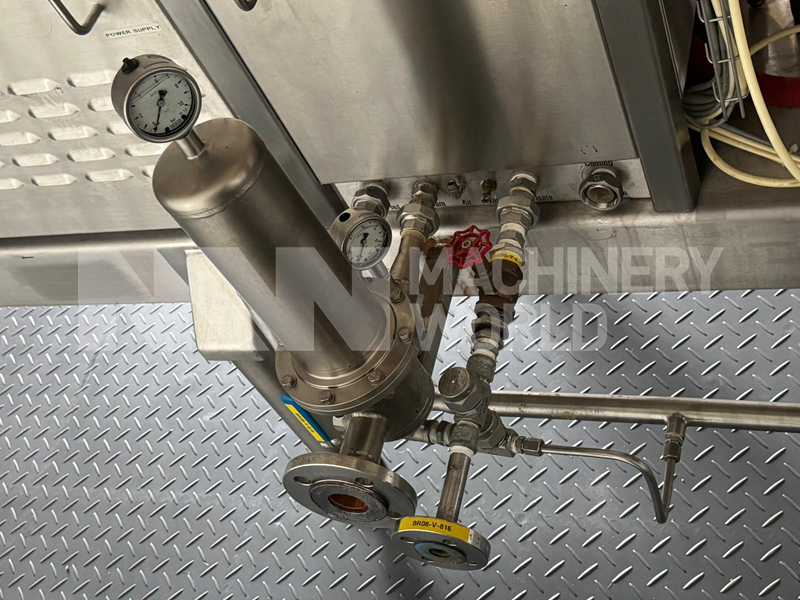

• Direct Steam Injection: Yes, comes installed with Direct Steam Injection Nozzle
• Vessel Internal Pressure: -1/0 (Vacuum Capable)
• Vessel Working Temperature: 0 to +100 deg C
• Jacket Working Temperature: 152 deg C
• Mixers:

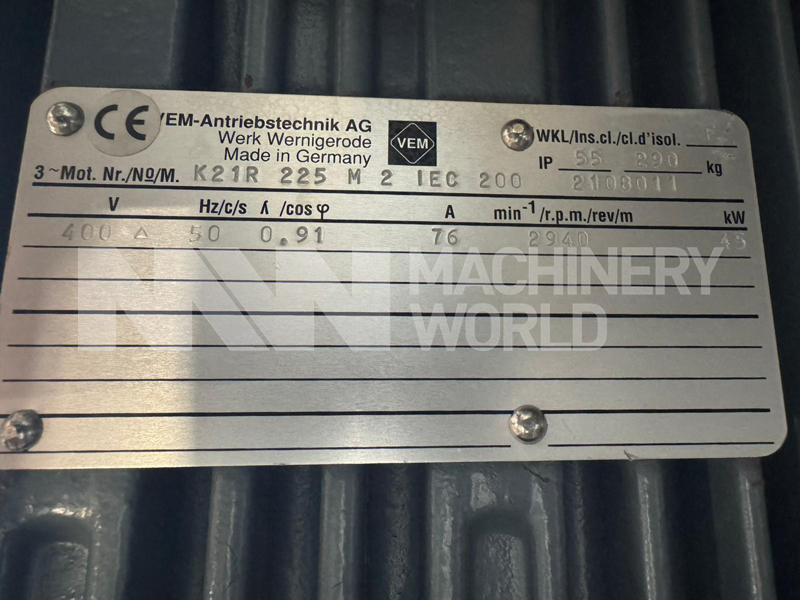

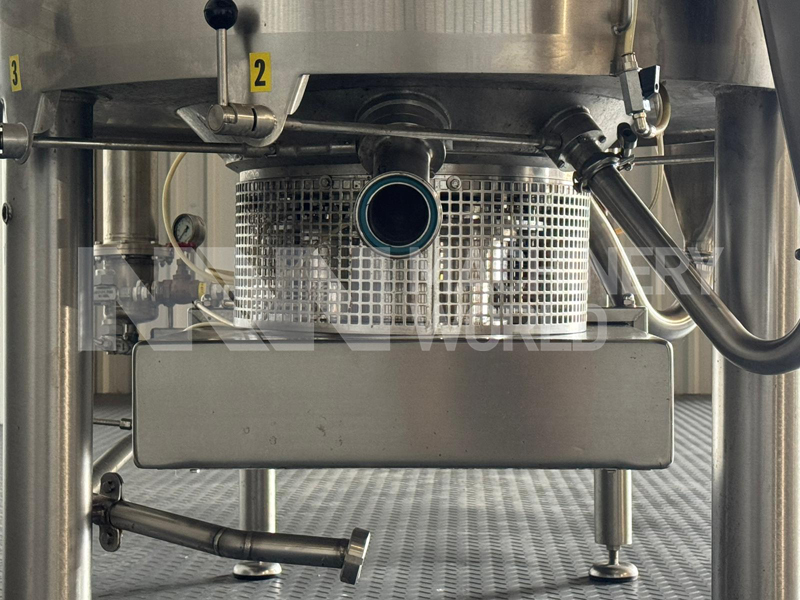

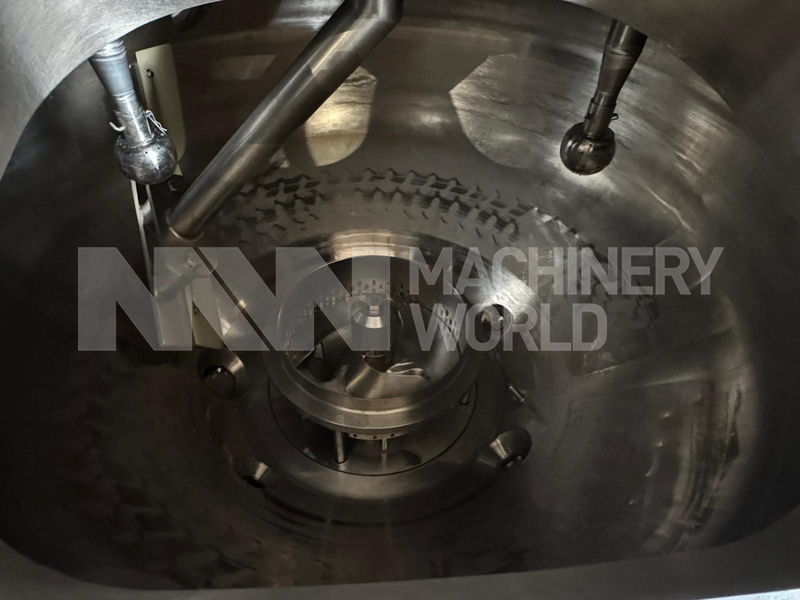

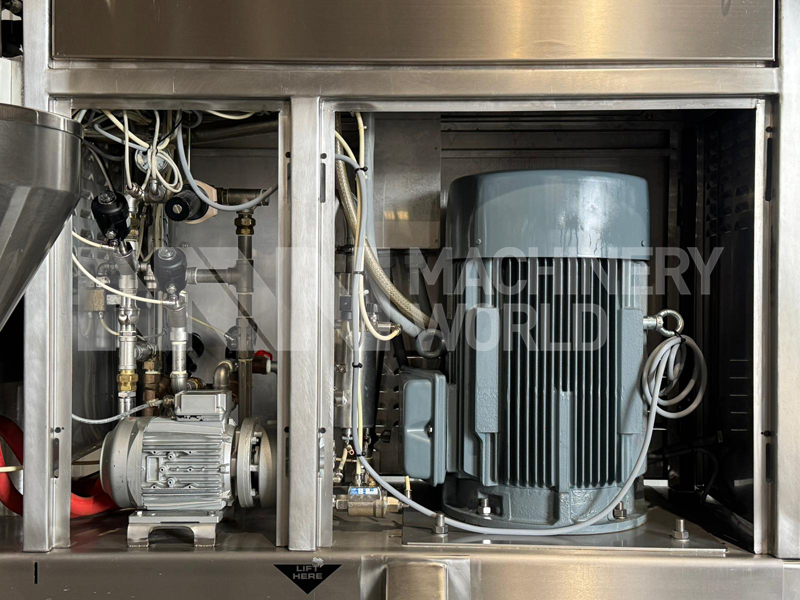

  Bottom Entry Turbo High Shear Mixer – 2940 RPM 45kw/3-ph Motor

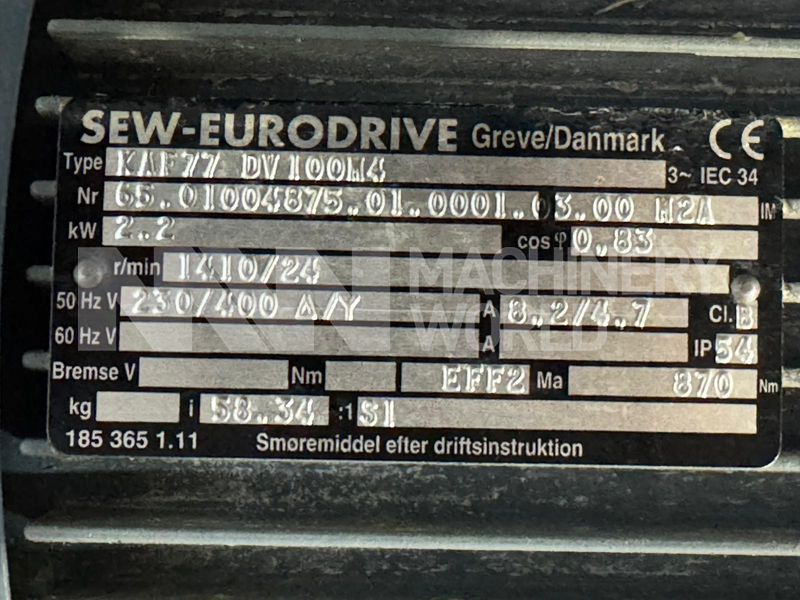

  Top Entry Scraped Surface Mixer (24 RPM) – 2.2kw/3-ph  Motor

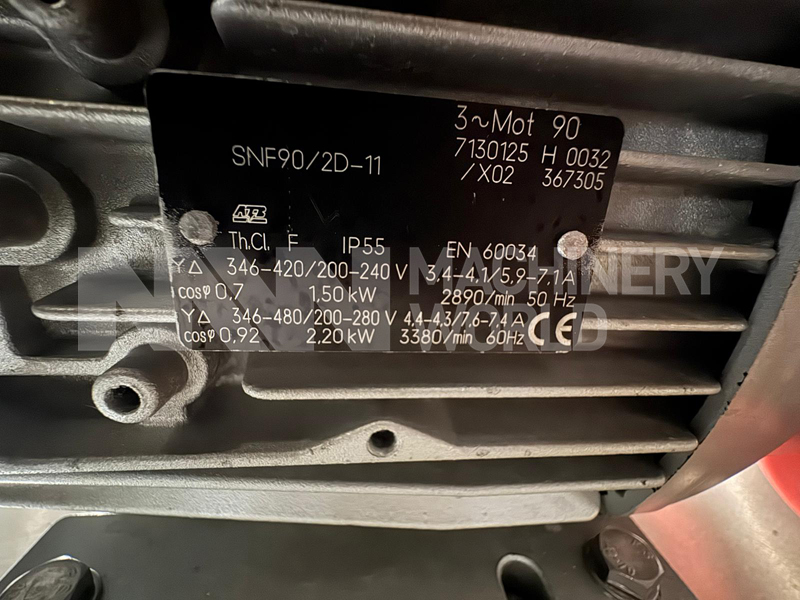

• Vacuum: Comes with Integrated Vacuum Pump – 1.5kw/3-ph Motor

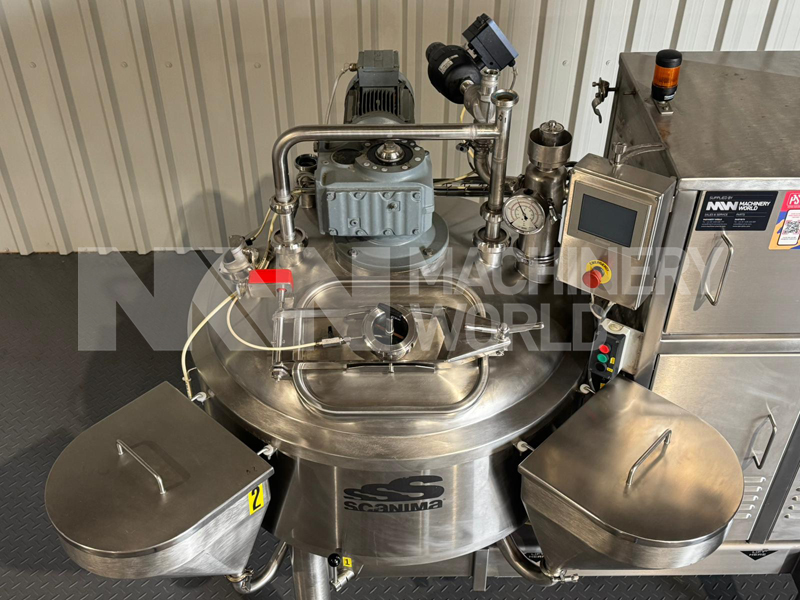

• Rectangular Manway with Secure Lid and Sight Glass.
• Come with Side Mounted Dry & Wet Ingredient Feed Hooper(s) with Lid
• Cleaning: Comes with top mounted CIP Spray Head

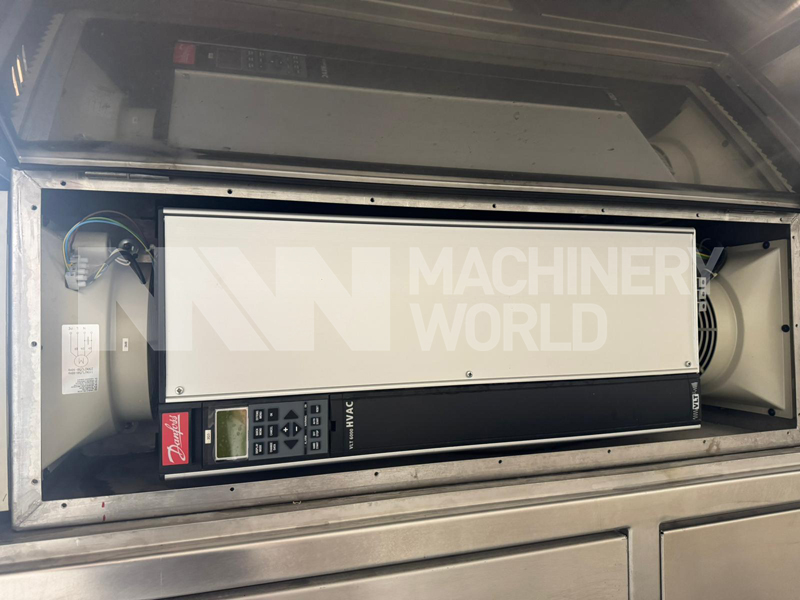

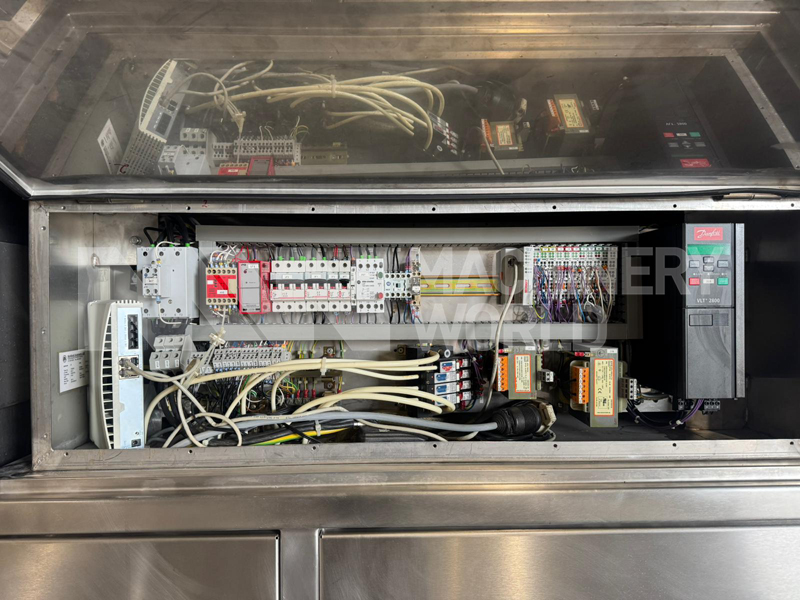

• Controls: Fully Integrated Control Panel, PLC, HMI and Frequency Controlled Inverter

Dimensions

• Length: 2700mm
• Width: 1320mm
• Height: 1930mm

Country of Manufacture

Denmark
