Description

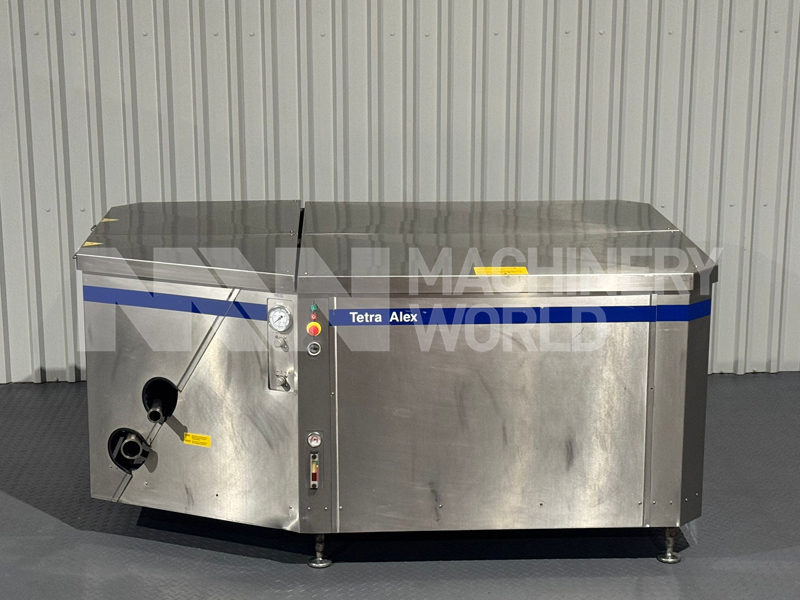

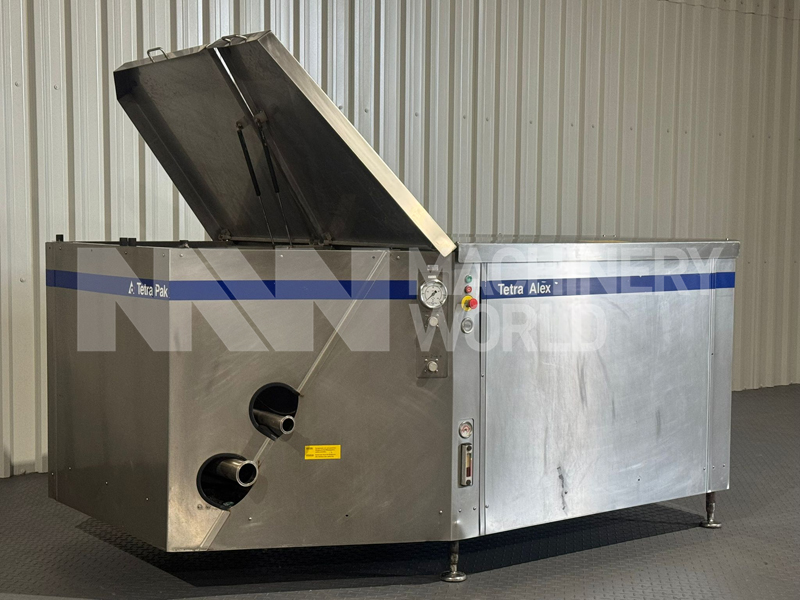

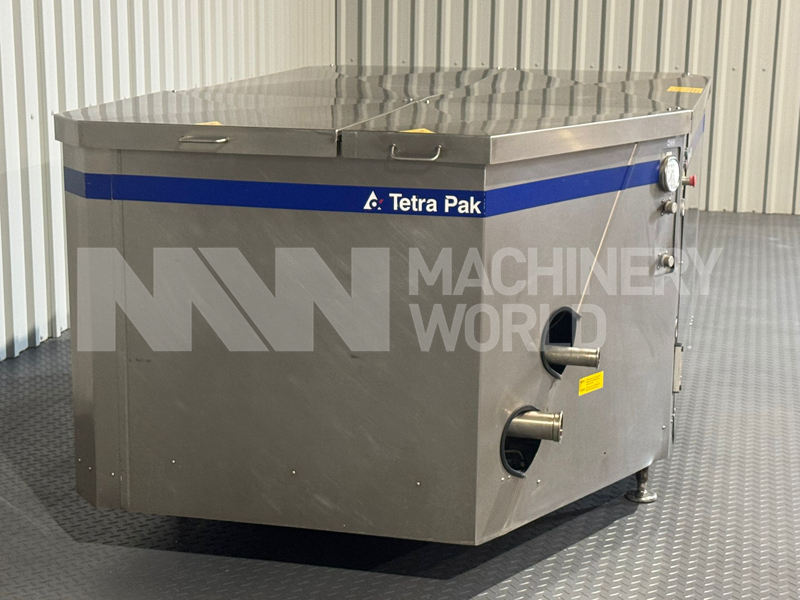

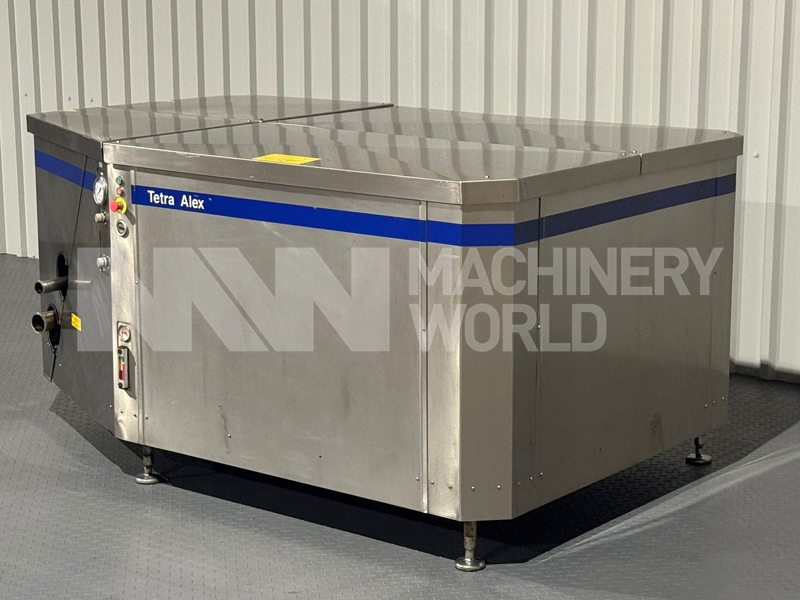

A Used Tetra Pak Alex 30 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.
This used Tetra Pak Tetra Alex 30 Homogeniser has a capacity of approx 3,000 – 8,000 LPH at a maximum working pressure of 250 Bar (3625 PSI) and currently available for immediate sale.
Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.
Features
- Manufacturer: Tetra Pak
- Model: Alex 30
- Function: Homogeniser
- Serial Number: 5856838087
- Working capacity: Approx 3,000 – 8,000 litres/per hour
- Year of manufacture: 2008
- Max. working pressure: 250 bar (3625 PSI)

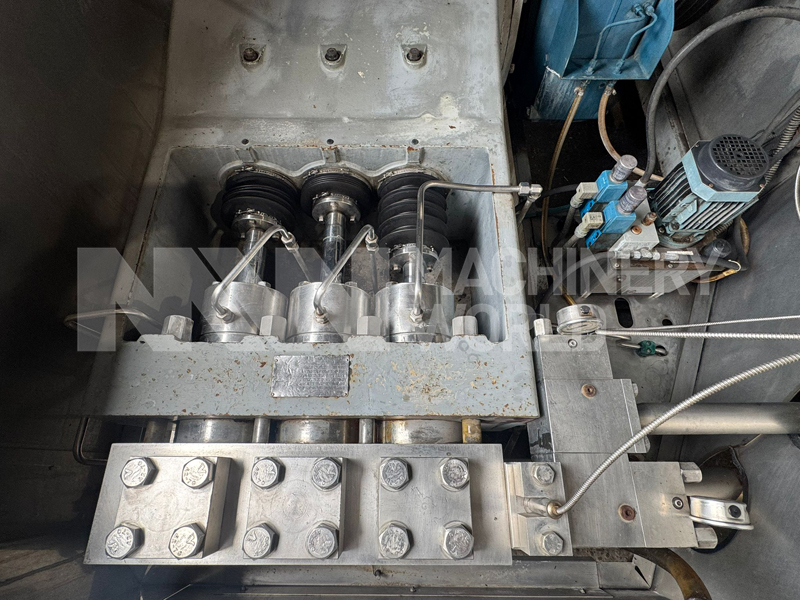

- Number of pistons: 3-Pistons
- Value design: Mushroom
- Piston diameter: 50mm
- Piston design: Chromium Plated
- Piston packing: Grooved

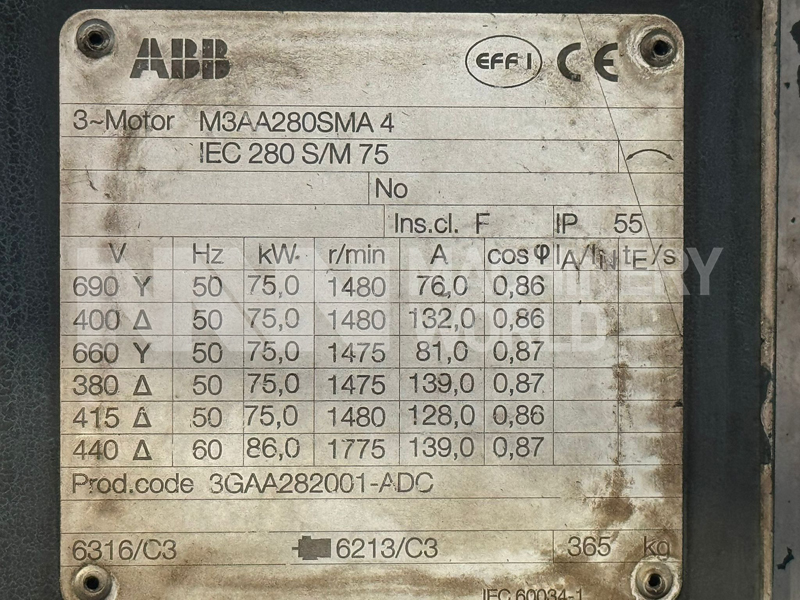

- Total installed power: 75 kW (1475 r/min)
- Number of stages: 2-Stage
- Electrics: 380V / 50 Hz / 3 Phase
- Documentation available
- Finish: Stainless steel covers
- Not included: Control panel
Dimensions
- Length: 267 cms
- Width: 170 cms
- Height: 110 cms
- Weight: 3230 kgs
Country of Manufacture
Sweden
Download Technical Doc
