400L Winkworth RT400 Double Jacketed Horizontal Ploughshare T-Arm Mixer (Year 2009)

IN STOCK AVAILABLE TODAY

SKU: 22305 Categories: , , ,
Description

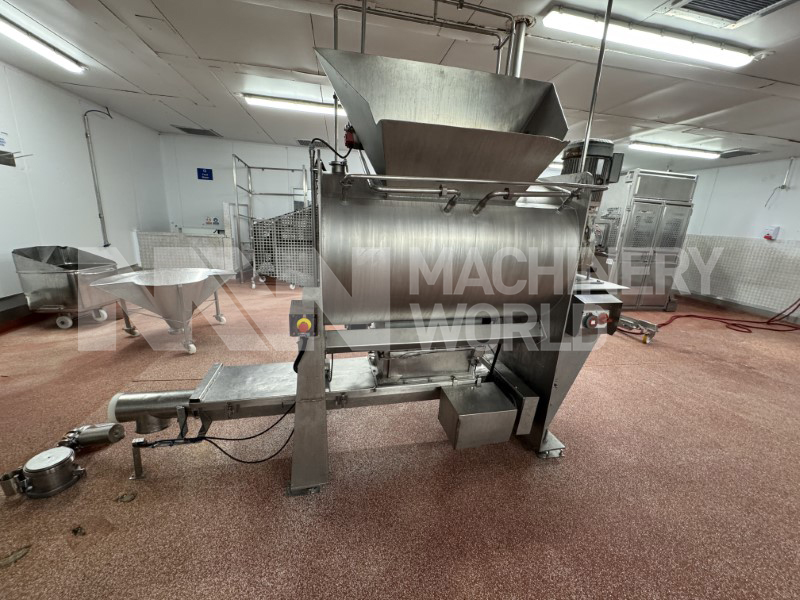

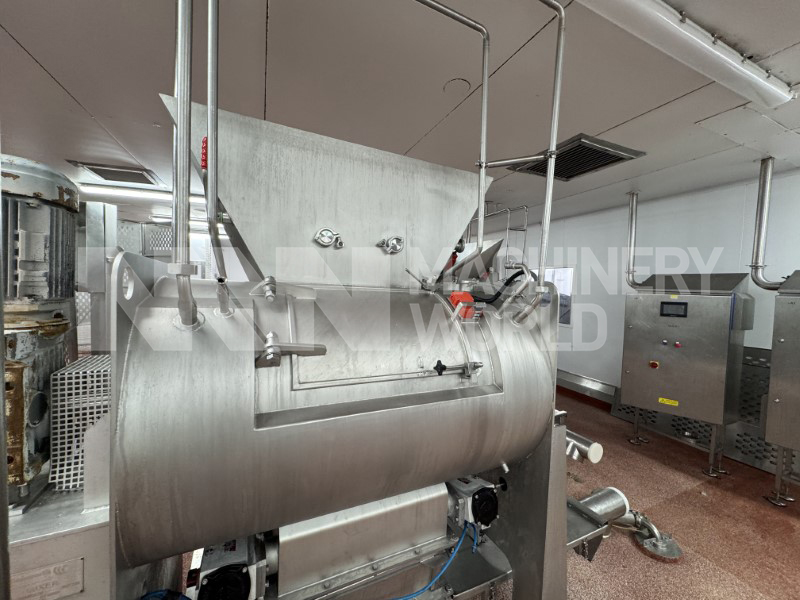

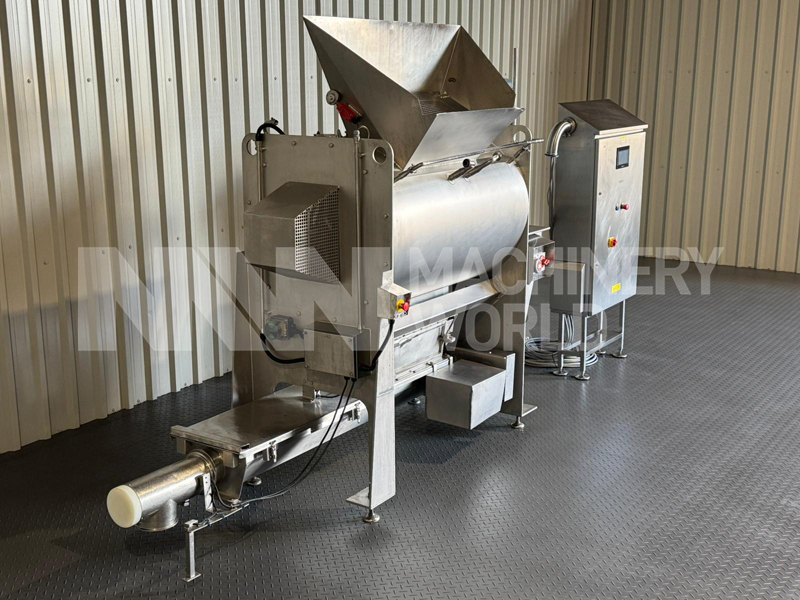

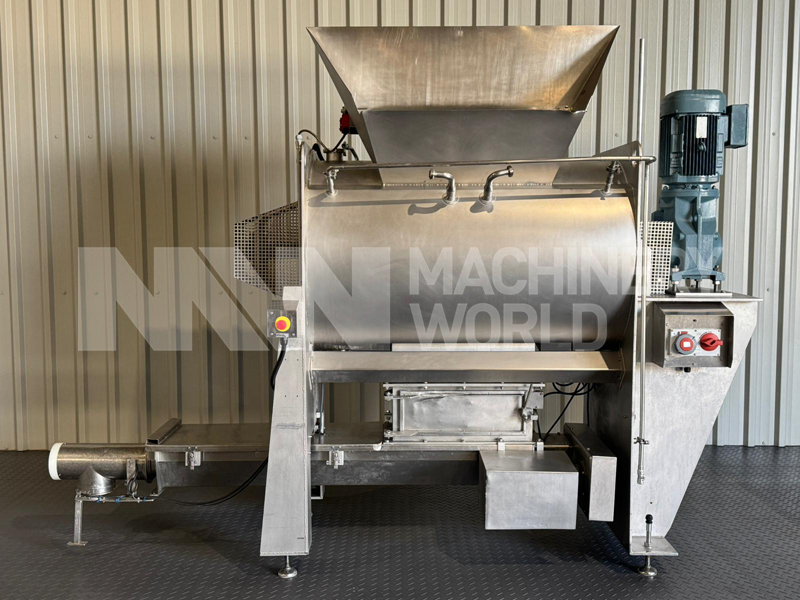

This is a used Winkworth RT400 Horizontal Ploughshare T-Arm Mixer. The Winkworth double-jacketed RT400 Ploughshare Mixer is a high-performance, precision-engineered mixing solution designed for demanding industrial applications. Featuring a double jacketed stainless-steel construction, it enables effective heating or cooling of the product during the mixing process, making it ideal for temperature-sensitive materials. Unlike standard models, this RT400 includes its own bottom discharge screw, ensuring efficient, controlled emptying of the batch. The mixer is equipped with a modern control panel that incorporates a frequency inverter for adjustable speed control, allowing operators to tailor the mixing intensity to specific process requirements. Central to its automation is a Siemens S7 PLC paired with an intuitive touchscreen HMI display, offering real-time monitoring, precise parameter adjustment, and recipe management for enhanced productivity and repeatability. This advanced setup delivers flexibility, consistency, and robust performance across a wide range of mixing applications.

Specification

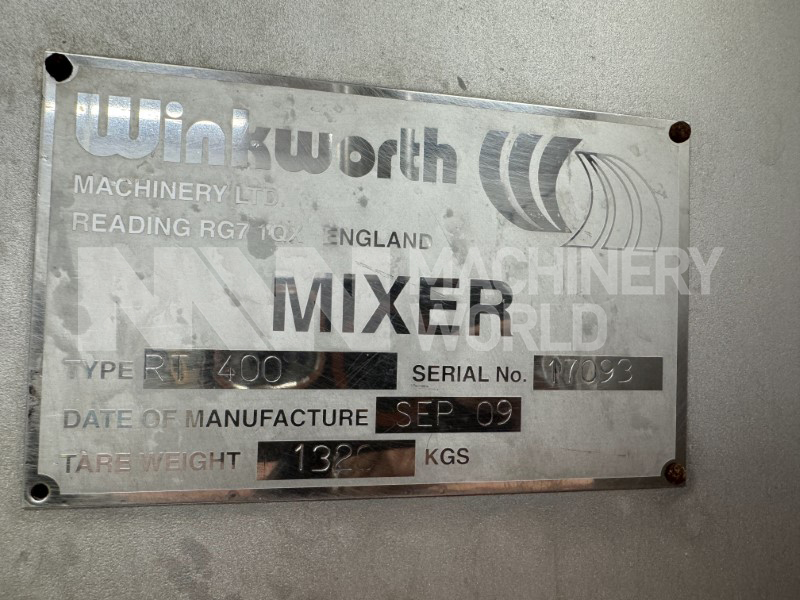

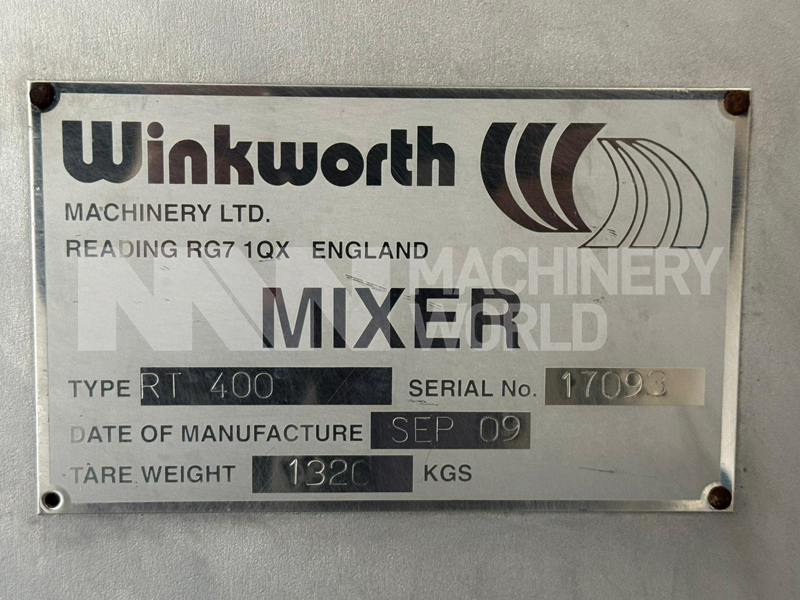

  • Make: Winkworth Machinery, England
  • Type: RT400
  • Function: Double Jacketed Horizontal Ploughshare T-Arm Mixer for Dry Ingredients
  • Serial No: 17093
  • Year of Manufacture: Sept 2009
  • Internal Volume: Approx 400L
  • Construction: Stainless Steel
  • Jacket: Yes, Double Jacketed for Heating (or) Cooling

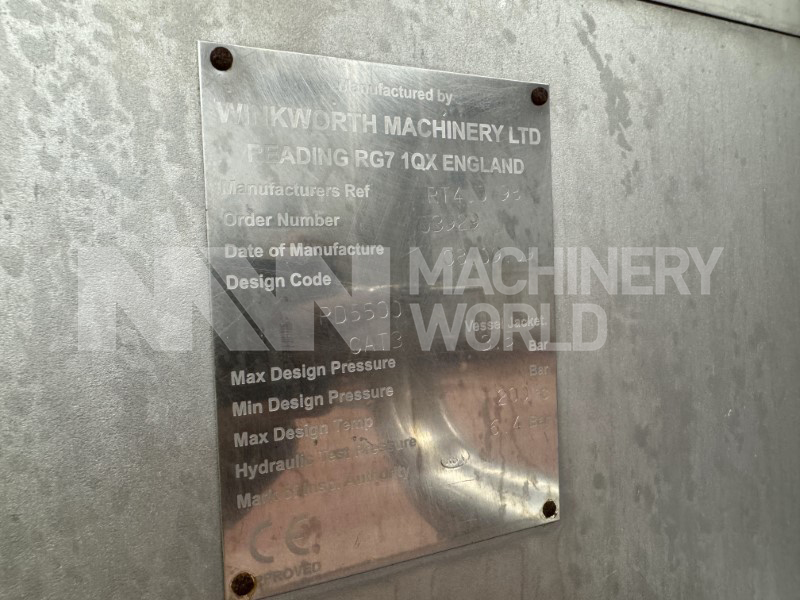

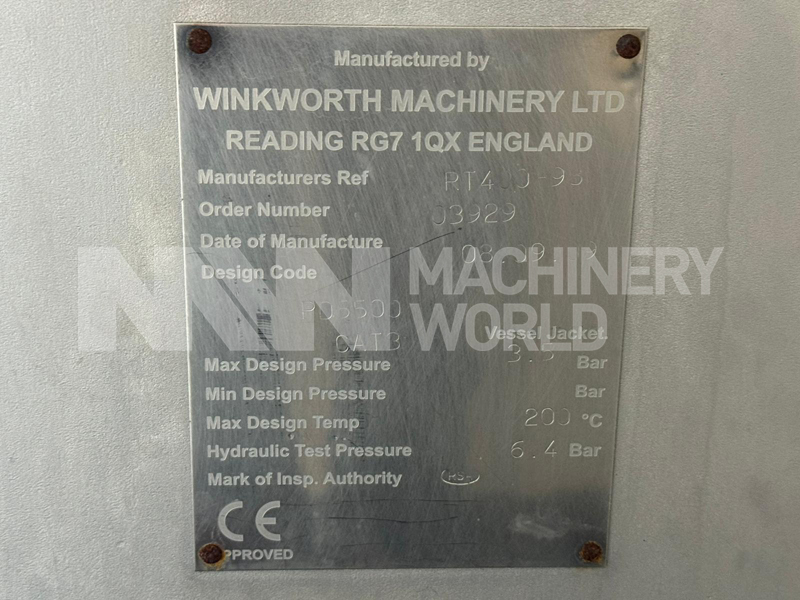

  • Jacket Design Pressure: 3.5 Bar
  • Jacket Hydraulic Test Pressure: 6.4 Bar
  • Design Temperature: 200 deg C

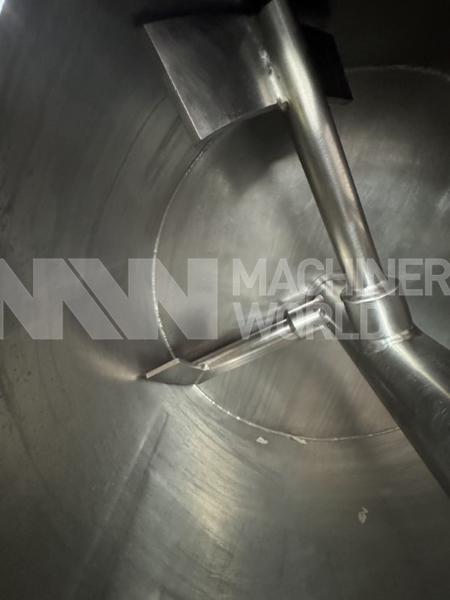

  • Mixer Type: Ploughshare T-Arm Mixer

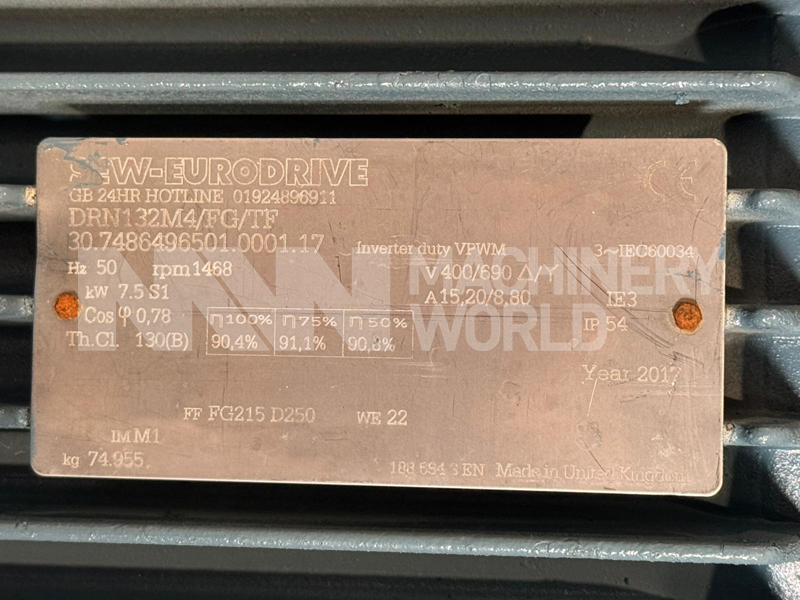

  • Mixer Motor Brand: SEW Eurodrive (Year 2017)
  • Mixer Motor: 7.5kw, 400/690V, 50Hz
  • Mixer Speed: Variable via Frequency Controlled Inverter

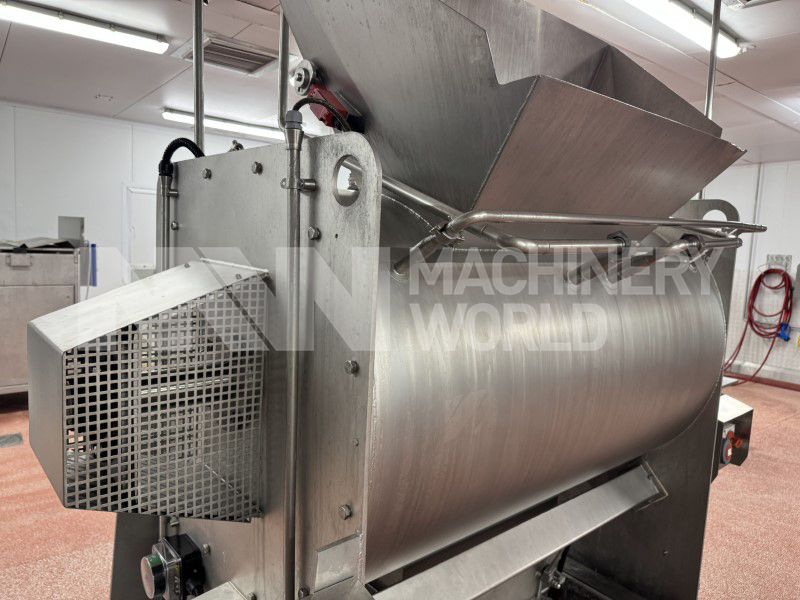

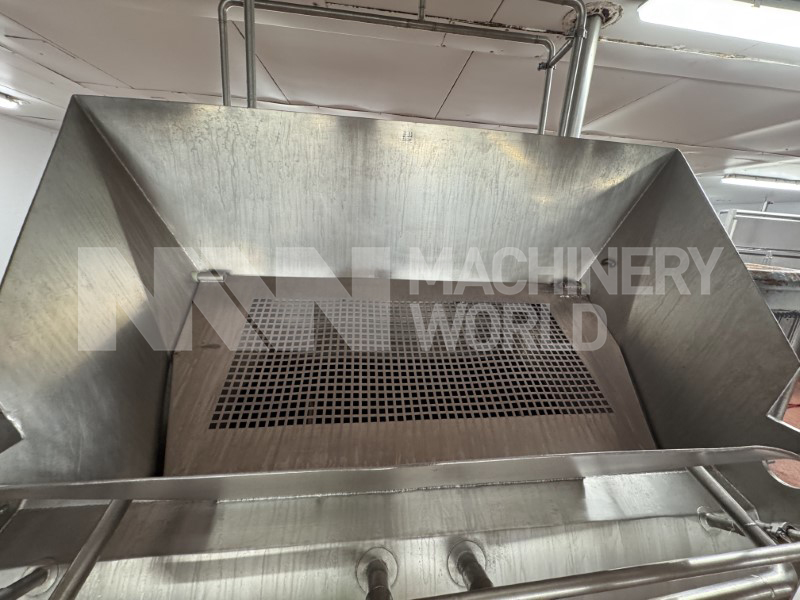

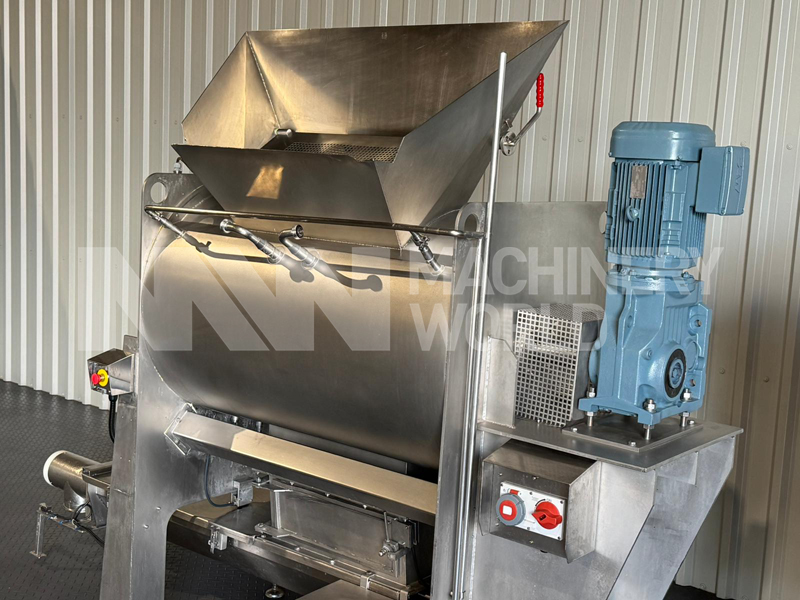

  • Raw Material Infeed: Top Ingredient Feed Chute with Mesh Screen

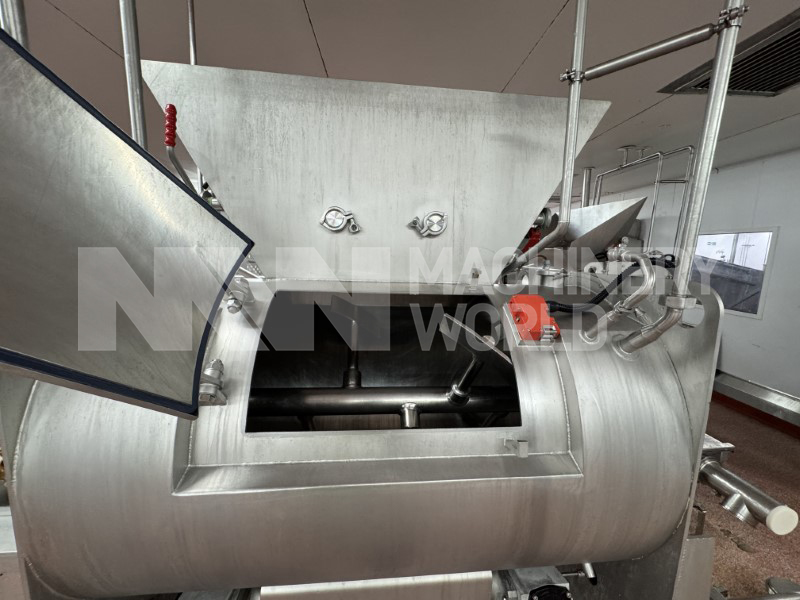

  • Inspection Hatch: Side mounted with Secure Rectangular Hatch Door with Magnetic Safety Interlock
  • Outlet: Centre-bottom with Pneumatically Operated Flap Valve

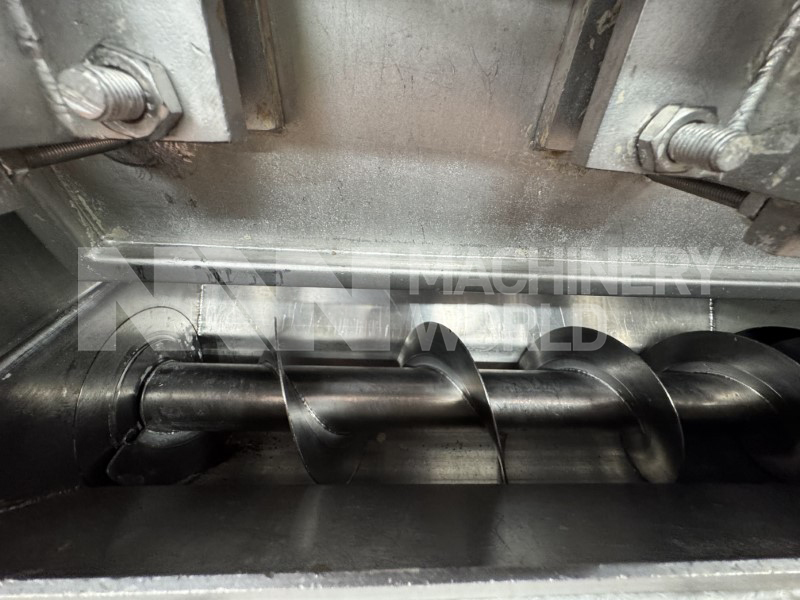

  • Product Discharge: Screw Feeder located underneath Mixer’s Pneumatically operated Flap Valve

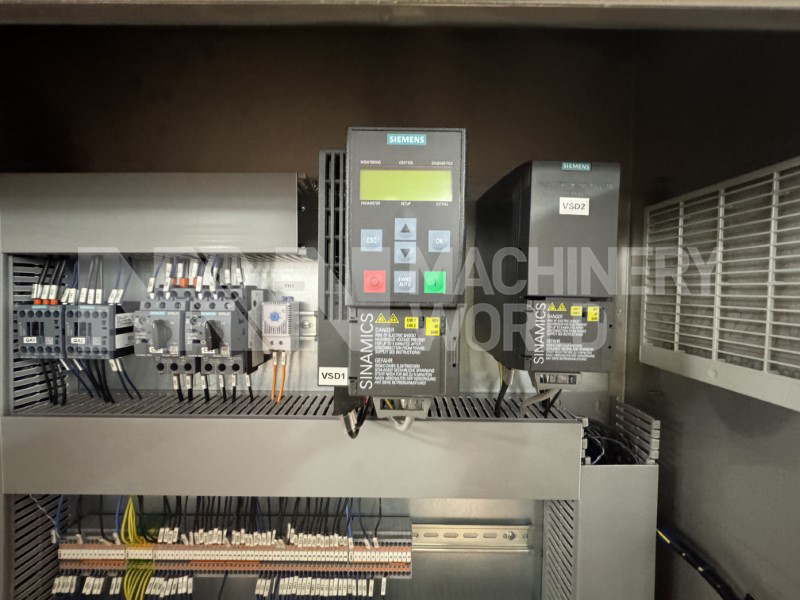

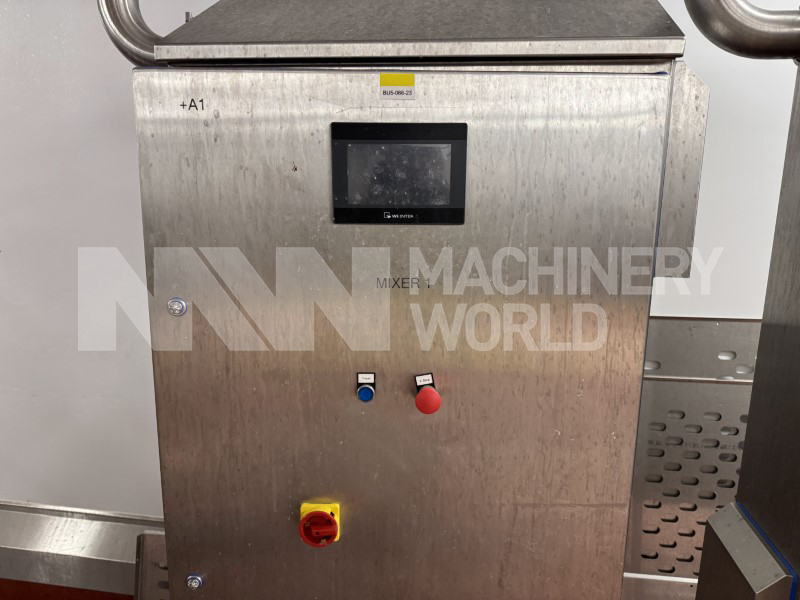

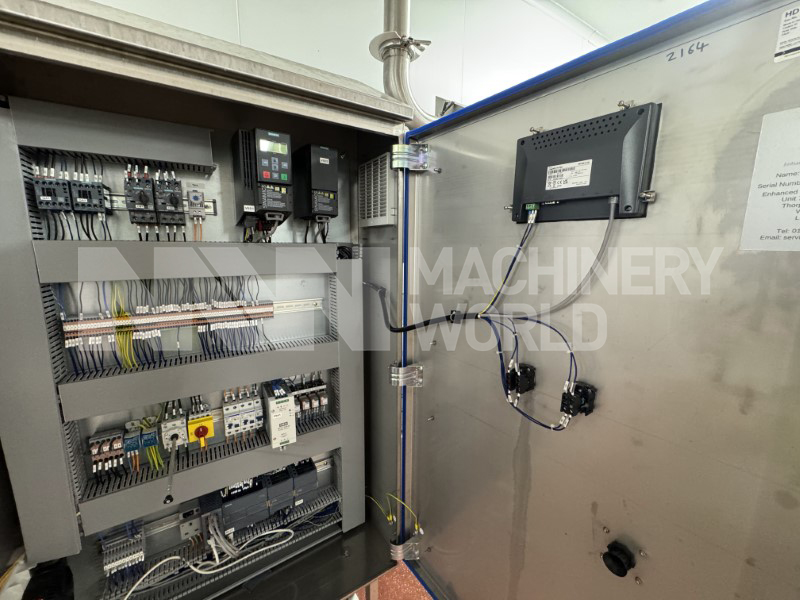

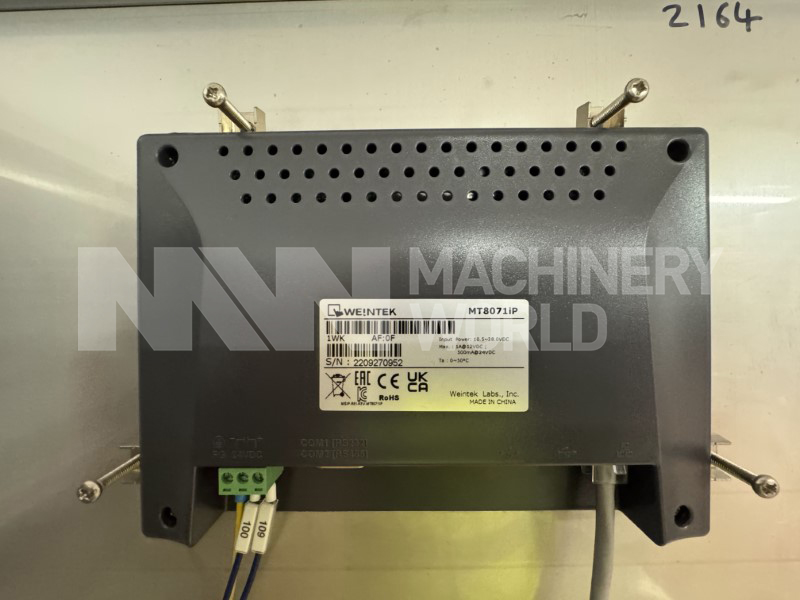

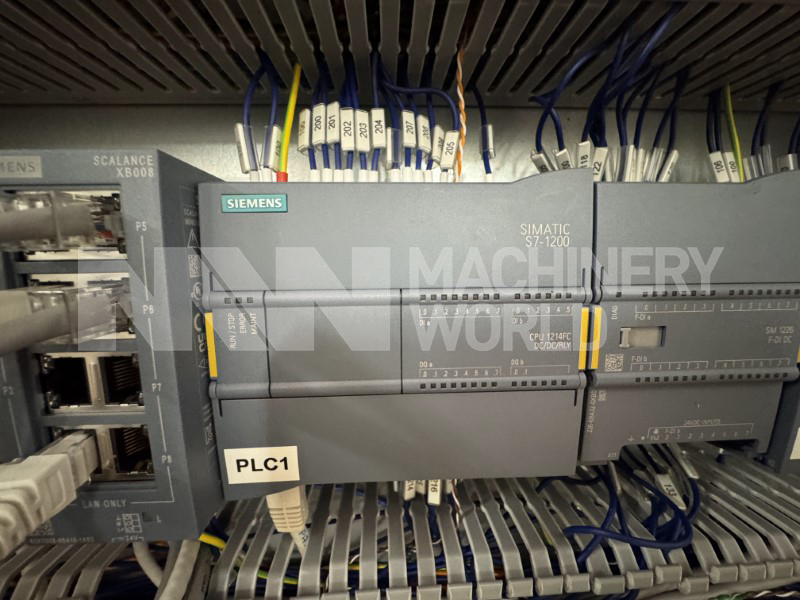

  • Control: Dedicated modern Control Panel with Siemens S7 PLC, Frequency Controlled Inverter for Mixer Speed & Discharge Screw Conveyor Speed.
Overall Dimensions
  • Length: 3000mm
  • Width: 1000mm
  • Height 2400mm
