400L Winkworth RT400 Horizontal Ploughshare Double Jacketed T-Arm Mixer (Year 2009)

IN STOCK AVAILABLE TODAY

SKU: 22306 Categories: , , ,
Description

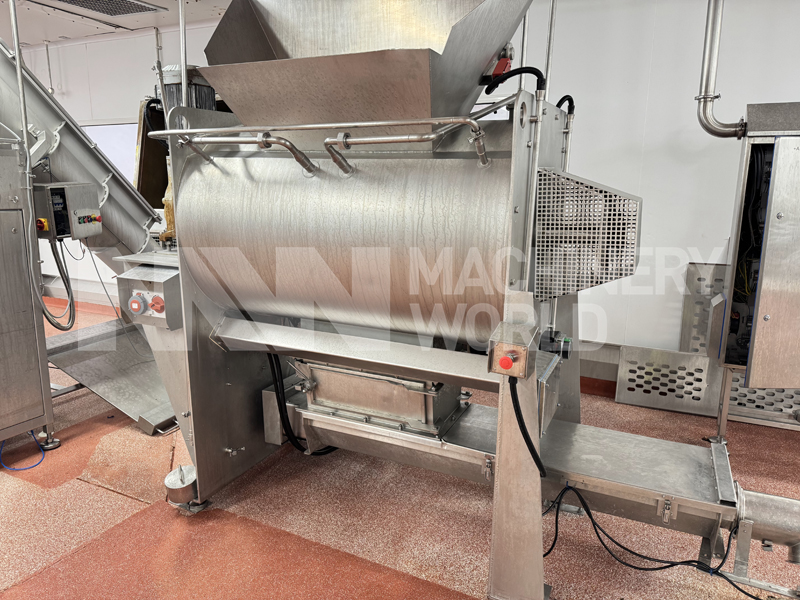

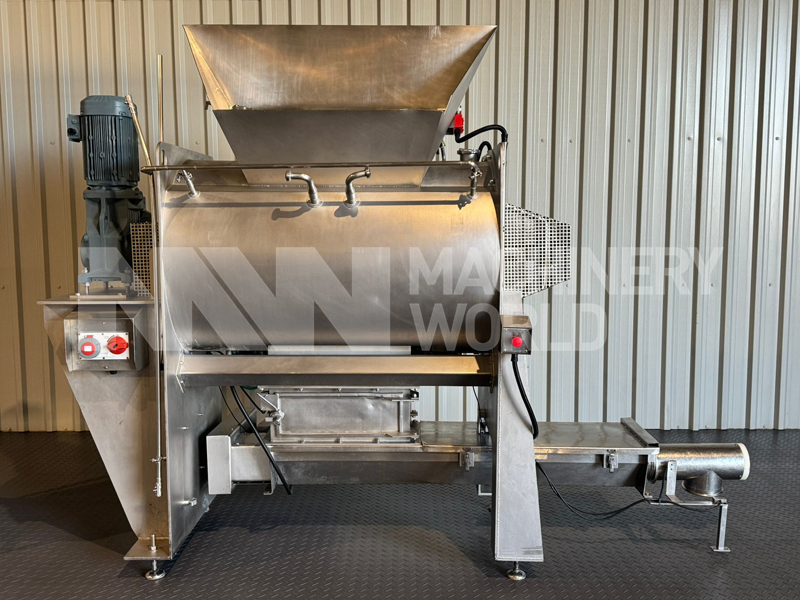

This is a pre-owned Winkworth RT400 Horizontal Ploughshare T-Arm Mixer. The Winkworth RT400 Ploughshare Mixer, featuring a double-jacketed stainless-steel design, is a high-performance and precision-engineered solution tailored for rigorous industrial applications. Its double-jacketed construction allows for effective heating or cooling of the product during mixing, making it particularly suitable for temperature-sensitive materials. In contrast to standard models, this RT400 is equipped with its own bottom discharge screw, which guarantees efficient and controlled emptying of the batch. The mixer also boasts a contemporary control panel that includes a frequency inverter for adjustable speed control, enabling operators to customize the mixing intensity according to specific process needs. Control Panel of Winkworth RT400 includes a Siemens S7 PLC, complemented by a touchscreen HMI display, which provides real-time monitoring, precise parameter adjustments.

Specification

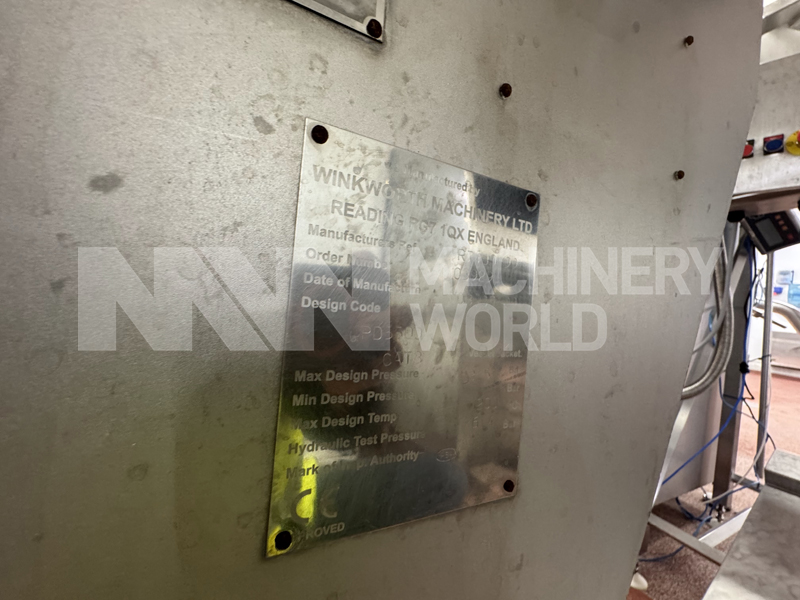

  • Make: Winkworth Machinery, England
  • Type: RT400
  • Function: Double Jacketed Horizontal Ploughshare T-Arm Mixer for Dry Ingredients

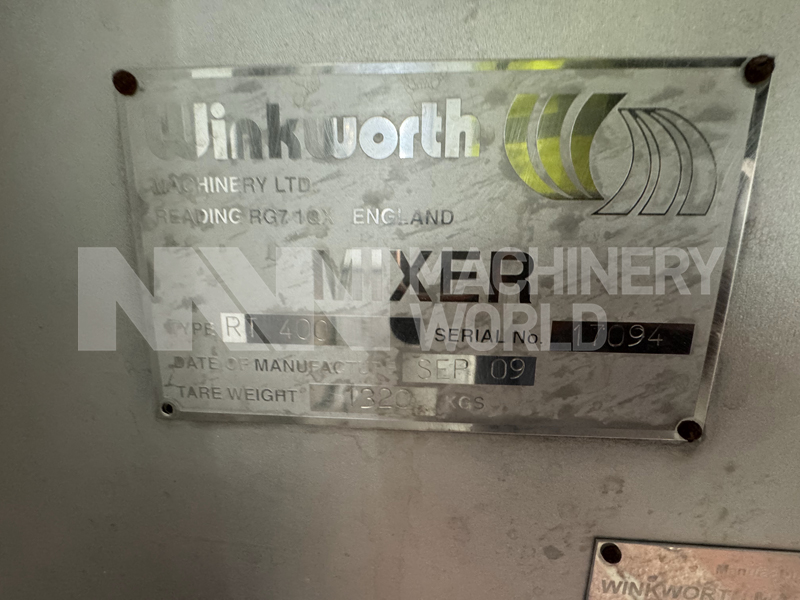

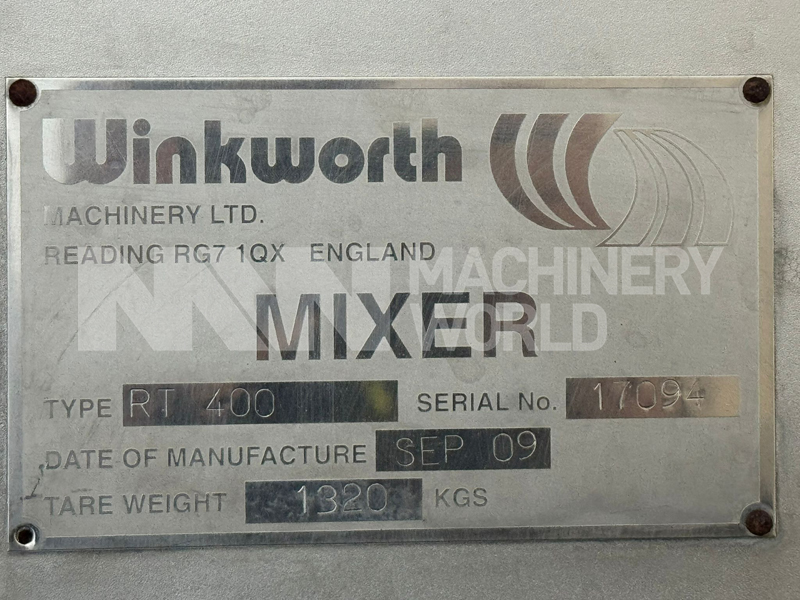

  • Serial No: 17094
  • Year of Manufacture: Sept 2009
  • Internal Volume: Approx 400L
  • Construction: Stainless Steel

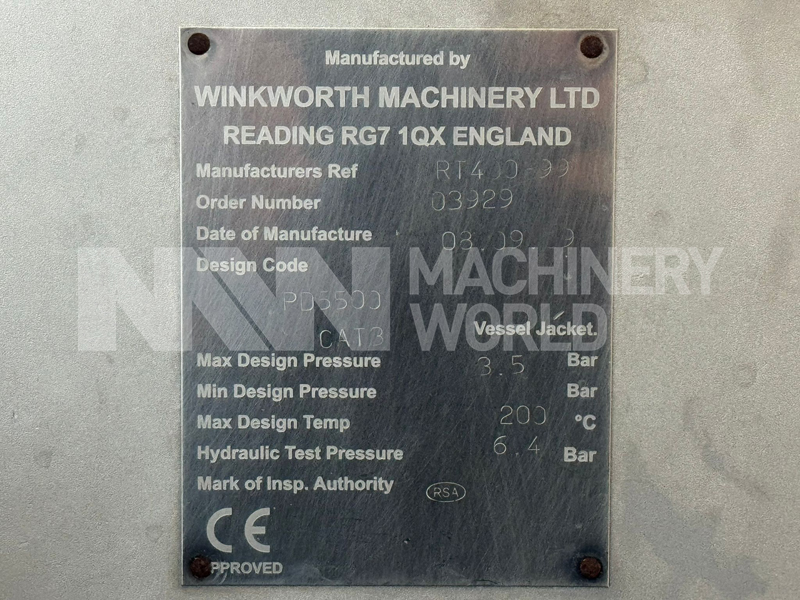

  • Jacket: Yes, Double Jacketed for Heating (or) Cooling
  • Jacket Design Pressure: 3.5 Bar
  • Jacket Hydraulic Test Pressure: 6.4 Bar
  • Design Temperature: 200 deg C

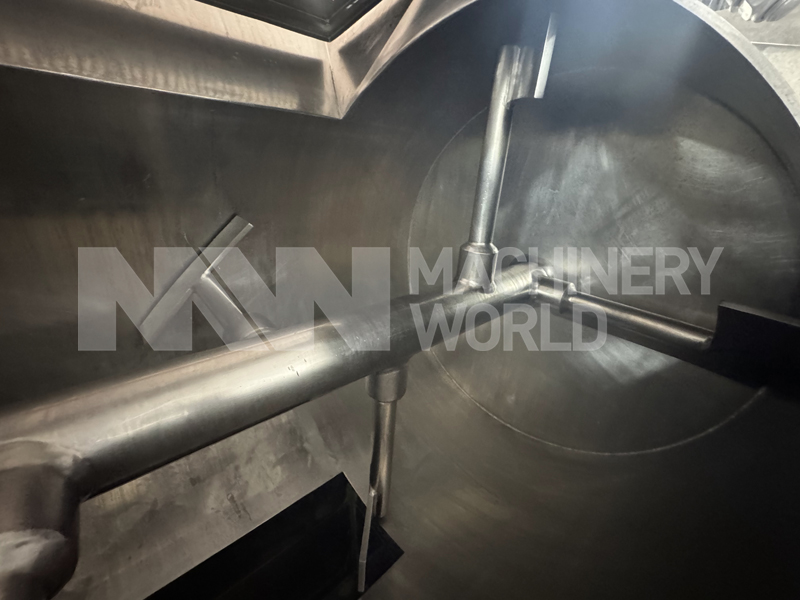

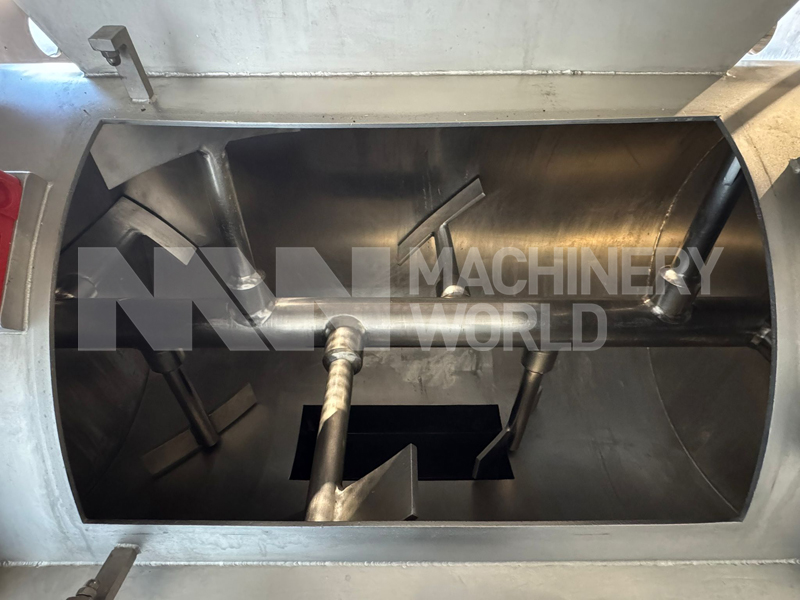

  • Mixer Type: Ploughshare T-Arm Mixer

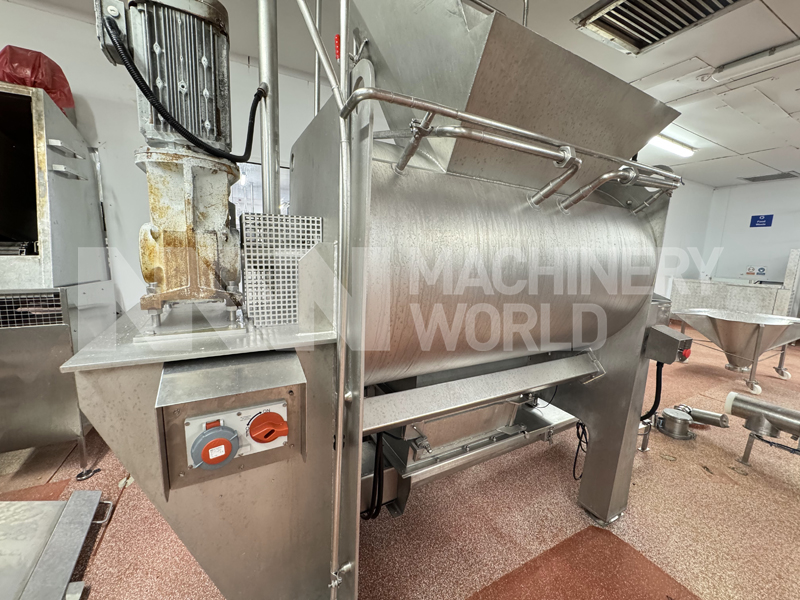

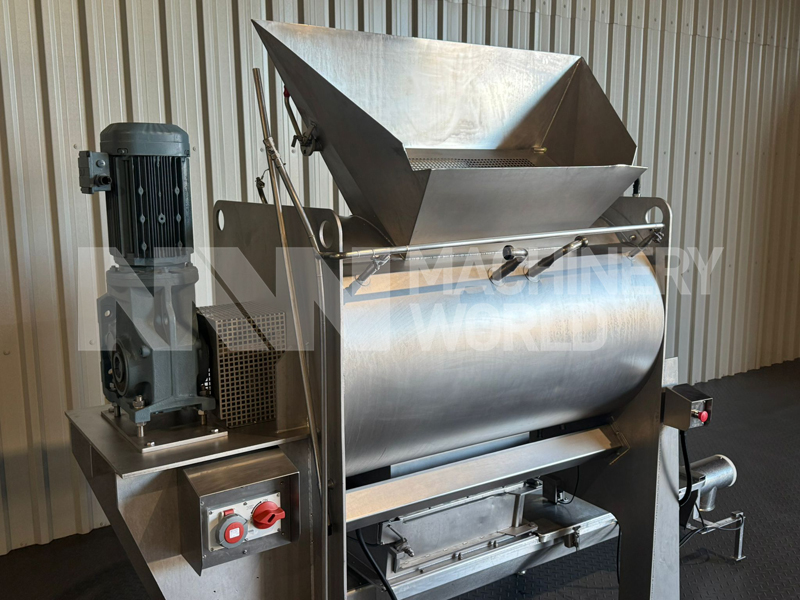

  • Mixer Motor Brand: SEW Eurodrive

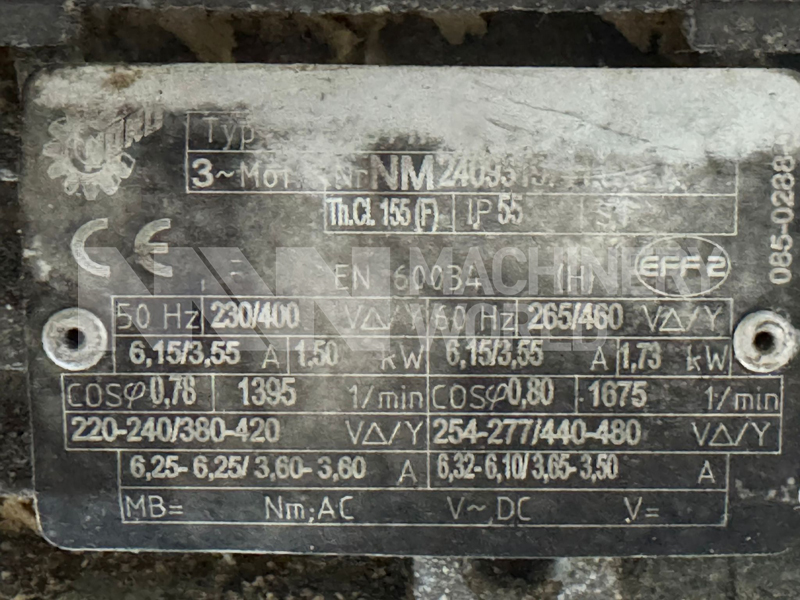

  • Mixer Motor: 7.5kw, 400/690V, 50Hz

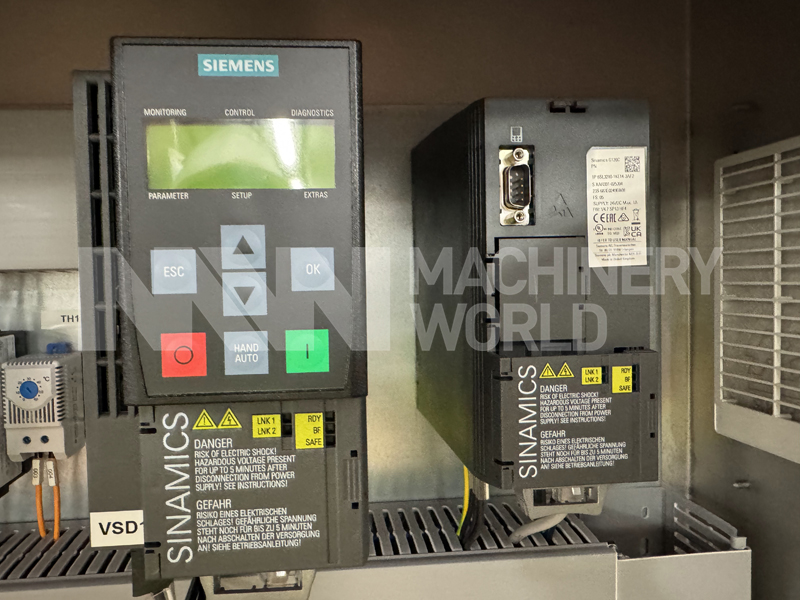

  • Mixer Speed: Variable via Frequency Controlled Inverter

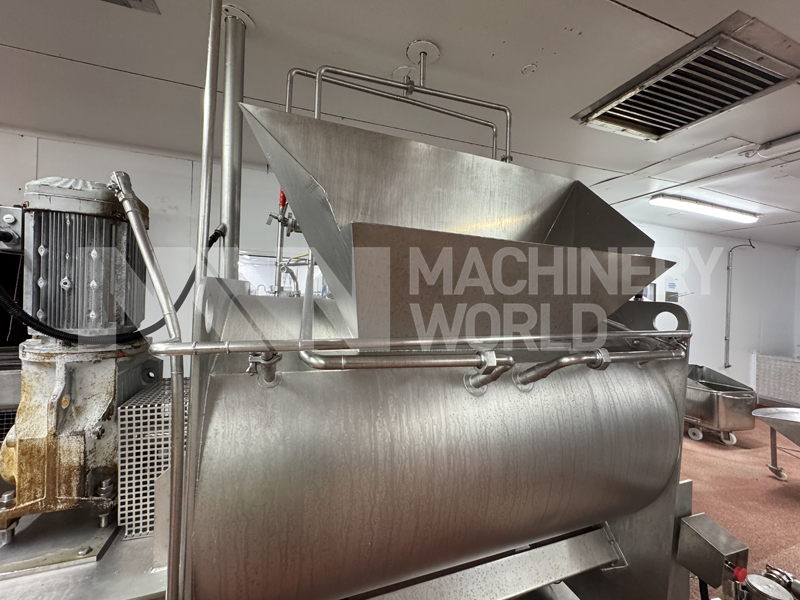

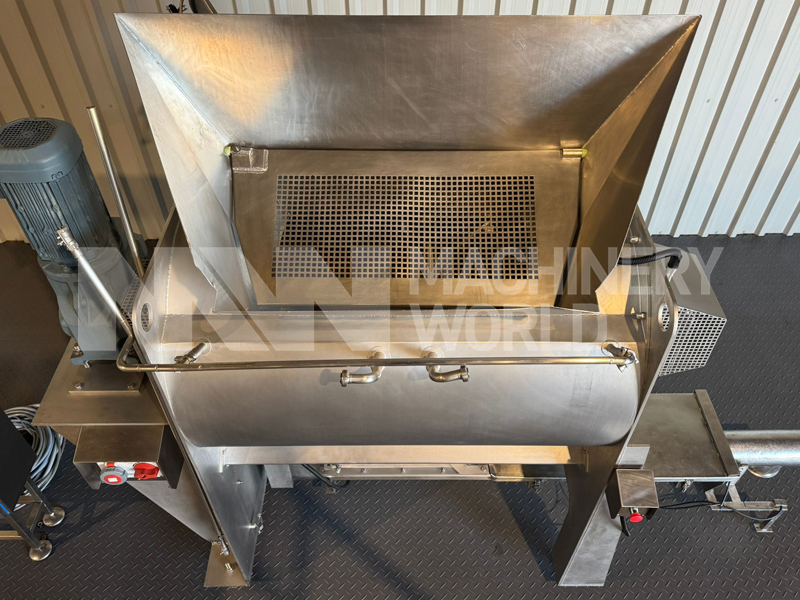

  • Raw Material Infeed: Top Ingredient Feed Chute with Mesh Screen

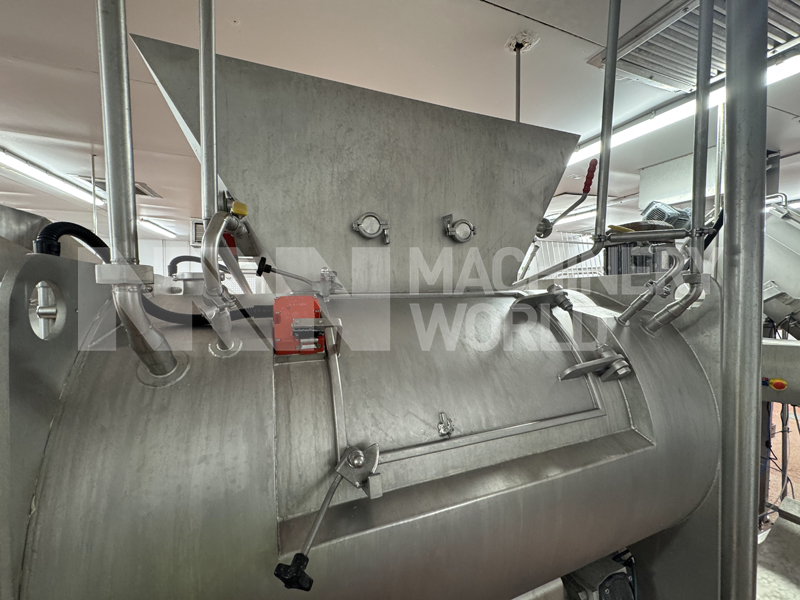

  • Inspection Hatch: Side mounted with Secure Rectangular Hatch Door with Magnetic Safety Interlock
  • Outlet: Centre-bottom with Pneumatically Operated Flap Valve

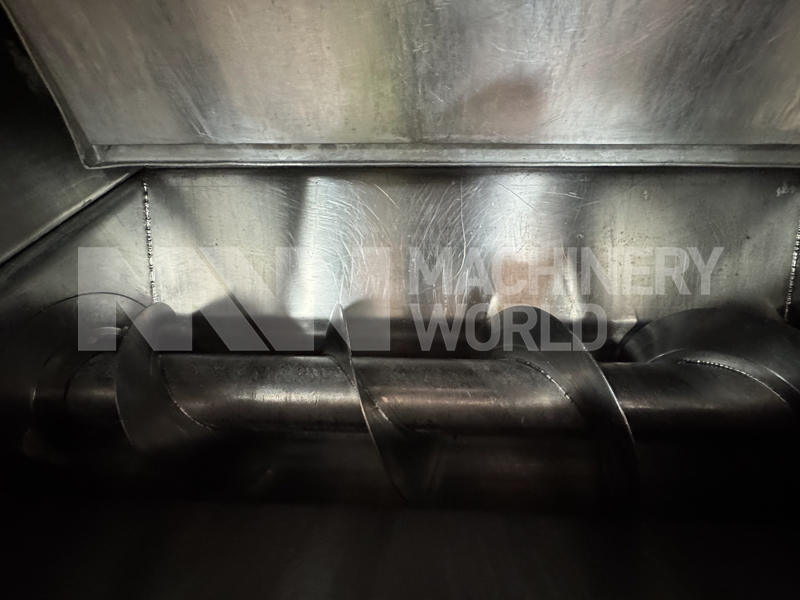

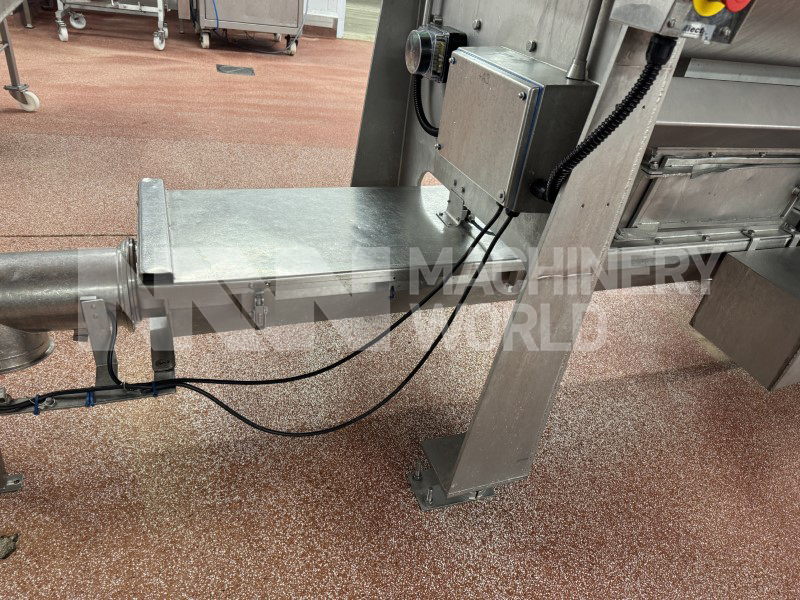

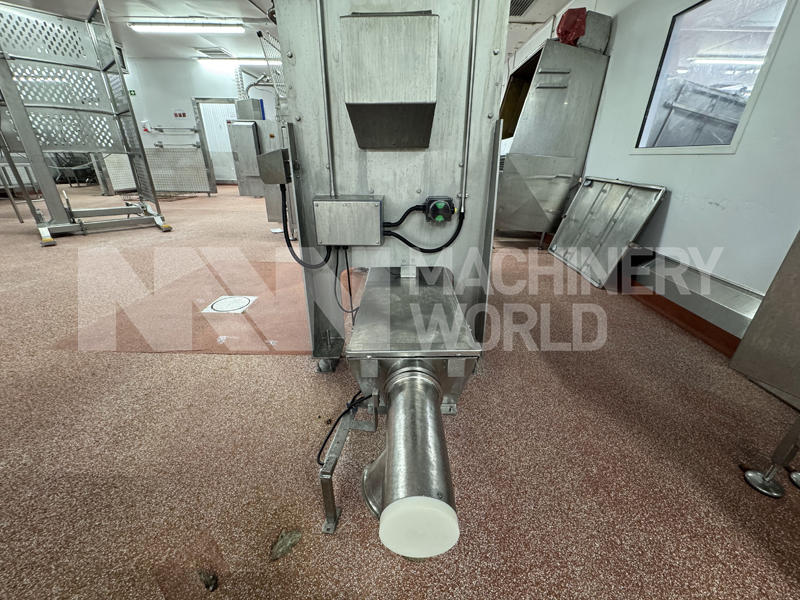

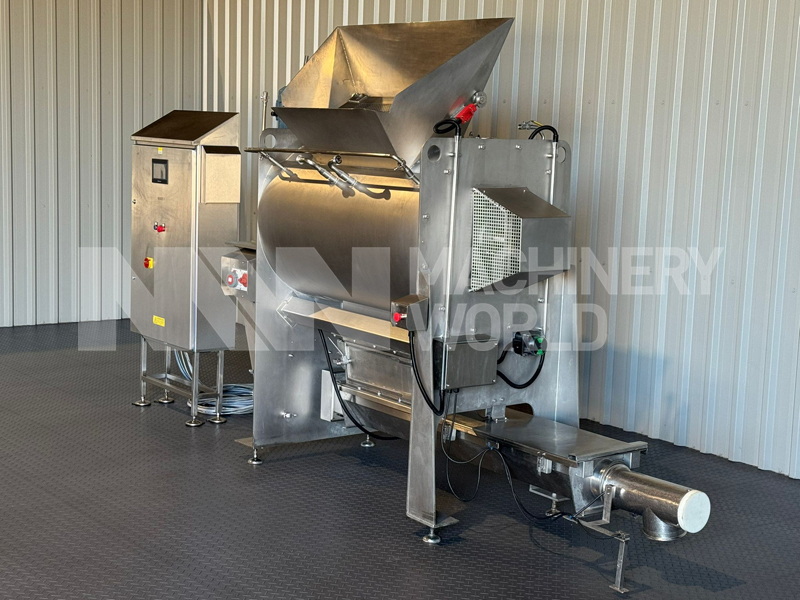

  • Product Discharge: Screw Feeder located underneath Mixer’s Pneumatically operated Flap Valve

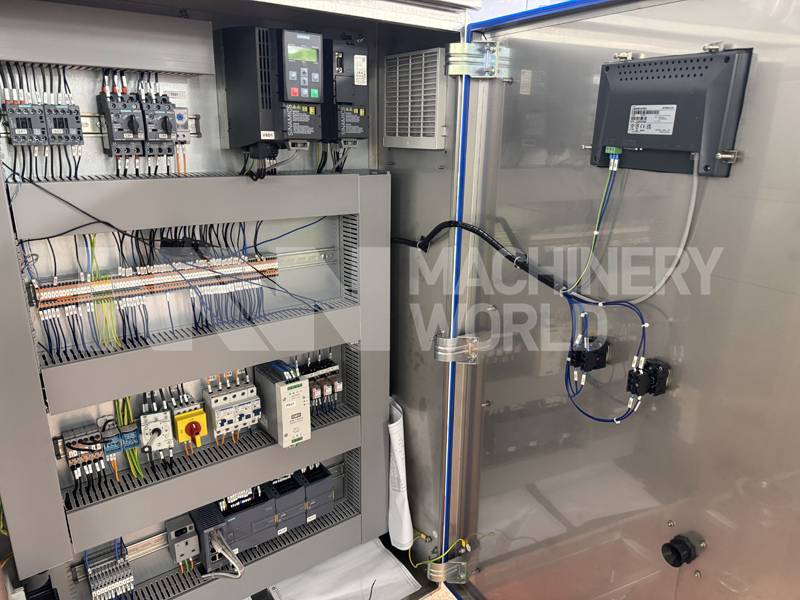

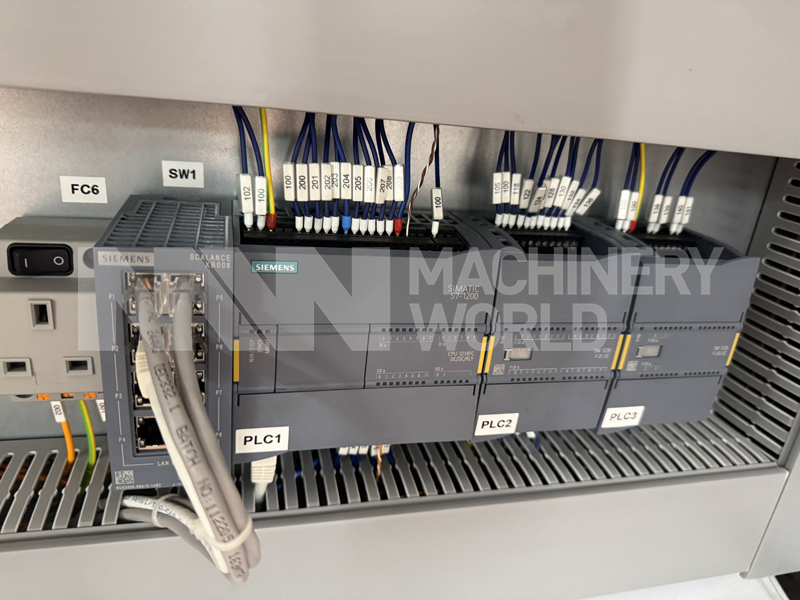

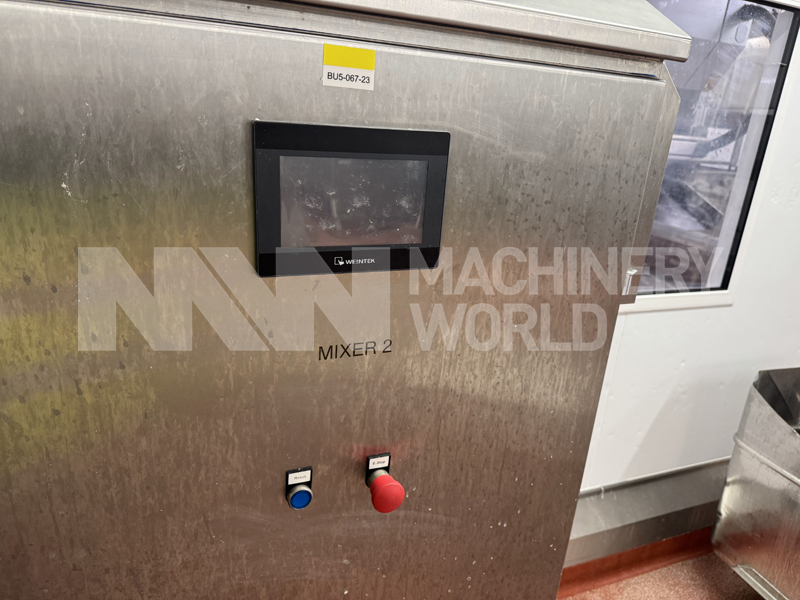

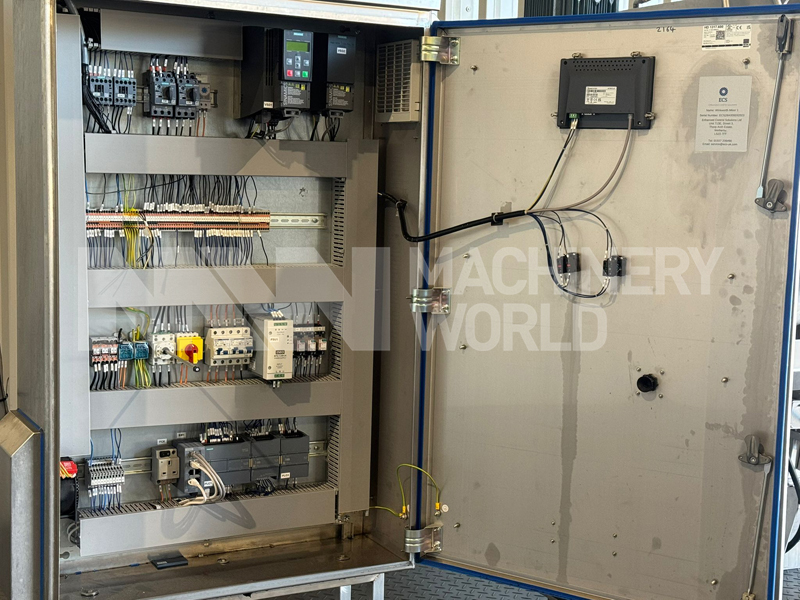

  • Control: Dedicated modern Control Panel with Siemens S7 PLC, Frequency Controlled Inverter for Mixer Speed & Discharge Screw Conveyor Speed.
Overall Dimensions
  • Length: 3000mm
  • Width: 1000mm
  • Height 2400mm
Country of Manufacture

England
