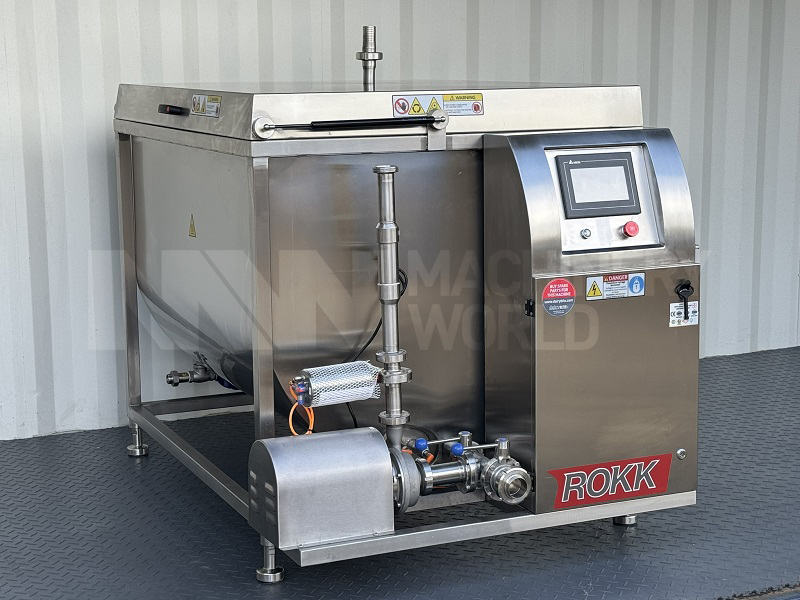

500 Ltr ROKK RMELT-500 Jacketed Frozen Fat Butter Batch Melter (Brand New)

Description

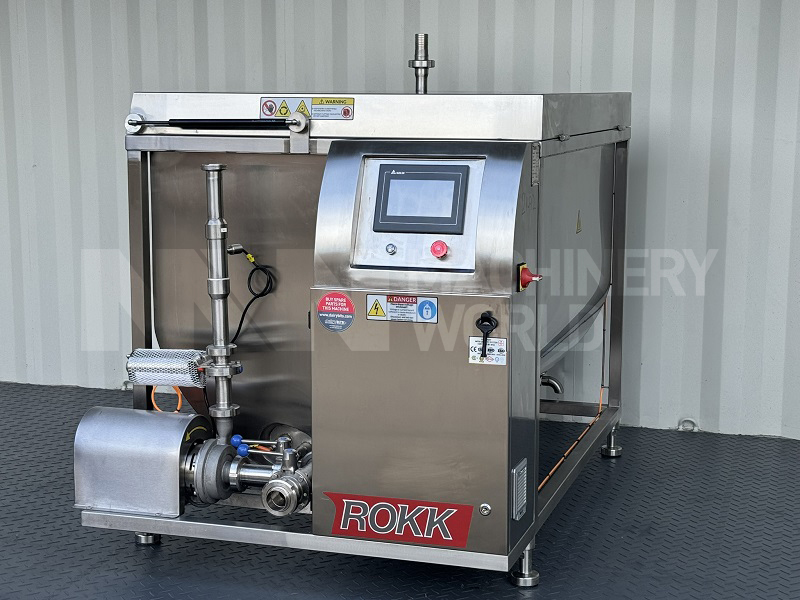

This is a Brand New ROKK Processing RMELT-500  Batch Melting Tank (Melter). This ROKK Processing RMELT-500  Batch Melting Tank (Melter) has a capacity of approx 500L, which is varies depending on the type and specific gravity of the product. ROKK Processing RMELT-500  Batch Melting Tank (Melter) has a Jacketed Tank and comes installed with an internal Melting Grid, which can be heated using Hot Water,  supplied from an external source. ROKK Processing RMELT-500  Batch Melting Tank (Melter) is of 304 grade Stainless Steel construction and comes installed with the top open hinged lid with integrated CIP Spray Head. ROKK Processing RMELT-500  Batch Melting Tank (Melter) includes Melted product transfer pump, flow sensor and fully integrated Control Panel with PLC and Touchscreen HMI.

Features

• This Tank is designed to melt Butter/Fat/Palm Oil blocks.
• All product contact parts are of Cr-Ni 304 grade Stainless Steel.

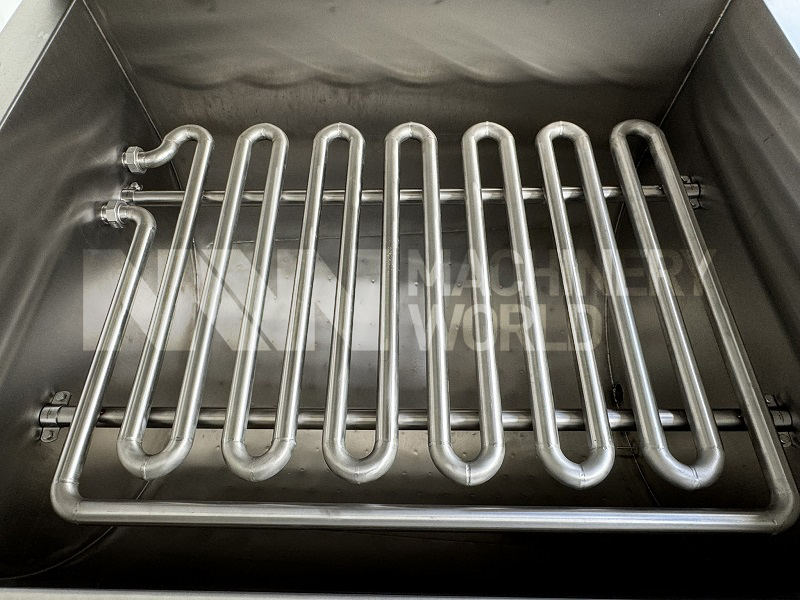

• There is an internal Serpentine heating coil, to melt Butter/Fat/Oil Blocks.
• There is an external re-circulation Hot Water Jacket on the side wall of tank to keep melted product warm.
• Tank is Insulated with Aluminium faced Rockwool & Clad in stainless steel.

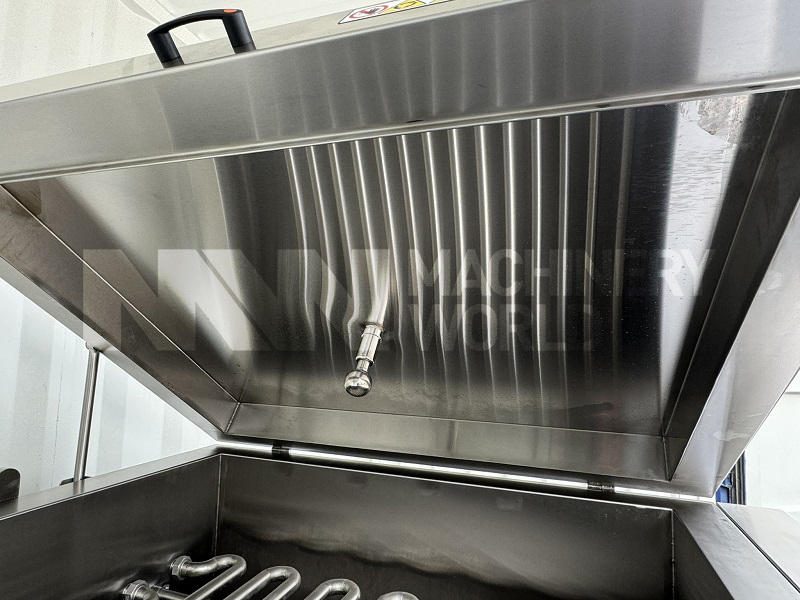

• The machine has top open lid secured with hinges and dampers on both sides.
• It is suitable for heating with Hot Water for Internal Serpentine Coil & External Jacket.

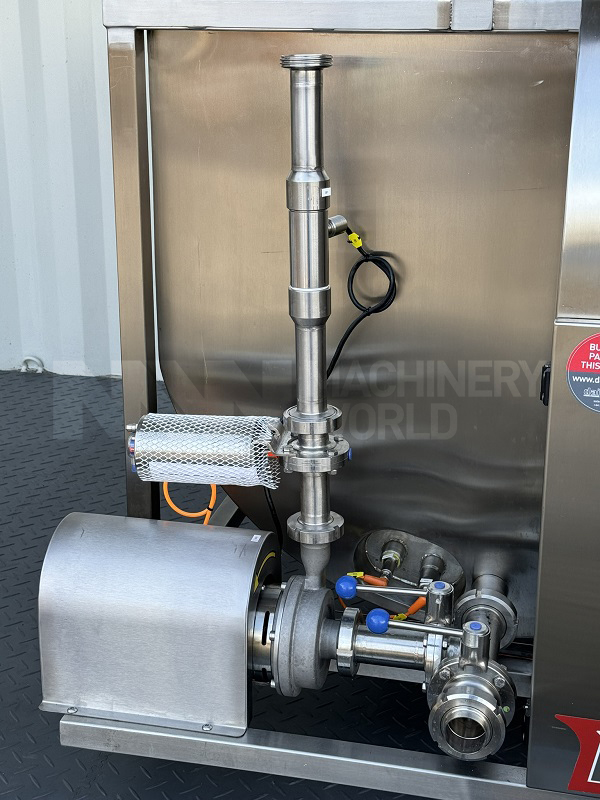

• Melted Oil Metering via Flow Meter & Pump.
• Pump and Temperature can be controlled through the Control Panel.

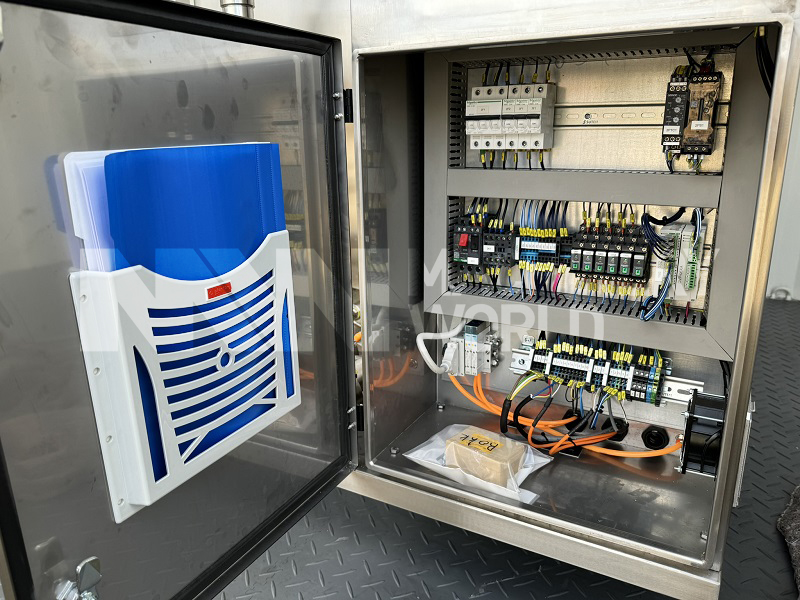

• Melt Tank’s Control Panel has touchscreen HMI and PLC system.

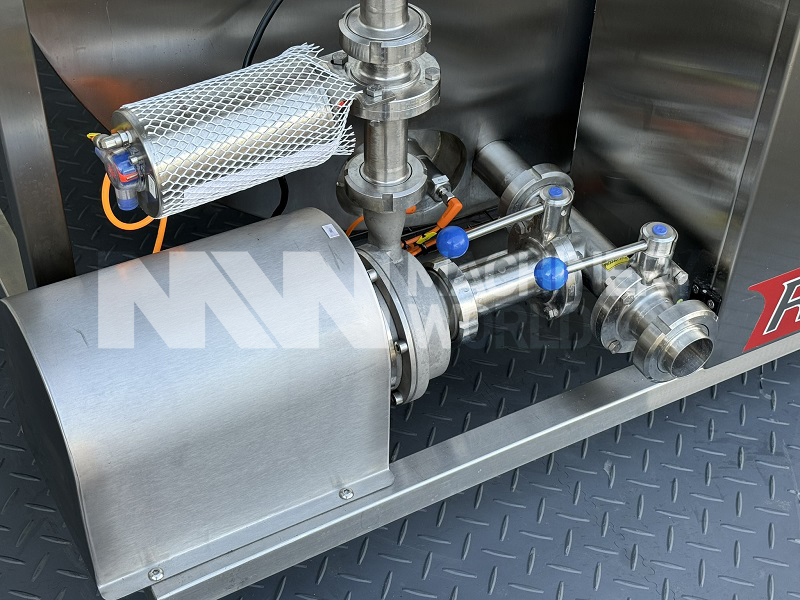

• Oil transfer pump
• The appropriate design for easy maintenance and cleaning (CIP and SIP)
• Stainless steel construction (frame) and electrical panel
• Compact design

Specification

• Brand: ROKK Processing, United Kingdom
• Type: RMELT-500
• Function: Batch Fat Butter Melter - Melting Tank
• Volume of Tank: Approx 500 Ltr (Varies depending on Specific Gravity of Melted Product)

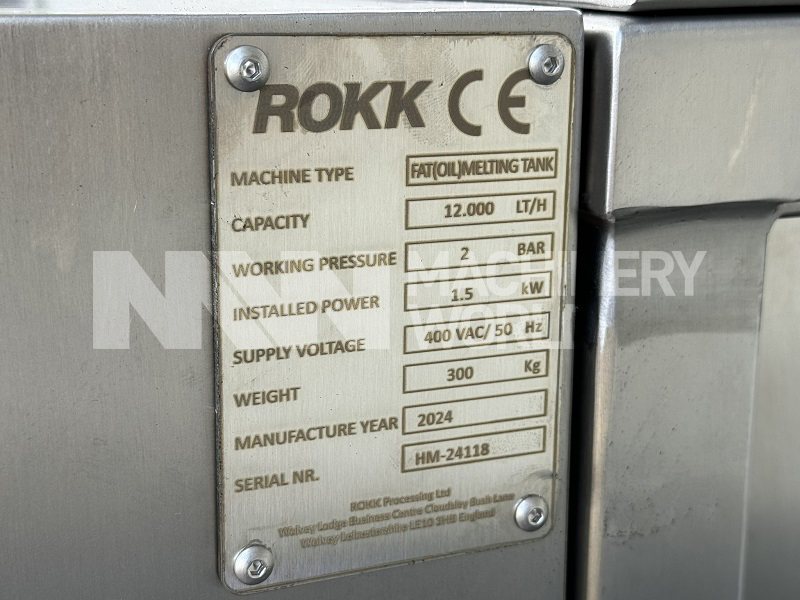

• Serial Number: HM-24118
• Year of Manufacture: 2024
• Installed Power: 1.5kw, 3-ph, 50Hz
• Working Temperature: 40 deg C to 70 deg C
• Jacket: Yes, Jacketed
• Jacket Working Pressure: 2 Bar
• Melting Grid: Internal Serpentine Melting Grid heated using Hot Water
• Insulation: Aluminium Faced Rockwool Insulation
• Product Transfer: Includes Pump
• Control Panel: Fully Integrated with PLC and Touchscreen HMI

Dimensions

• Length: 2000mm
• Width: 1200mm
• Height: 1250mm
• Weight: Approx 320kg
