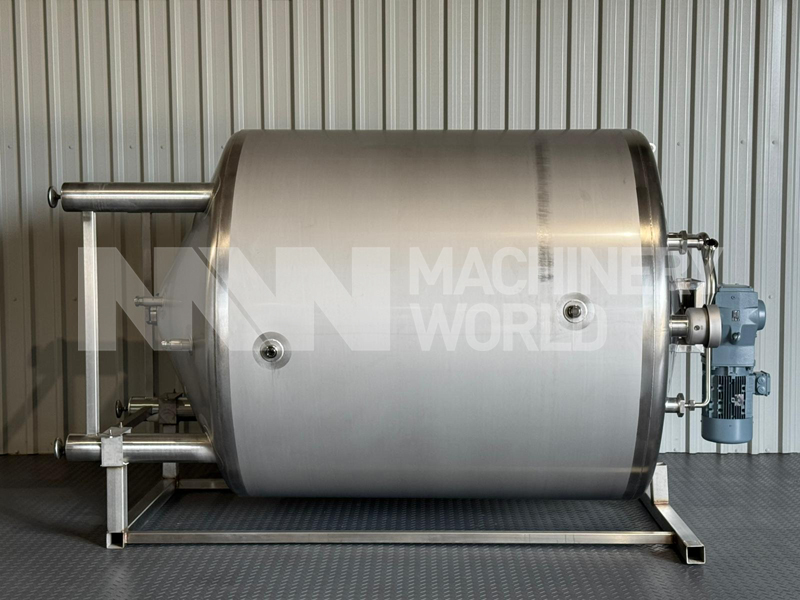

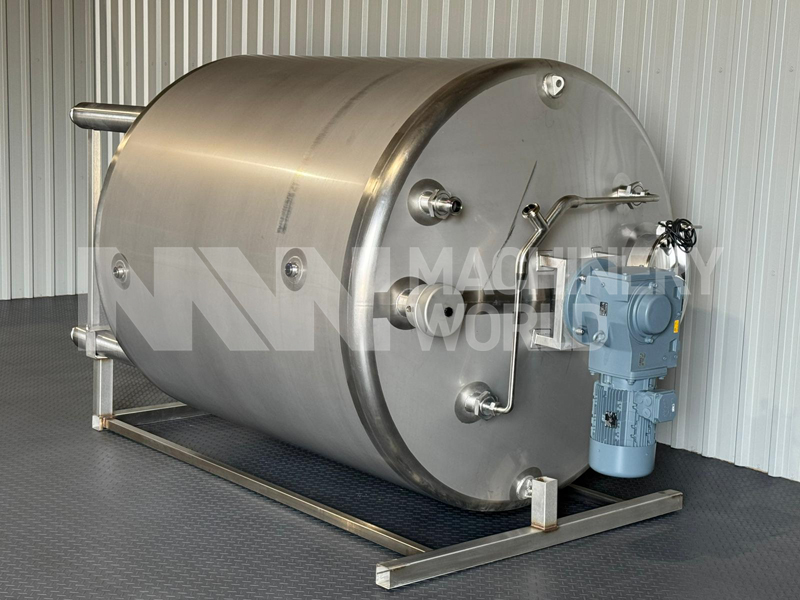

5,000 Ltr 316 Grade Stainless Steel Jacketed Tank with Full Sweep Gate Mixer – Year 2025 (Never Used)

Request Price

IN STOCK AVAILABLE TODAY

Description

This 5,000 litre jacketed mixing tank, crafted from premium 316 stainless steel, features a robust gearbox and full sweep, slow-speed gate mixer designed to efficiently process thick, high-viscosity products. Specifically engineered for Kefir production, it is perfectly suited to the dairy, food manufacturing, pharmaceutical, and cosmetics sectors. Its jacketed construction enables accurate heating and cooling control, while the gentle, low-shear mixing action preserves the integrity of delicate or heat-sensitive formulations. Manufactured in 2025, never used, and ready for immediate delivery, this tank offers exceptional durability and excellent resistance to corrosion. A technical drawing is available for download below for informational purposes only, actual specifications may differ.

Specification
  • Make: Walty Engineering, United Kingdom
  • Function: Jacketed Tank with Full Sweep Gate Mixer
  • Type: Jacketed Process Mixer

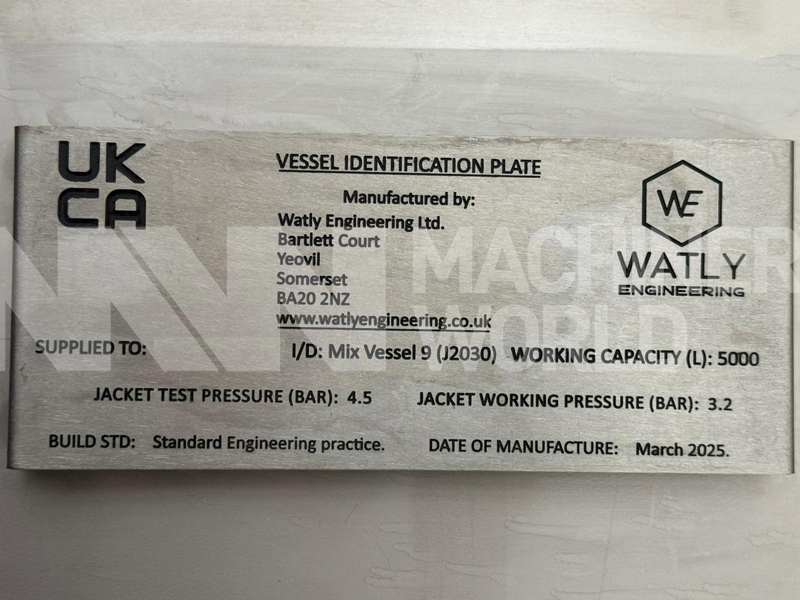

  • Identification: Mix Vessel 9 (J2030)
  • Year of Manufacture: March 2025
  • Working Capacity: Approx 5,000 Litres
  • Construction: 316 Grade Stainless Steel Product Contact Parts
  • Jacket: Yes Jacketed for Heating (or) Cooling (Depending on the Product & Process)
  • Jacket Working Pressure: 3.2 Bar
  • Jacketed Area: Sides & Bottom
  • Insulation: Yes, Rockwool Insulation

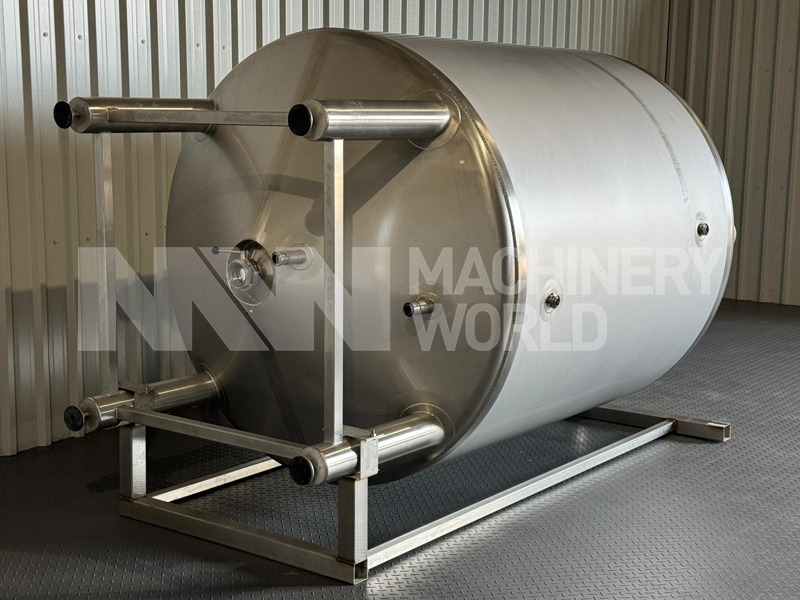

  • Supports: 4x Tubular Legs with Adjustable Feet
  • Mixer
    • Type: Top Entry

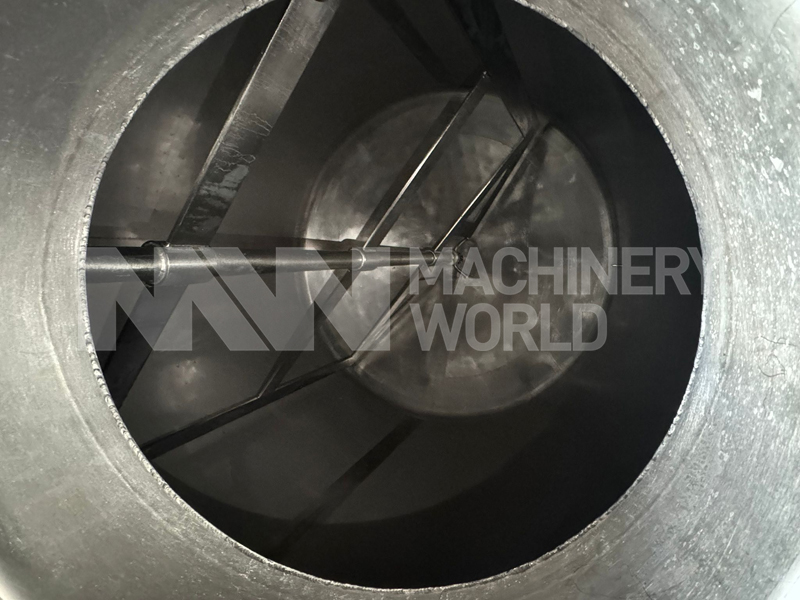

    • Model: Slow Speed Gate Type Full Sweep Mixer

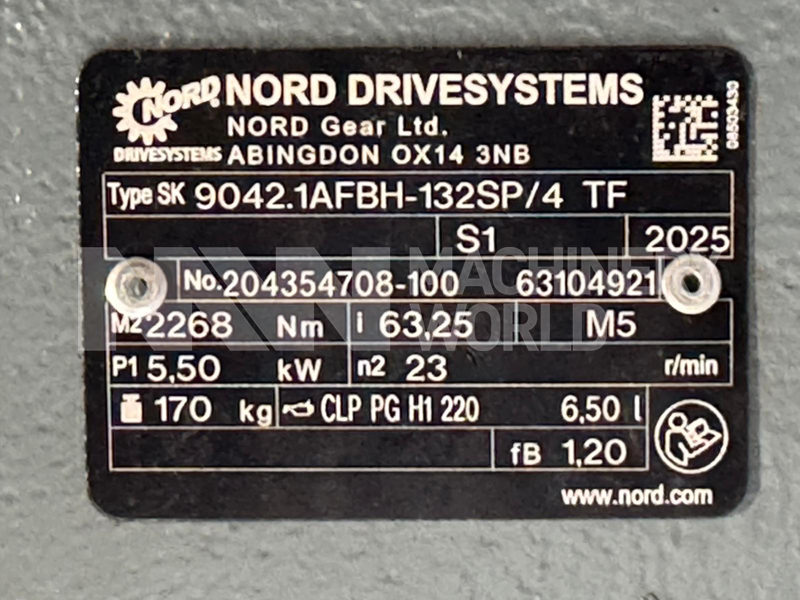

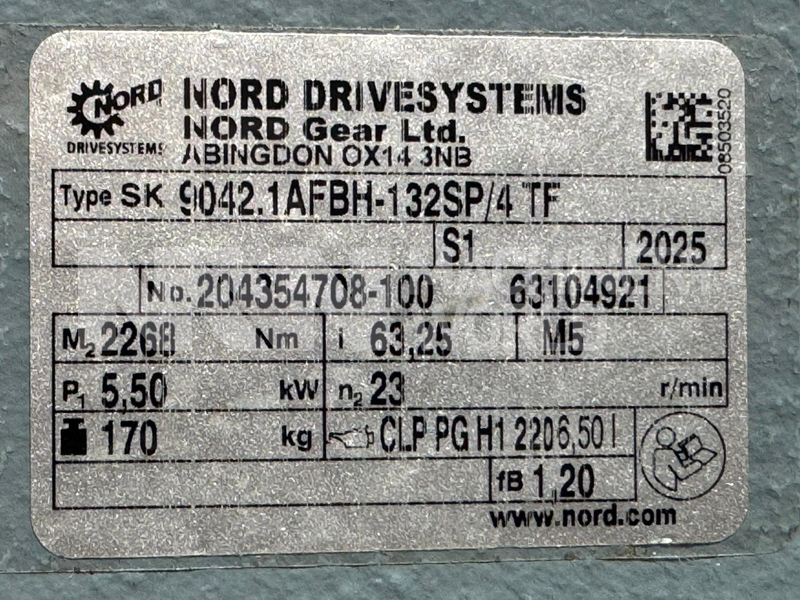

    • Mixer Speed: 23 RPM

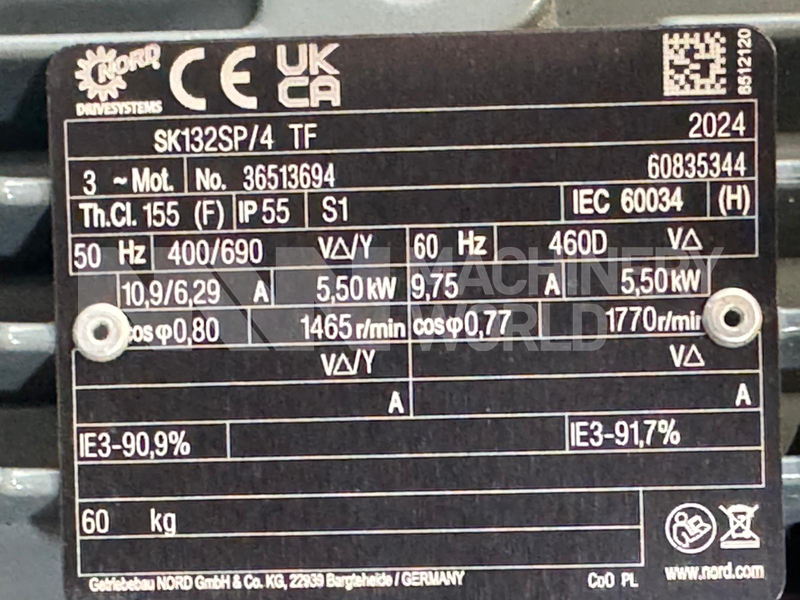

    • Motor Power: 5.5kw 3-Ph.

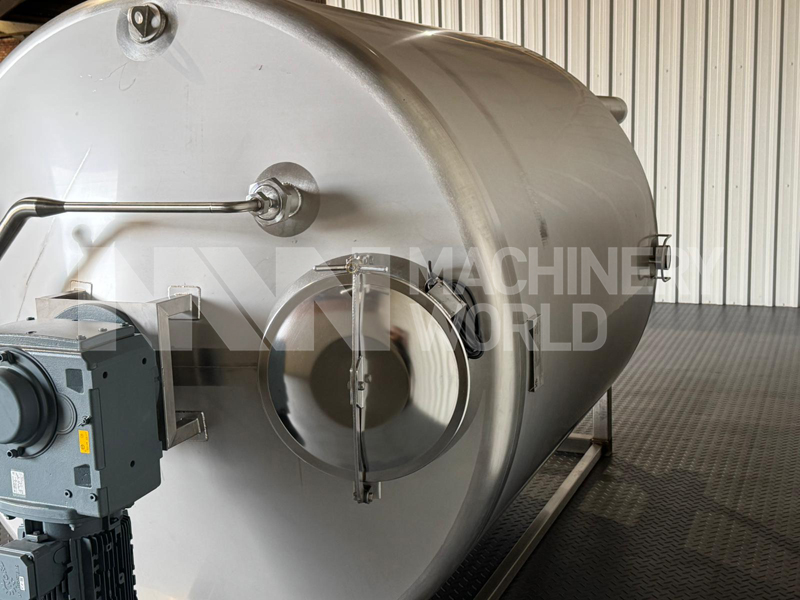

  • Manway: Top Manway with Secured Circular Lid
  • CIP: 2x CIP Spray Heads Top Mounted
  • Breather Vent on Top with Vent Cap
  • Inlet: 2 Inch Anti Foam Inlet
  • Outlet: 3 inch
  • Height of Outlet from Floor Level: Approx 300mm
Dimensions
  • Overall Height: 3550mm
  • Outer Diameter: 2200mm
Country of Manufacture

United Kingdom
