Description

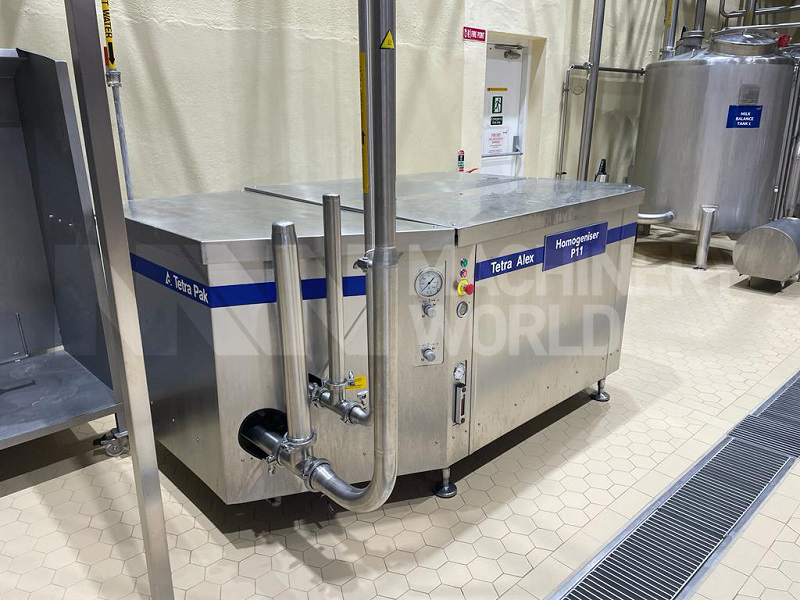

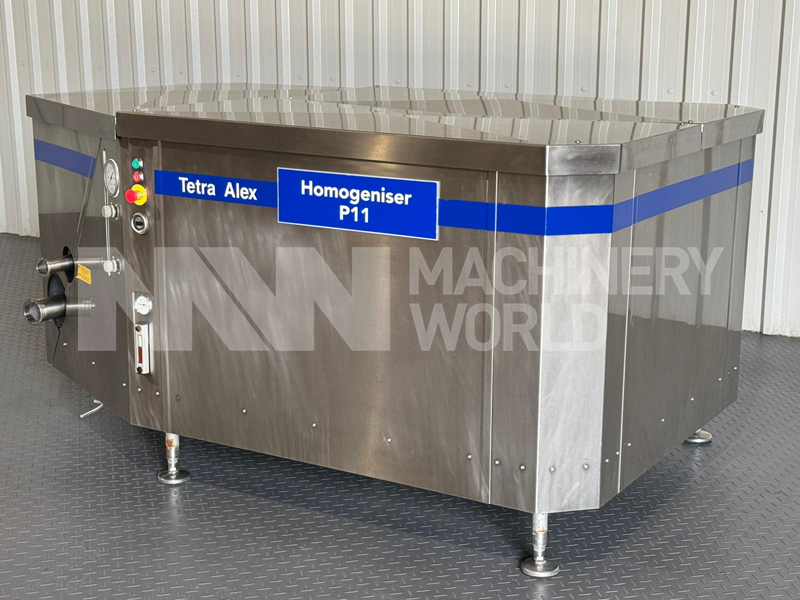

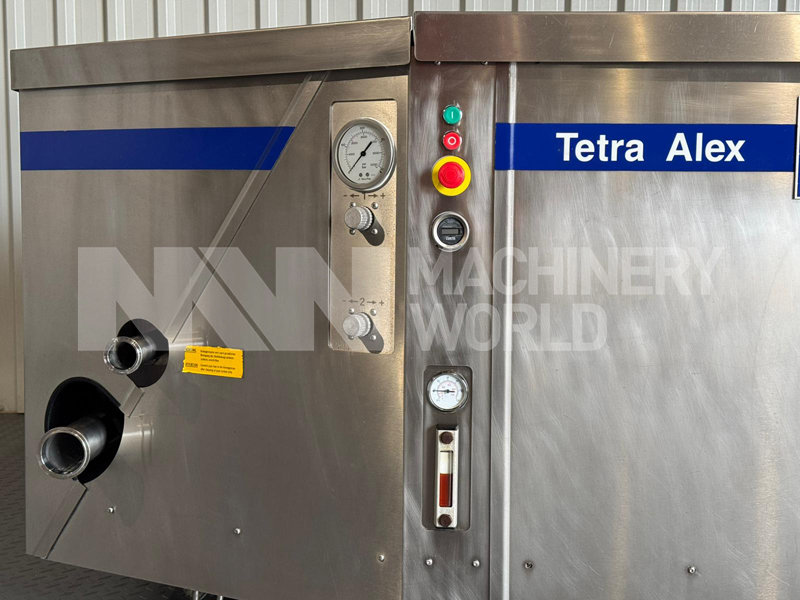

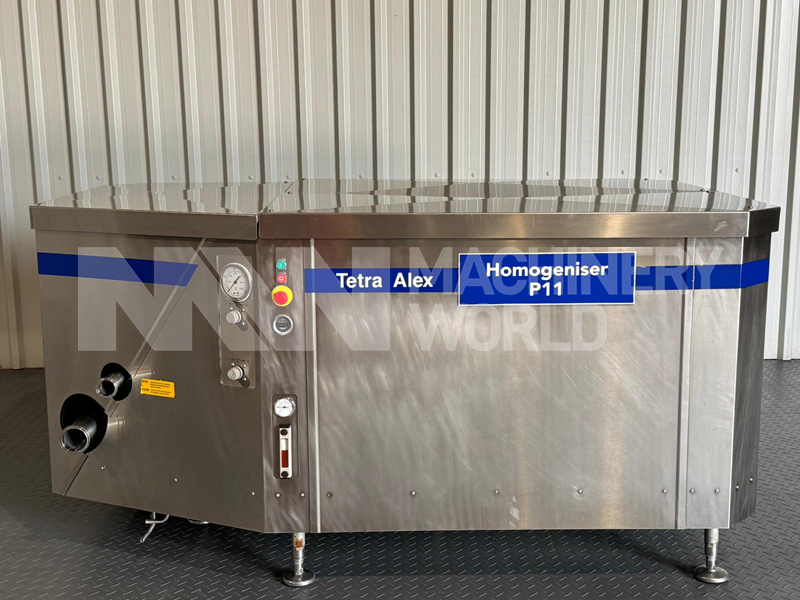

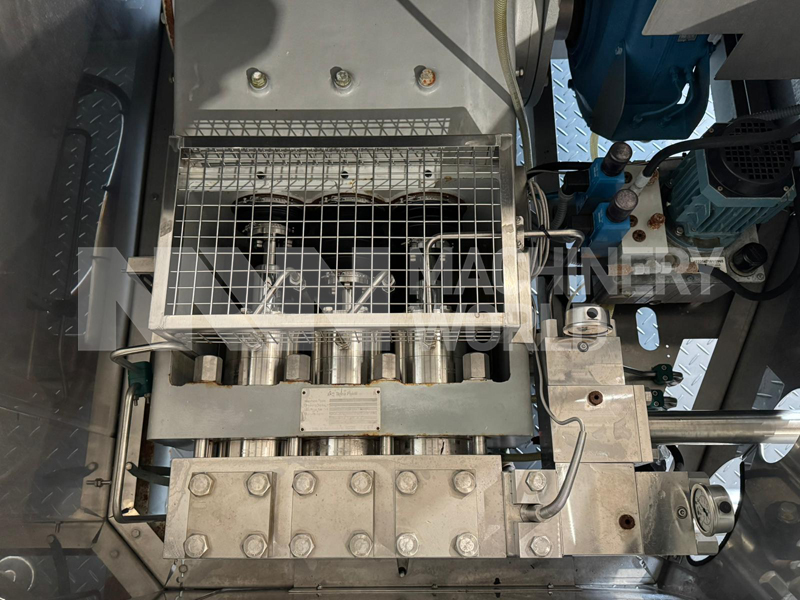

This is a used Tetra Pak Tetra Alex 25 Homogeniser, which has a capacity of approximately 7,100 LPH and operates at a maximum working pressure of 160 Bar (2,320 PSI). The Tetra Pak Tetra Alex 25 High Pressure Homogeniser is fitted with a horizontally positioned positive displacement pump featuring 3 pistons. This model is specifically designed for the high-pressure homogenisation of emulsions and suspensions of products including Pasteurised Milk, UHT Milk, Dairy Cream, Yogurt, Condensed Milk, Ice Cream Mix, Fruit Juices, Concentrates etc. Currently in stock, this Tetra Pak Tetra Alex 25 High Pressure Homogeniser is ready for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.
Specification
- Make: Tetra Pak, Sweden
- Machine Type: Tetra Alex 25
- Model: High Pressure Piston Homogeniser

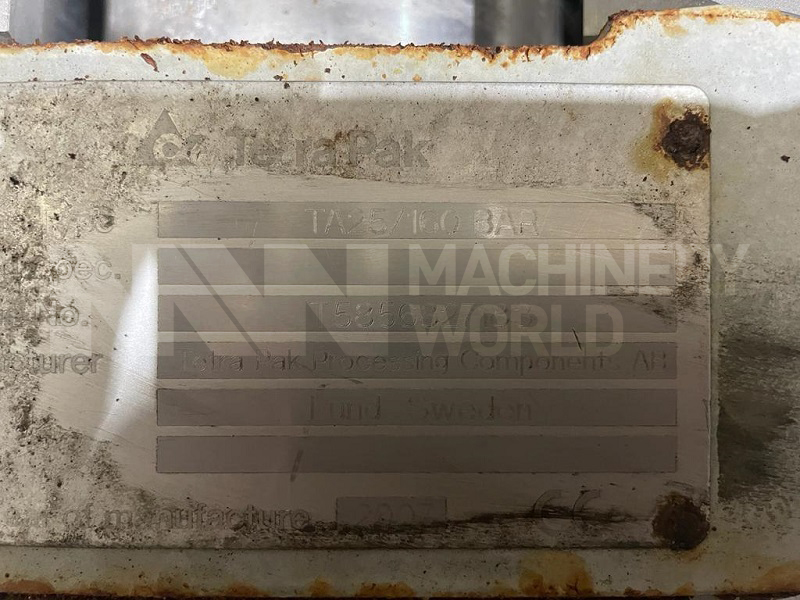

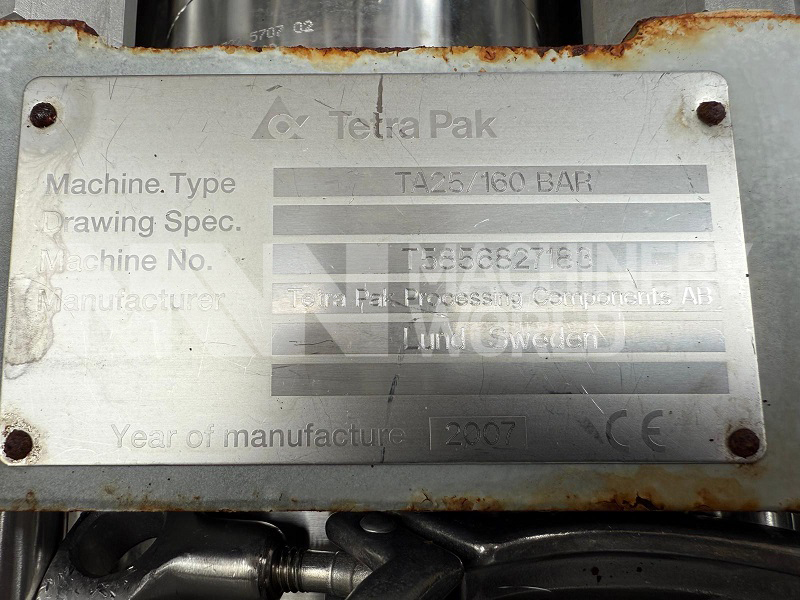

- Serial Number: 5856827183
- Year of Manufacture: 2007
- Working Capacity: Approx 7,100 LPH
- Working Pressure: 160 Bar (2,320 PSI)

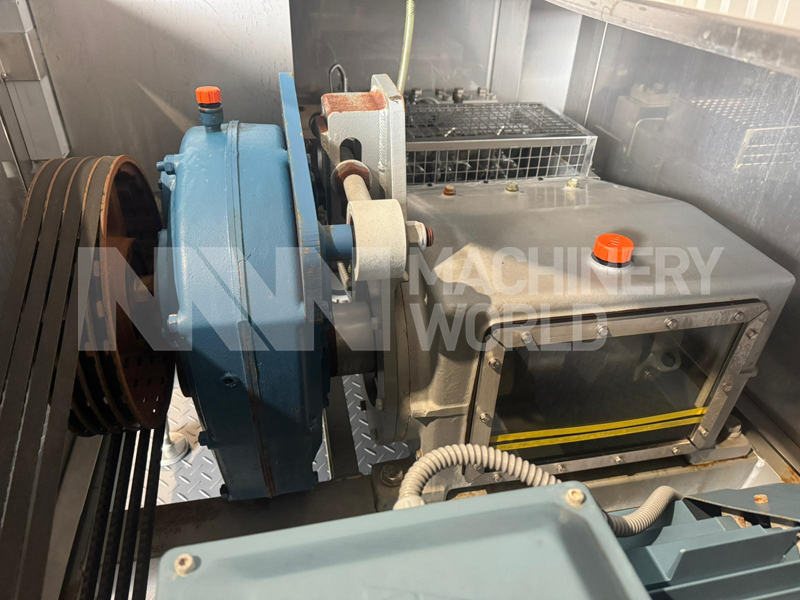

- Number of Pistons: 3-Pistons
- Piston Diameter: 56mm
- Piston Material: Chromium Plated Pistons

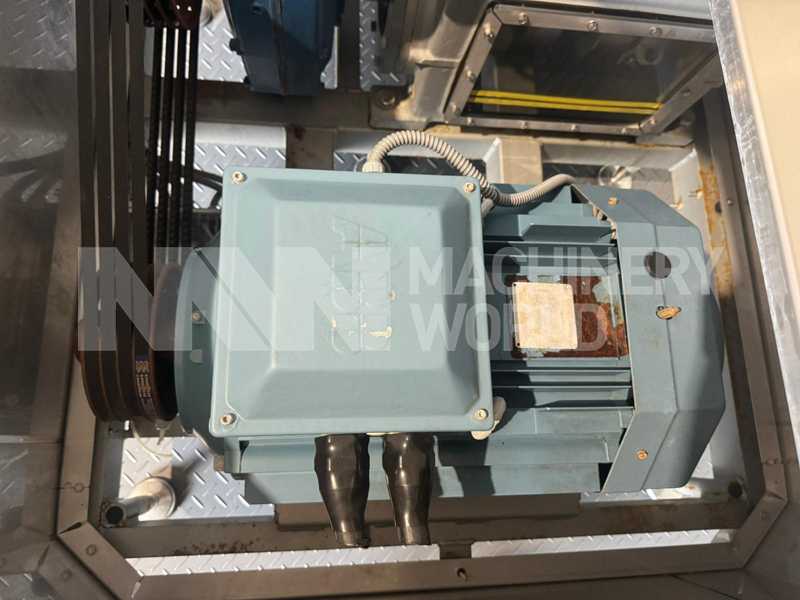

- Motor Power: 45kw, 400V, 3-Ph & 50Hz
- Finish: Stainless Steel Shroud
- Not Included: Control Panel
Dimensions
- Length: 2240mm
- Width: 1400mm
- Height: 930mm
Country of Manufacture
Sweden

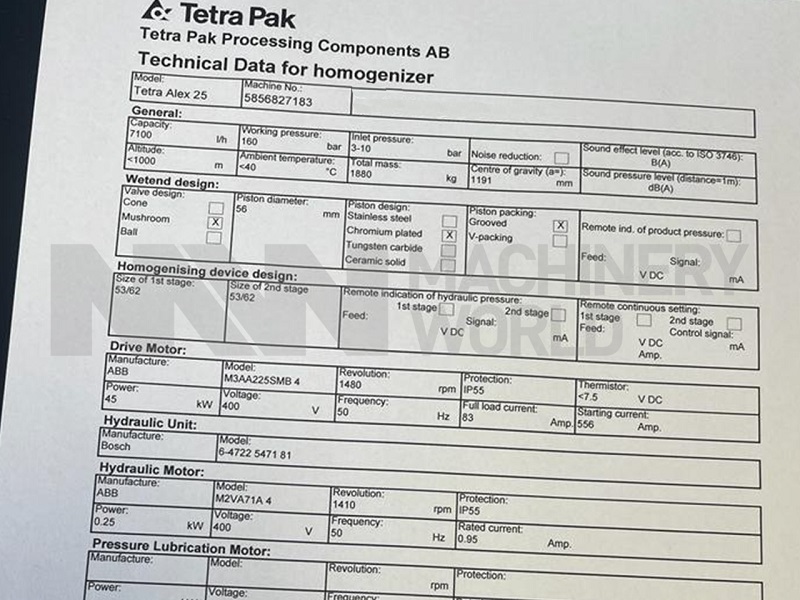

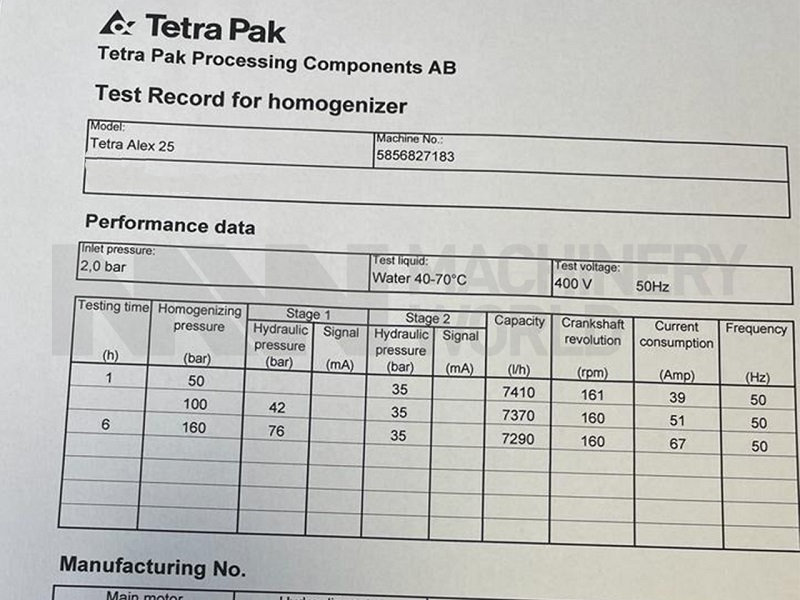

Download Technical Doc
