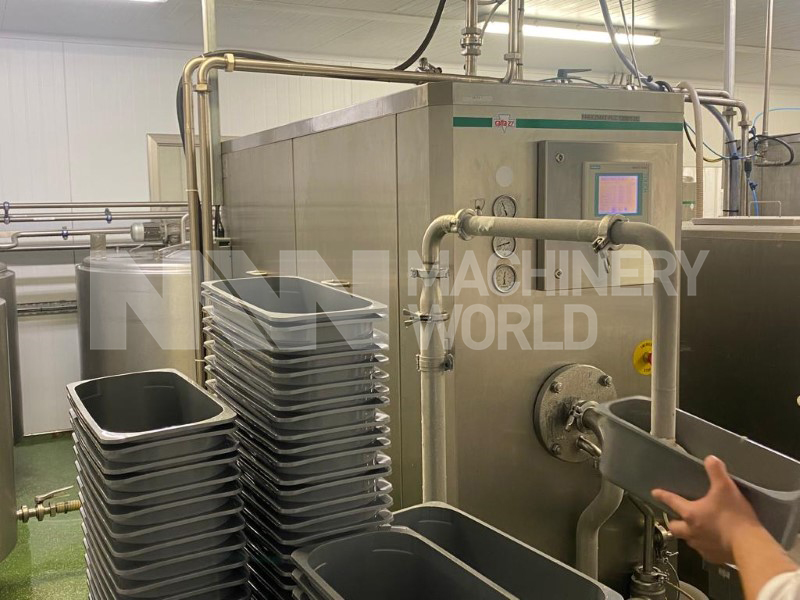

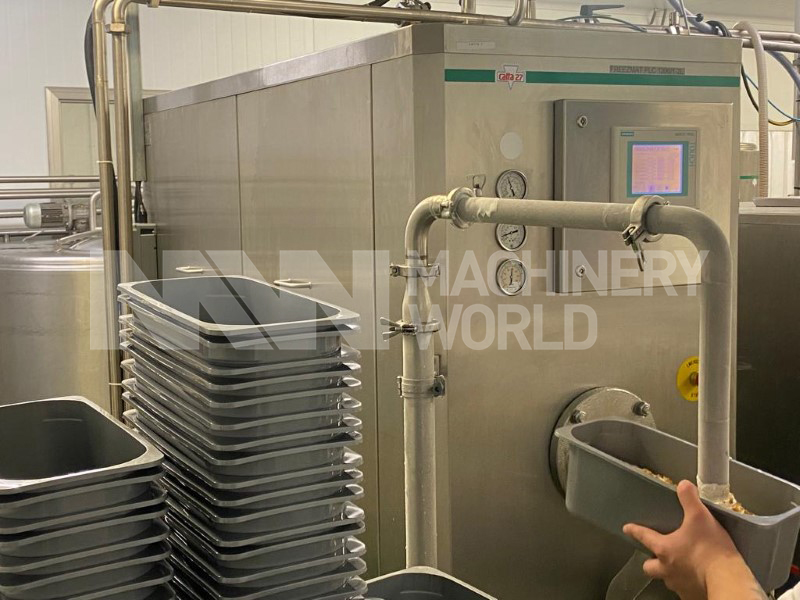

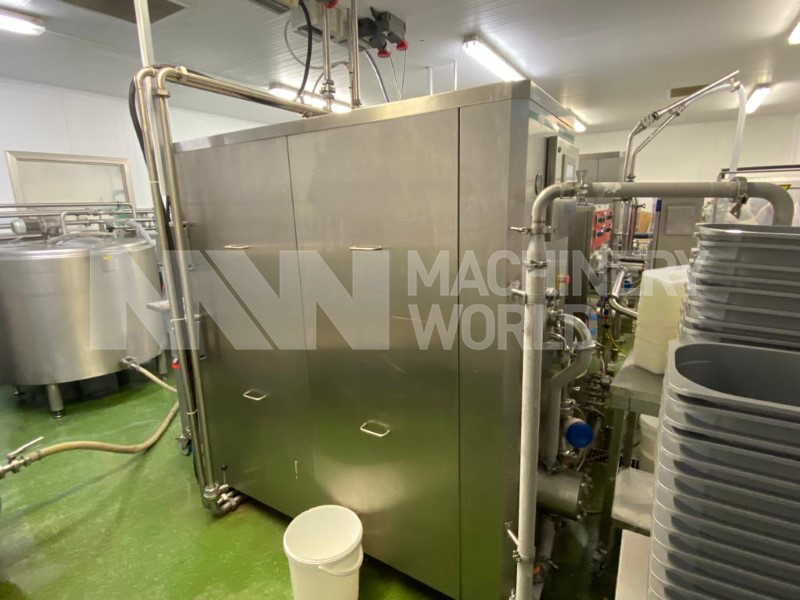

Catta 27 FRZ PLC 1200 Ice Cream Continuous Freezer



Description

FREEZMAT lobe pump are Catta 27 continuous freezers for industrial ice cream production, designed for medium and large productions are built according to the latest technological innovations.Two patented lobe pumps, the first to transfer the mixture even with solid parts (fruit seeds) and sterile air into the freezing cylinder, the second to transfer the ice cream without compromising the texture to the various uses. All pumps are manifactured with a special and patented architecture which allows the washing cycle (CIP) without having to disassemble the body of the same.

Features

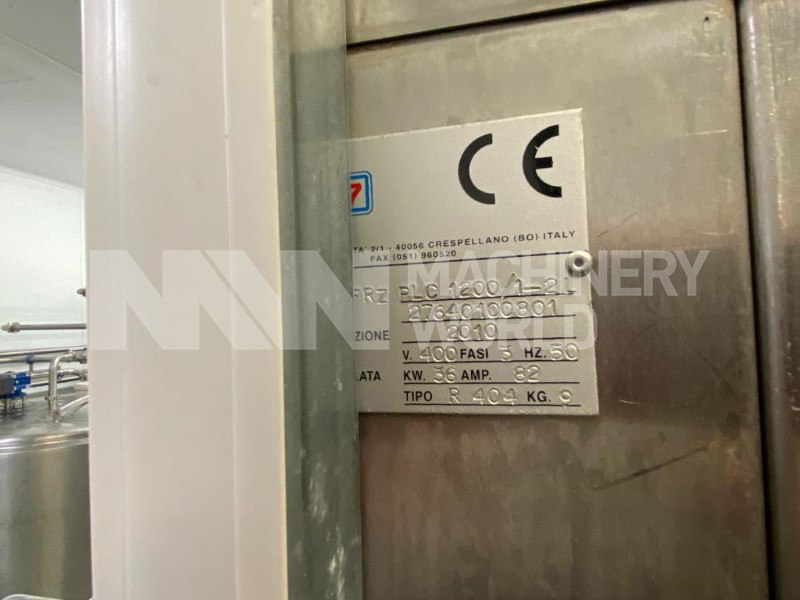

• Manufacturer: Catta 27
• Model: FRZ PLC 1200/1-2L
• Function: Continuous ice cream freezer
• Serial number: 27640100801
• Capacity: 1200 litres/per hour
• Year of manufacture: 2010
• Total installed power: 36 kW
• Equipped with two lobe pumps
• Refrigerant: R404A (9kg)
• Water cooled
• Voltage: 400V / 50 Hz / 3 phase

Dimensions

• Length: 210 cms
• Width: 85 cms
• Height: 200 cms
• Weight: 950 kgs

Country of Manufacture

Italy
