Technogel Ice Cream Production Factory – with 59 running hours! (Year 2007)

Description

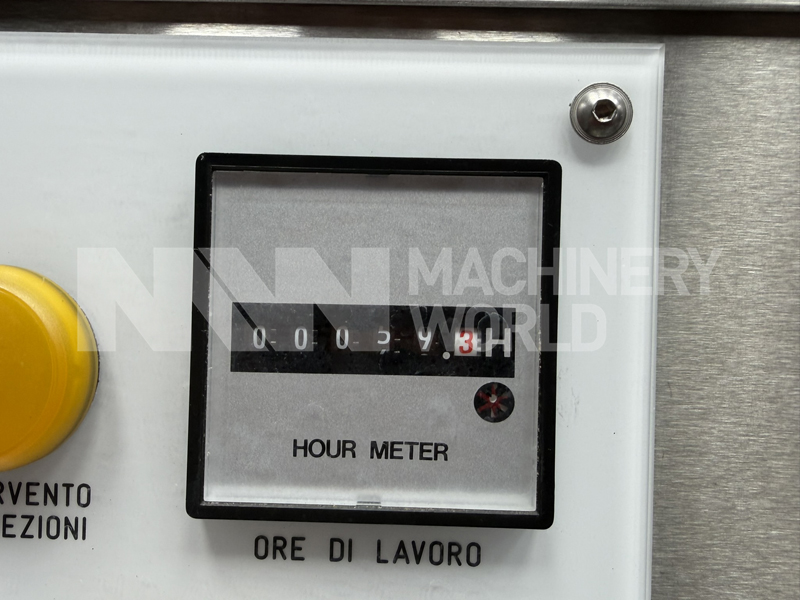

This plant never progressed beyond the commissioning phase and has accumulated just 59 running hours since its installation in 2007.

A complete Technogel ice cream production facility designed for small to medium-scale industrial manufacturers. This turnkey processing line was manufactured and installed in 2007 and provides everything required to pasteurise, mature, freeze and fill high-quality ice cream or gelato, with substantial production capacity and room for future growth.

See all the machines here:

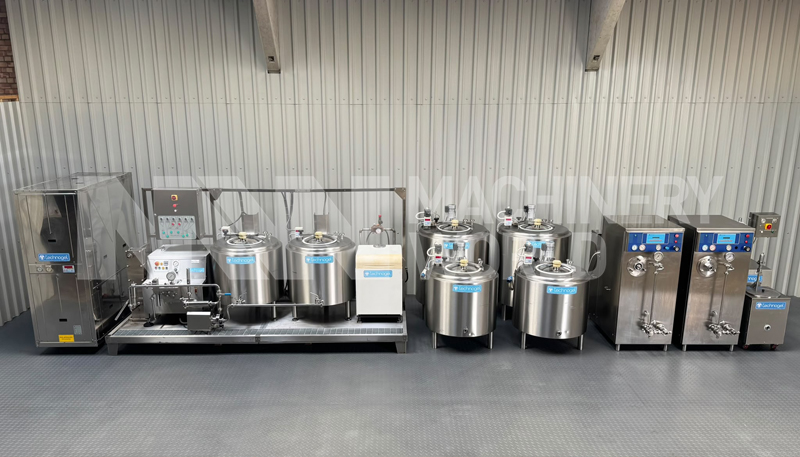

Equipment Included
1 × Technogel Mixworking 300 Ice Cream Mix Pasteurisation Plant
1 × Gas Boiler
2 × Technogel 300L Ageing (Maturation) Storage Tanks
2 × Technogel 600L Ageing (Maturation) Storage Tanks
2 × Technogel Continuous Freezers (400 litres per hour each)
1 × Technogel Ripple Pump
1 × Technogel Semi-Automatic Filling Machine
1 × Technogel Water Chiller
1 × Technogel Cooling Tower Water Unit

Production Capacity
Mix Processing Capacity: 300 litres per hour
Ageing/Maturation Storage Capacity: 1,800 litres
Continuous Freezing Capacity: Up to 800 litres per hour of finished gelato/ice cream (using both freezers simultaneously at 100% overrun)
Continuous Mix Production: Sufficient maturation storage to allow up to 6 hours of continuous mix production per day

This plant is ideally suited to manufacturers seeking a reliable, high-capacity production system with the flexibility to expand output as demand increases.

Includes

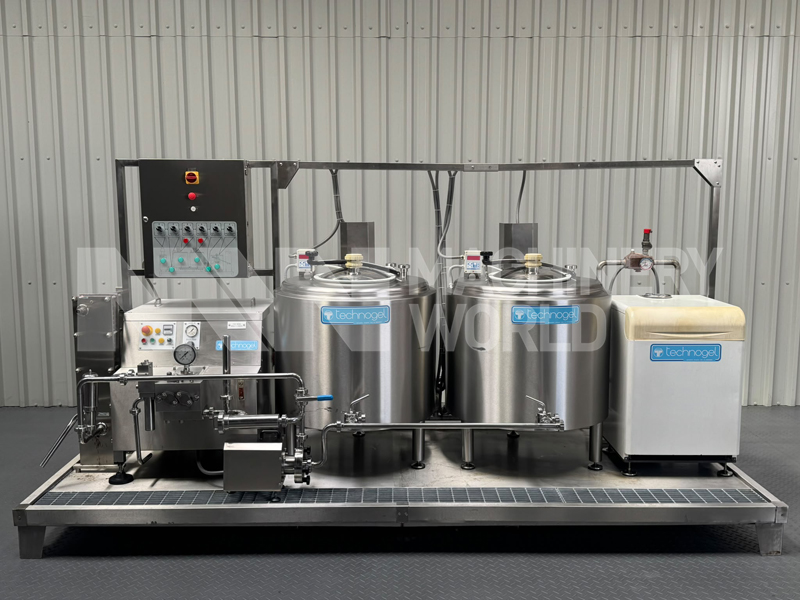

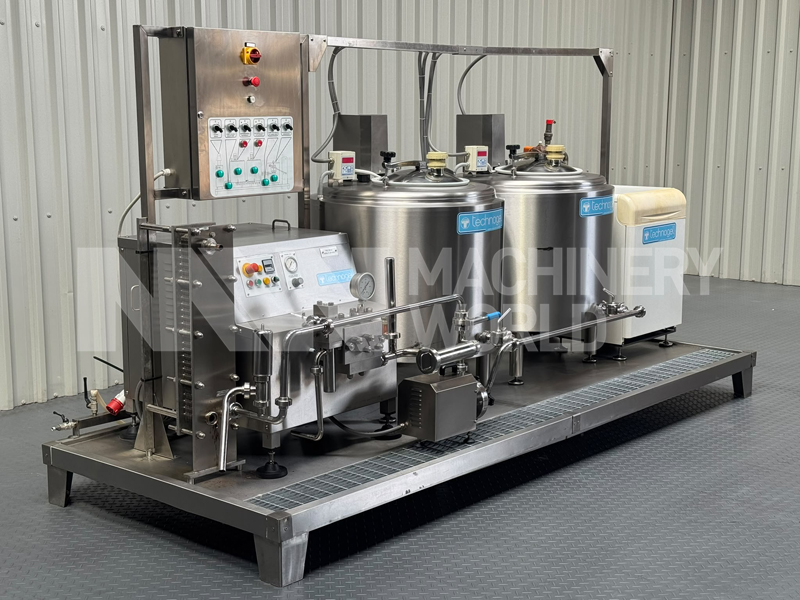

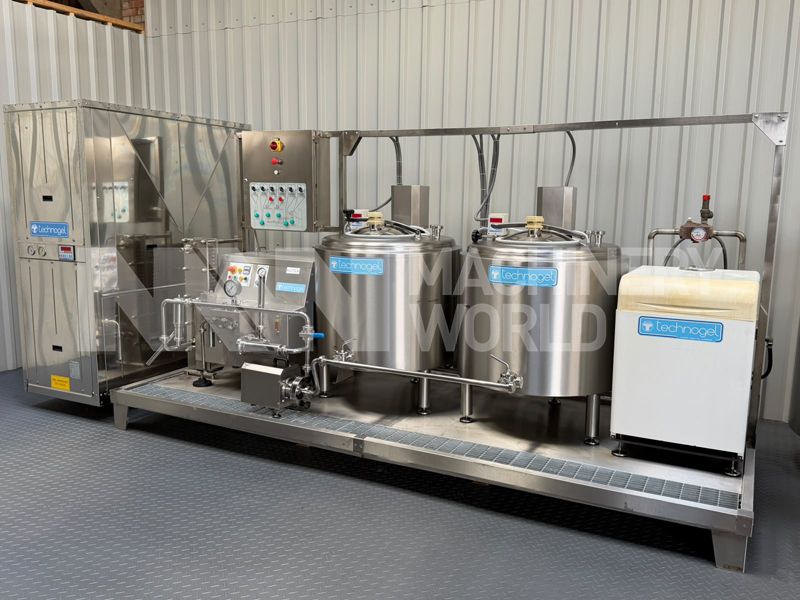

Ice Cream Mix Processing Plant

• Manufacturer: Technogel
• Model: Mixworking 300 B Gas
• Function: Ice cream batch process mix plant
• Serial number: 2804
• Year of manufacture: 2007
• Total installed power: 14 kW
• Electrics: 400V / 50 Hz / 3 Phase
• Country of manufacture: Italy

• Skid mounted unit complete with:
• 2 x 300L batch pasteurisation tanks

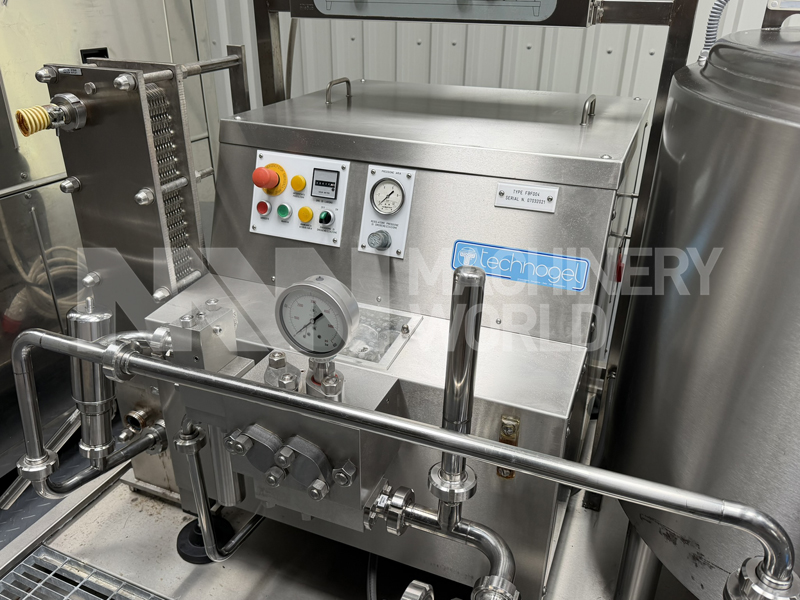

• FBF ball valve homogeniser
• Product filter

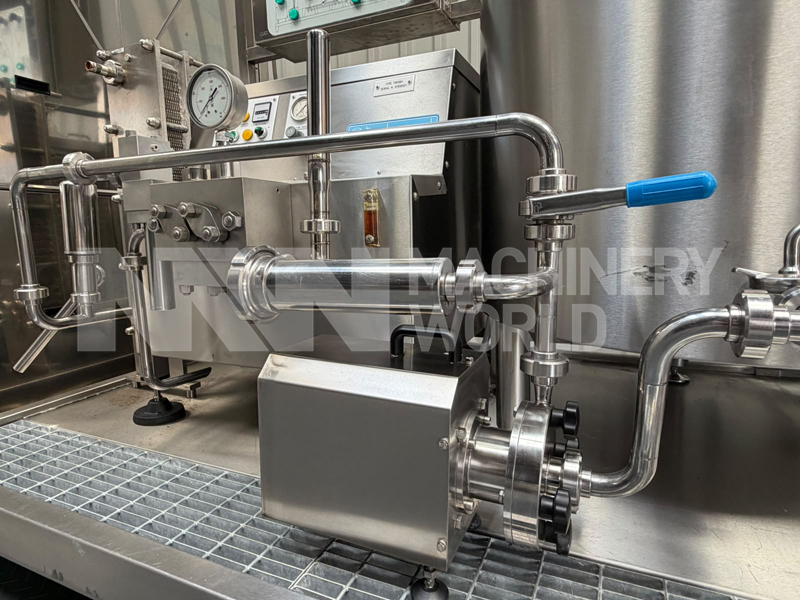

• Product and hot water pumps

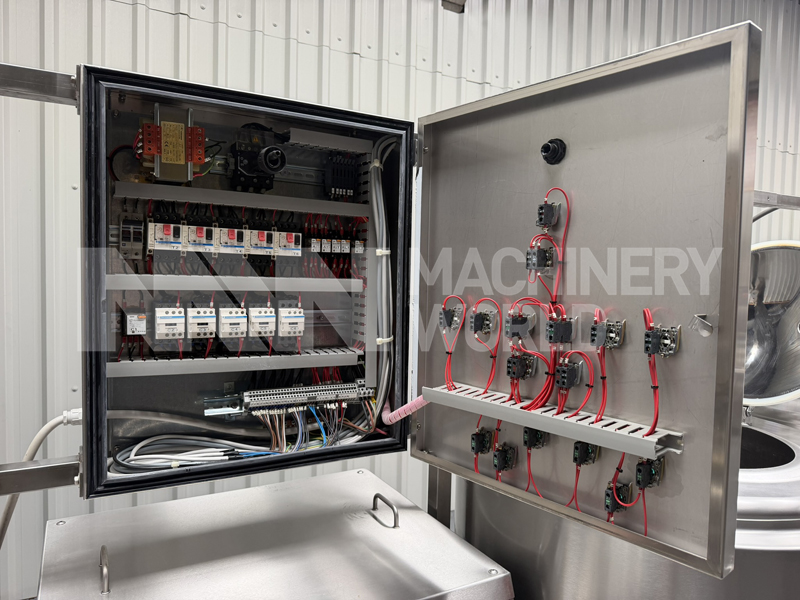

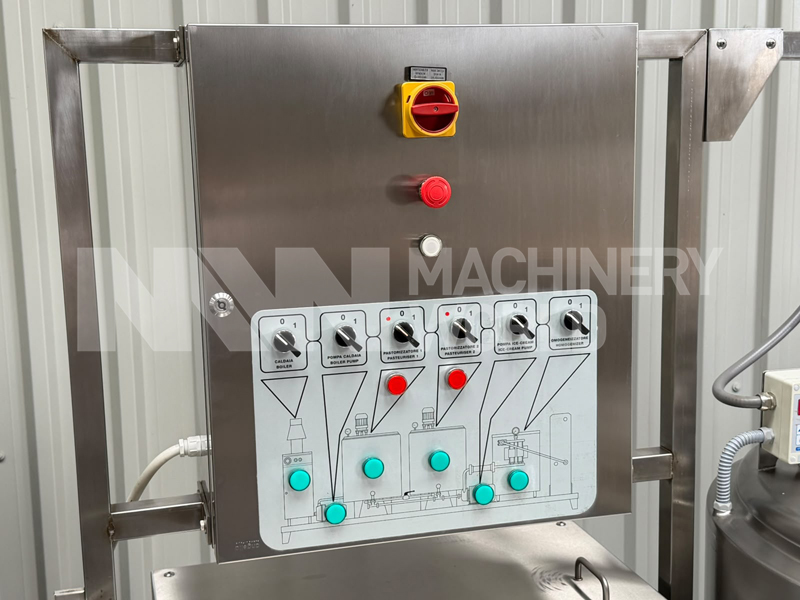

• Control panel
• Gas boiler

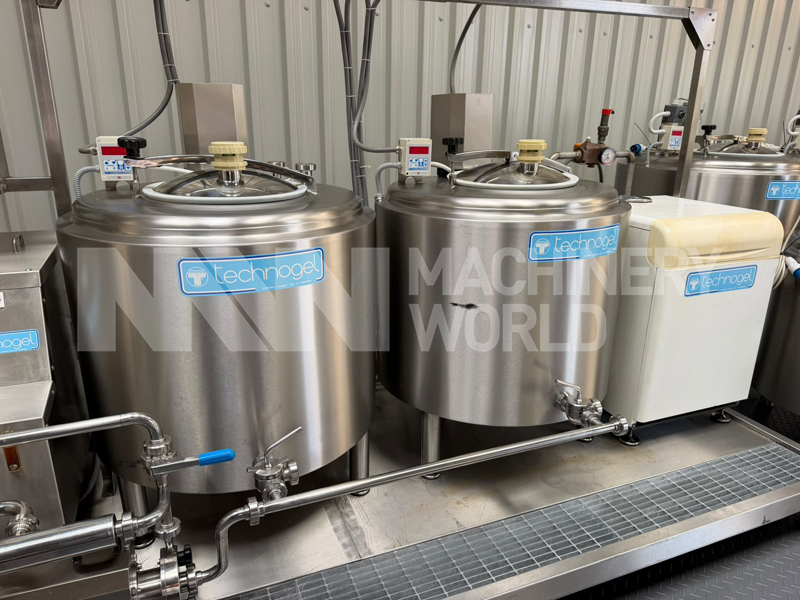

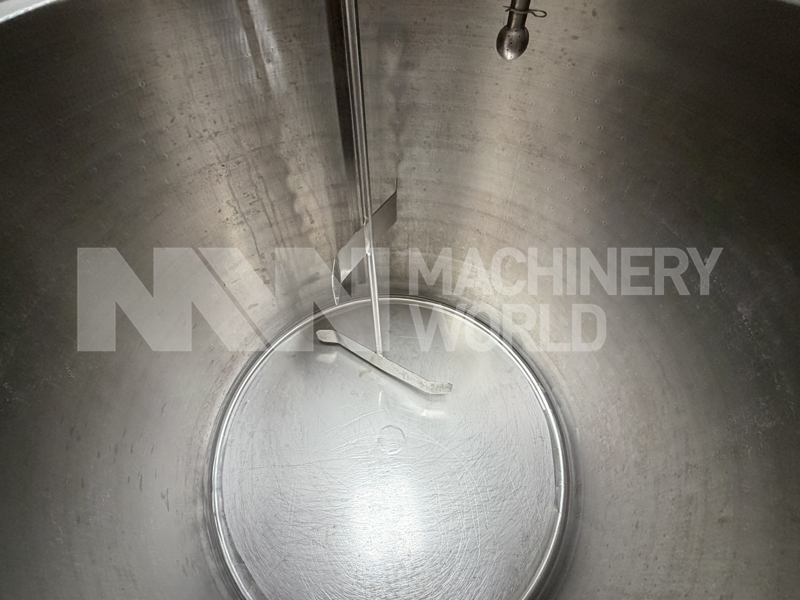

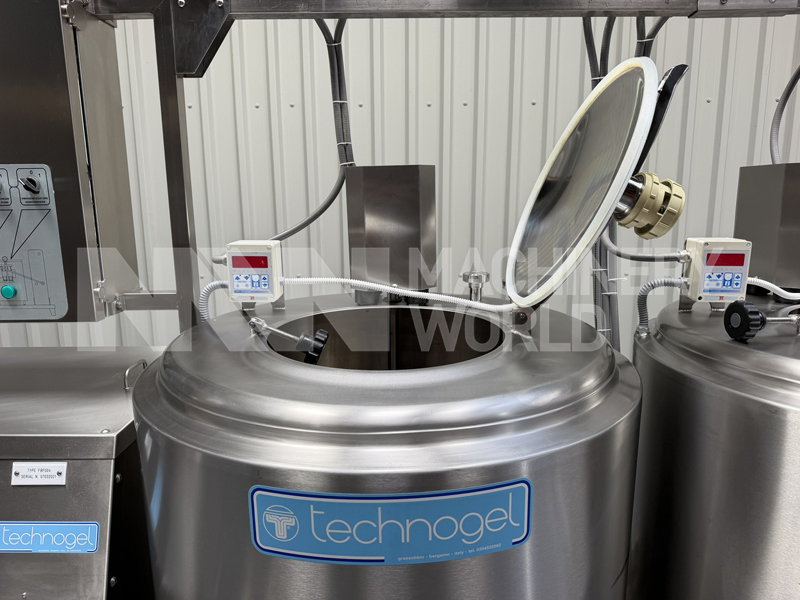

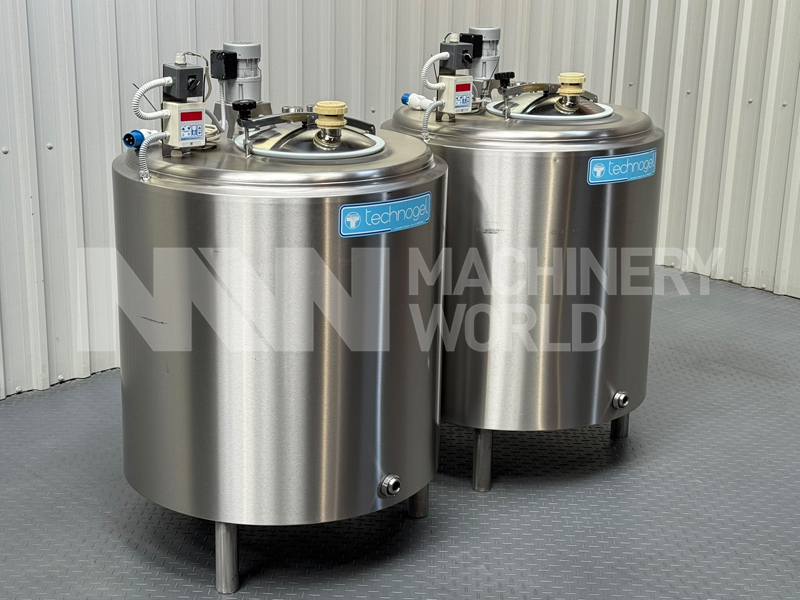

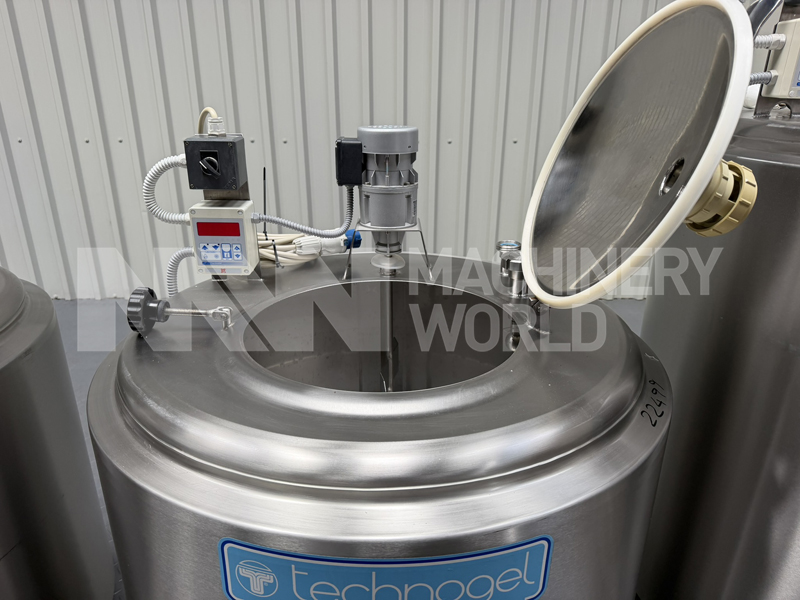

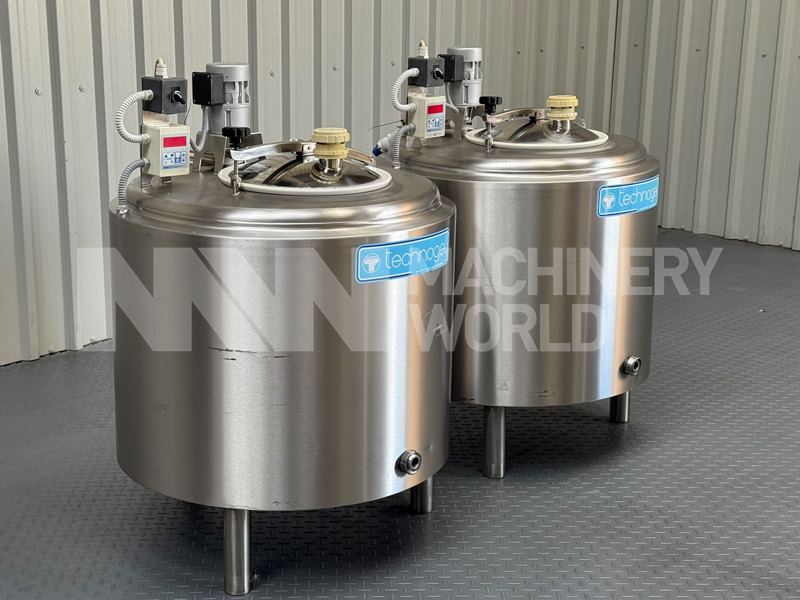

300 Ltr Ice Cream Ageing Vats (2 pcs available)

• Manufacturer: Technogel
• Model: Ageing Vat 300
• Function: Ice cream ageing / maturation vats
• Year of manufacture: 2007
• Serial numbers: 002697/01B / 002697/02B
• Capacity: 300 Litre

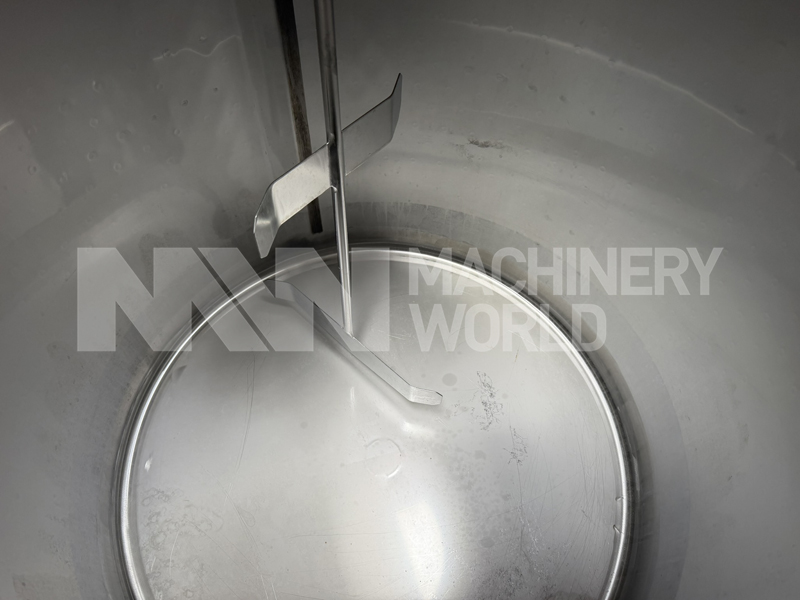

• Slow speed agitator speed: 30 RPM
• Equipped with digital thermostat
• Shape: Cylindrical with sloped bottom
• Orientation: Vertical
• Supports: 3x adjustable feet
• Man access: Closed manhole cover lids
• Total installed power: 0.075 kW
• Electrics: 220V / 50 Hz / Single phase
• Inner tank and outer casing made of AISI 304 stainless steel
• Country of manufacture: Italy

600 Ltr Ice Cream Ageing Vats (2 pcs available)

• Manufacturer: Technogel
• Model: Ageing Vat 600
• Function: Ice cream ageing / maturation vats
• Year of manufacture: 2007
• Serial numbers: 002696/01B / 002696/02B
• Capacity: 600 Litre
• Slow speed agitator speed: 30 RPM
• Equipped with digital thermostat
• Shape: Cylindrical with sloped bottom
• Orientation: Vertical
• Supports: 3x adjustable feet
• Man access: Closed manhole cover lids
• Total installed power: 0.075 kW
• Electrics: 220 V / 50 Hz / Single phase
• Inner tank and outer casing made of AISI 304 stainless steel
• Country of manufacture: Italy

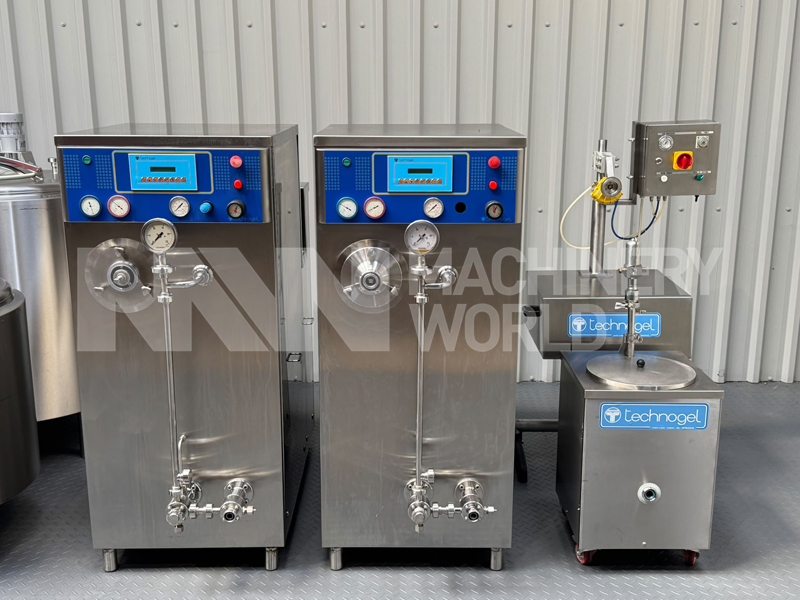

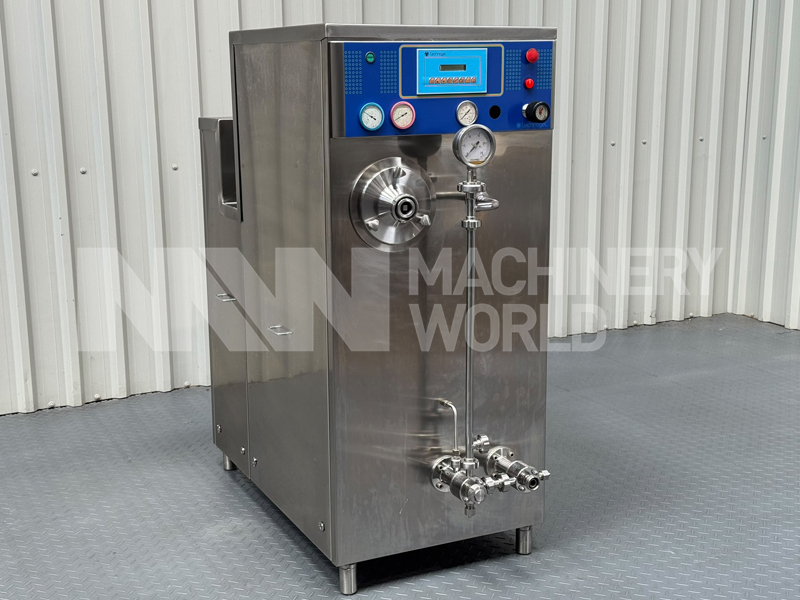

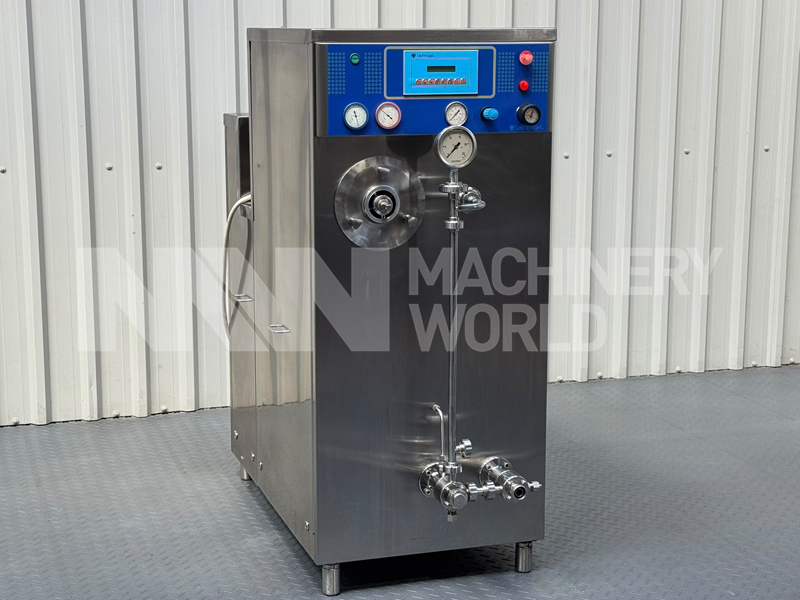

400 Ltr/Hour Ice Cream Continuous Freezers (2 pcs available)

• Manufacturer: Technogel
• Model: Freezer 400/1
• Function: Continuous ice cream freezer
• Capacity: 400 litres/per hour
• Serial number: 002581102B + 2303/01B
• Year of manufacture: 2007
• Refrigerant: R404A (5.5kg)

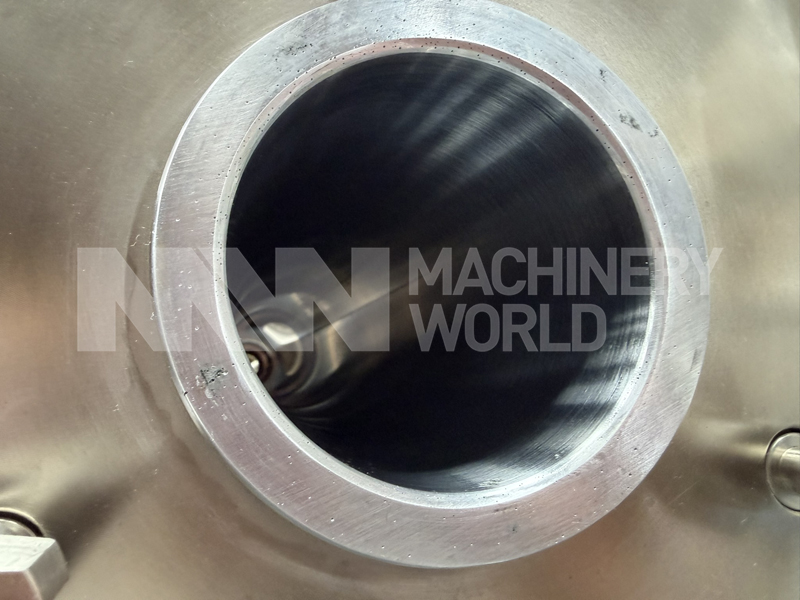

• Horizontal barrel
• CIP cleaning
• Single piston inlet pump
• Water-cooled
• Total installed power: 9.2 kW
• Electrics: 400V / 50 Hz / 3 Phase
• Country of manufacture: Italy

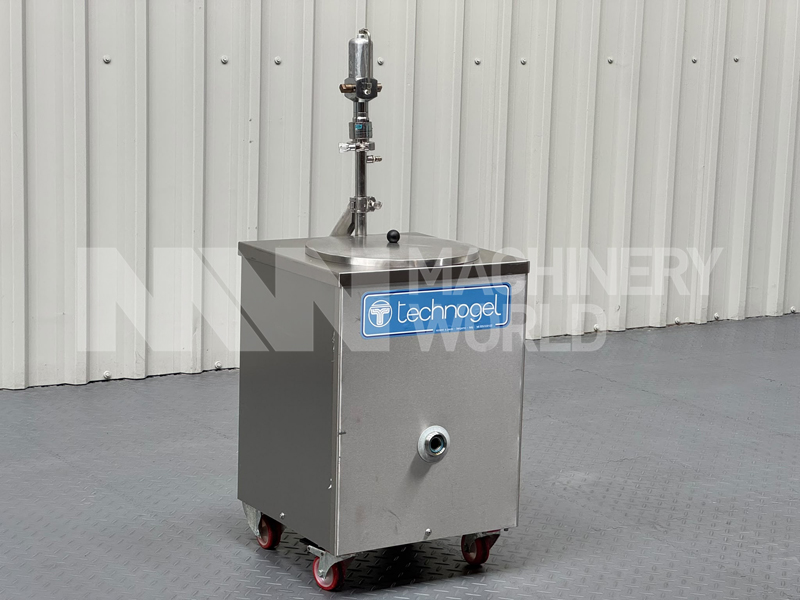

Ice Cream Ripple Pump:

• Manufacturer: Technogel
• Model: Variegatore PN
• Function: Injection of sauce/ripple to finished ice cream
• Serial number: 002575/02B
• Year of manufacture: 2007
• Variable speed control
• Minimum flow rate: 1 litres per/hour
• Maximum flow rate: 60 litres per/hour
• Hopper capacity: 25 litres
• Stainless steel construction
• Pneumatic volumetric pump
• Mounted on wheels
• Country of manufacture: Italy

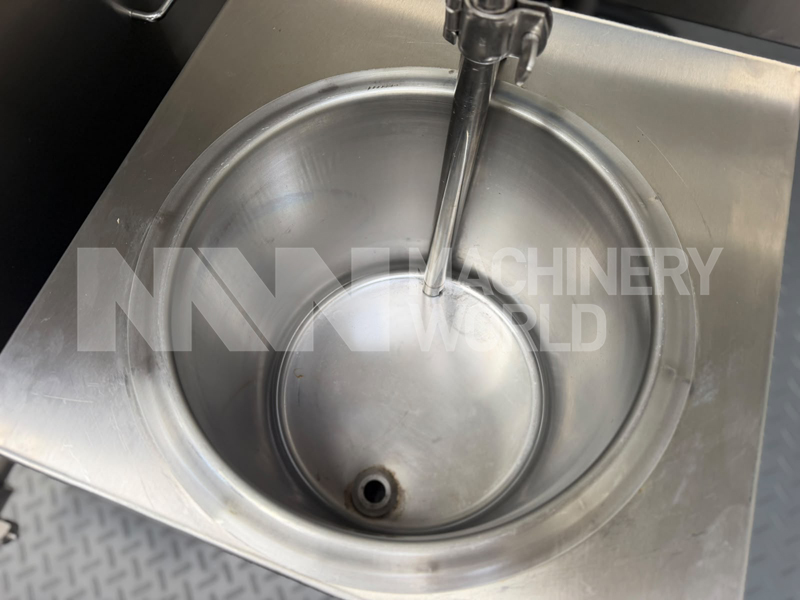

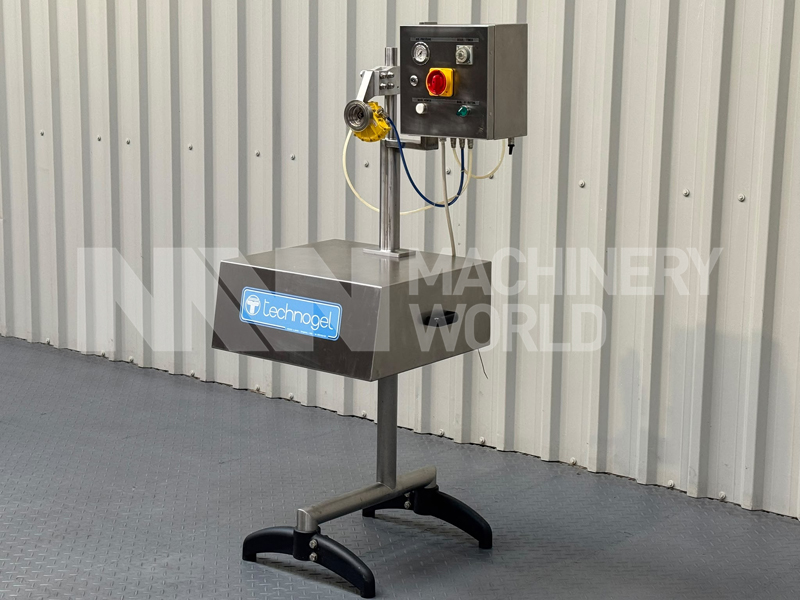

Ice Cream Filling Machine:

• Manufacturer: Technogel
• Model: Doser Desk
• Function: Semi-automatic filling machine
• Serial number: 002508/1B
• Year of manufacture: 2007
• Stainless steel construction
• Electrics: 400V / 50 Hz / 3 Phase
• Country of manufacture: Italy

Cooling Tower:

• Manufacturer: Technogel
• Model: Torre Raff (Cooling Tower)
• Function: Supplying cool water (circa 28degC) to the mix processing plant & continuous freezers
• Serial number: 002698/01B
• Year of manufacture: 2007
• Total installed power: 11 kW
• Stainless steel construction
• Electrics: 380V / 50 Hz / 3 Phase
• Country of manufacture: Italy

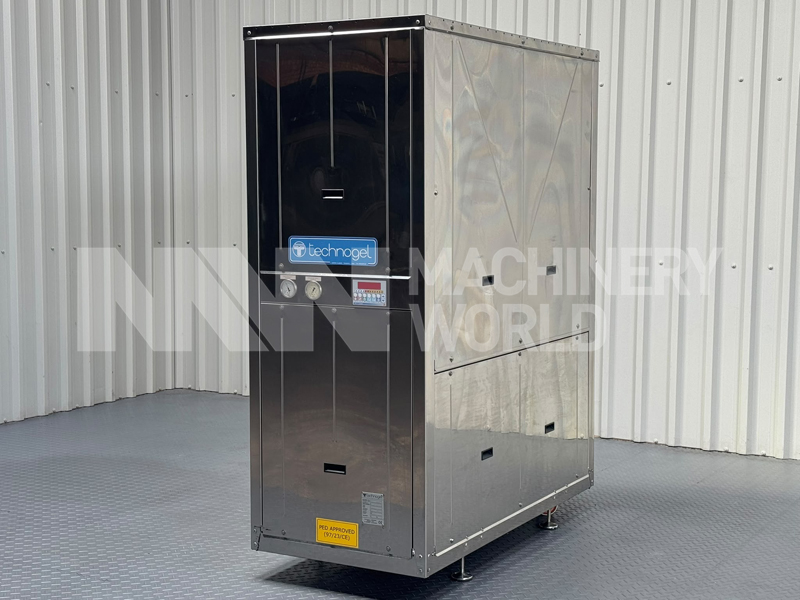

Chilled Water Unit:

• Manufacturer: Technogel
• Model: Vasca Acqua (Water Tank)
• Function: Supplying chilled water (circa 1degC) to the mix processing plant and ageing vats
• Serial number: 002695/01B
• Year of manufacture: 2007
• Total installed power: 11 kW
• Stainless steel construction
• Electrics: 380V / 50 Hz / 3 Phase
• Country of manufacture: Italy
