Description

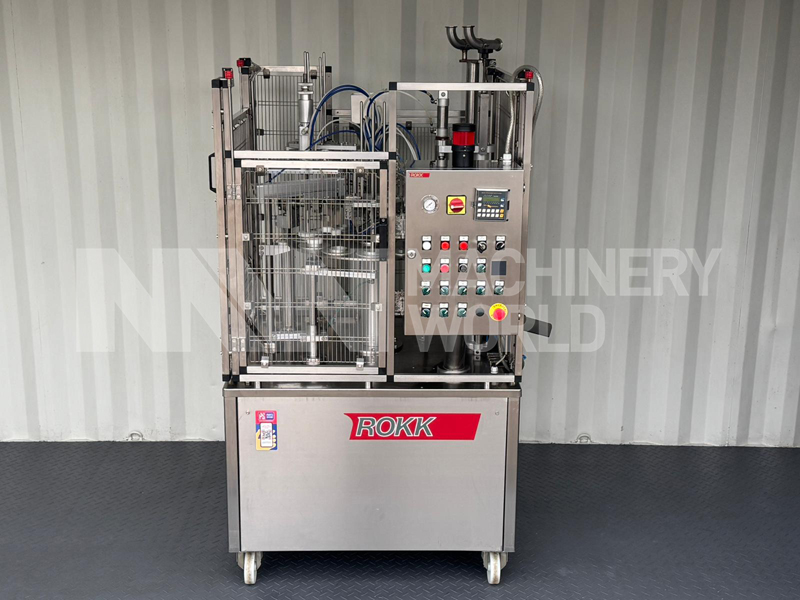

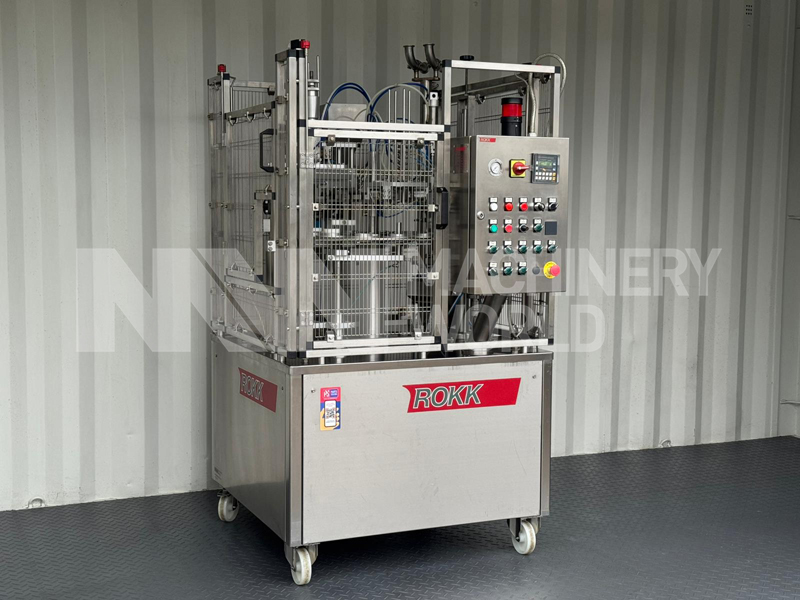

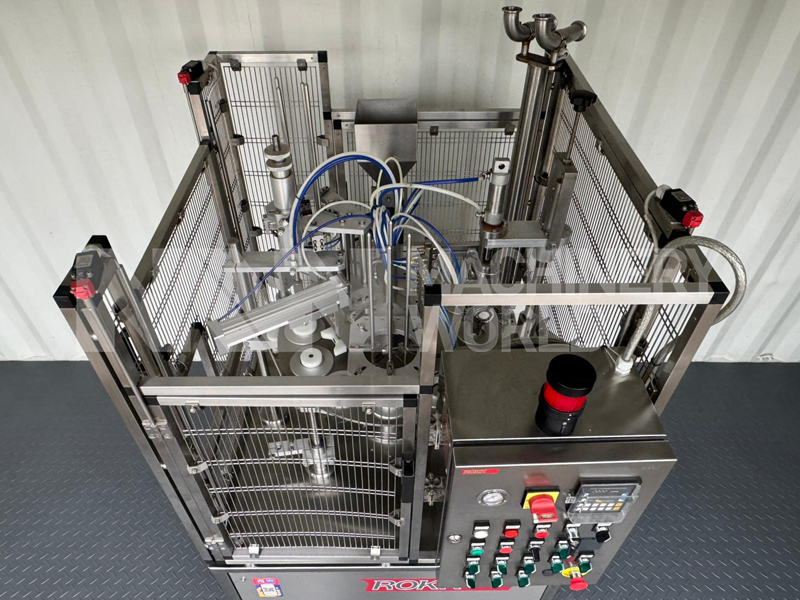

This pre-owned RR 3800 Fully Automatic Ice Cream Rotary Filler, manufactured by ROKK Processing in 2008, is available in excellent condition. The machine comes with one set of change parts designed for 125ml Cups (with 65mm lid diameter) without heat seal.
The RR 3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour for a standard cup or 2,400 units (per row) every hour if applying the heat seal. With adjustable fill volumes of between 50ml and 1litre and a mechanical drive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR 3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.
The filling assembly of the RR 3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.
Other change parts for other size packaging are available upon request for an additional cost.
Features
- Manufacturer: ROKK Processing
- Model: RR 3800
- Function: Rotary ice cream tub filler

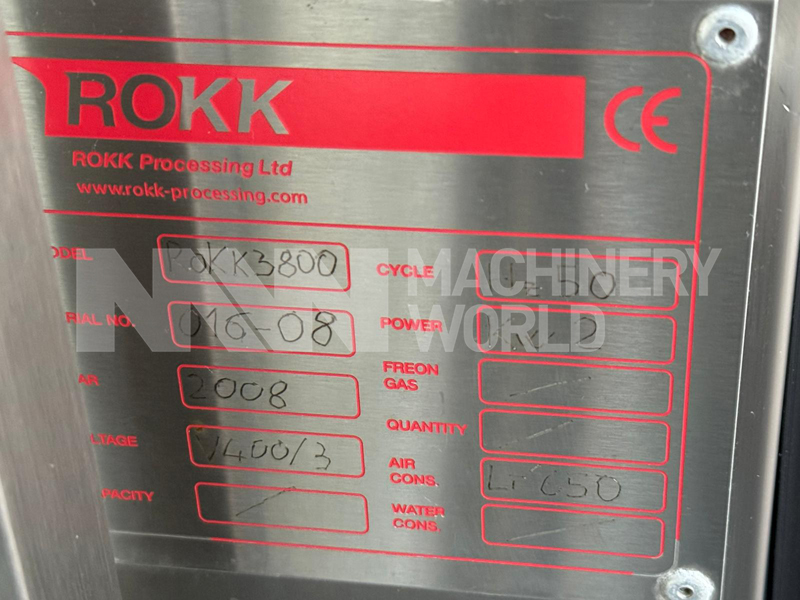

- Serial number: 016-08
- Year of construction: 2008
- Capacity: up to 3,800 pieces/per hour*
- Change parts:
- 65mm diameter / Approx. 125ml
- Number of rows possible: 1

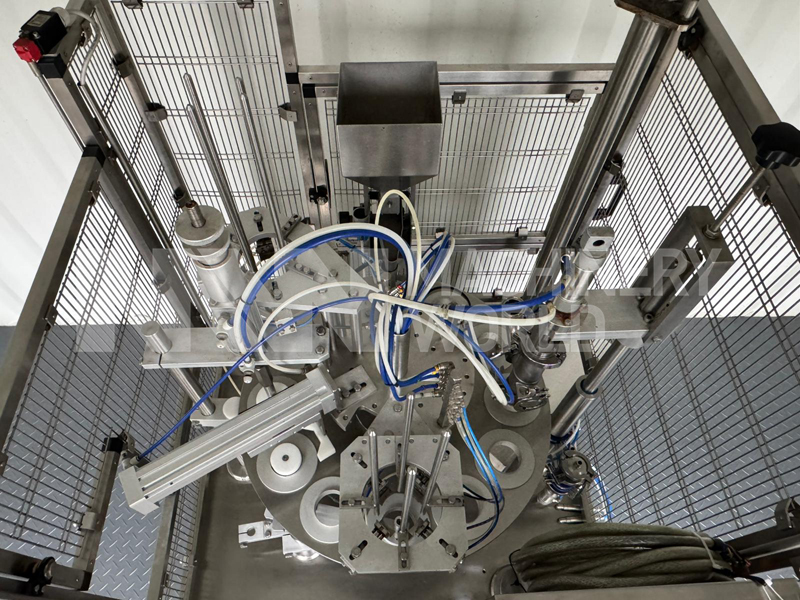

- Machine stations include: Cup drop, Cup fill, Dry Ingredients Sprinkling, Lid applicator, Lid closing device & Eject Conveyor.
- Electrical consumption: 2 kW
- Air consumption: 650 Nl/min
- Stainless steel construction
- Fully guarded
- Voltage: 400V/50Hz/3 Phase
- Instruction manual supplied
- *ROKK state the actual capacity is dependent upon a number of factors, including shape and volume of the product as well as filling and sealing.
Dimensions
- Length: 135 cms
- Width: 125 cms
- Height: 198 cms
- Weight: 640 kgs
