ROKK RC 200 Chocolate Heating Tank
Out of stock
Request more information
25+ Years in business since 1999
100+ Countries supplied worldwide delivery
Detailed Photos and video see exactly what you're buying
Export Documentation full export sales invoicing customs
100% Servicing and upgrade options available
Expert After-sales support we're here to help after delivery
Description

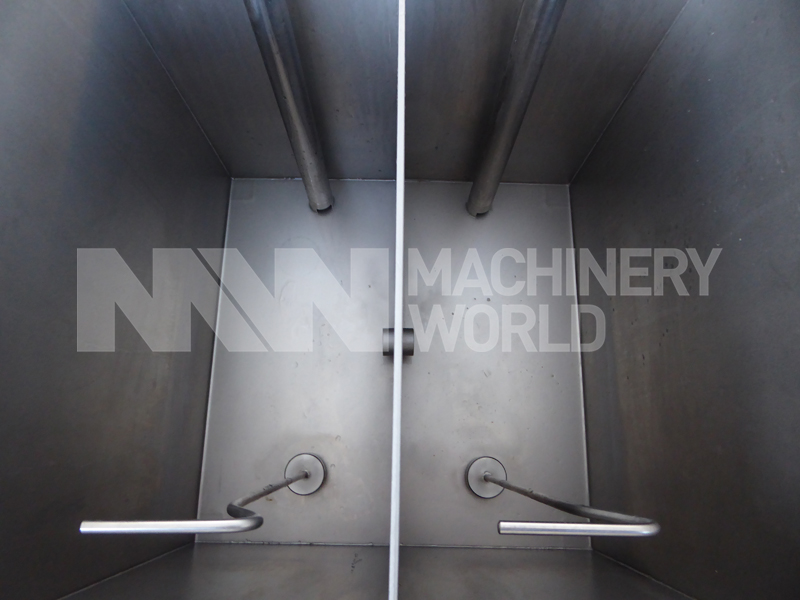

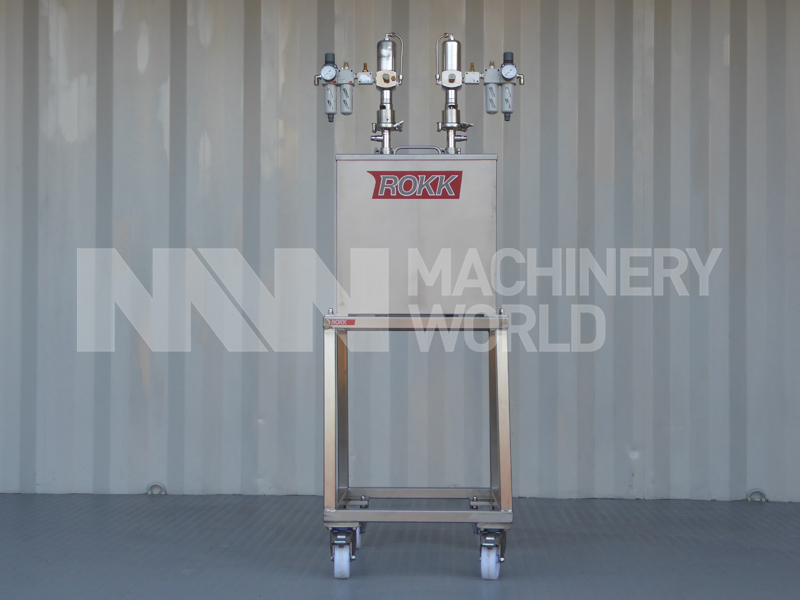

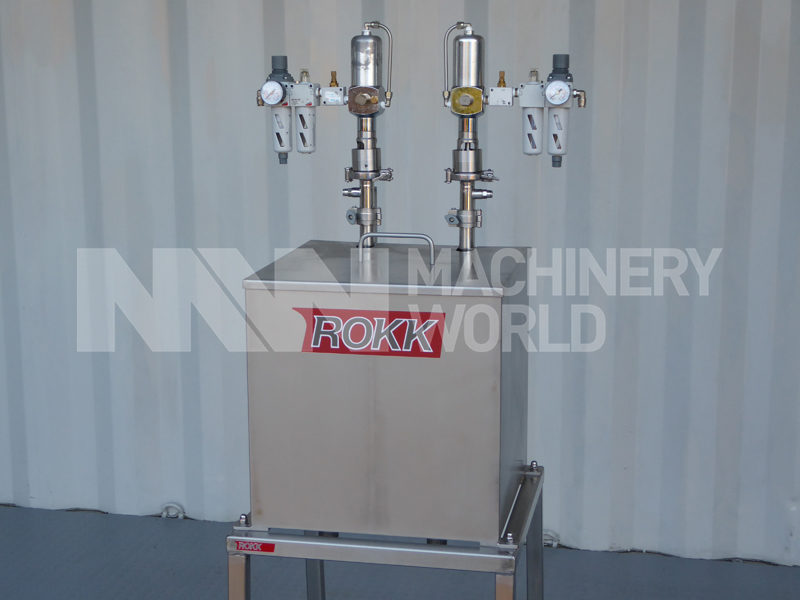

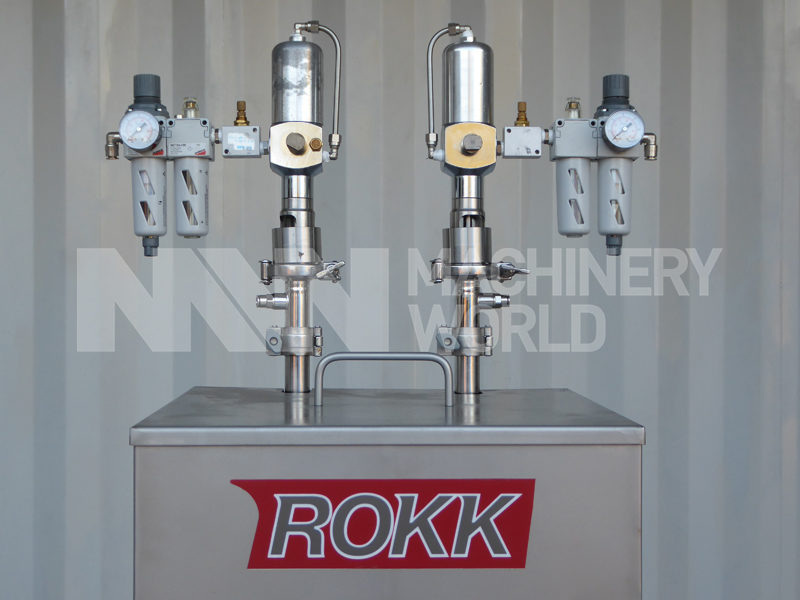

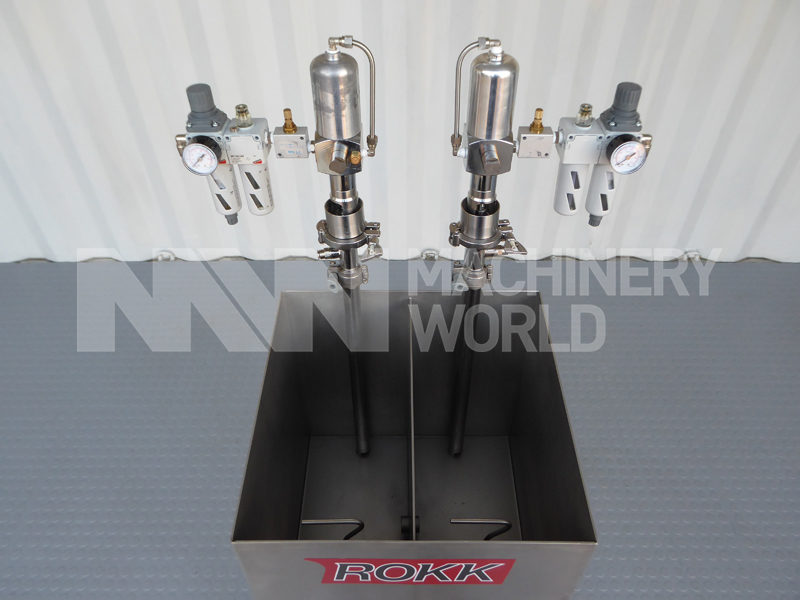

The RC 200 ripple pump from ROKK Processing is used to inject chocolate or syrup and similar products into the ice-cream as it extrudes from the continuous freezer. It is made up of a vat equipped with heating elements, with a discharge tap and pneumatic volumetric pump that doses the product.
The quantity of the chocolate or syrup injected can be varied by adjusting the flow of compressed air supplied to the piston of the pump. The air compressor is not included.
Features
- Manufacturer: ROKK
- Model: RC 200
- Function: Twin chocolate heating tank
- Variable speed control
- Minimum flow rate: 35 litres per/hour
- Maximum flow rate: 200 litres per/hour
- Air consumption: 8000 litres / hour @ 6 bar (per pump)

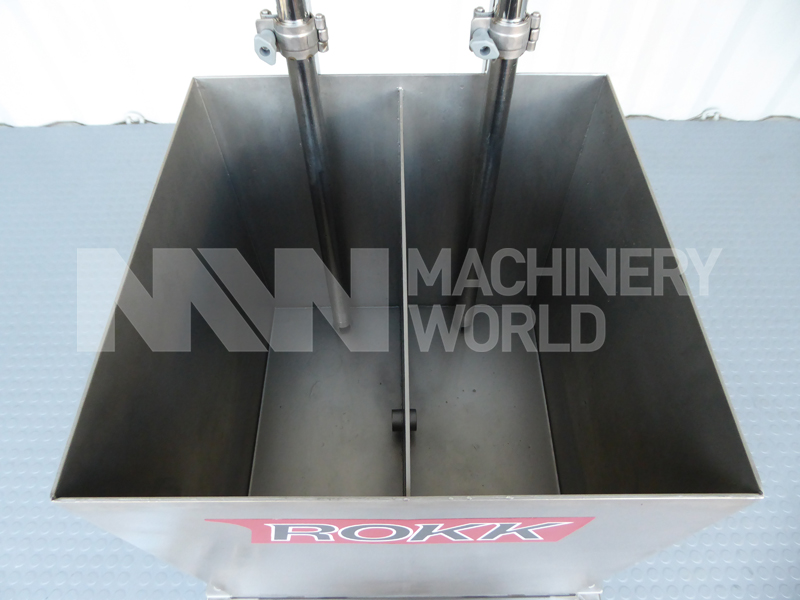

- Tank capacity: 40 litres - (Split 20/20)
- Total installed power: 2kW
- Electrics: 240V, Earth, Single phase
- Stainless steel construction
- Pneumatic supply
- Supplied without ripple fittings (Available to order)
Dimensions
- Depth: 62 cms
- Width: 50 cms
- Height: 150 cms
- Weight: 70 kgs
