Description

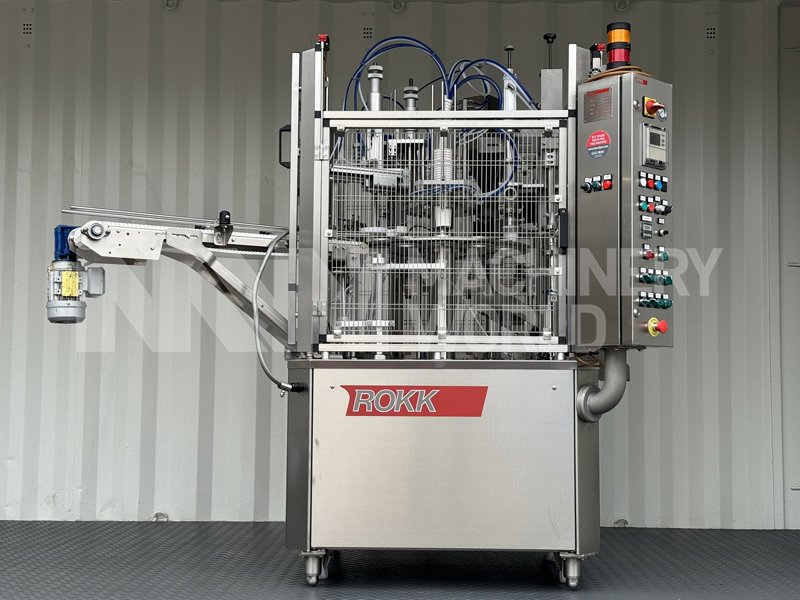

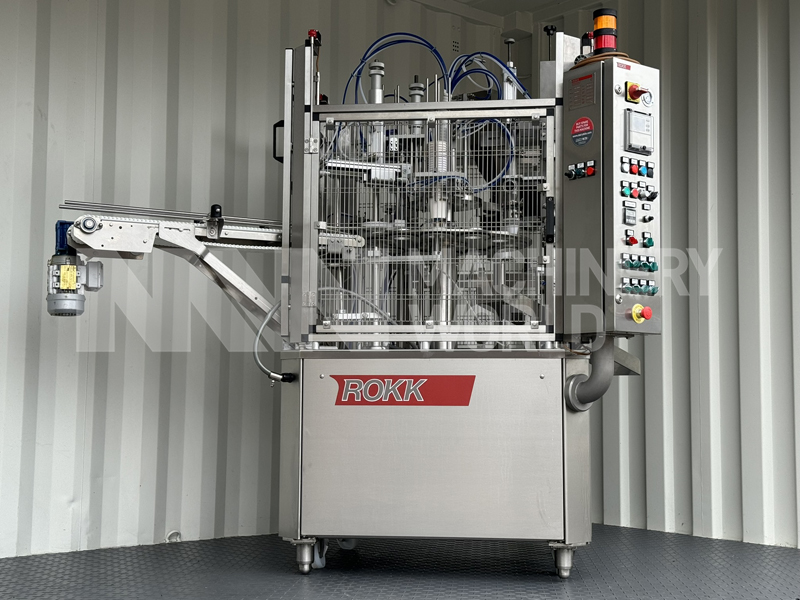

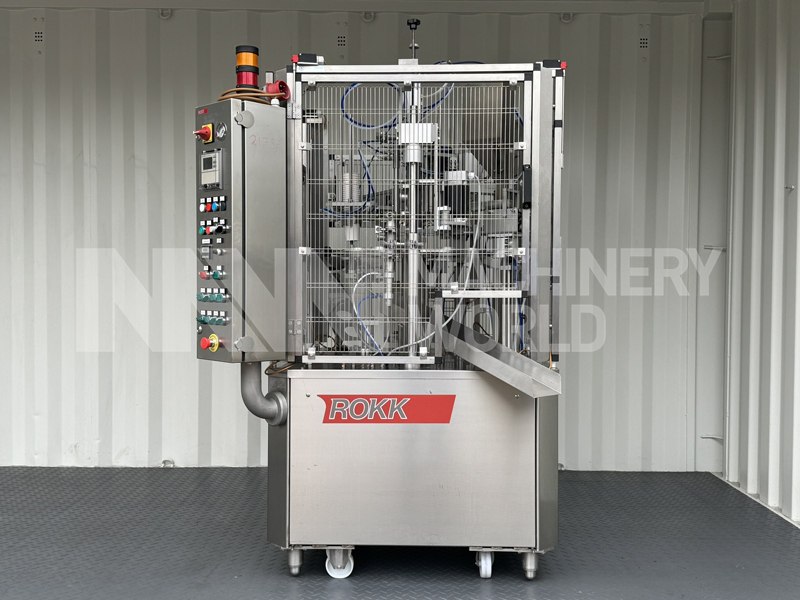

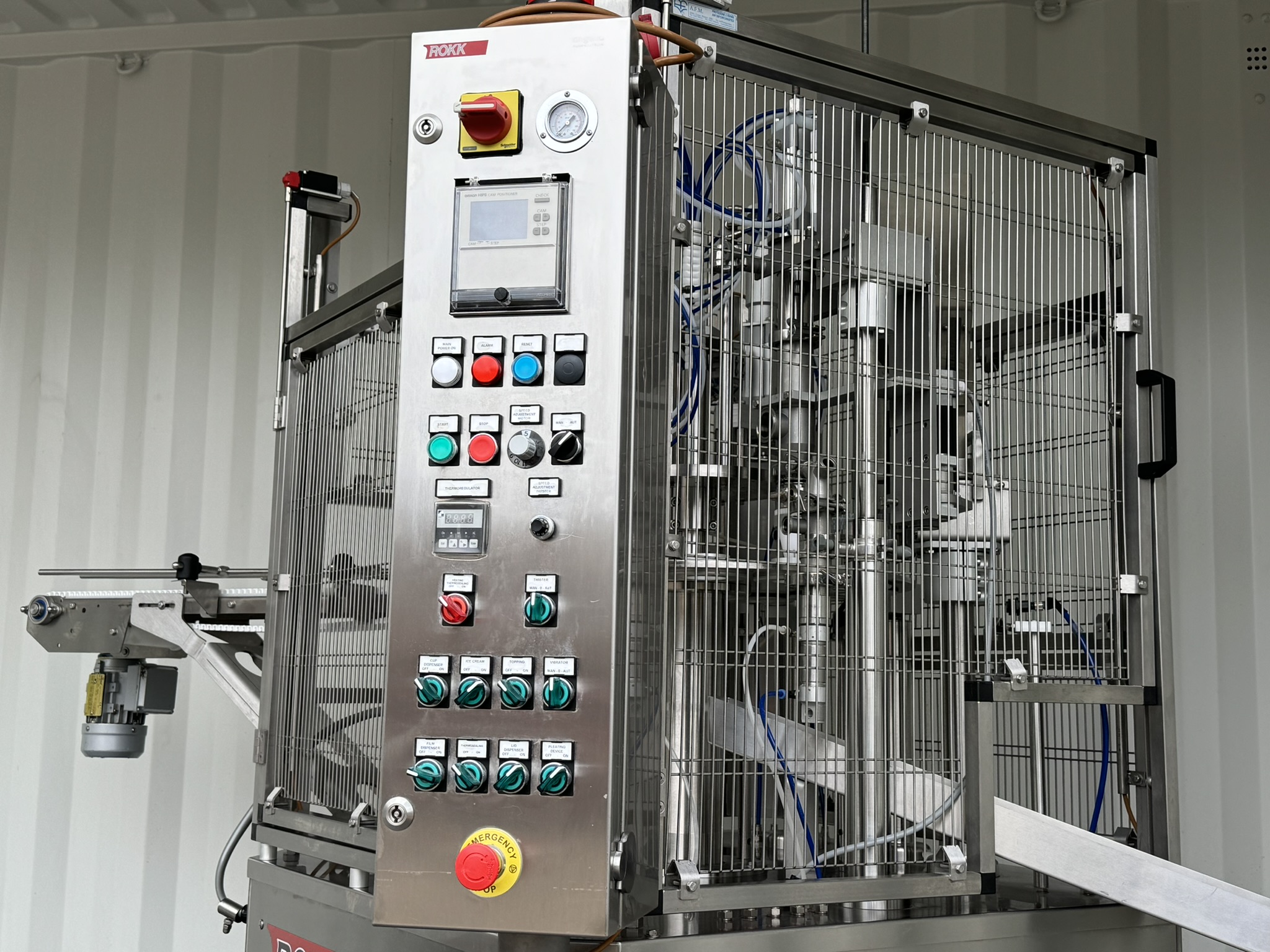

The RR3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour. With adjustable fill volumes of between 50ml and 1litre and a mechanicaldrive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.

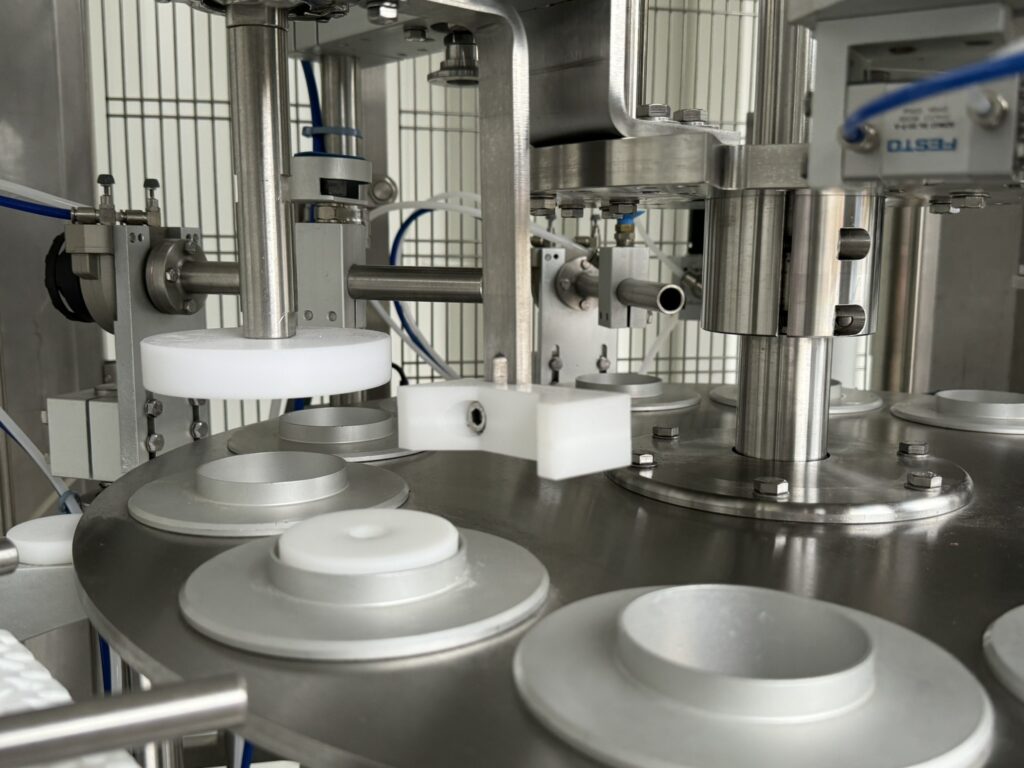

The filling assembly of the RR3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.

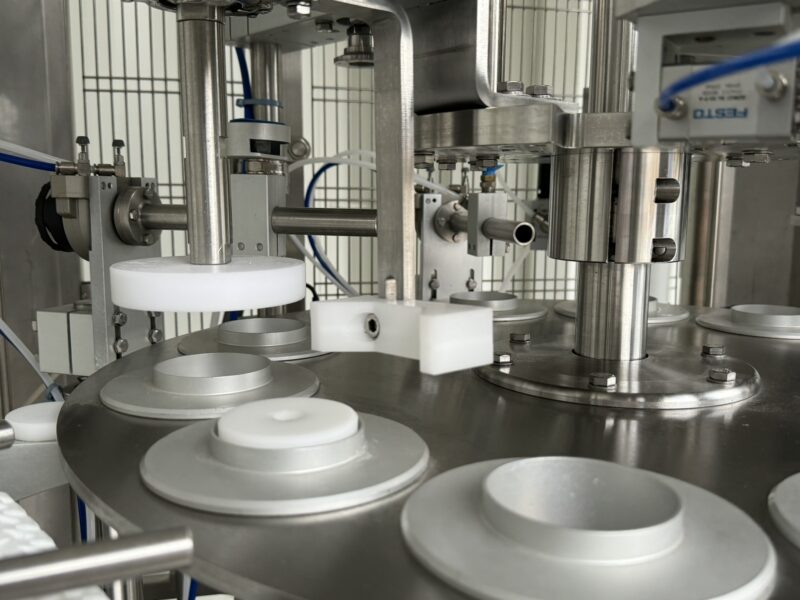

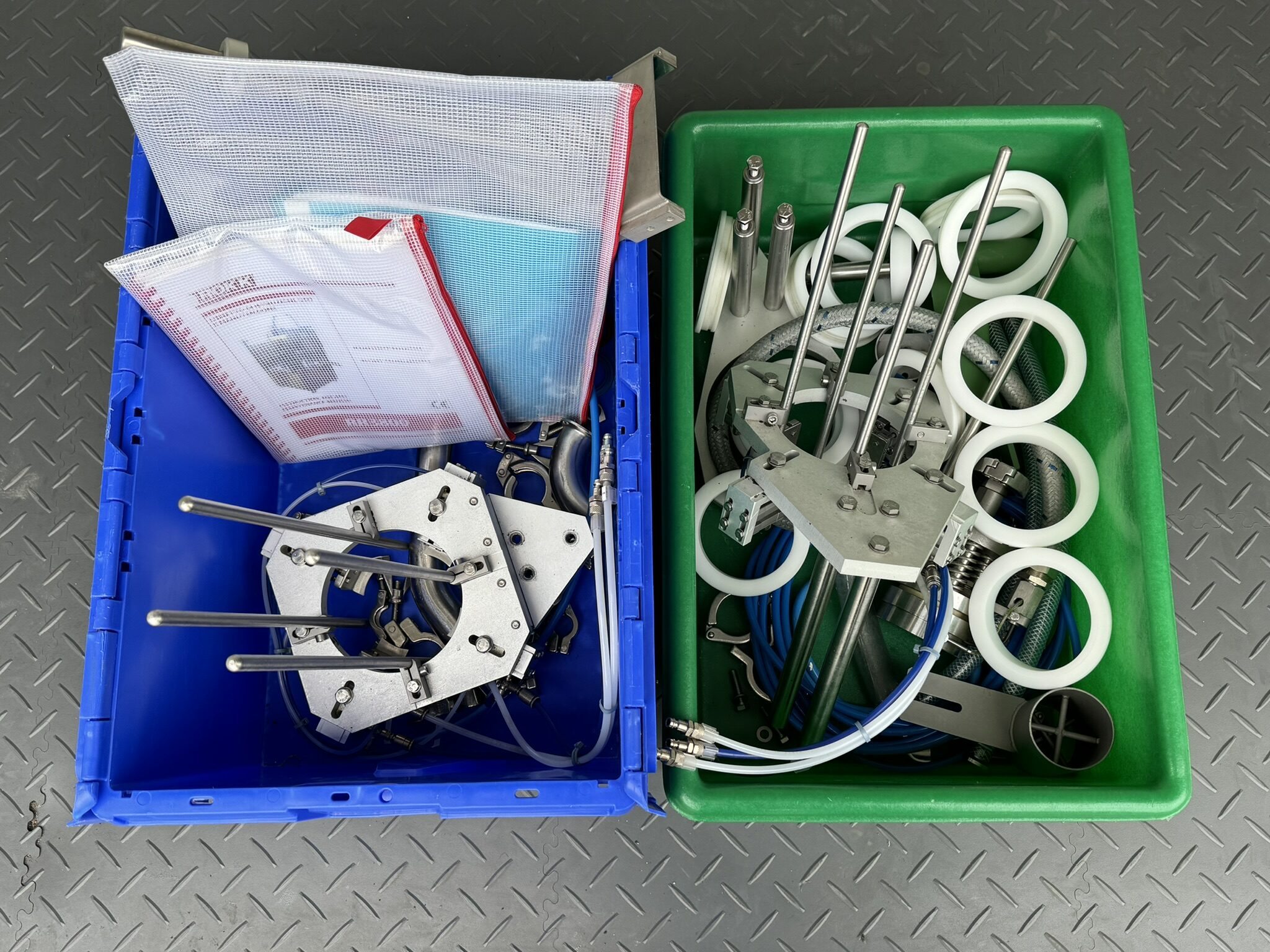

This particular machine is supplied with change parts for 67mm diameter (approx 125ml) and 92mm diameter (approx 500ml) cups. Note, the 125ml change parts include the heat seal applicator.
Features

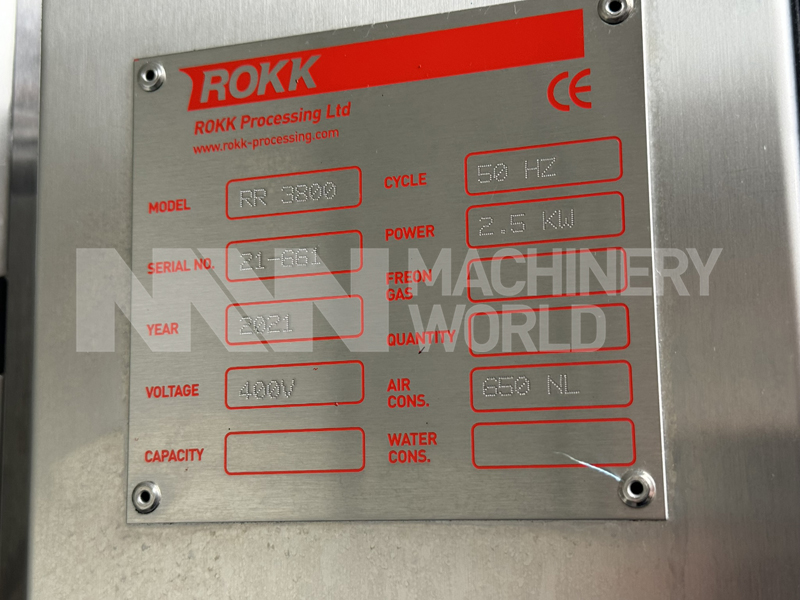

- Manufacturer: ROKK Processing
- Model: RR3800
- Function: Rotary ice cream tub filler
- Serial number: 21-661
- Year of construction: 2021
- Capacity: 3,800 pieces/per hour or 2,400 pieces/per hour (with heat seal)
- Change parts: 125ml & 500ml (67mm + 92mm diameter)
- Number of rows possible: 1

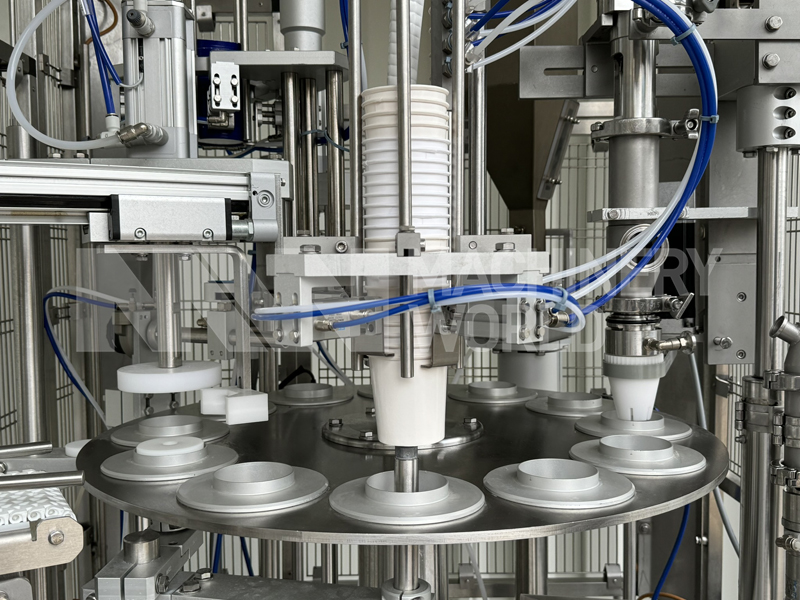

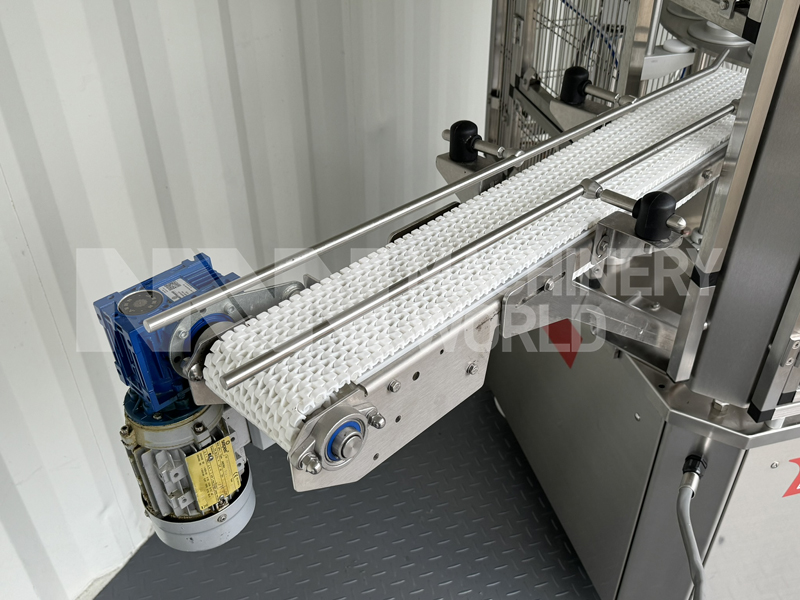

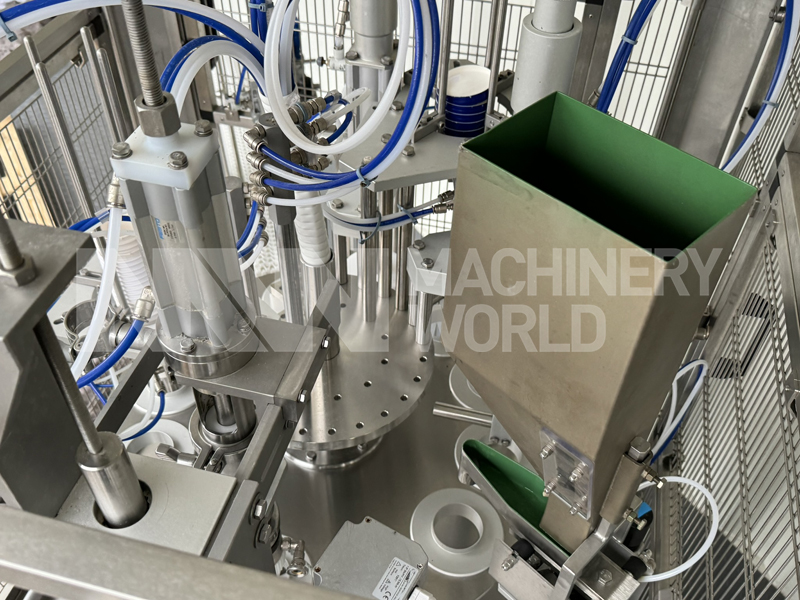

- Machine stations include: Cup drop, Cup fill, Dry Ingredients Sprinkling, Heat seal applicator (for 67mm diameter cup), Lid applicator, Lid closing device & Belt driven eject conveyor.
- Electrical consumption: 2.5 kW
- Air consumption: 650 Nl/min
- Stainless steel construction
- Fully guarded
- Voltage: 400V/50Hz/3 Phase
- Instruction manual supplied
- Videos available of this model machine in operation.
Dimensions
- Length: 105 cms
- Width: 105 cms
- Height: 185 cms
- Weight: 640 kgs
