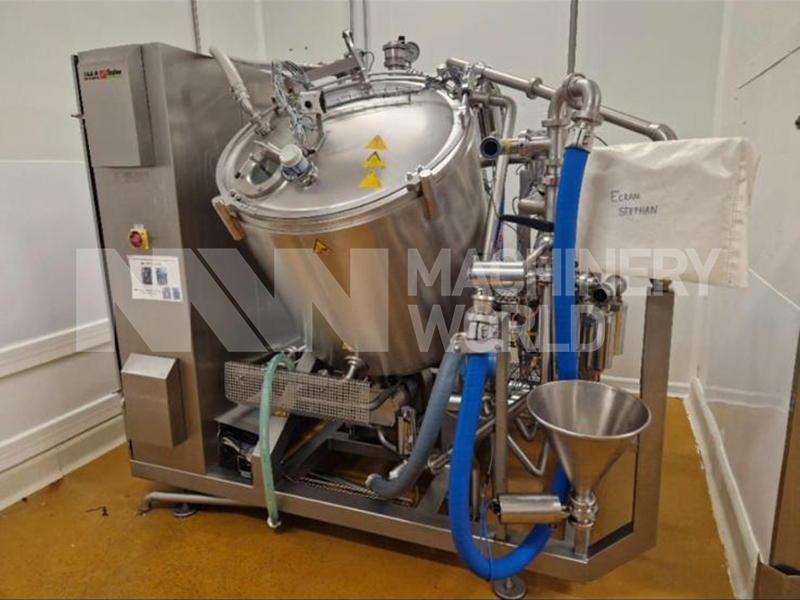

Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011)
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 2

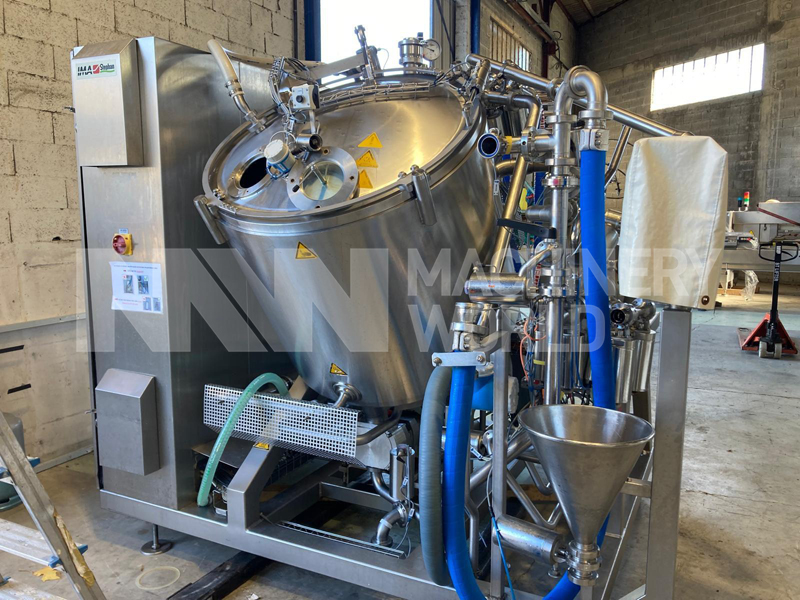

Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 3
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 4
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 5
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 6
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 7
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 8
Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011) - Image 9

Stephan Vacutherm V-MC 400/15 Direct Steam Jacketed Vacuum Process Mixer Year 2011)

Request Price

IN STOCK AVAILABLE TODAY

SKU: 22281 Categories: , Tag:
Description

This is a pre-owned Stephan Vacutherm V-MC 400/15 compact processing unit, manufactured in 2011. The unit is capable of heating, mixing, cooking, cooling, and vacuum-assisted heating, offering a versatile solution for a variety of food processing applications.

The Stephan Vacutherm System is a highly flexible compact processing unit, primarily designed for the production of convenience foods. It combines multiple processing steps within a single machine, allowing for efficient handling of both liquid and solid ingredients, including the incorporation of particles.

Developed in collaboration with convenience food manufacturers, the Stephan Vacutherm System ensures precisely controlled processes, delivering consistent product quality and repeatability. The system can process products both hot and cold, supporting a wide range of operations such as mixing, dispersing, size reduction, direct steam and double-jacket heating, cooling, pasteurizing, deaerating, and emulsifying.

Thanks to its integrated design, the unit offers a compact yet versatile solution, enabling manufacturers to produce a diverse array of high-quality food products within a single, highly efficient processing system.

Features

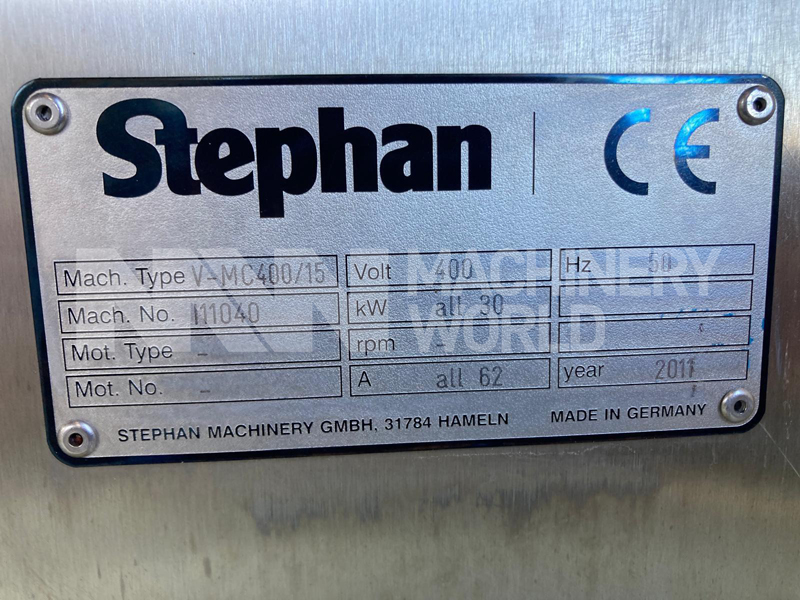

  • Manufacturer: Stephan Machinery GmbH, Germany
  • Model: V/MC 400/15
  • Function: Jacketed Direct Steam Cooking, Mixing, Cooling, Vacuum Mixer
  • Serial number: I11040
  • Year of manufacture: 2011
  • Capacity (per batch): 400L
  • Capacity (per hour): 1,600L
  • Maximum operating temperature (Vacutherm vessel): 95degC
  • Maximum operating pressure (Vessel Jacket): 4 bar
  • Maximum operating temperature (Vessel Jacket): 150 degC
  • Construction: Stainless steel, 316 (Product side) + 304 (Non-product side)
  • Orientation: Cylindrical & Inclined
  • Jacket: Yes, Double Jacketed
  • Heating:
    • Via External Double Jacket
    • Via Direct Steam Injection
  • Cooling: Via External Double Jacket

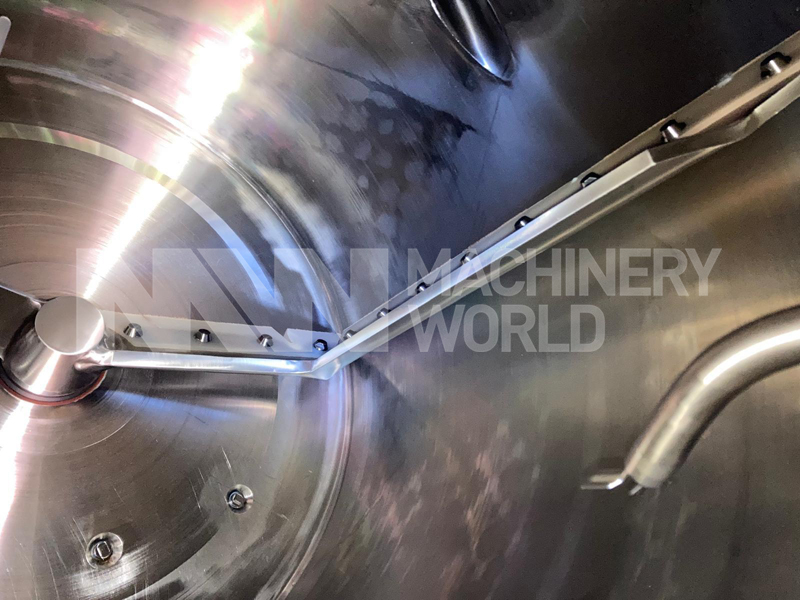

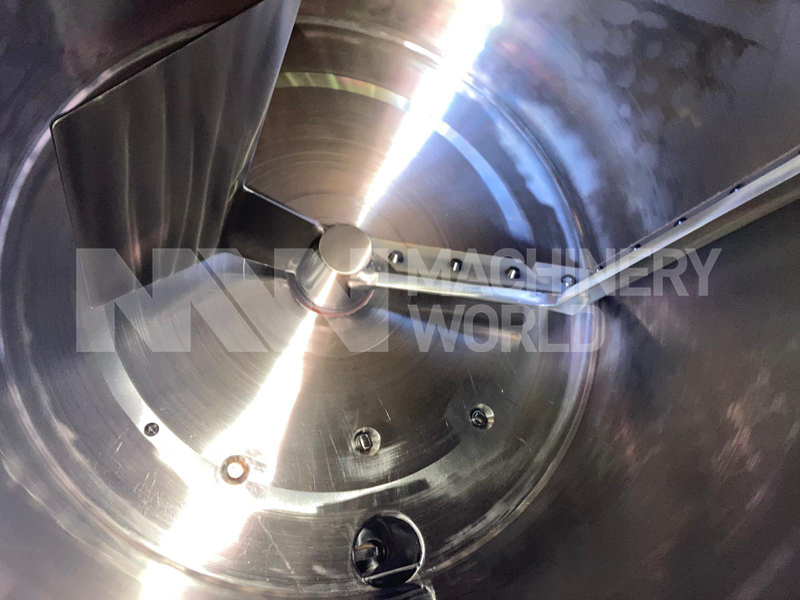

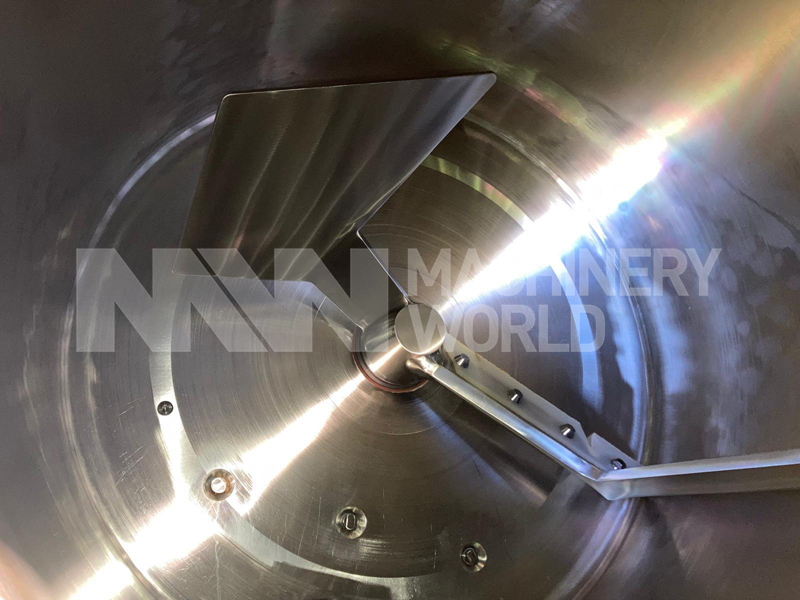

  • Mixer: Bottom Mounted Scraped Surface Mixer
  • Scraped Area: Bottom & Side Wall
  • Vacuum: Yes, Vacuum Capable
  • Vacuum Pump: Comes fully Integrated
  • Access: Top with Electrically Operated Lid Assembly
  • Electrics: 400V / 50Hz / 3 Phase
Dimensions
  • Depth: 200 cms
  • Width: 260 cms
  • Height (Lid open): 320 cms
  • Weight: 2000 kgs
Country of manufacture

Germany
