Up to 800 LPH GEA Pilot UHT Processing Plant System with GEA Niro Aseptic Homogeniser & CIP

Description

Now available is this very well-maintained and sparingly used GEA Pilot UHT Plant, manufactured in 2011, offering a processing capacity of 400 to 800 litres per hour. This pilot-scale UHT processing system has seen only 546 operating hours, making it an outstanding opportunity to acquire an excellent GEA Ultra High Temperature UHT processing plant at a fraction of the cost of new equipment. Designed for product development, pilot production, formulation trials and small-scale commercial manufacture, this fully integrated GEA UHT plant incorporates indirect heat treatment with a regenerative heat exchanger circuit, ensuring gentle product handling, excellent thermal efficiency and consistent product quality. The system includes a dedicated GEA Niro Aseptic Homogeniser, a 2-tank CIP (Clean-In-Place) system with dosing pumps, and a Siemens PLC control system with frequency inverters for precise process control. Please note: Downloadable technical documentation provided below is for guidance only and may not reflect the exact specifications of the plant offered.

Ideal Application

This GEA Pilot UHT Processing Plant is ideally suited for:

• Dairy products
• Nutritional beverages
• High-protein drinks
• Medical nutrition products
• Plant-based beverages
• Liquid food products
• Sauces and emulsions
• Functional beverages
• Research and development formulations
• Infant formula development
• Food innovation centres
• Universities and research facilities
• Pilot production facilities
• Product development laboratories
• Contract processing companies

Specification

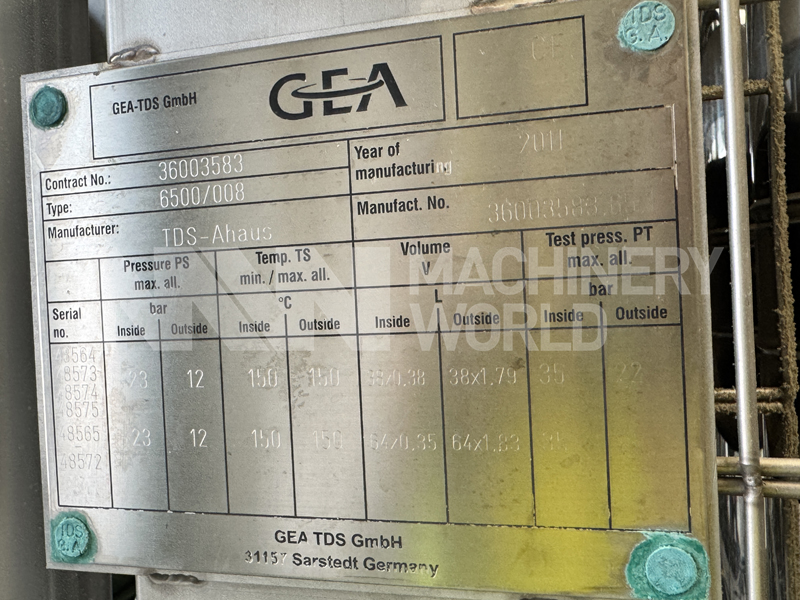

• Manufacturer: GEA TDS GmbH, Germany
• Plant Function: Pilot UHT Processing Plant
• Plant Type: 6500/008
• Year of Manufacture: 2011

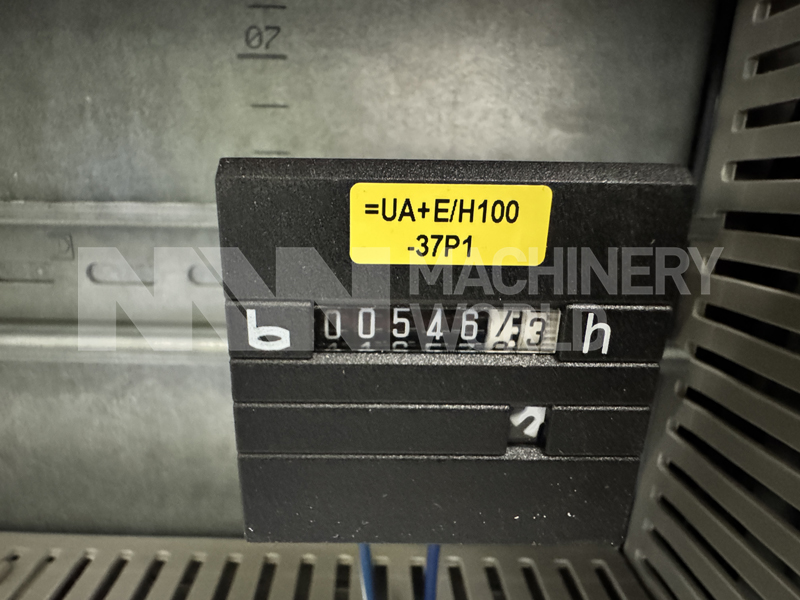

• Running Hours: 546 Hours
• Processing Capacity:
  • Minimum Capacity: Approx 400
  • Maximum Capacity: Approx 800 LPH
• CIP Flowrate/Capacity: Up to 900–1,000 LPH

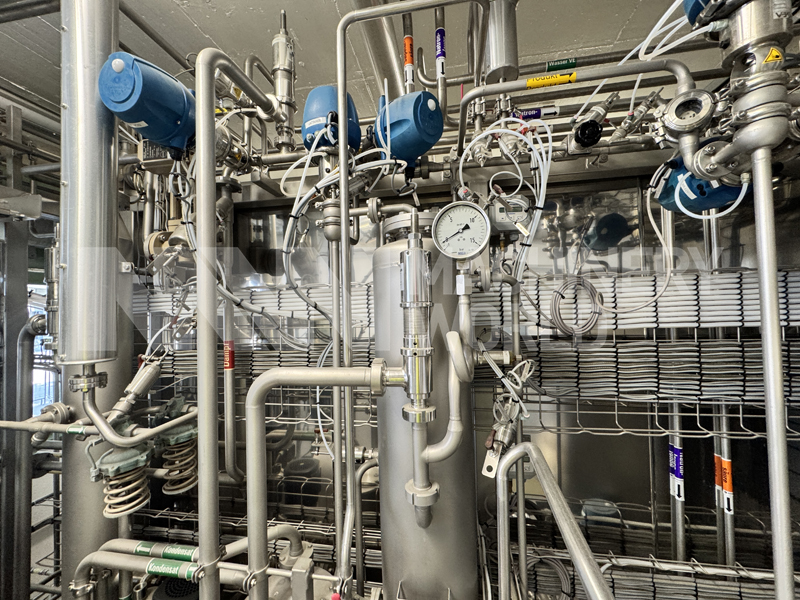

• Heat Treatment: Indirect Heat Treatment via Tubular Heat Exchanger

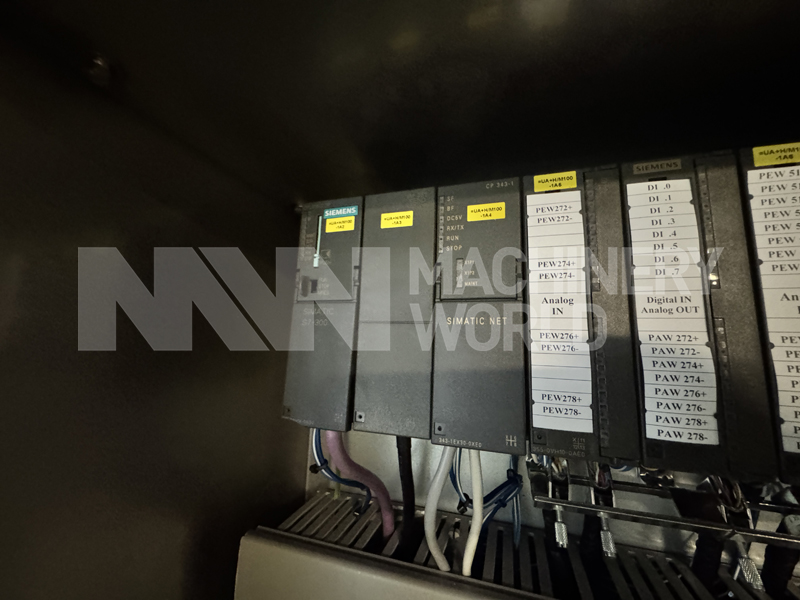

• Control System: Siemens S7 PLC & HMI

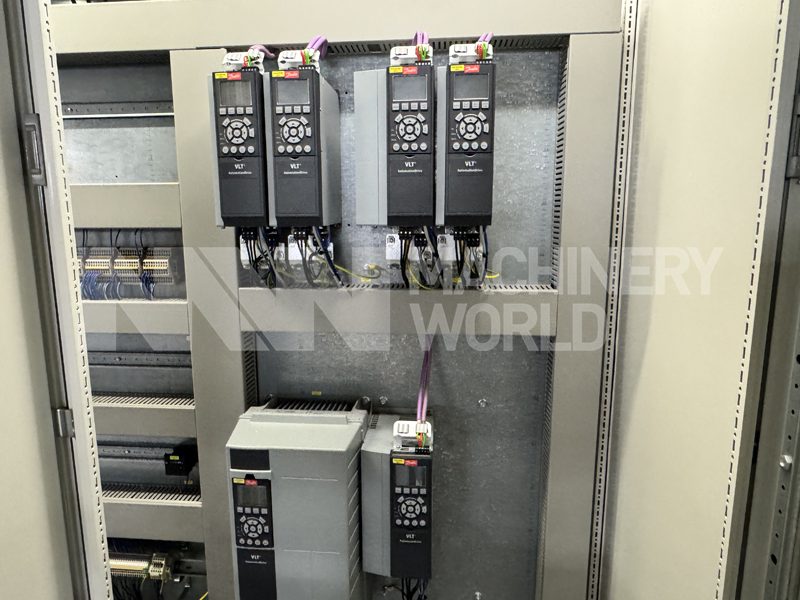

• Motor Control: Frequency Inverters
• Homogeniser:
  • Make: GEA Niro Soavi, Italy
  • Type: Aseptic High Pressure Homogeniser
  • Maximum Operating Pressure: 600 Bar
  • Flowrate/Capacity: Approx 800 LPH

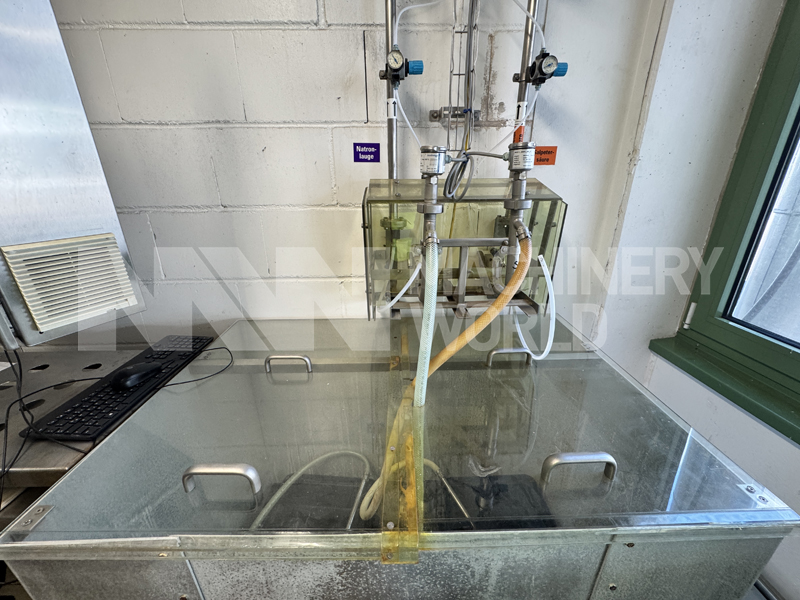

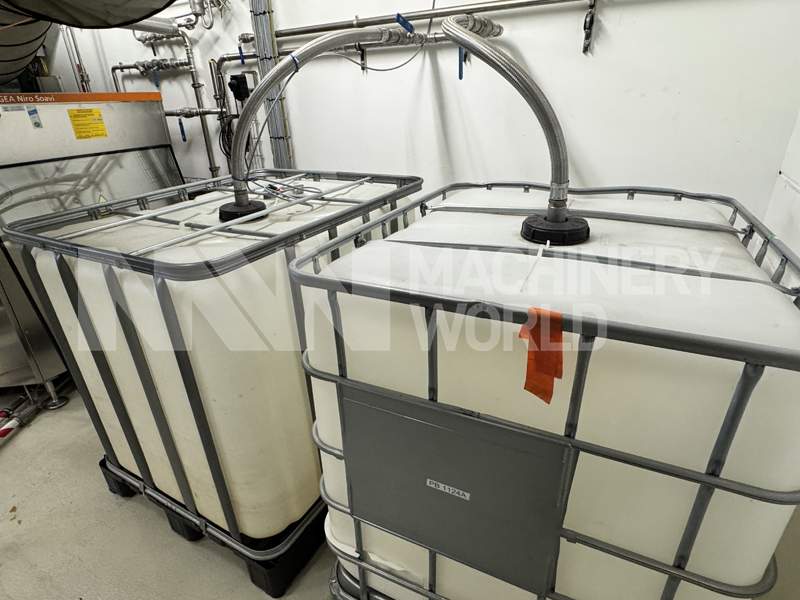

• Cleaning System: 2-Tank CIP
  • Includes 2x Approx 1,000L IBC Tank
  • Includes Dosing Pumps
• Includes the following:
  • Screw Pumps for Product

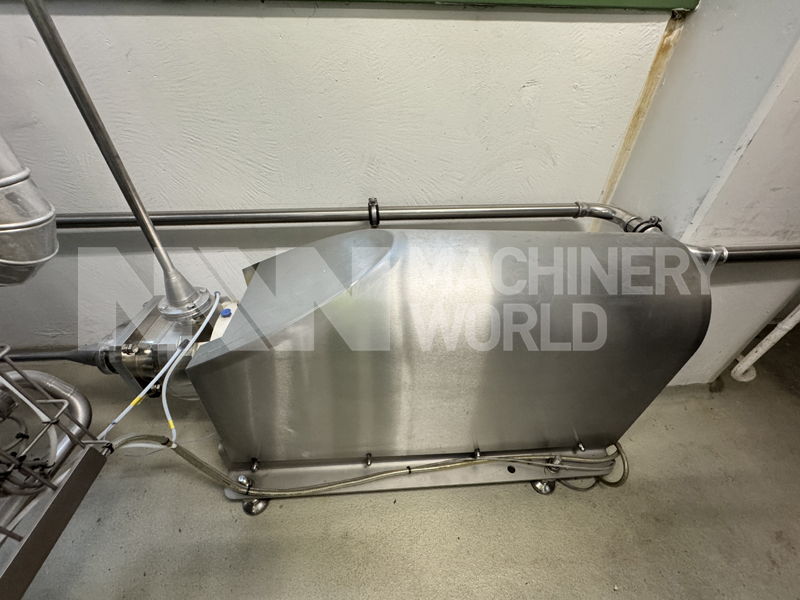

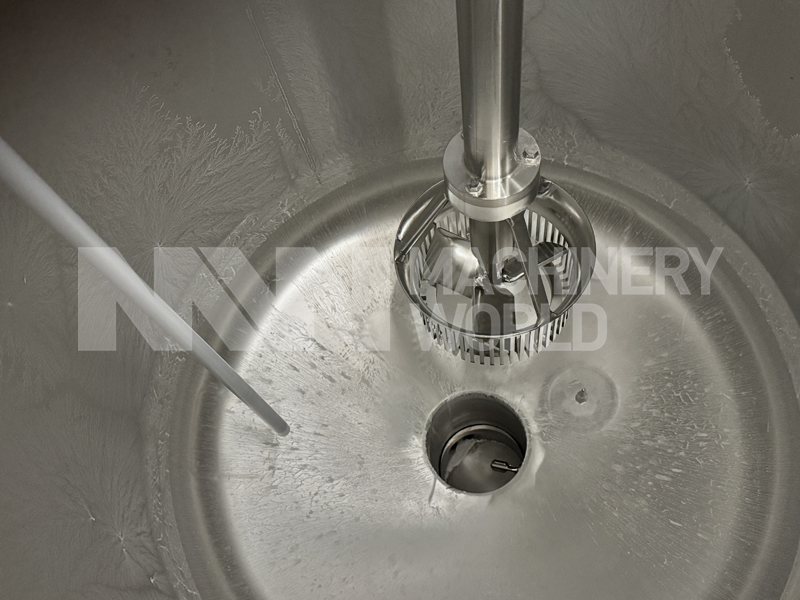

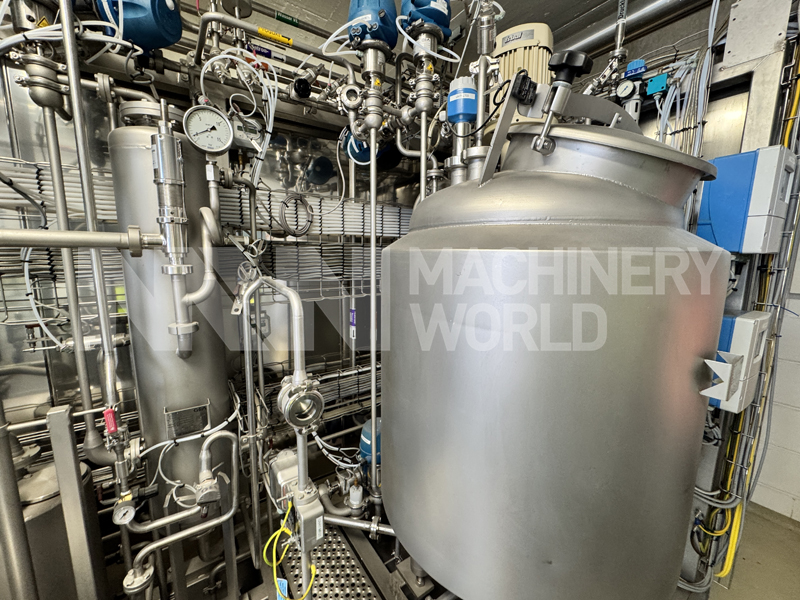

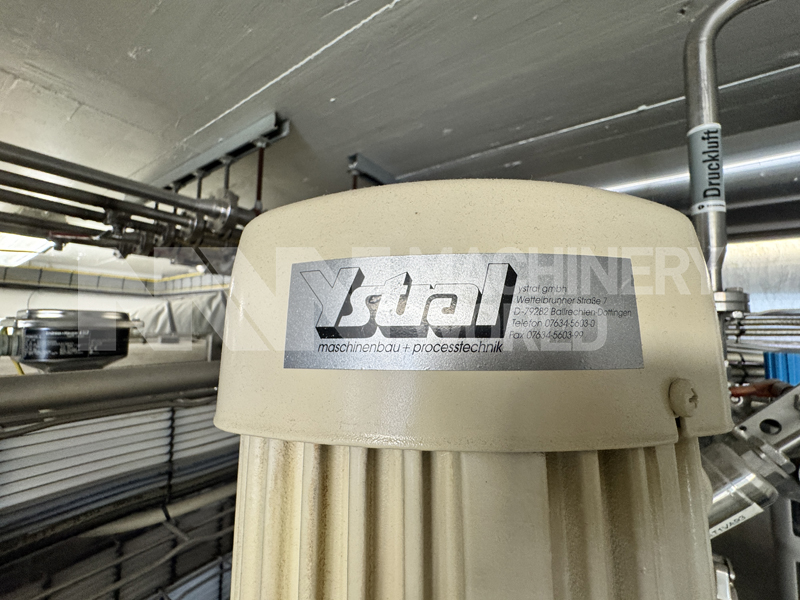

  • Approx 300L Product Feed Tank with Ystral High Shear Mixer
  • Flowmeters

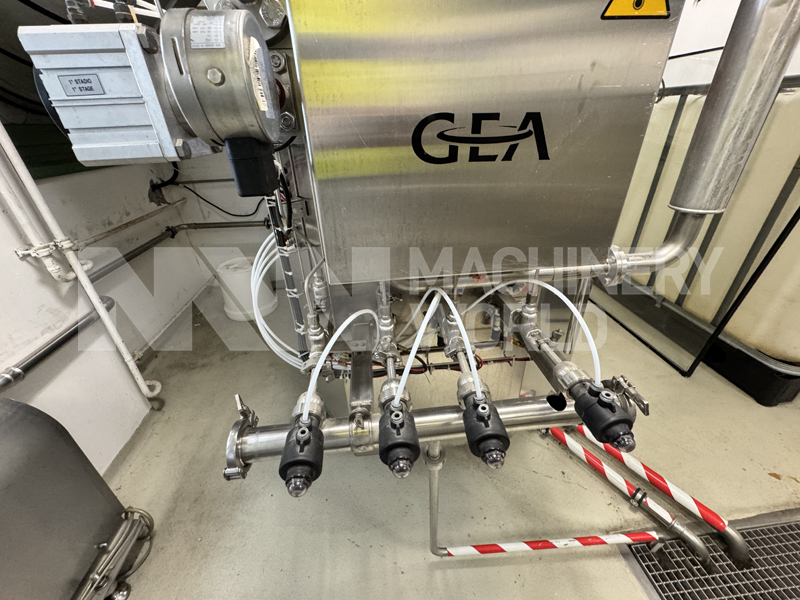

  • Actuated Valves

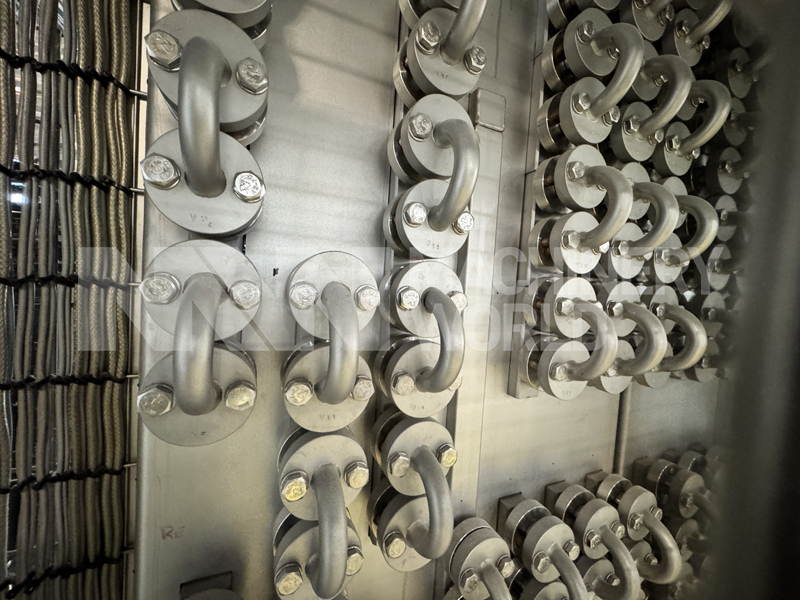

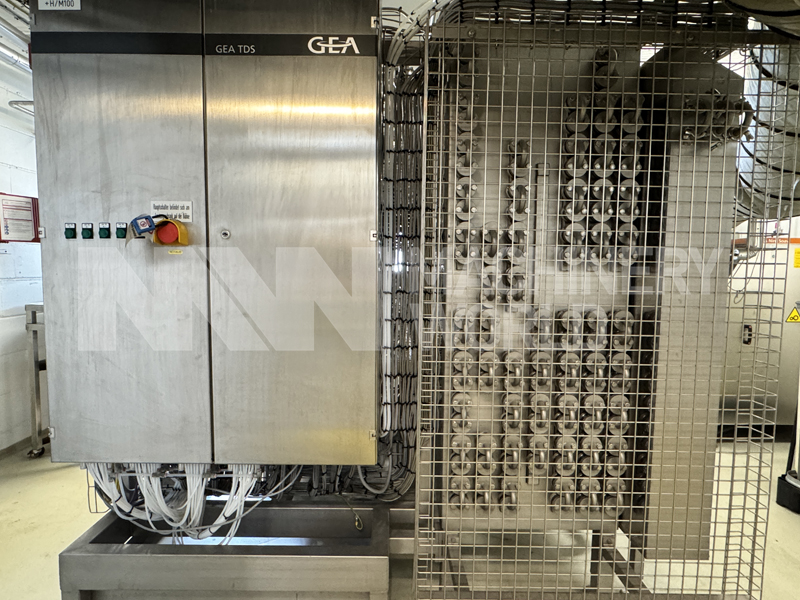

  • Tubular Heat Exchanger

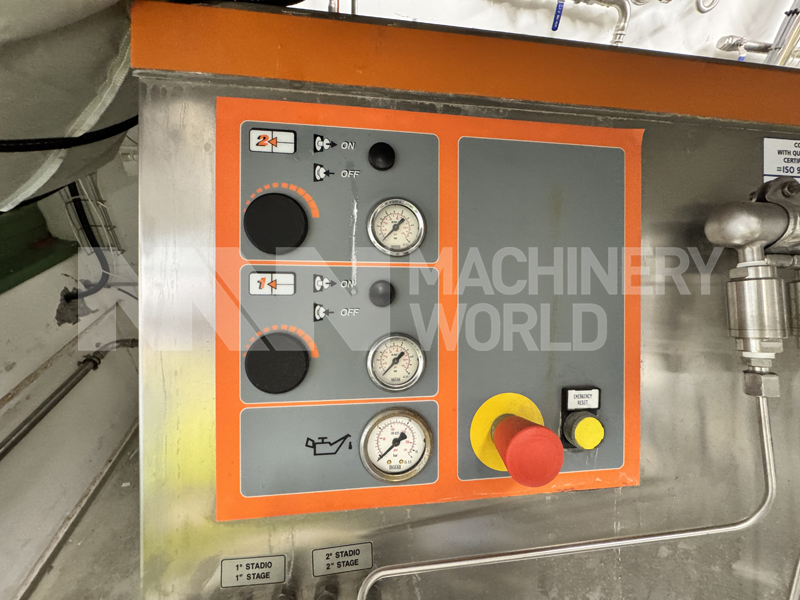

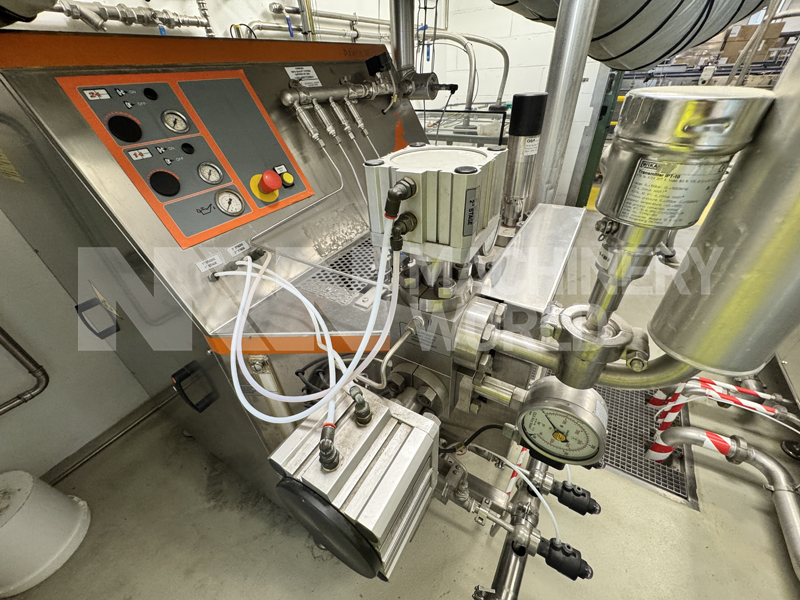

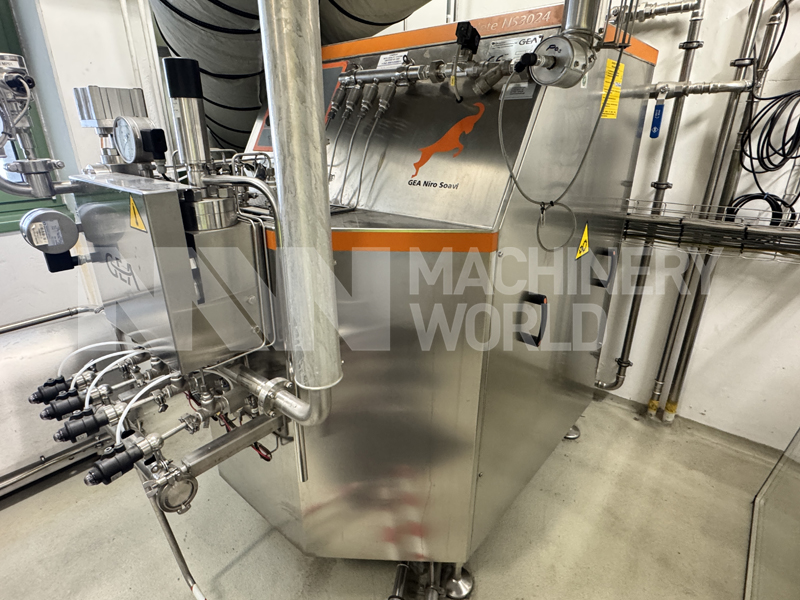

  • GEA Niro Soavi NS3024 660 Bar Aseptic Homogeniser
  • 2-Tank CIP System

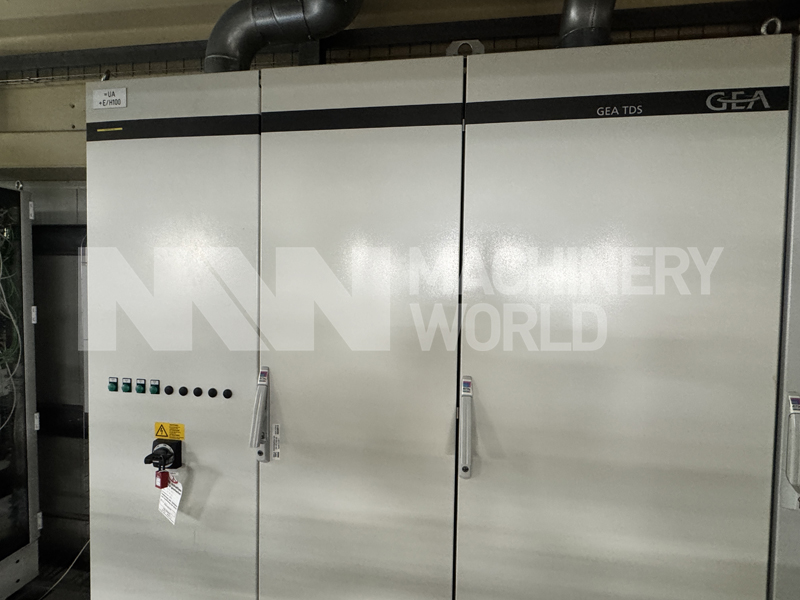

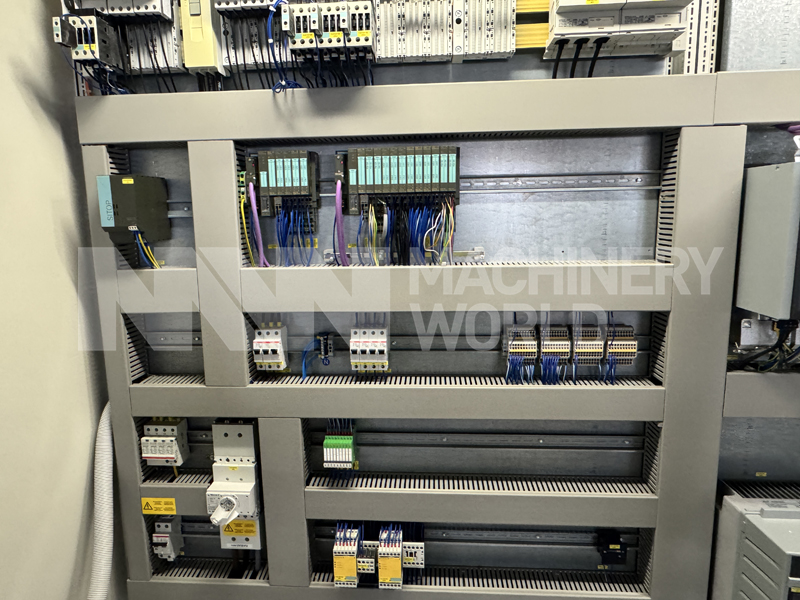

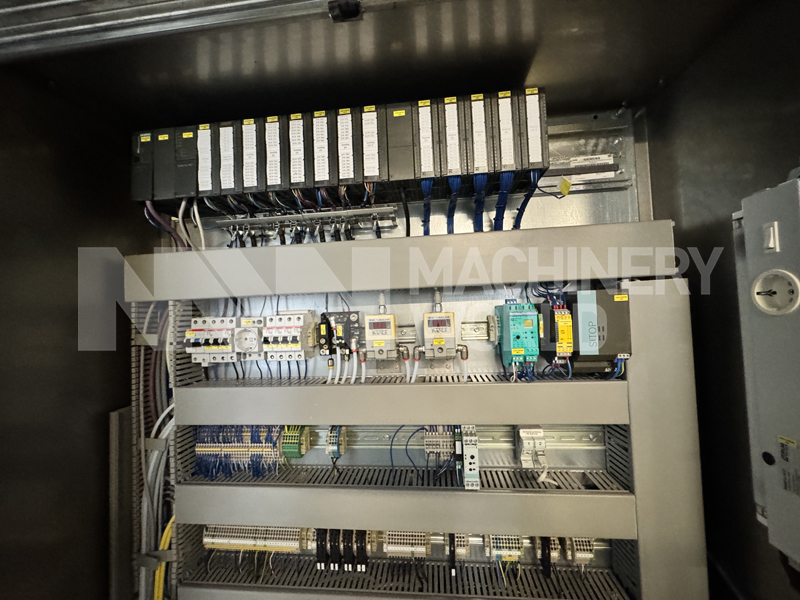

  • Control Panel with PLC, HMI, Frequency Inverters & Documentation

Country of Manufacture

• Germany
