Description

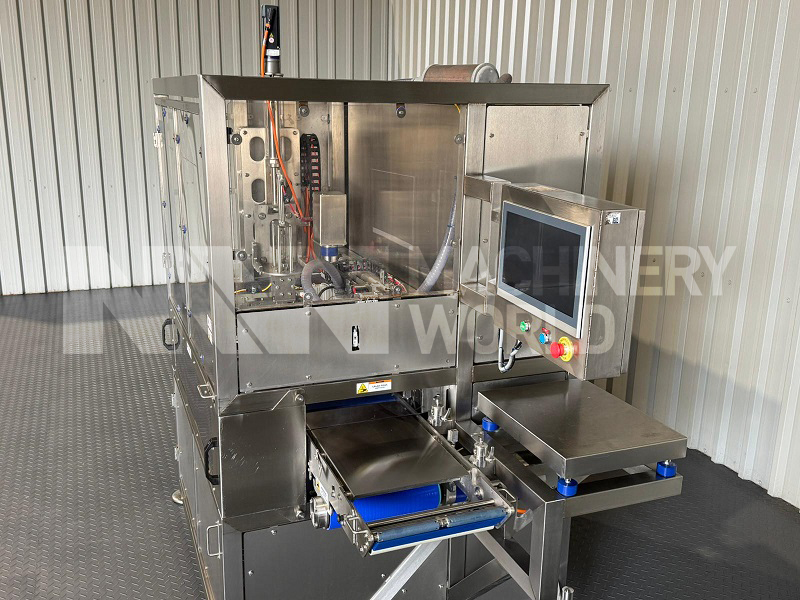

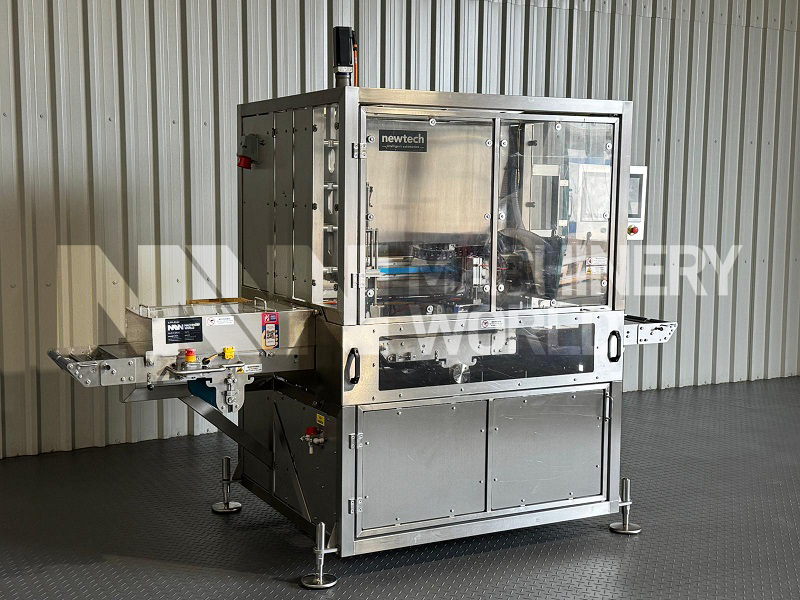

This is a rarely used Newtech Autosonic T Inline Automatic Mechanical Slicer Cutter. The Inline T is a remarkably versatile, in-line cutting device that uses a mechanical blade to cut sticks of cheese and other log or block type products into different thicknesses. As a conveyor-based system, it can be integrated into an existing production line or used as a standalone solution. Please be aware that the attached ‘Technical Doc’ is for informational purposes only, and the actual equipment available may vary in specifications.
Features
- Customised for products such as sticks, logs, or blocks

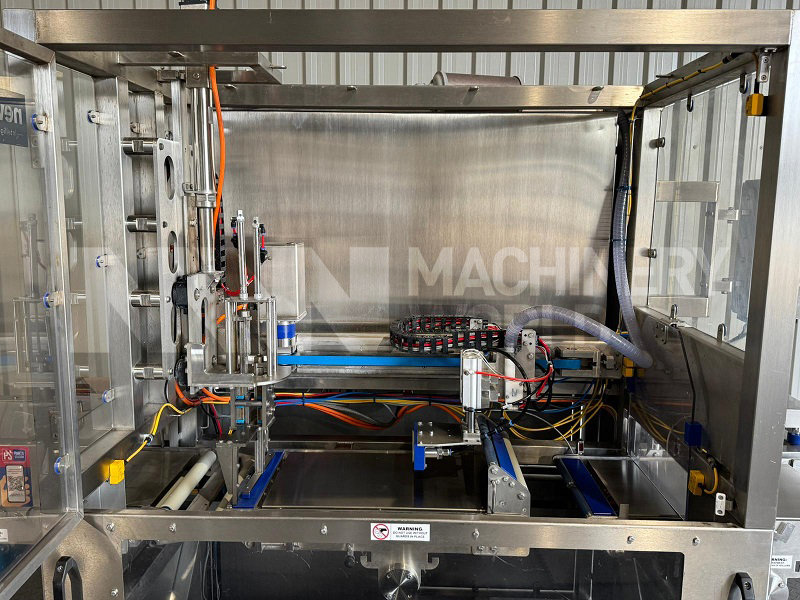

- A mechanical blade attached to a servo-driven linear actuator, which includes built-in pneumatic hold-down plates for the product

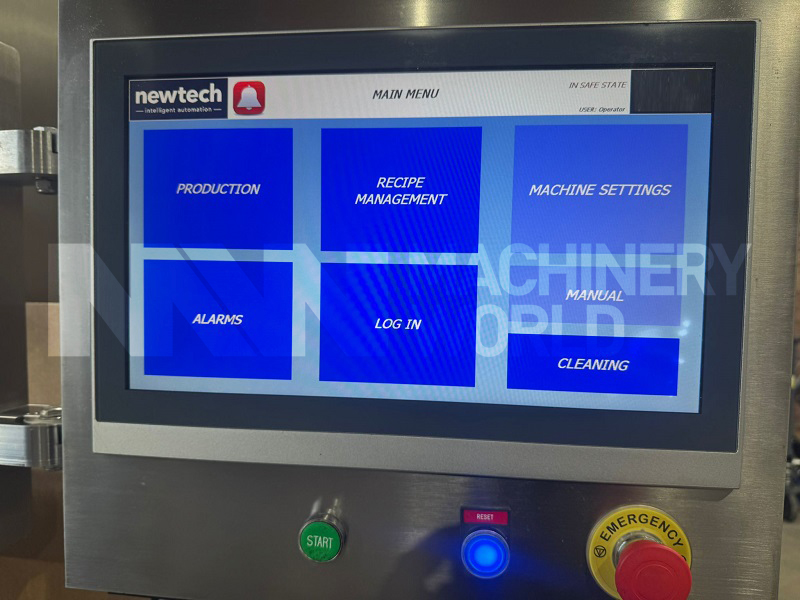

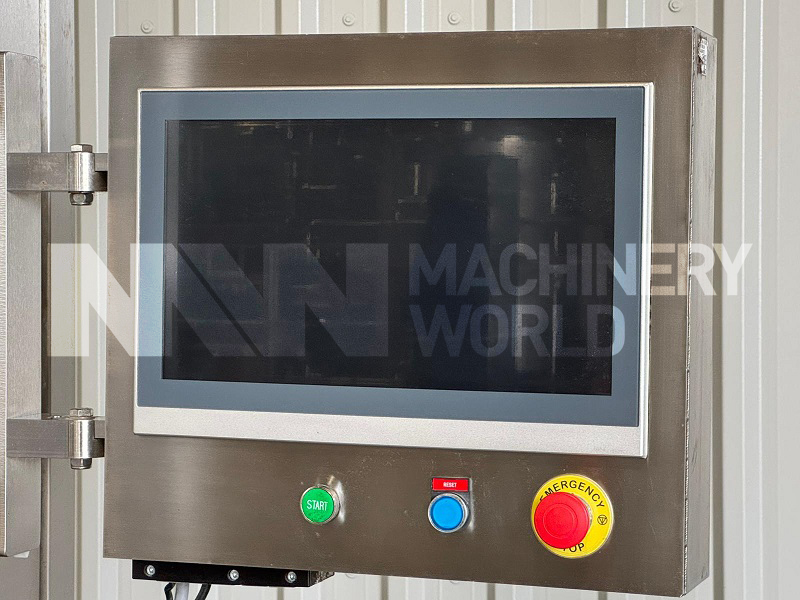

- Operated via a full-color touchscreen that offers an intuitive interface and allows for easy program modifications
- Three levels of user access – Operator, Supervisor, and Engineer
- Includes the ability for remote access
- Can be used on other products similar to Cheese Blocks
Specification

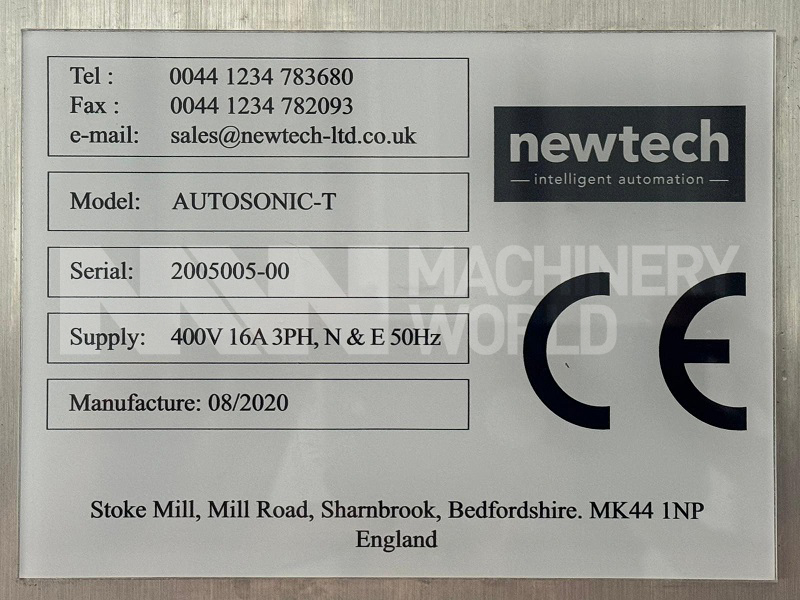

- Make: Newtech Intelligent Automation, England
- Model: Autosonic-T
- Function: Inline Mechanical Block Slicer Cutter
- Serial Number: 2005005-00
- Year of Manufacture: 2020
- Supply: 400V, 16A, 3-ph & 50Hz

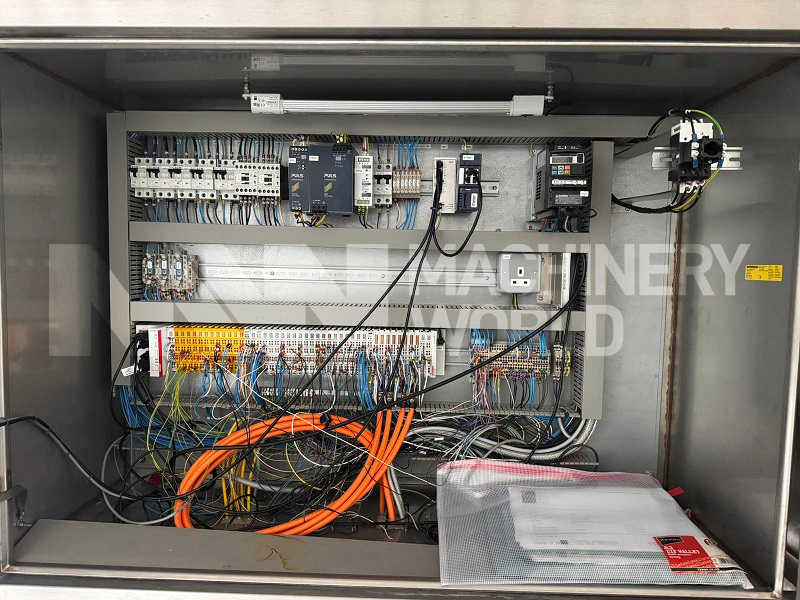

- Controls: Comes equipped with a fully integrated control panel featuring a PLC, a frequency inverter for speed regulation, and a touch screen HMI.

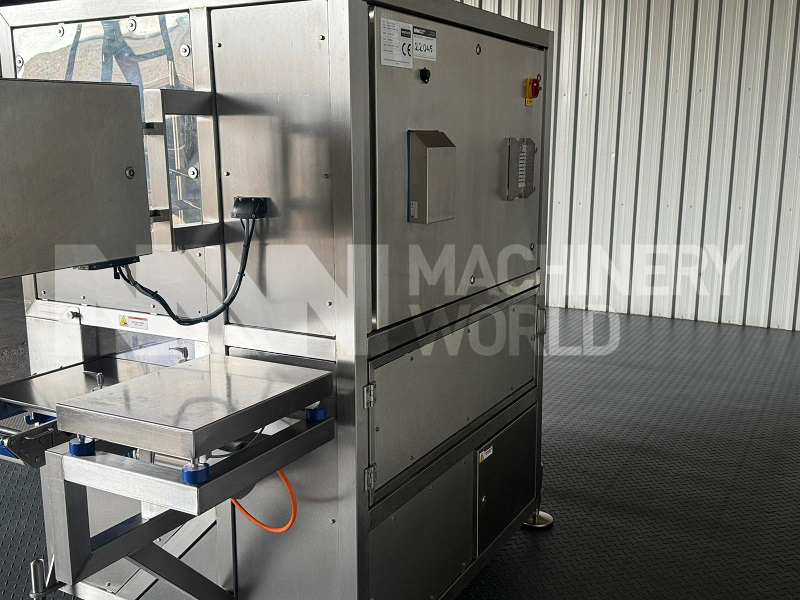

- Additional Details: Includes belt conveyor. It offers a weighing scale option, allowing for the individual weighing of products prior to their introduction into the cutting process.
Overall Machine Dimensions
- Length: 3855mm
- Depth: 1260mm
- Height: 2390mm
Country of Manufacture
England
