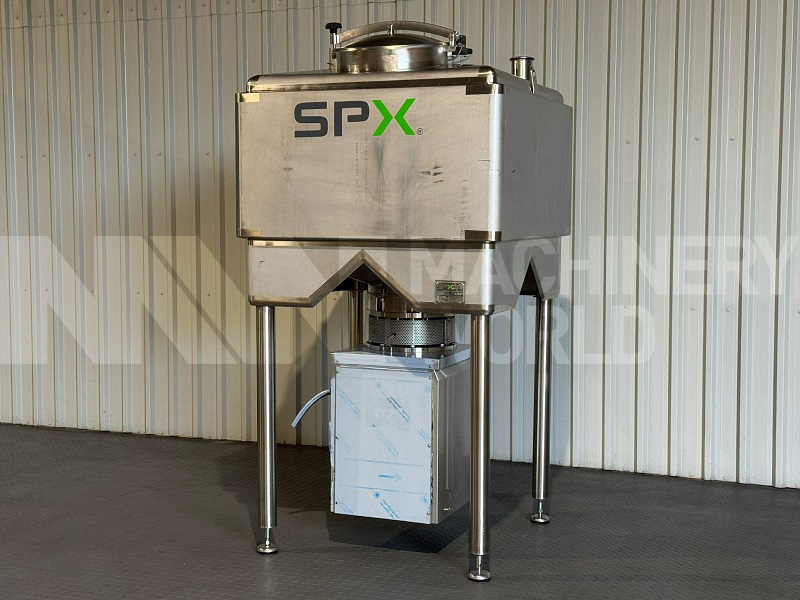

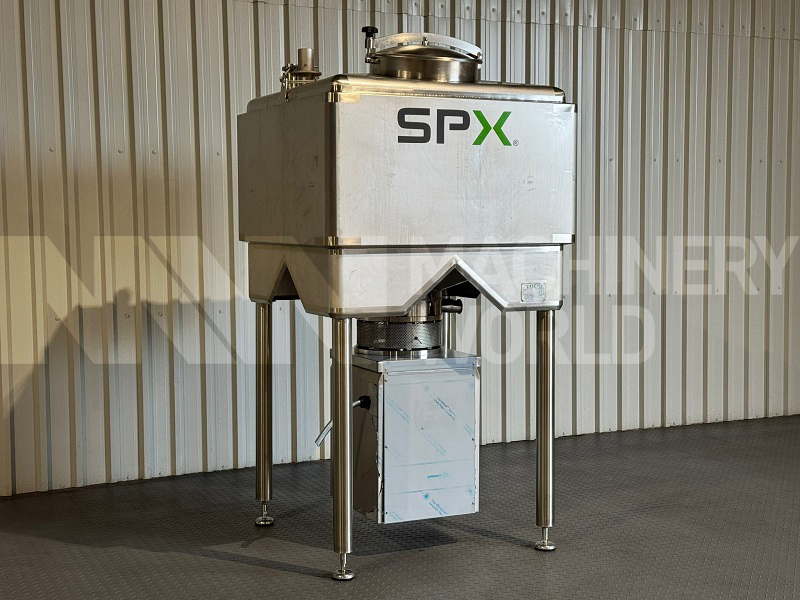

1,000 Ltr SPX FX Systems Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer (Year 2017)

Description

This is a used SPX FX Systems Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer. APV SPX FX Systems Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer has a tank volume of approx 1,000 Litre. APV SPX Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer is well suited for products with low to medium viscosity, where a quick and efficient mixing of products is required for dispersion or reconstitution of liquid & powder constituents. APV SPX FX Systems Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer is a manual unit designed for batch mixing, inline mixing over one or more hydration tanks, or continuous mixing, with optional integration in full automated production. Note: ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Common Applications

• Soya Milk
• Skim milk 35%, 40%, 50% total solids
• Chocolate milk
• Recombined milk
• Juices
• Juice concentrates
• Dessert cream
• Soups
• Almond paste
• Cacao
• Yogurt
• Mayonnaise
• Ice cream
• Oat slurry
• SCM
• Tomato Concentrate
• Above information is from manufacturer's website (Ref. APV SPX Website)

Specification

• Manufacturer: SPX Flow Technology, Poland
• Type: FX Systems
• Model: TB+1000
• Function: Liquiverter / High Shear Mixer / High Speed Mixer / Turbo Mixer

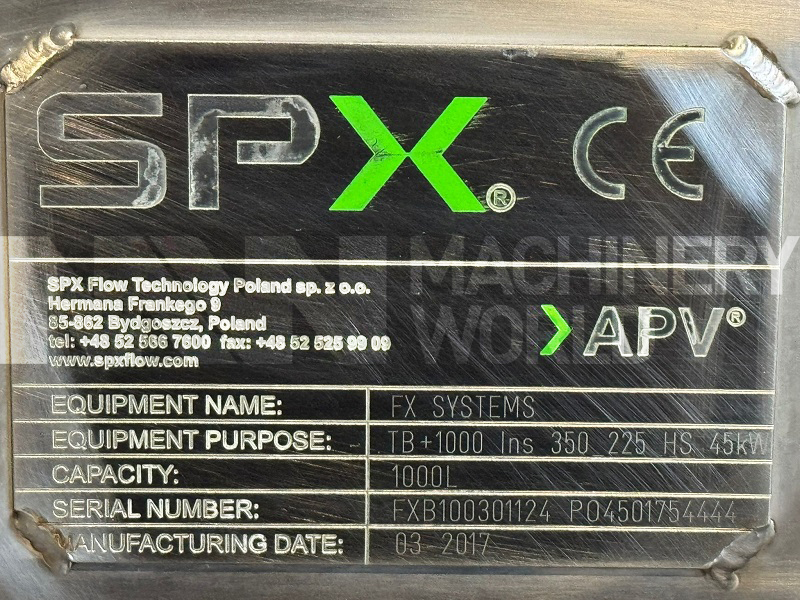

• Serial Number: FXB100301124 P04501754444
• Tank Volume: Approx. 1,000 Litres
• Year of Manufacture: March 2017
• Construction: Insulated & Clad Skin Stainless Steel

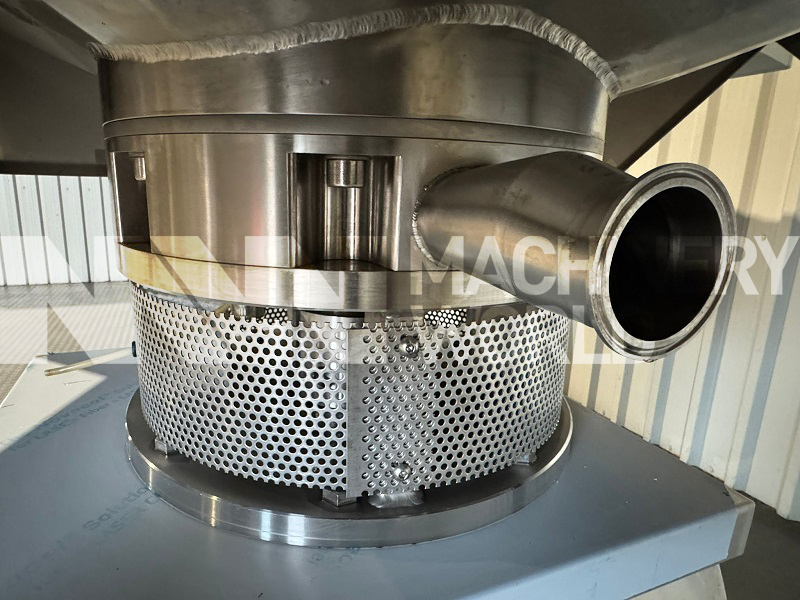

• Bottom Mixer Motor Power: 45kw
• Mixer Speed: 1482 RPM
• Electrics: 50/60Hz & 3-Phase

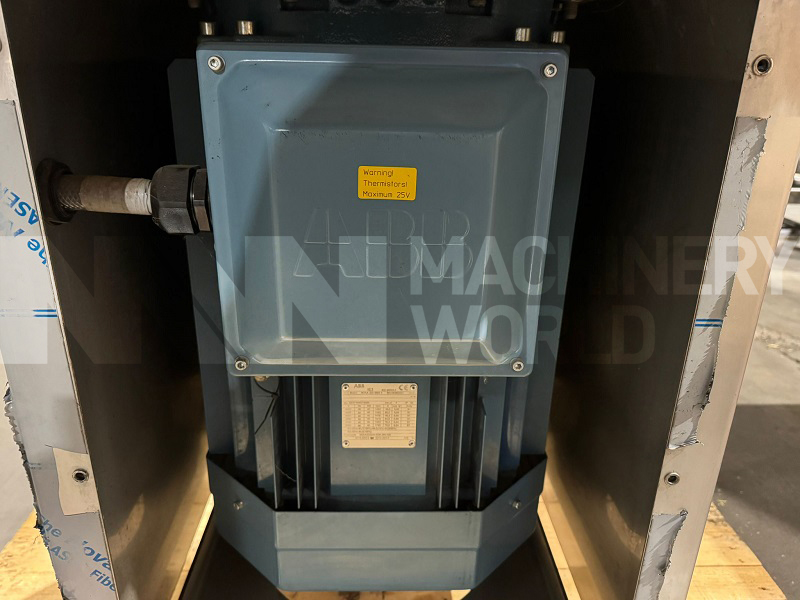

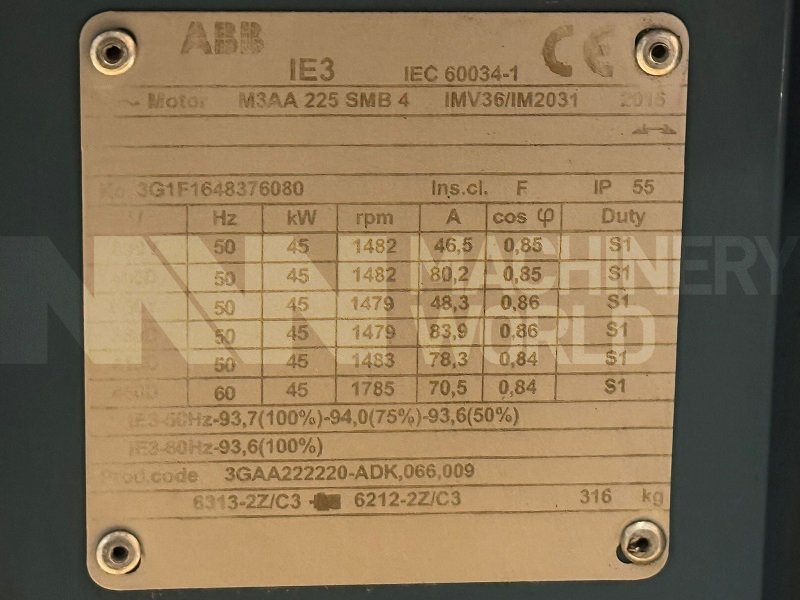

• Motor Manufacturer: ABB
• Bottom Outlet: 3 inch
• Inlet: Top
• CIP: Comes with Top Entry CIP Spray Head

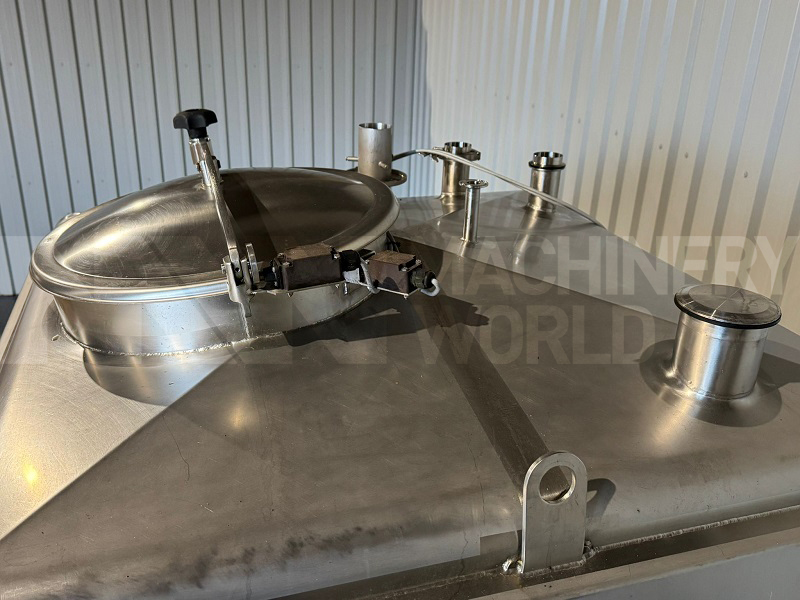

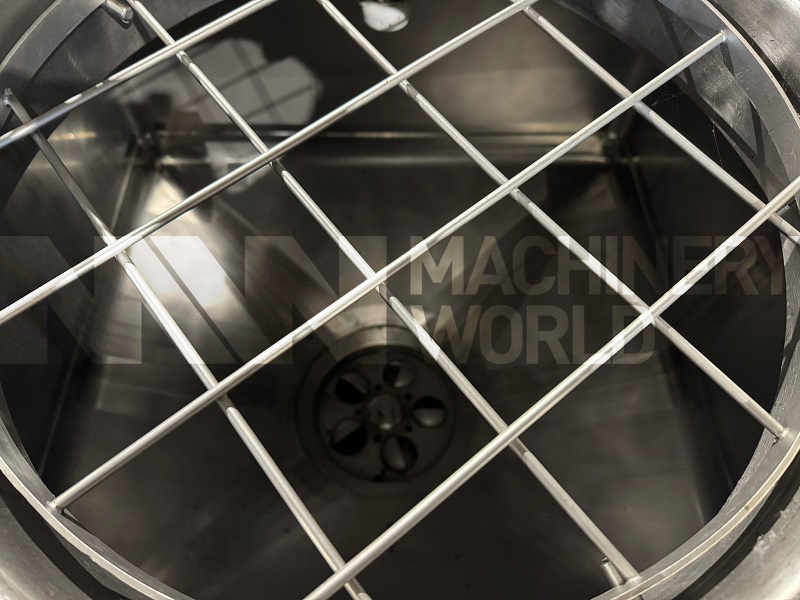

• Manway: Top Manway with Safety Grid
• Vent: Top Mounted Breather Vent with vent Cap
• Stainless Steel Construction
• See 'Technical Doc' link for further details

Condition

Very sparingly used

Dimensions

• Length:1300mm
• Width:1300mm
• Height:2450mm

Country of Manufacture

Poland
