10,000 LPH Cheese Milk Skid Mounted Pasteuriser Plant for Cheese Production (Year 2008)

Description

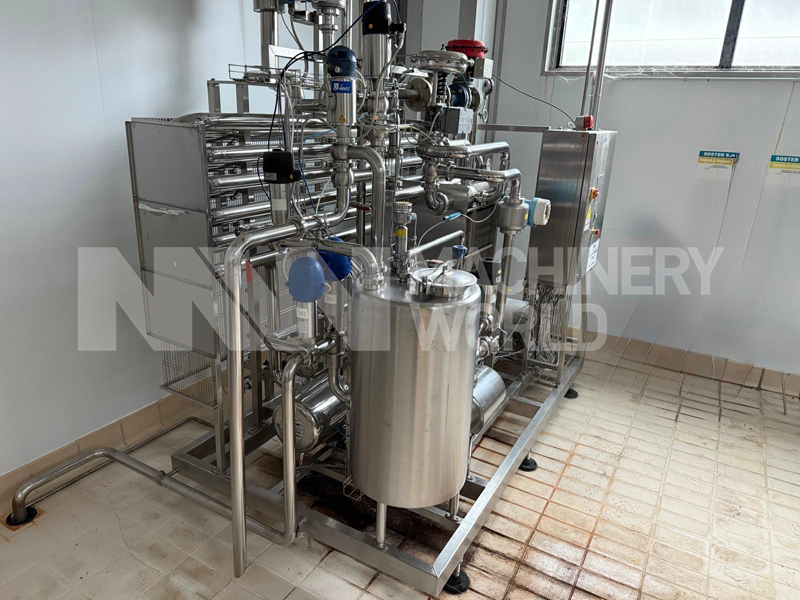

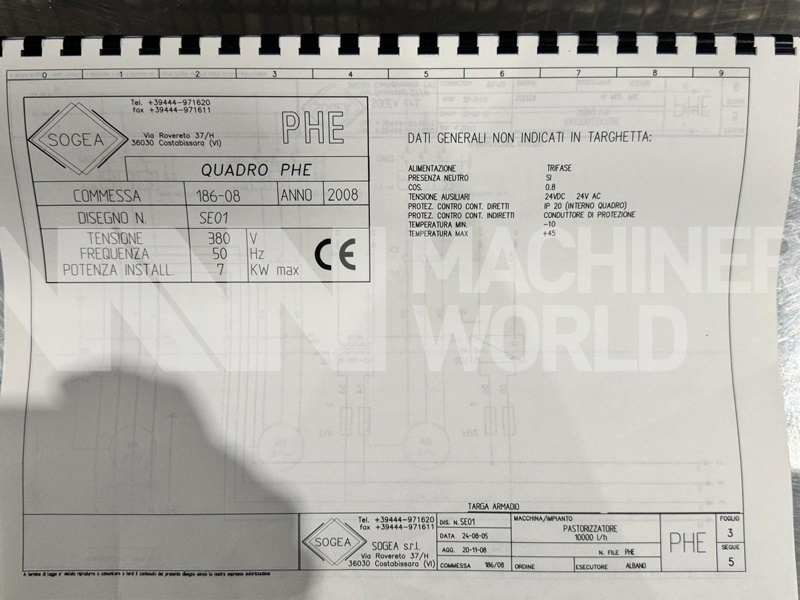

This used 10,000 LPH cheese milk pasteuriser plant is a high-quality, skid-mounted industrial solution designed for efficient and hygienic milk processing in dairy and cheese production facilities. Manufactured in 2008 by SOGEA srl, Italy, this plate heat exchanger (PHE) milk pasteuriser is engineered to deliver reliable thermal treatment up to 72°C, ensuring effective microbial inactivation while preserving milk quality, as detailed in the technical specifications of the machine. With a processing capacity of 10,000 litres per hour, stainless steel construction, integrated balance tank, circulation pumps, holding tubes and a compact skid-mounted design, the plant allows easy installation and space-saving operation. The pasteuriser is supplied with a control panel featuring Siemens Interface Module, designed to interface seamlessly with a centralised factory control system (PLC not included). This used milk pasteurisation plant is in very good condition and represents a cost-effective, solution for dairies seeking a cost effective used cheese milk pasteuriser or second-hand milk processing plant. Please note: ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Make: SOGEA srl, Italy
• Type: QUADRO PHE
• Function: Cheese Milk Pasteuriser Plant Plate Heat Exchanger
• Year of Manufacture: 2008
• Milk Capacity: Approx 10,000 LPH
• Electrical supply: 380 V, 50 Hz
• Pneumatic supply: 6 bar
• Electrical power: 7 kW
• Milk Heating Cycle
  • Option 1
    • 1st heating: from 4°C to 44°C
    • 2nd heating: from 44°C to 72°C
    • Thermal holding for microbial inactivation: 60 seconds
    • Cooling: from 72°C to 32°C
  • Option 2
    • 1st heating: from 4°C to 36°C
    • 2nd heating: from 36°C to 72°C
    • Thermal holding for microbial inactivation: 60 seconds
    • Cooling: from 72°C to 40°C

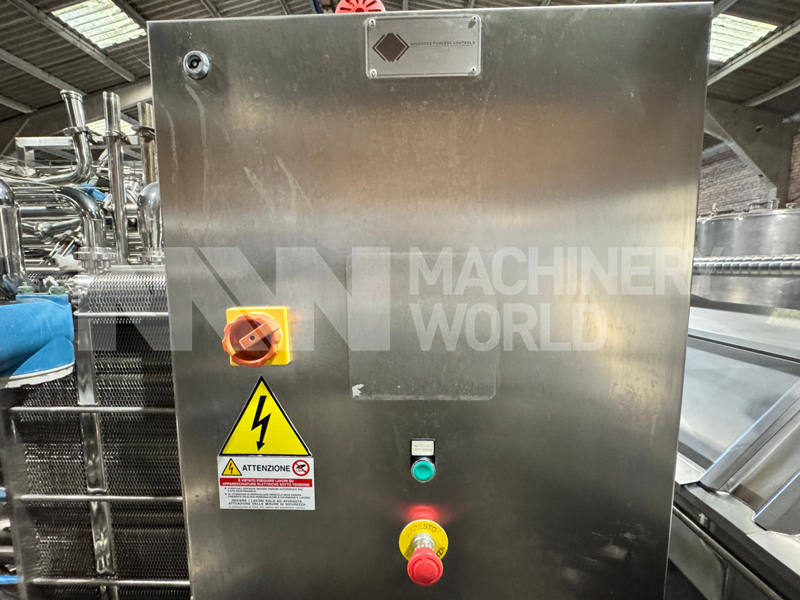

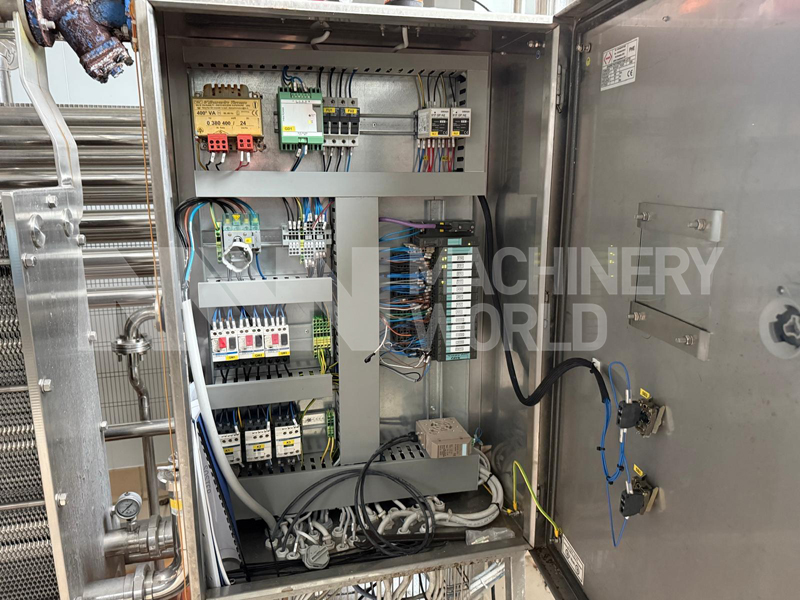

• Control Panel: Includes Siemens Interface Module, designed to interface seamlessly with a centralised factory control system (PLC not included)
• Includes the following:
  • Modulating Valve for Steam

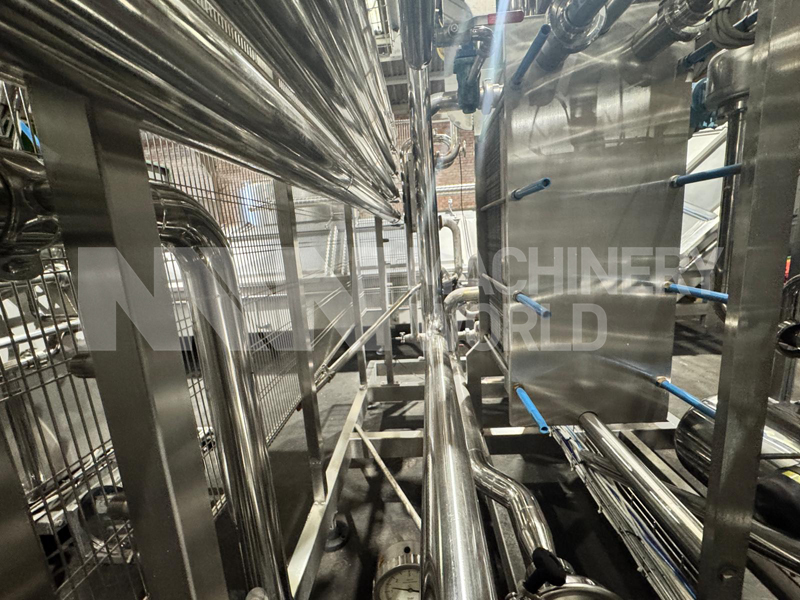

  • Plate Heat Exchanger (Pasteuriser)
  • Condensate Discharge Valve
  • Balance Tank
  • Holding Tubes
  • Pneumatic Actuated Divert Valve
  • Pressure Gauge
  • Temperature Probes
  • Endress & Hauser Flowmeters
  • Centrifugal Pump for Milk
  • Centrifugal Pump with Expansion Tank for Hot Water

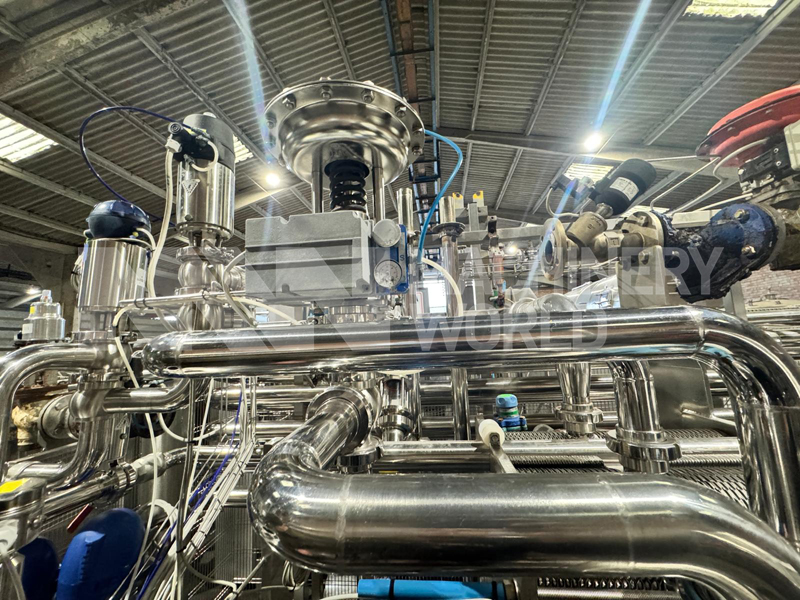

  • Pneumatic Actuated Valves
  • Safety Grill for Holding Tubes
• NOT INCLUDED: PLC not included as the control panel on plant was connected to a centralised factory control system.

Country of Manufacture

• Italy
