12,000 LPH BWT OSMOTRON PRO 12000 Pharmaceutical Purified Water RO Generation & Distribution Plant – Year 2023

Description

Used 2023 BWT Pharma & Biotech OSMOTRON PRO 12000 PW-2S Pharmaceutical Purified Water Generation and Distribution Plant, with a nominal purified water production capacity of 12,000 litres per hour (12 m³/h).

The installation comprises a BWT OSMOTRON PRO 12000 PW-2S Water Purification System, BWT EHQ-600 Water Softening System, Mains Water Tank, Booster Pump and Bag Filtration equipment, together with a dedicated BWT Purified Water Distribution System.

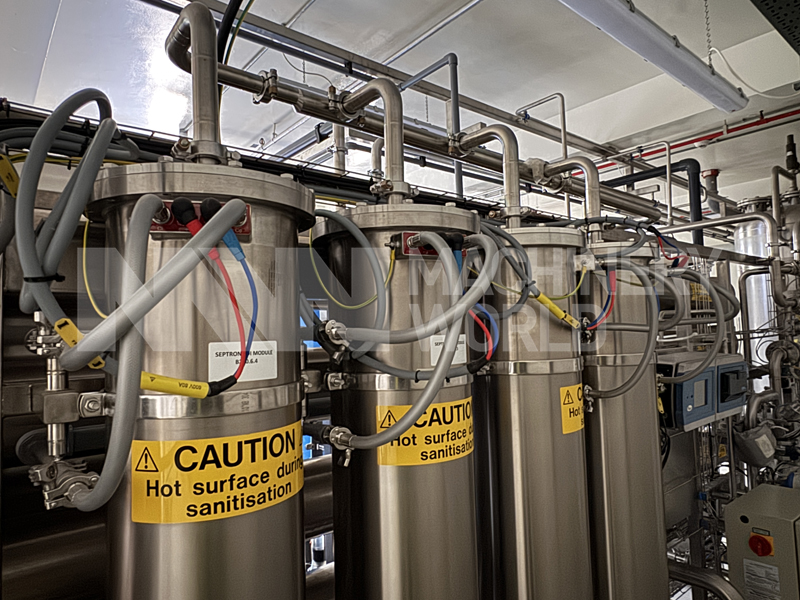

The BWT OSMOTRON PRO range is designed for high-purity water generation, incorporating Reverse Psmosis (RO) and Electrodeionisation (EDI) technology, making it suitable for pharmaceutical, biotechnology and other industrial applications requiring high-quality purified process water.

The complete installation was manufactured in 2023, with the individual equipment assemblies and control systems identified by their respective BWT serial numbers and electrical nameplates.

General Specification

• Manufacturer: BWT Pharma & Biotech Ltd.
• Main Plant Model: OSMOTRON PRO 12000 PW-2S
• Year of Manufacture: 2023
• Nominal Purified Water Production Capacity: 12,000 LPH (12 m³/h) – subject to confirmation
• Equipment Type: Pharmaceutical Purified Water (PW) Generation and Distribution Plant
• Water Treatment Technology: Reverse Osmosis (RO) / Electrodeionisation (EDI) – exact installed configuration to be verified
• Main Generation Plant Serial Number: C22/09/1260.2

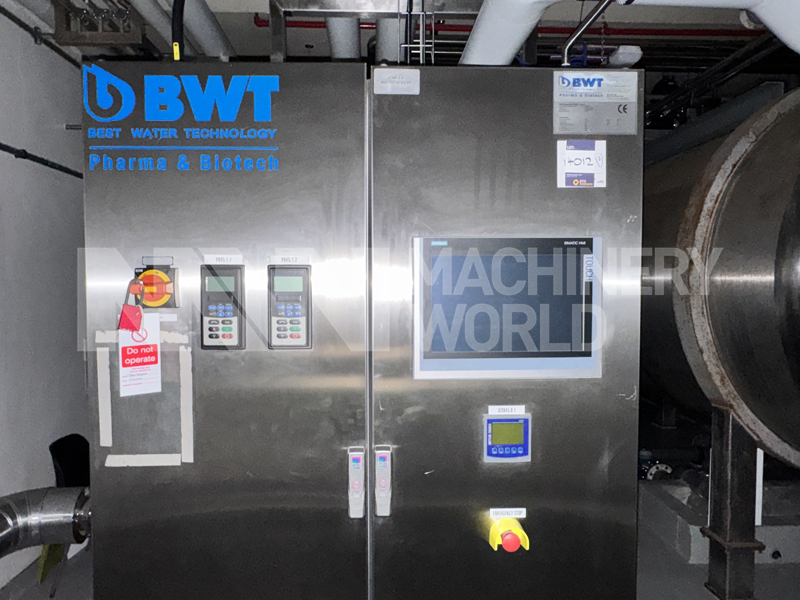

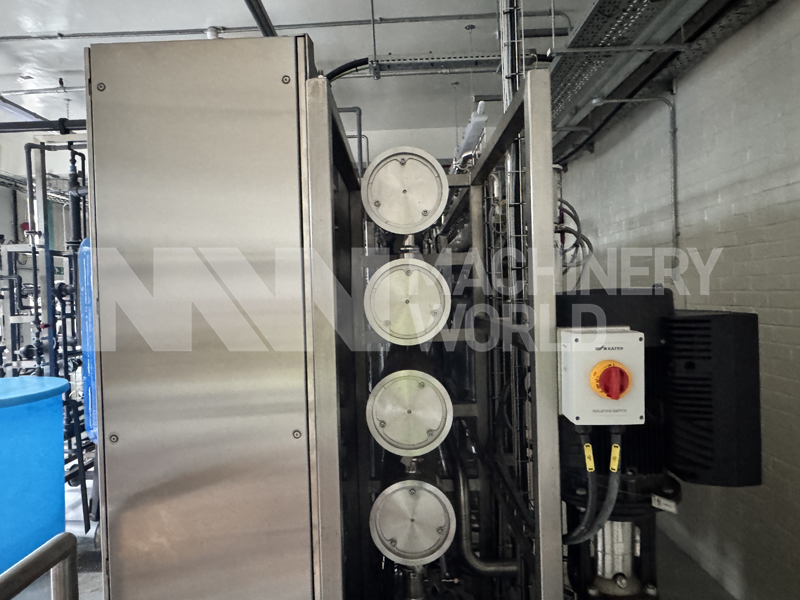

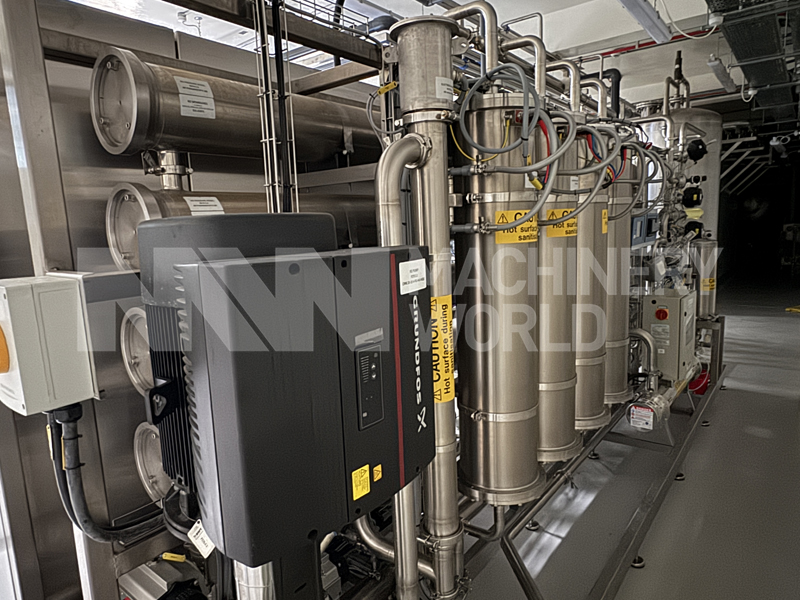

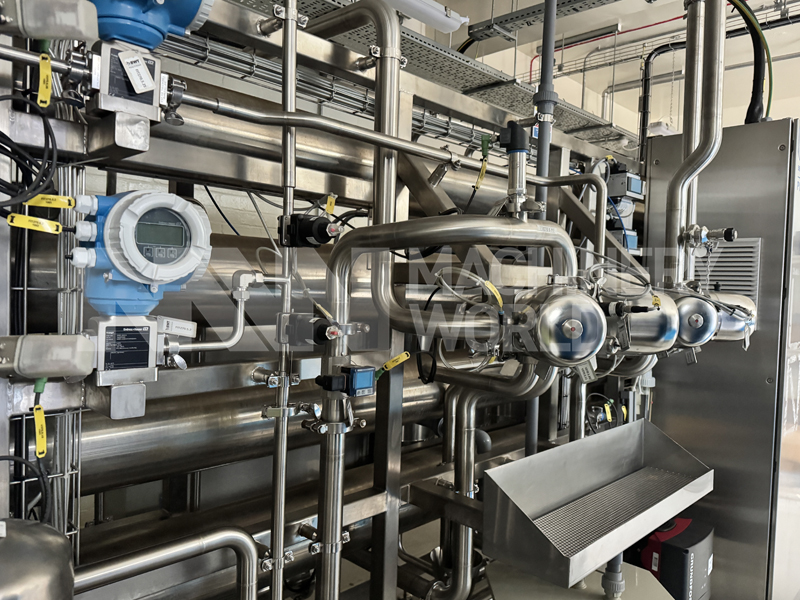

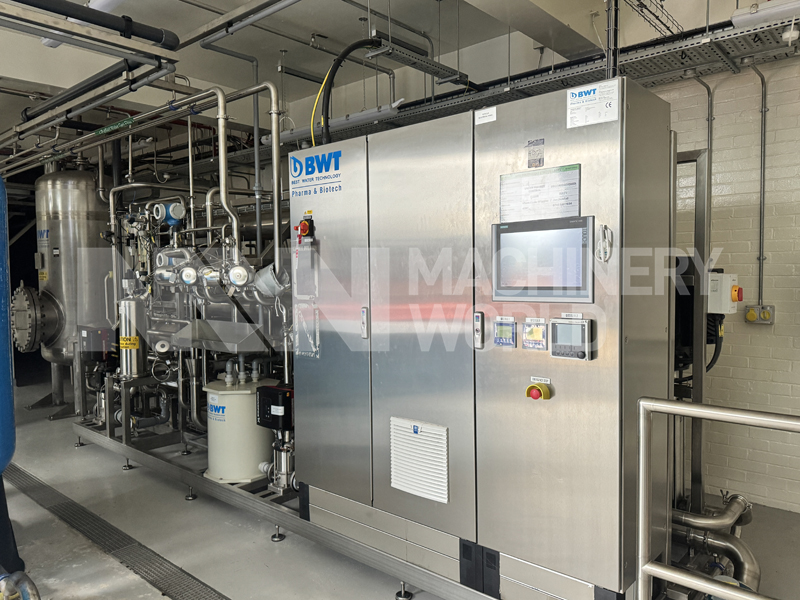

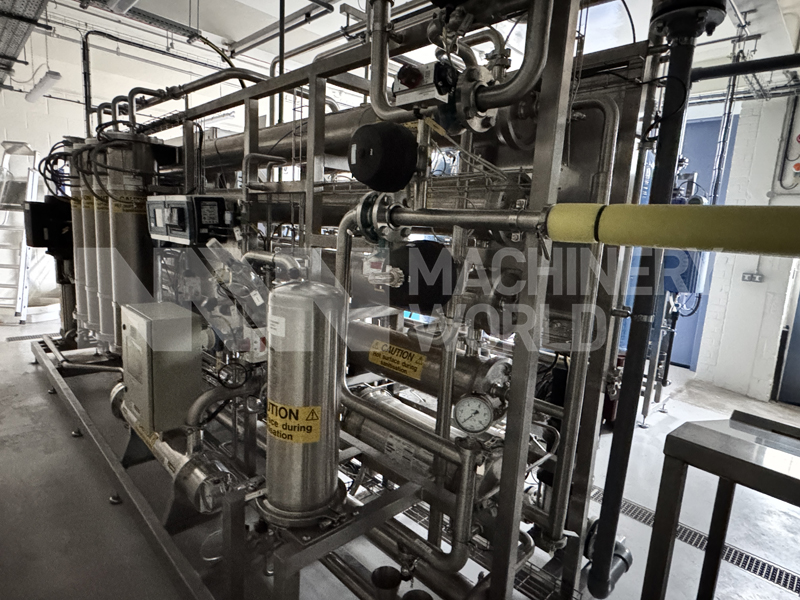

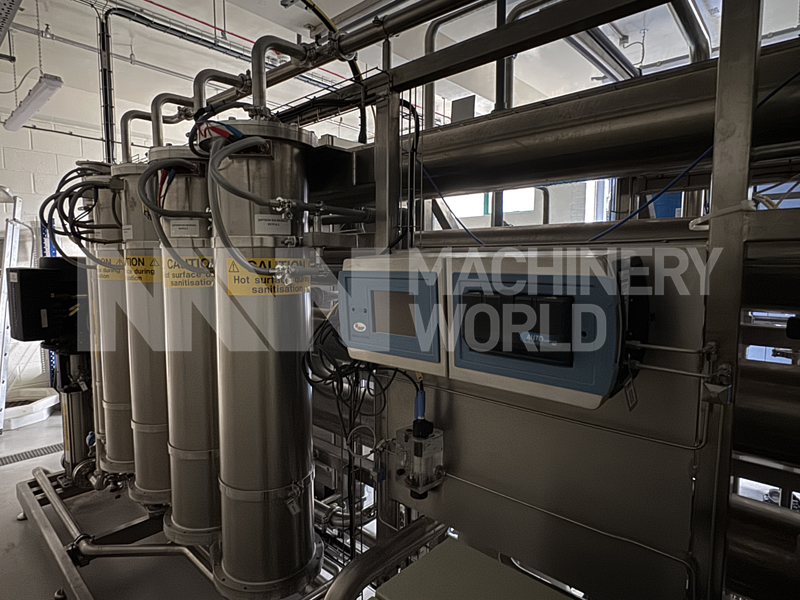

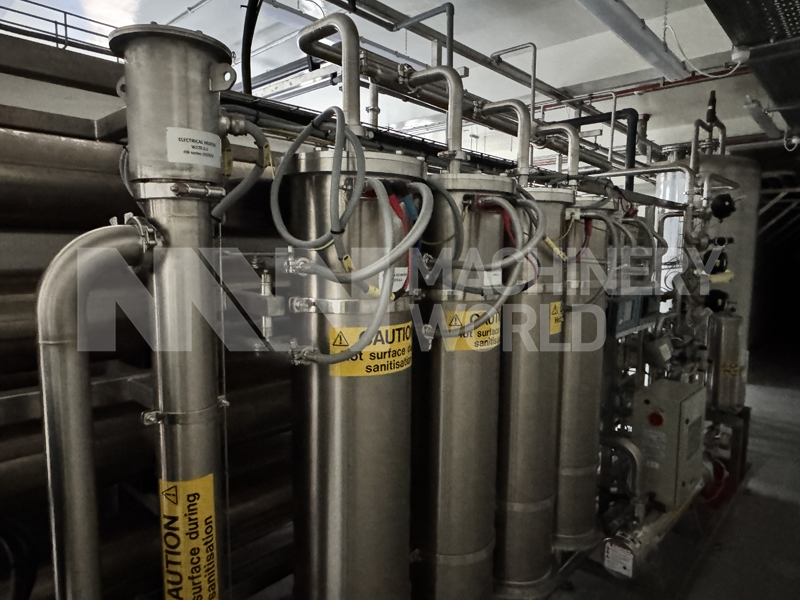

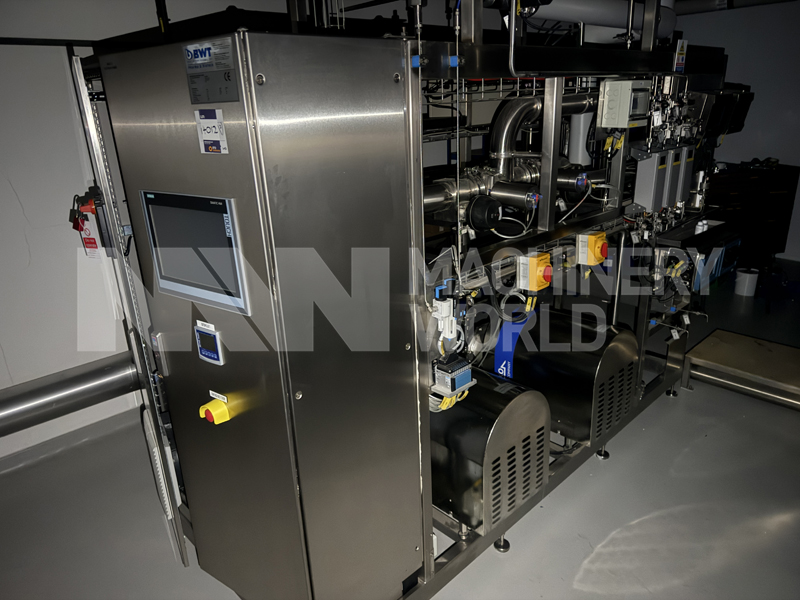

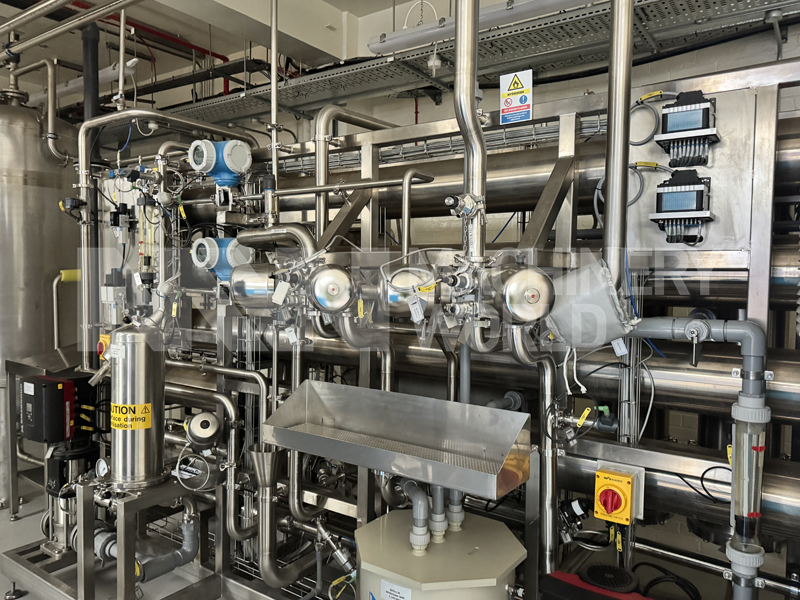

BWT OSMOTRON PRO 12000 PW-2S Purified Water Generation System

The main purified water generation system is a BWT OSMOTRON PRO 12000 PW-2S, designed for high-purity process water production.

Technical Specification

• Manufacturer: BWT Pharma & Biotech
• Model: OSMOTRON PRO 12000 PW-2S
• Manufacturing Year: 2023
• Serial Number: C22/09/1260.2
• Nominal Purified Water Output: Approx 12,000 LPH (12 m³/h), subject to verification
• Rated Electrical Power: 103 kW
• Operating Current: 164 A
• Electrical Supply: 400 V
• Frequency: 50 Hz

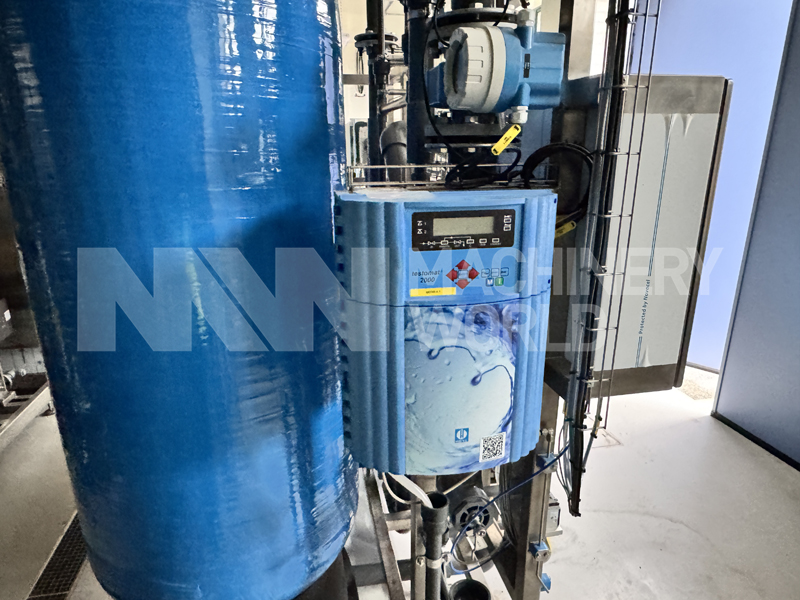

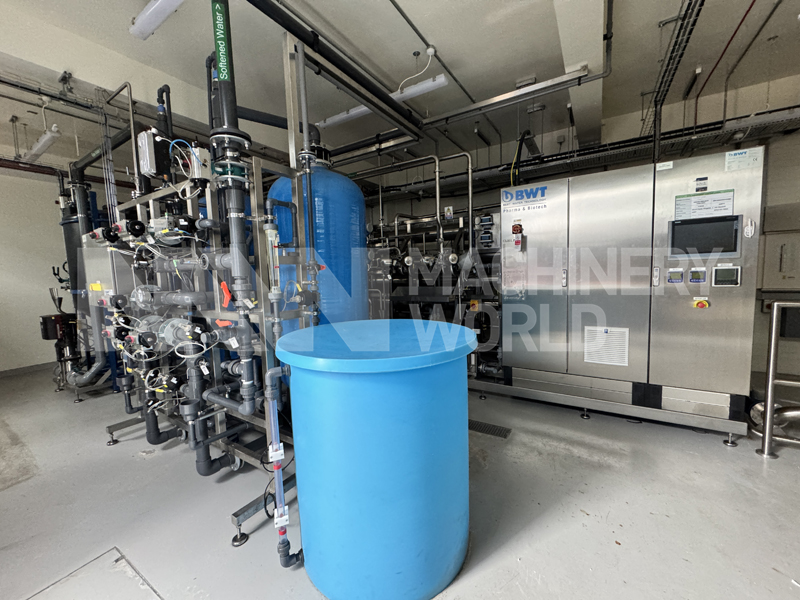

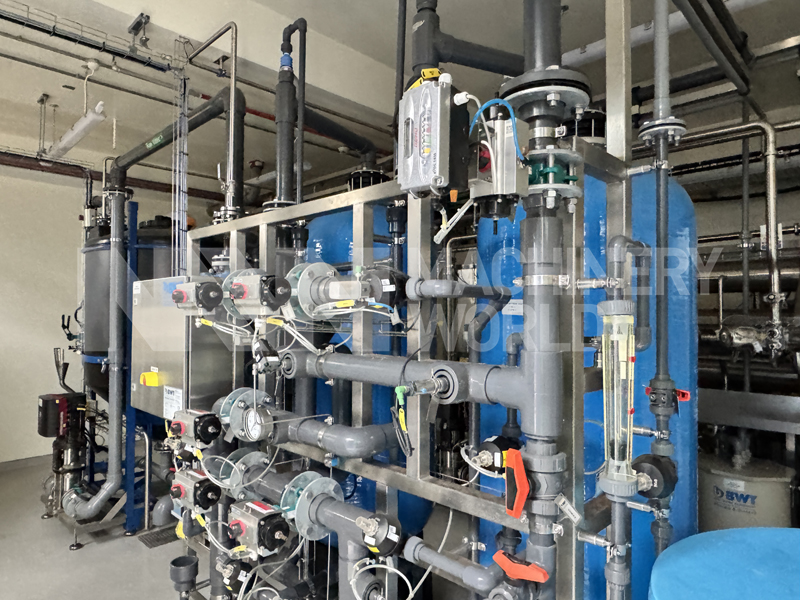

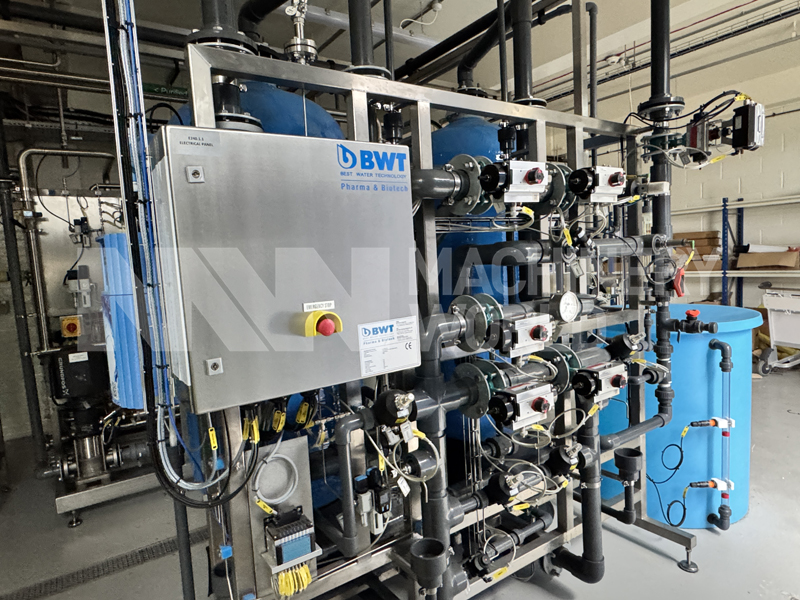

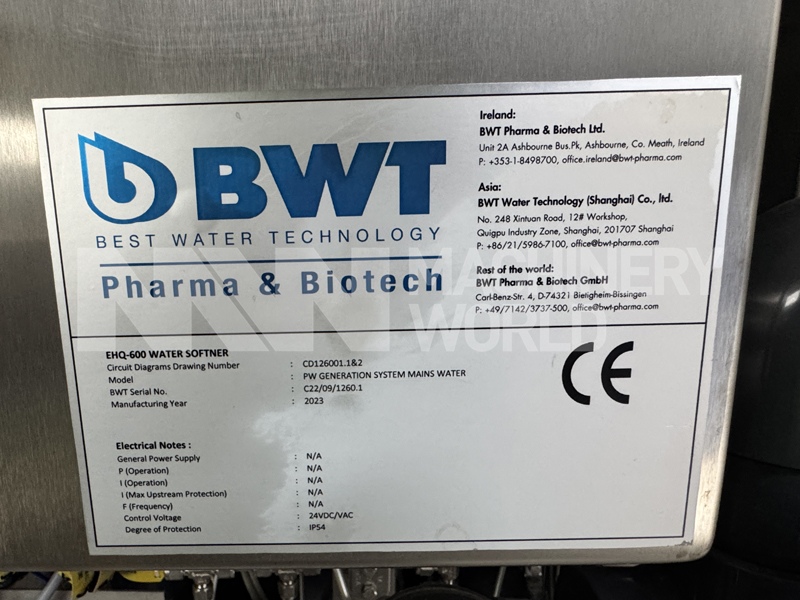

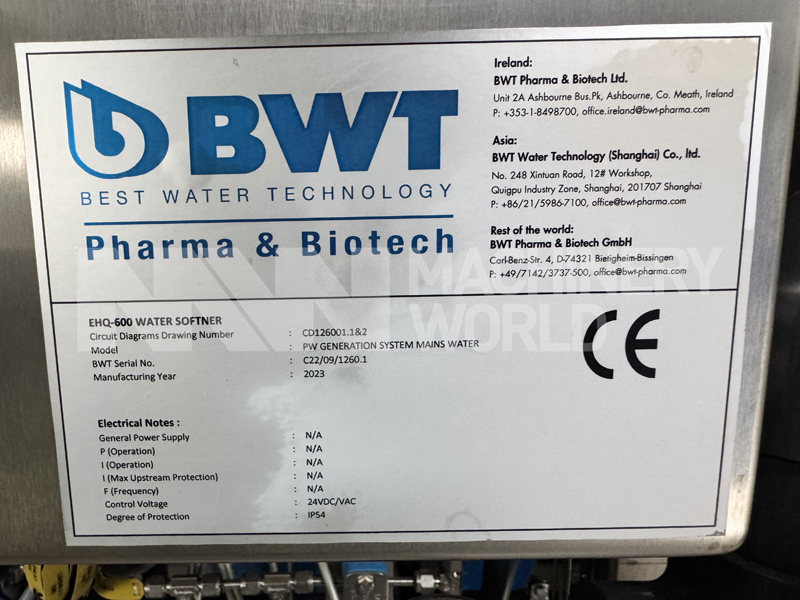

BWT EHQ-600 Water Softening & Pre-Treatment System

The installation incorporates a BWT EHQ-600 Water Softening System as part of the mains water pre-treatment arrangement. The pre-treatment equipment is intended to condition incoming mains water before further purification, helping protect downstream treatment equipment against hardness-related scaling.

Technical Specification

• Manufacturer: BWT Pharma & Biotech
• Model: EHQ-600 Water Softener
• Manufacturing Year: 2023
• Serial Number: C22/09/1260.1
• System Reference: PW Generation System Mains Water

Associated Pre-Treatment Equipment

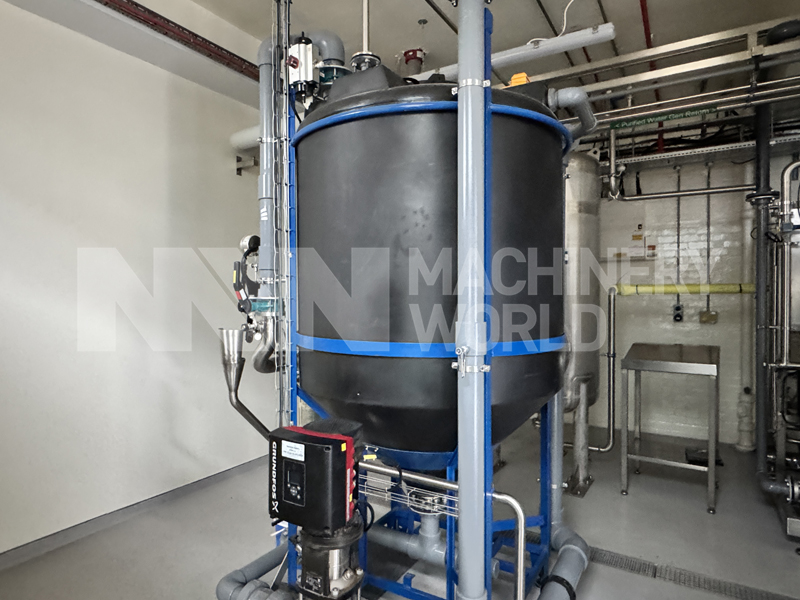

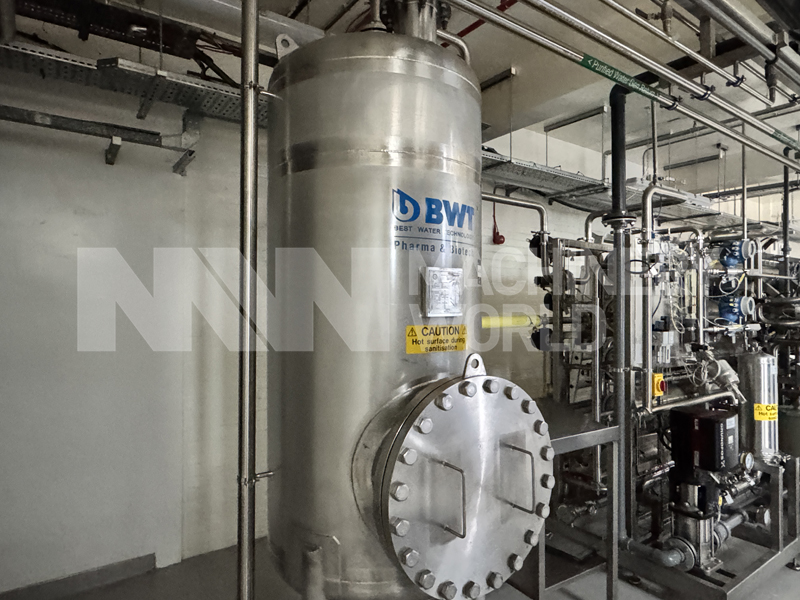

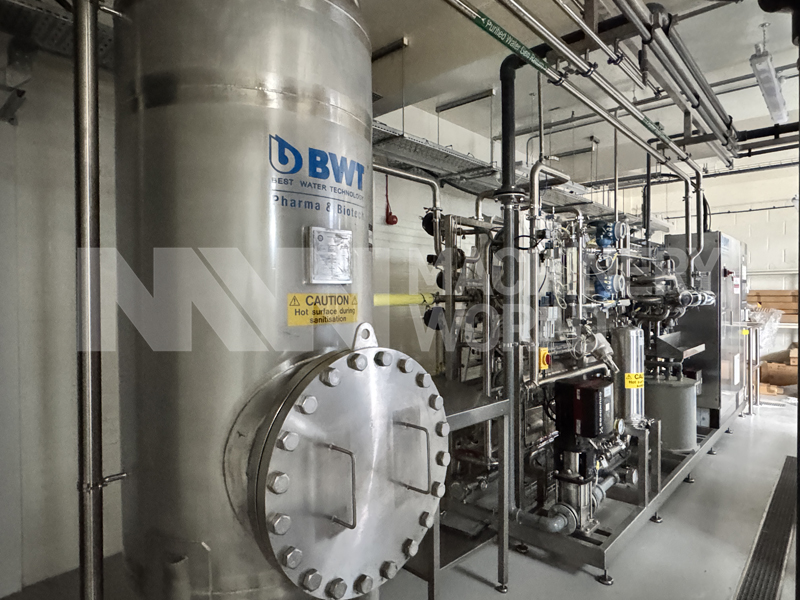

• Mains Water Tank
• Water Booster Pump
• Bag Filtration System
• EHQ-600 Water Softener

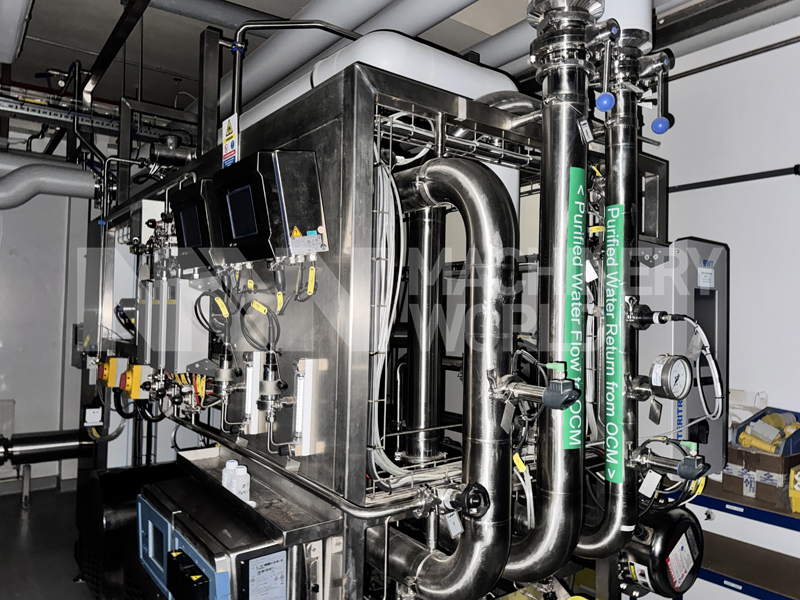

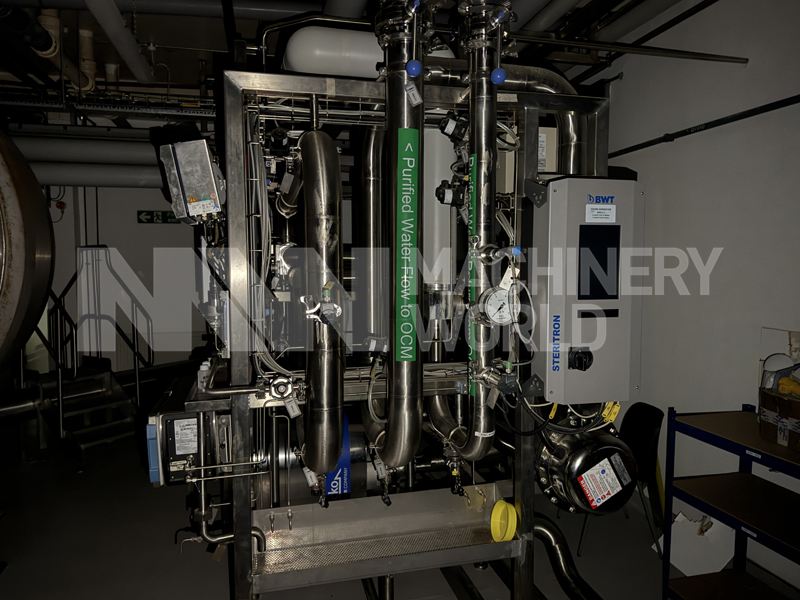

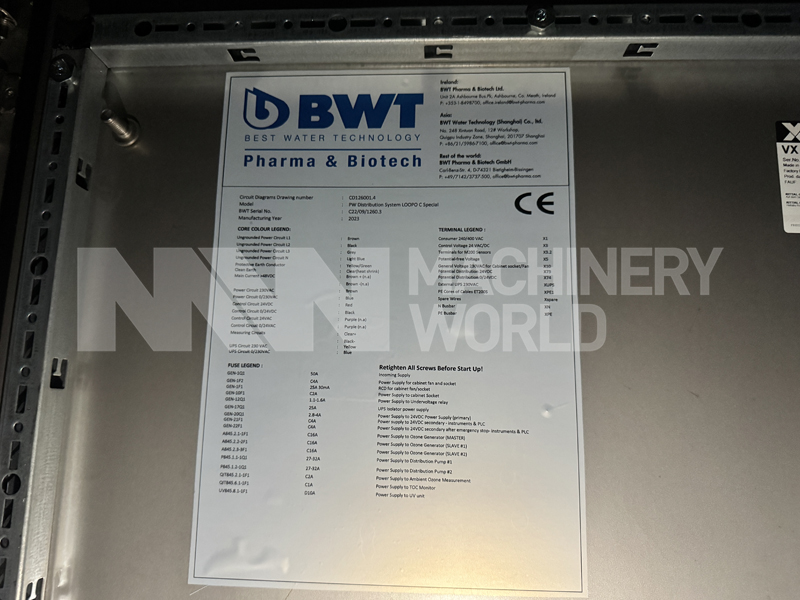

BWT Purified Water Distribution System

The plant incorporates a dedicated BWT Purified Water Distribution System. The distribution system is designed to support the controlled circulation and distribution of purified water to downstream process users.

Technical Specification

• Manufacturer: BWT Pharma & Biotech
• Model: PW Distribution System LOOP 0 C Special
• Manufacturing Year: 2023
• Serial Number: C22/09/1260.3
• Rated Electrical Power: 17 kW
• Operating Current: 37 A
• Electrical Supply: 400 V
• Frequency: 50 Hz

Applications

This BWT Purified Water Generation and Distribution Plant may be suitable for the following applications, subject to water quality requirements and technical suitability:

• Pharmaceutical purified water (PW) production
• Pharmaceutical manufacturing and processing
• Biotechnology and biopharmaceutical production
• Pharmaceutical ingredient manufacturing
• High-purity industrial process water treatment
• Industrial reverse osmosis (RO) water purification
• Cosmetics and personal care manufacturing
• Food and beverage process water treatment
• Laboratory and high-purity utility water supply
• Industrial water purification and distribution systems

Additional Information

Manufactured in 2023, this BWT OSMOTRON PRO 12000 PW-2S represents a recent-generation pharmaceutical purified water treatment installation from an established multinational specialist in high-purity water technology.

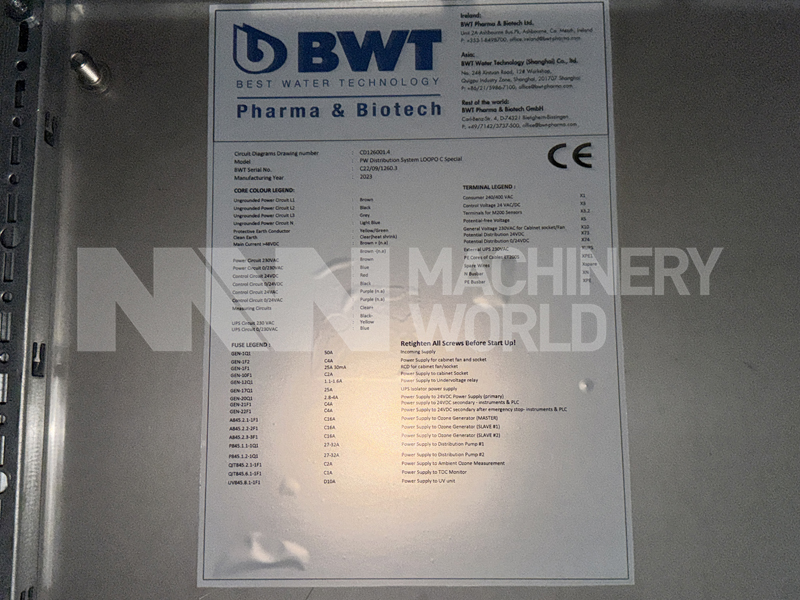

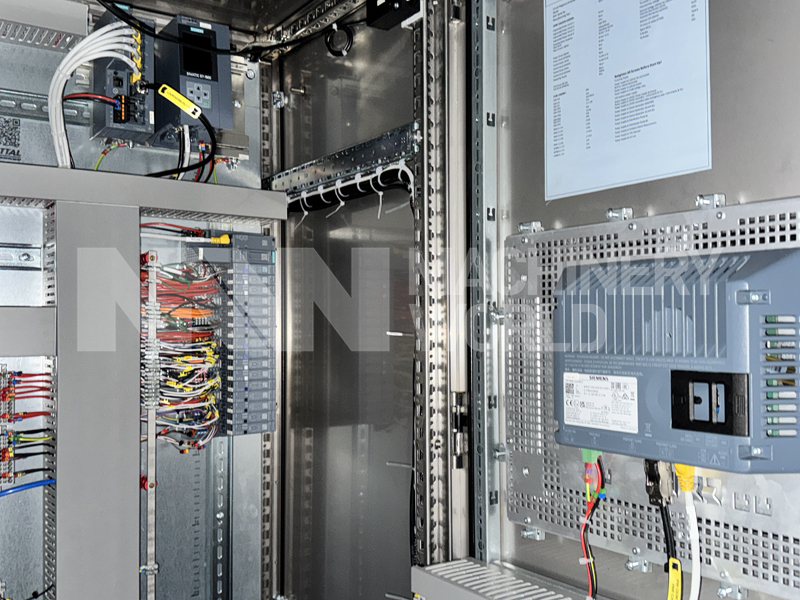

Electrical circuit documentation is available for the identified plant sections.

Nominal production capacity, raw water feed requirement, installed treatment stages, final water quality specification and equipment scope are subject to confirmation from the original technical documentation.
