4,300 Litre FrymaKoruma Jacketed Vacuum High Shear Scraped Surface Contra Rotating Mixer (Year 2018)

Description

Used 2018 FrymaKoruma 4,300 Litre Stainless Steel Industrial Vacuum Mixer and Steam Jacketed Universal Cooker, designed for industrial mixing, blending, heating and processing of liquid, semi-liquid and viscous products.

Manufactured by FrymaKoruma, a leading manufacturer of industrial mixing and processing equipment, this heavy-duty stainless steel mixing and cooking vessel features a nominal vessel volume of 4,300 litres, AISI 316 stainless steel product contact vessel, double steam jacket, inline recirculation high shear mixer, internal contra rotating scraped surface mixer assembly, integrated vacuum pump, positive lobe pump for product discharge and integrated product discharge and recirculation pipework.

Designed for industrial batch processing applications requiring controlled mixing, heating, product circulation and discharge. The machine may be suitable for a wide range of food, dairy, confectionery, sauces, ready meals, cosmetics and other viscous product applications, subject to product suitability and processing requirements.

General Specification

• Manufacturer: FrymaKoruma, Switzerland
• Machine Type: Industrial Vacuum High Shear Mixer / Steam Jacketed Universal Cooker
• Year of Manufacture: 2018
• Nominal Vessel Volume: 4,300 Litres
• Vessel Construction: AISI 316 Stainless Steel
• Heating Jacket Construction: AISI 304 Stainless Steel
• Heating System: Double Steam Jacket
• Heating Medium: Steam (or) Hot Water
• Internal Mixing System: Multi-Blade Agitator Assembly
• Product Handling: Integrated Pumping and Recirculation Pipework
• Installed Power: 181kw
• Control System: Siemens PLC & Touchscreen HMI

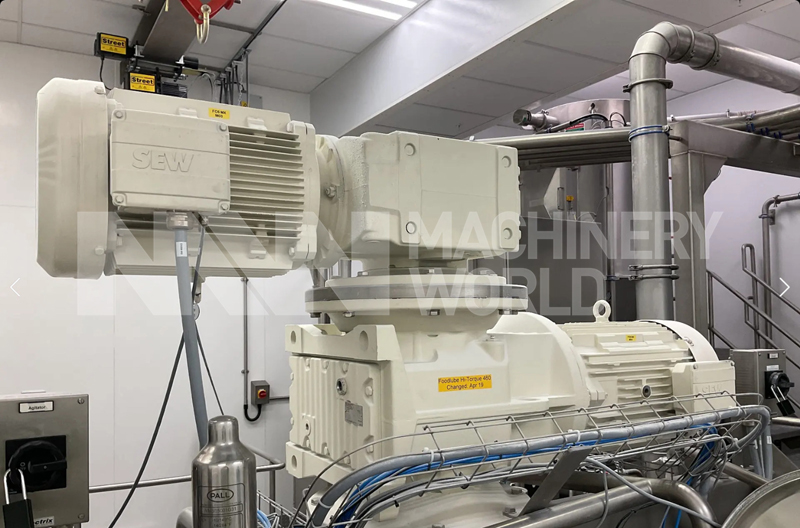

• Electrical Equipment: Industrial Motor Drives and Electrical Control System
• Product Contact Components: 316 Grade Stainless Steel
• Machine Serial / Vessel Reference: 17038

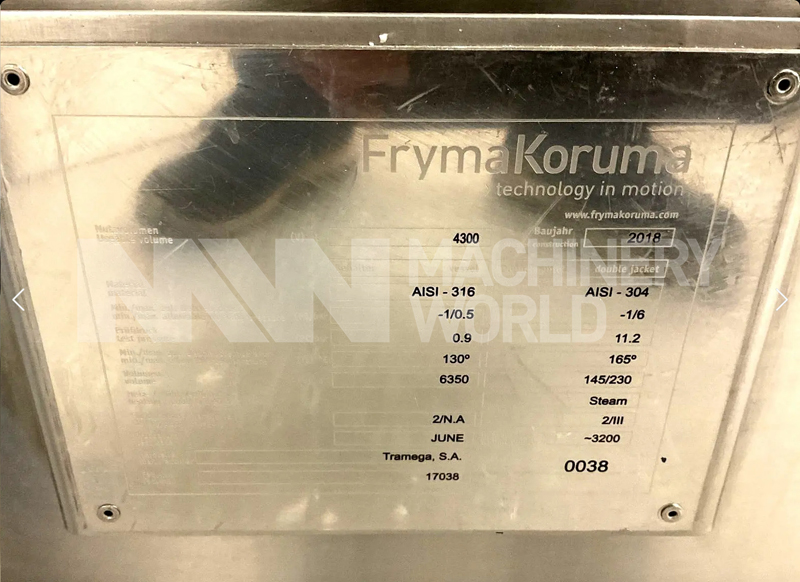

Vessel Technical Specification

Main Processing Vessel

• Nominal Volume: 4,300 Litres
• Material of Construction: AISI 316 Stainless Steel
• Design Pressure: -1 / 0.5 bar
• Test Pressure: 0.9 bar
• Maximum Design Temperature: 130°C
• Vessel Reference: 17038

Double Steam Heating Jacket

• Construction Material: AISI 304 Stainless Steel
• Heating Medium: Steam (or) Hot Water
• Design Pressure: -1 / 6 bar
• Test Pressure: 11.2 bar
• Maximum Design Temperature: 165°C
• Steam Heating Arrangement: Double Jacket

Mixing & Processing Features

• Large capacity 4,300 litre stainless steel batch processing vessel
• AISI 316 stainless steel product contact vessel
• Bottom inline recirculation high shear mixer

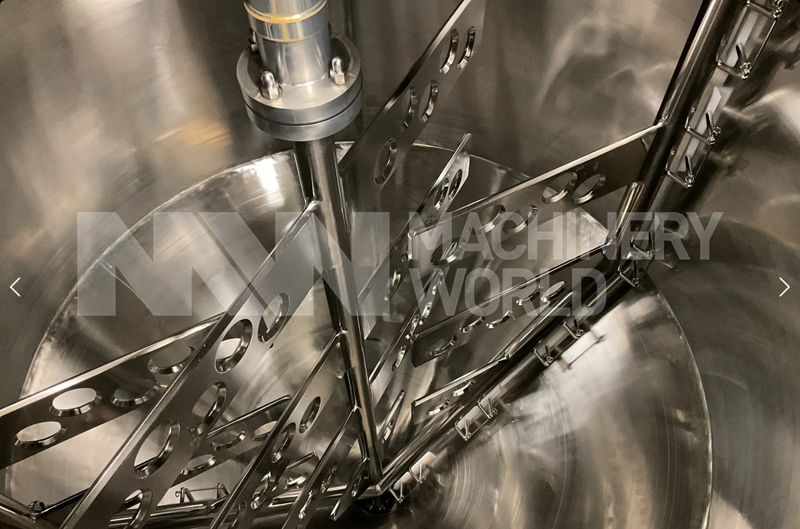

• Internal multi-blade contra rotating mixer for product mixing and blending
• Integrated product circulation and transfer pipework

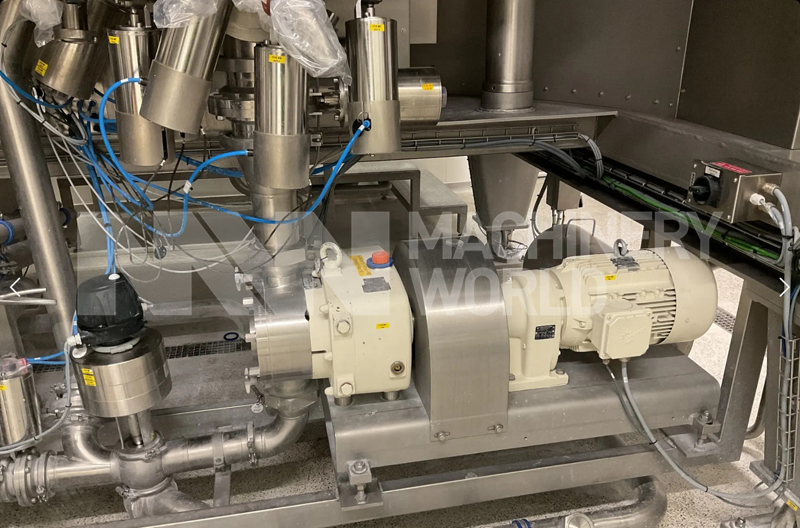

• Positive lobe pump for product discharge

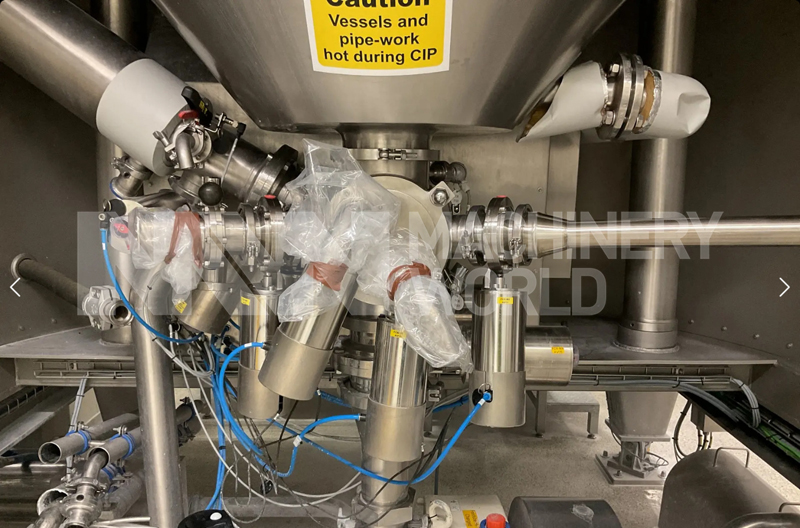

• Pneumatically actuated stainless steel process valves

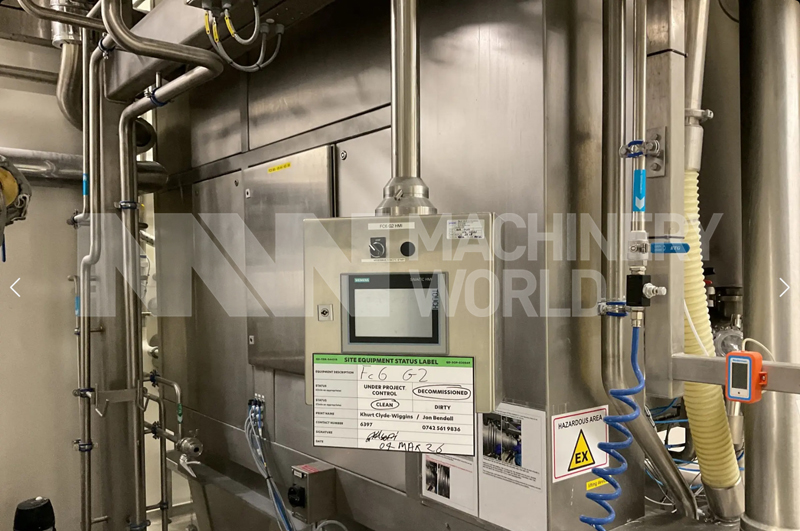

• Integrated Siemens touchscreen operator interface
• Electrical control panel with Siemens PLC
• Integrated vacuum pump for product de aeration
• CIP-compatible vessel and pipework arrangement
• Heavy-duty industrial construction

Suitable Applications

This FrymaKoruma industrial vacuum mixer and steam jacketed cooker may be suitable for processing a wide range of liquid, semi-liquid and viscous products, depending on product characteristics and operating requirements.

Food & Dairy Processing

• Sauces, gravies and dressings
• Mayonnaise and emulsified products
• Soups and ready meal preparations
• Custards and dairy desserts
• Cream-based products
• Cheese sauces and processed cheese products
• Fruit preparations, purées and fillings
• Confectionery fillings and sweet sauces
• Liquid and semi-viscous food products

Other Industrial Applications

• Cosmetic creams and lotions
• Personal care products
• Emulsions and pastes
• Other compatible industrial mixing and blending applications
